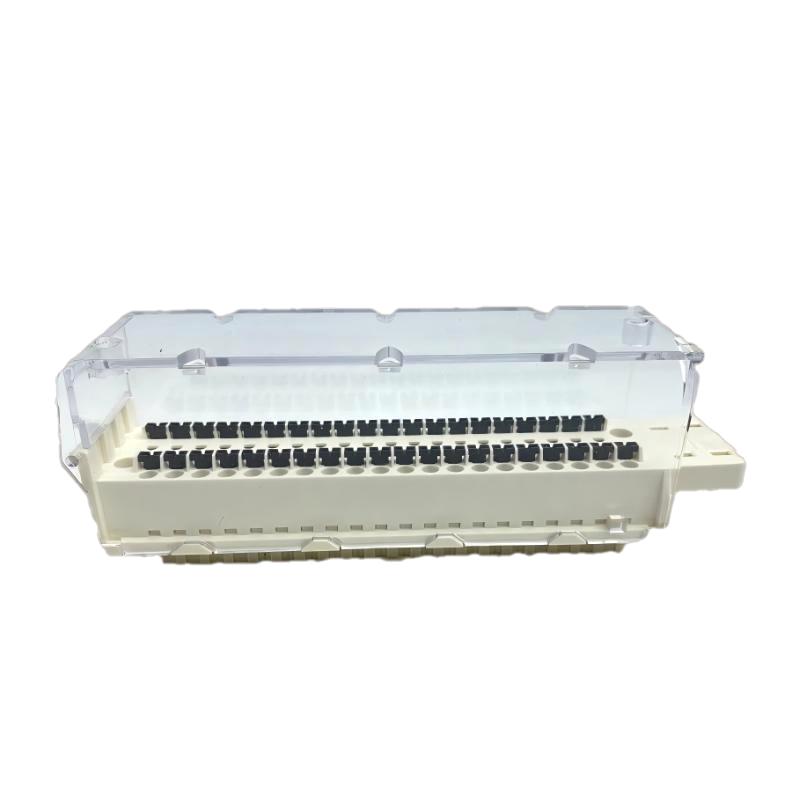

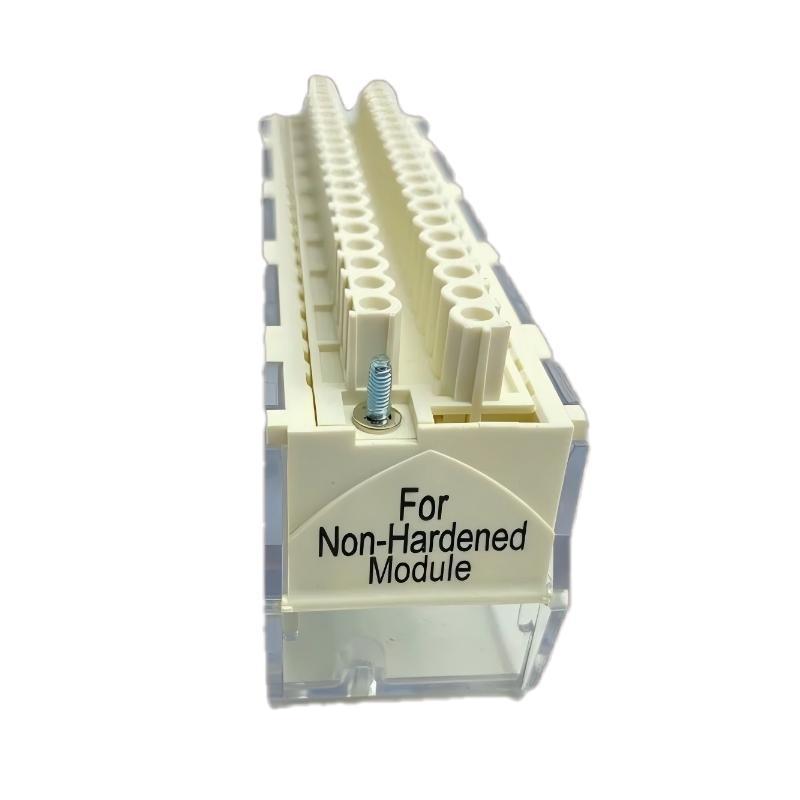

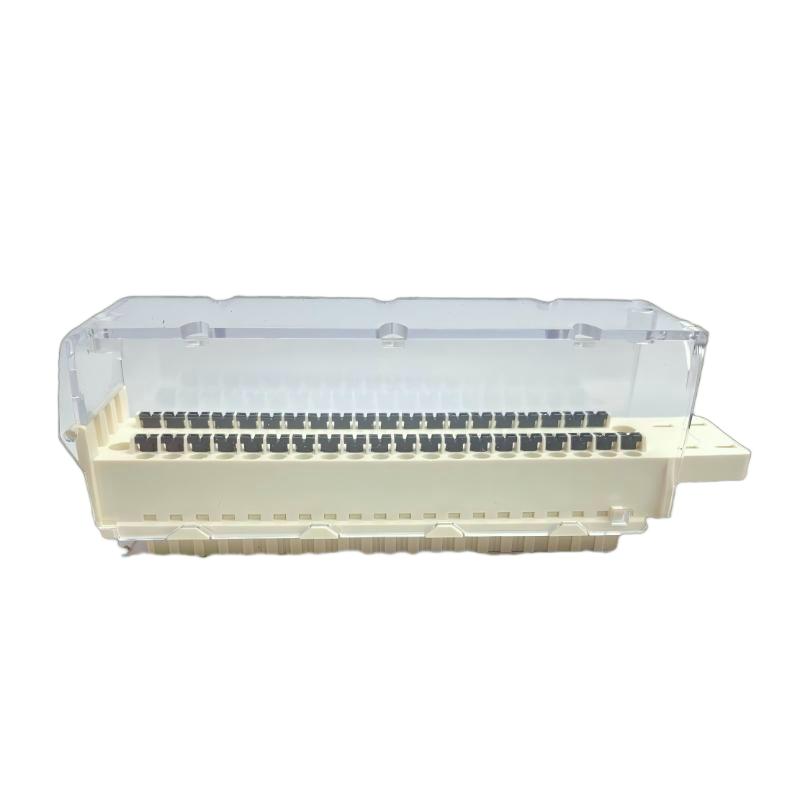

1. What is the primary function of the Schneider BMXFTB4020 Removable Connection Block?

The Schneider BMXFTB4020 Removable Connection Block is designed for Modicon X80 PLC systems and provides a reliable connection interface between field devices and I/O modules. It allows sensors, actuators, and other industrial devices to be connected securely to the automation system.

The removable design allows maintenance personnel to quickly disconnect and reconnect field wiring during module replacement or system maintenance. This reduces downtime and improves maintenance efficiency, especially in industrial applications where fast troubleshooting and equipment servicing are required. By providing a stable electrical connection, the BMXFTB4020 helps maintain reliable signal transmission between field devices and the PLC control system.

2. What industrial applications are suitable for the Schneider BMXFTB4020?

The BMXFTB4020 is widely used in industrial automation systems based on Schneider Modicon X80 architecture. Typical applications include manufacturing equipment, process automation, energy systems, water treatment plants, chemical production facilities, and infrastructure control systems.

In PLC applications, the connection block is commonly used with digital input modules, digital output modules, and other compatible X80 I/O modules. It provides organized field wiring connections, helping engineers build reliable control cabinets and simplify system installation. The removable connection structure is particularly useful in large automation projects where regular maintenance and module replacement are required.

3. What should be considered when installing the Schneider BMXFTB4020?

Before installation, users should confirm that the BMXFTB4020 is compatible with the selected Modicon X80 I/O module. During installation, the connection block should be correctly aligned with the module interface and securely mounted to ensure proper electrical contact.

Field wiring must follow the electrical drawings and system design requirements. Engineers should verify terminal assignments, cable specifications, grounding methods, and signal routing to prevent wiring errors. After installation, the PLC system should be tested to confirm that all connected field signals are correctly detected and controlled.

Proper installation helps prevent signal loss, communication issues, and unexpected equipment downtime.

4. What are the common causes of connection problems with the BMXFTB4020?

Connection problems with the BMXFTB4020 may result from incorrect wiring, loose terminals, improper installation, damaged cables, field device faults, or I/O module configuration errors.

When abnormal signals occur, technicians should first check whether the terminal wiring matches the system design and verify that all connections are secure. The condition of field cables should also be inspected for damage, short circuits, or poor contact.

If the hardware connection is normal, the PLC I/O module status and program configuration should be checked. A systematic troubleshooting process can help identify whether the issue comes from the connection block, wiring system, I/O module, or connected field equipment.

5. How can faults related to the Schneider BMXFTB4020 be diagnosed?

Fault diagnosis should begin by checking PLC diagnostic information and reviewing the status of the connected I/O modules. Engineers should confirm whether the problem is caused by the connection block, the module, or the field device.

The physical connection between the BMXFTB4020 and the I/O module should be inspected to ensure proper installation and reliable contact. Field wiring should then be checked, including terminal connections, signal cables, and device-side wiring.

If no hardware issues are found, the PLC program configuration should be reviewed, including I/O addressing, channel settings, and control logic. Combining software diagnostics with physical inspection allows engineers to locate problems efficiently and restore normal operation.

6. What are the main technical advantages of the Schneider BMXFTB4020?

The BMXFTB4020 features a removable connection design that improves installation flexibility and maintenance efficiency in Modicon X80 PLC systems. Compared with fixed wiring solutions, it allows field connections to be disconnected quickly when replacing or servicing I/O modules.

The connection block provides reliable electrical contact and organized wiring management for industrial control cabinets. Its compatibility with Modicon X80 modules makes it suitable for automation systems that require stable signal connections and convenient maintenance.

For large-scale industrial projects, the BMXFTB4020 helps reduce service time, simplify wiring management, and improve overall system reliability.

7. What maintenance practices are recommended for the Schneider BMXFTB4020?

Regular maintenance should include checking terminal connections, inspecting field wiring conditions, and monitoring PLC system diagnostics. Maintenance personnel should verify that terminal screws remain properly tightened and that no loose connections have developed due to vibration or long-term operation.

The wiring environment should also be inspected to ensure cables are not damaged by heat, moisture, mechanical stress, or electrical interference. In demanding industrial environments, periodic inspections help prevent unexpected signal failures.

Preventive maintenance of the BMXFTB4020 can improve PLC system stability, reduce downtime, and extend the service life of automation equipment.

8. What advantages does the Schneider BMXFTB4020 provide compared with fixed connection methods?

Compared with traditional fixed connection methods, the Schneider BMXFTB4020 provides greater maintenance flexibility through its removable terminal design. When an I/O module requires replacement or inspection, technicians can disconnect the connection block quickly without removing all field wiring.

The module also improves control cabinet organization by providing a structured and reliable wiring interface. This simplifies installation, reduces troubleshooting time, and improves the efficiency of system maintenance.

When used with the Modicon X80 platform, the BMXFTB4020 helps enhance PLC system reliability, improve operational efficiency, and support long-term industrial automation applications.
