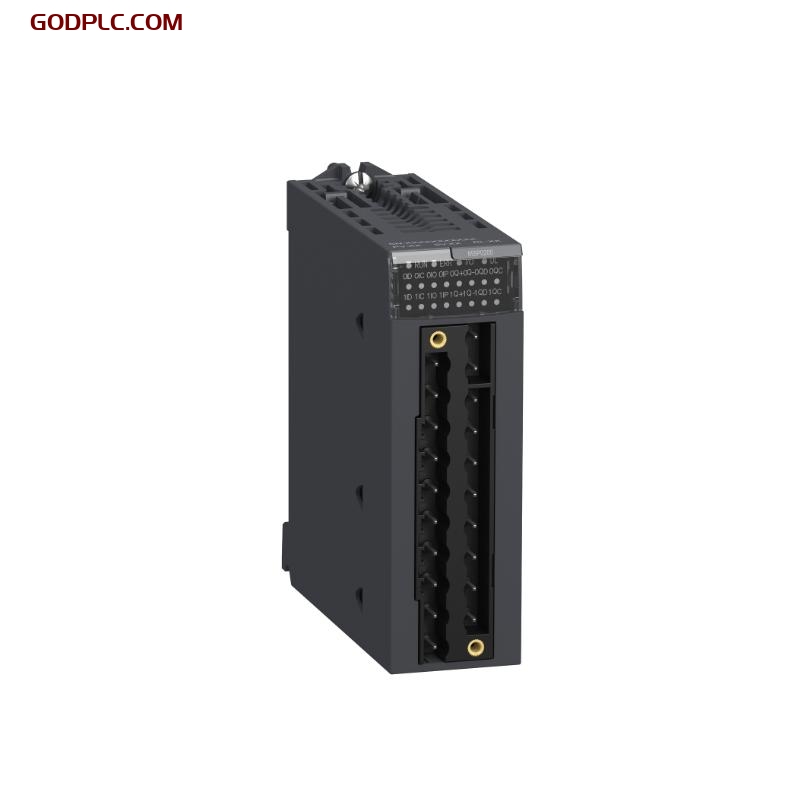

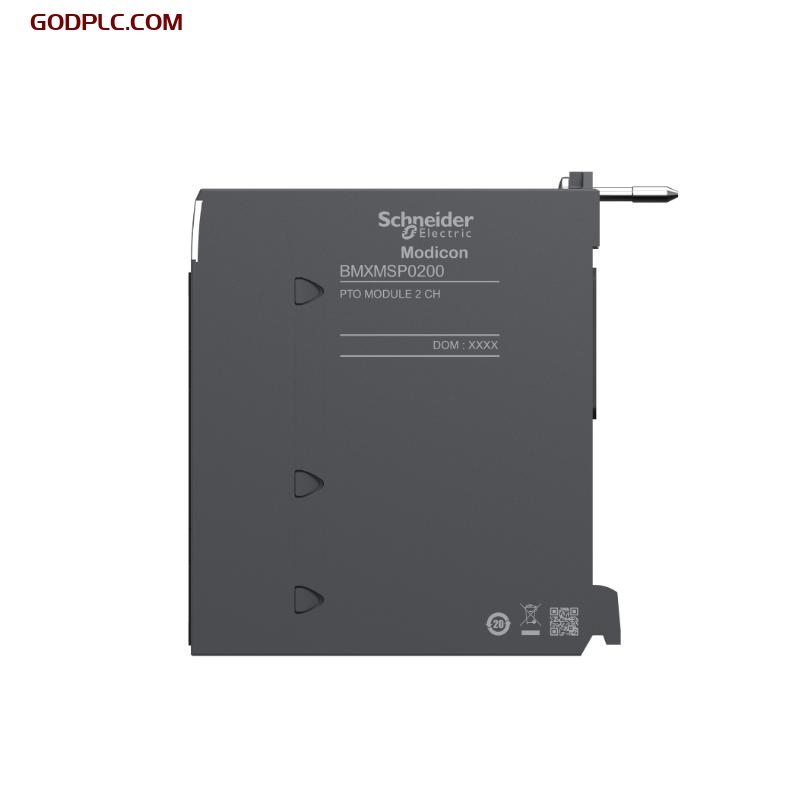

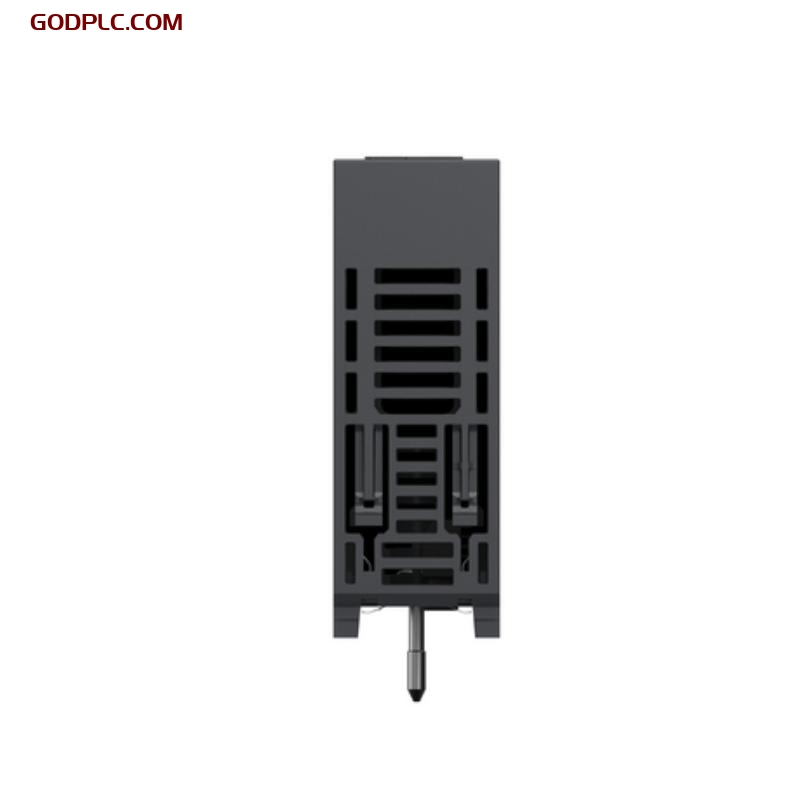

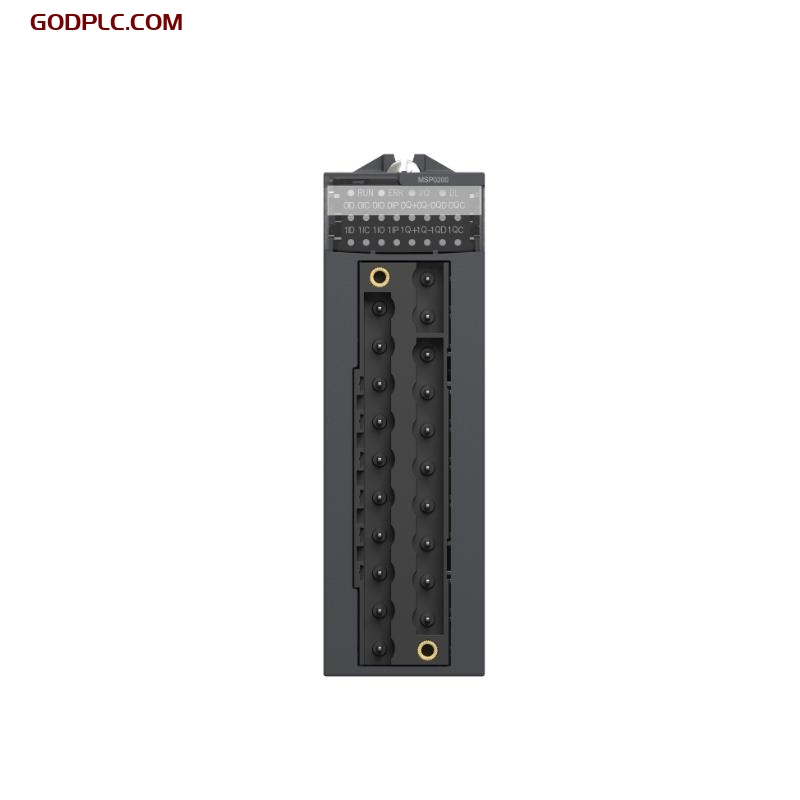

Schneider BMXMSP0200 Pulse Train Output Module

Product Overview

The Schneider BMXMSP0200 Pulse Train Output Module is designed to provide high-performance pulse output signals for use in industrial automation systems. It enables precise control of devices that require pulse-based control, such as motors, actuators, and positioning systems. The module is part of Schneider Electric’s Modicon M340 platform, ensuring seamless integration with PLC systems for various applications.

With its robust design and high-speed output capabilities, the BMXMSP0200 is ideal for applications requiring reliable pulse output for controlling a wide variety of industrial equipment. Whether used in positioning, speed control, or counting applications, this module provides accurate and dependable performance in demanding environments.

Key Features

• High-Speed Pulse Output – Delivers high-frequency pulse trains with precise timing, enabling control of high-speed devices such as motors and actuators

• Pulse Width Modulation (PWM) – Supports PWM output for controlling the speed and position of motors and other rotating devices with precision

• Configurable Pulse Parameters – Offers flexibility with configurable parameters such as pulse frequency, width, and duty cycle to suit various control needs

• Integration with Modicon M340 – Fully compatible with the Modicon M340 PLC, enabling seamless integration into industrial control systems

• Error Diagnostics – Features built-in diagnostic tools for monitoring module health and performance, minimizing downtime and enhancing system reliability

• Wide Range of Applications – Ideal for positioning systems, motor control, flow control, and measuring equipment in industries such as manufacturing, energy, and robotics

• Compact and Space-Saving – Designed to fit into the Modicon M340 rack system, optimizing space utilization in control panels and automation enclosures

• Easy Configuration and Maintenance – Supports easy programming and configuration via Schneider’s Unity Pro or SoMachine software, simplifying setup and ongoing maintenance

Technical Specifications

3.1 Mechanical Specifications

3.2 Electrical Specifications

3.3 Environmental Specifications

3.4 System Compatibility

Industry Applications

• Motion Control – Provides pulse output for controlling motors, actuators, and other positioning devices in automated systems

• Manufacturing – Ideal for precision control in conveyor systems, assembly lines, and other manufacturing processes requiring pulse-based control

• Robotics – Supports robotic arms and pick-and-place machines, enabling fine control over movement and positioning

• Energy and Utilities – Used in flow control and measurement systems, ensuring accurate operation of pumps, turbines, and other equipment

• Packaging – Provides precise timing and synchronization for automated packaging systems, enhancing productivity and reducing errors

The Schneider BMXMSP0200 Pulse Train Output Module is a reliable and efficient solution for industrial automation applications requiring precise pulse output control. With its high-speed pulse generation capabilities, flexibility, and seamless integration with the Modicon M340 platform, it is the ideal choice for industries needing accurate control over motors, actuators, and other high-speed devices.
