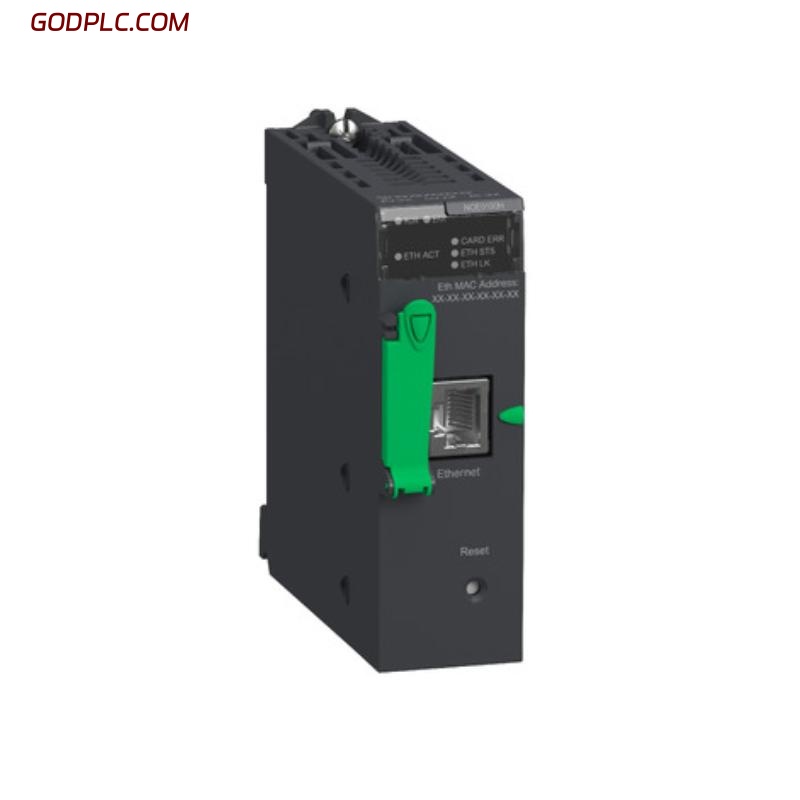

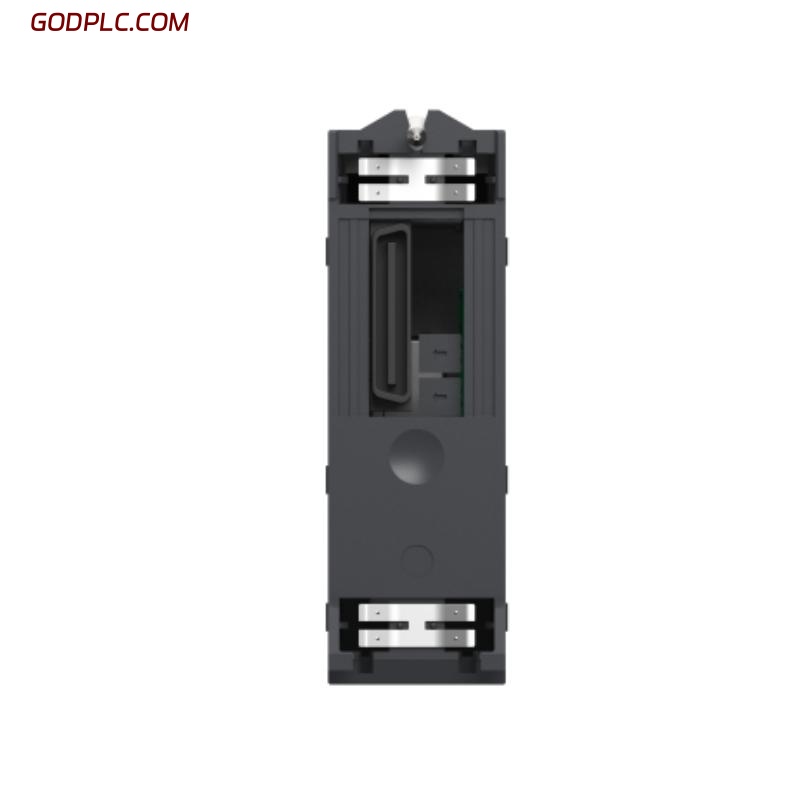

Schneider Electric BMXNOE0100H Ethernet TCP/IP Network Module
Product Overview
The Schneider Electric BMXNOE0100H is a high-performance Ethernet TCP/IP network module designed specifically for Modicon M340 programmable logic controllers (PLCs). It provides seamless integration of control systems with industrial Ethernet networks and supports key communication services such as Modbus TCP/IP, FTP, HTTP, and SNMP. Ideal for supervisory control, remote access, and data exchange, the BMXNOE0100H delivers stable and efficient Ethernet connectivity for demanding automation environments.
Key Features
-
1 × 10/100 Mbps Ethernet RJ45 port
-
Supports Modbus TCP, SNMP, HTTP, FTP, and TFTP protocols
-
Integrated web server for diagnostics and monitoring
-
Supports transparent factory communication and device integration
-
Easy configuration via Unity Pro / EcoStruxure Control Expert
-
DIN rail-mountable and modular for flexible system design
-
Designed for real-time control applications with high network reliability
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size 55 x 110 x 120mm |
| Weight | 0.2 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Ethernet Ports | 1 × RJ45 (10/100 Mbps) |
| Protocols Supported | Modbus TCP, SNMP, HTTP, FTP, TFTP |
| Network Standard | Ethernet IEEE 802.3 |
| IP Address Assignment | Static or DHCP |
| Power Supply | Via M340 backplane |
| Power Consumption | Approx. 3 W |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration/Shock | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible PLCs | Schneider Modicon M340 (BMXP34 series) |
| Configuration Software | Unity Pro / EcoStruxure Control Expert |
| Mounting Type | Rack-mounted (standard M340 slot) |
Industry Applications
-
Discrete Manufacturing – Real-time control and diagnostics across Ethernet networks
-
Power and Utilities – Reliable communication with SCADA and energy monitoring systems
-
Water and Wastewater – Remote I/O and data logging for pumping and treatment stations
-
Oil and Gas – Ethernet connectivity in pipeline and terminal automation
-
Infrastructure and Buildings – Integration of lighting, HVAC, and access systems via Modbus TCP
The Schneider Electric BMXNOE0100H Ethernet TCP/IP Network Module is a robust and efficient solution for Ethernet-based communication in Modicon M340 PLC systems. Its rich protocol support, easy integration, and industrial-grade performance make it ideal for modern control architectures requiring stable and transparent network connectivity.
Schneider BMXNOE0100H Ethernet TCP/IP Network Module is in stock. Please contact us for a quick quote and competitive pricing.
