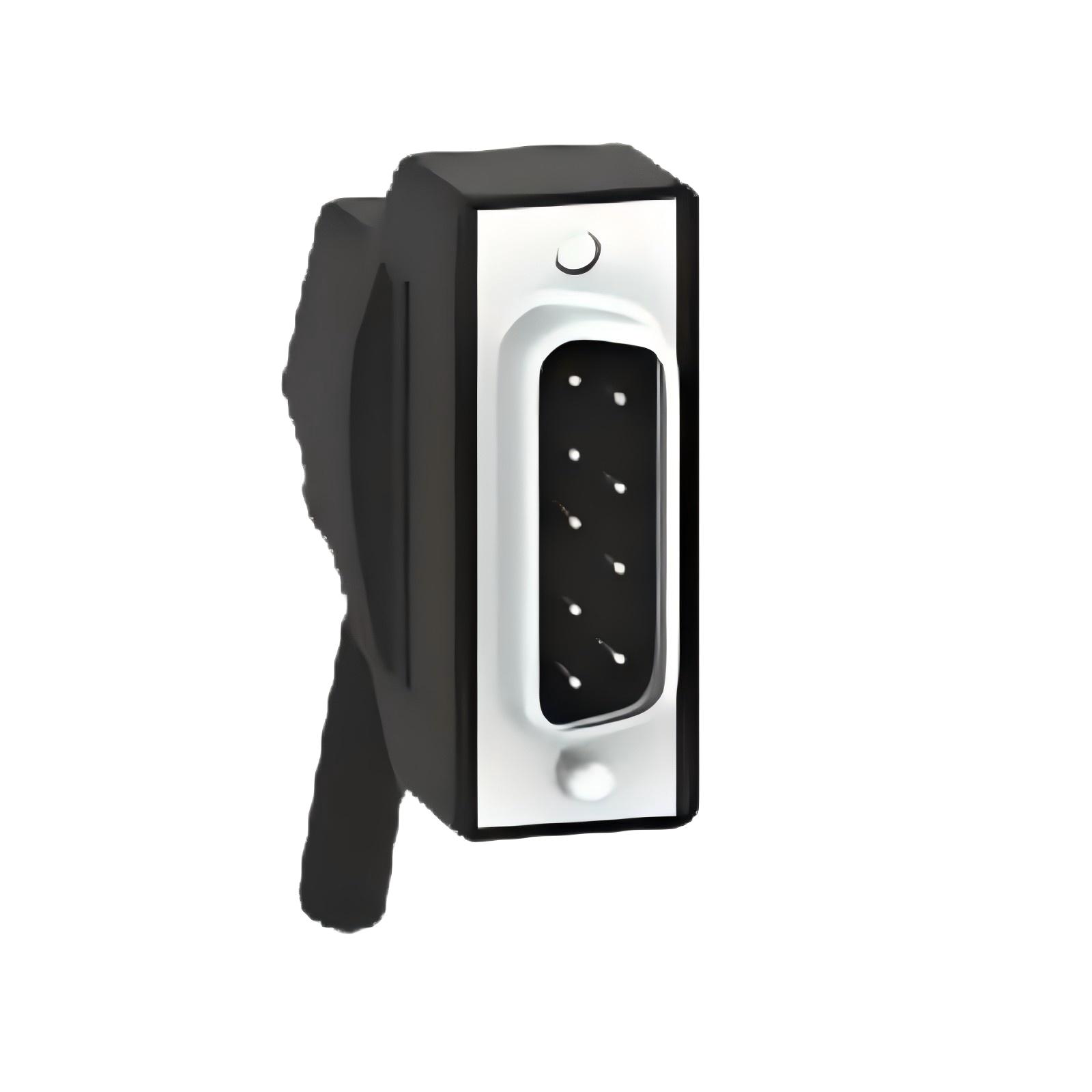

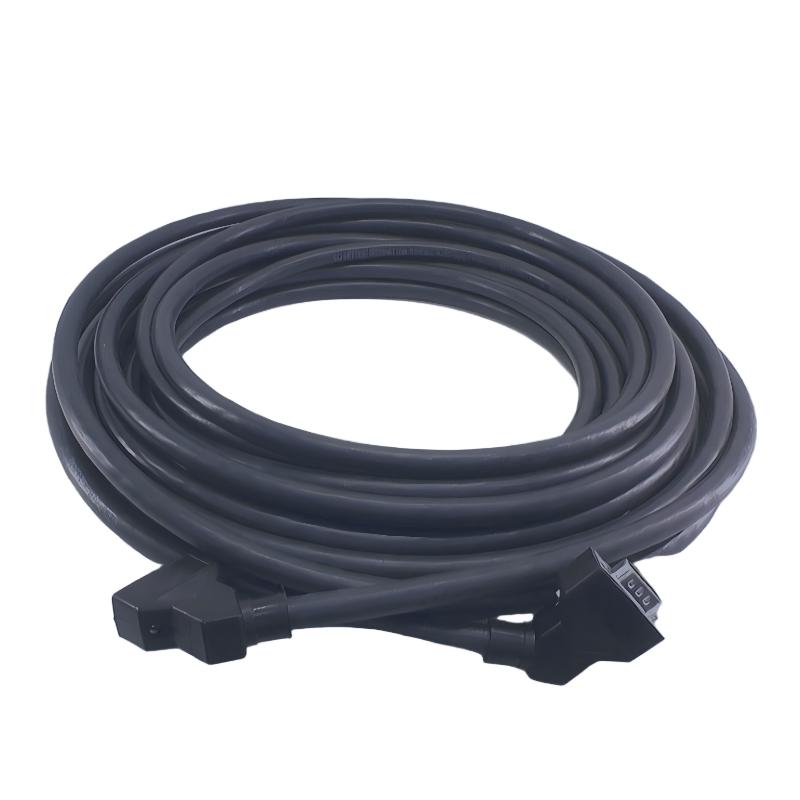

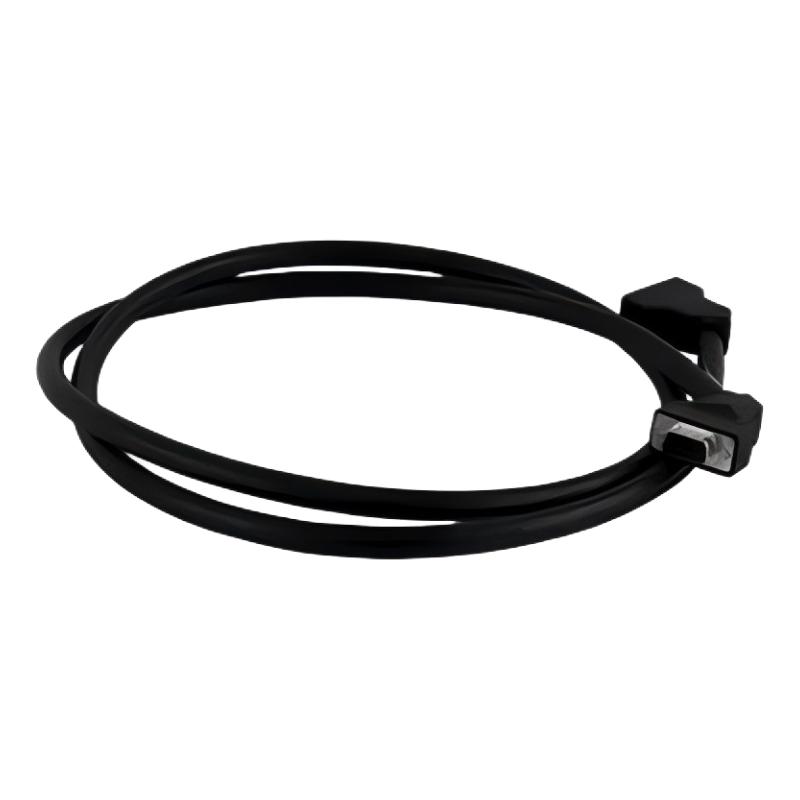

1. What is the primary function of the Schneider BMXXBC120K Backplane Extension Cable?

The Schneider BMXXBC120K Backplane Extension Cable is designed for Schneider Modicon X80 automation systems and is mainly used to connect PLC main racks with remote extension racks for long-distance backplane communication.

The cable allows engineers to expand PLC system architecture by enabling control modules and I/O modules to be installed in different locations according to equipment layout requirements.

In large industrial automation projects, the BMXXBC120K improves PLC system flexibility while maintaining reliable communication between the main rack and extension racks.

By providing stable signal transmission, the cable ensures that connected PLC modules operate correctly and meet the requirements of complex industrial applications.

2. Which Schneider automation systems are compatible with the BMXXBC120K?

The BMXXBC120K is mainly used with Schneider Modicon X80 series automation platforms for PLC rack expansion and remote rack connection.

It is suitable for industrial applications that require additional modules, expanded I/O capacity, or distributed control system designs.

In large machinery, production lines, and process control systems, engineers can use the BMXXBC120K to connect multiple racks and create a more flexible PLC architecture.

Before installation, compatibility should be confirmed according to the PLC processor model, rack configuration, and overall system design requirements.

3. Why is the BMXXBC120K Backplane Extension Cable needed in industrial control systems?

In large automation systems, PLC modules often need to be distributed according to equipment structure and field installation requirements instead of being installed in a single control cabinet.

The BMXXBC120K extends the connection distance between the main rack and remote racks, allowing engineers to arrange PLC modules in more suitable locations.

This design reduces complex wiring requirements, improves cabinet space utilization, and provides easier system expansion.

For large manufacturing equipment, energy systems, and process control applications, the backplane extension cable provides a flexible and reliable system architecture solution.

4. What are the common failure symptoms of the BMXXBC120K?

When the BMXXBC120K experiences problems, the PLC system may show symptoms such as extension rack detection failure, module communication errors, abnormal I/O operation, or system alarms.

Common causes include loose cable connections, connector contamination, cable damage, improper installation, or electromagnetic interference.

During troubleshooting, technicians should first check whether both ends of the cable are properly connected and securely installed.

PLC diagnostic information should also be reviewed to identify possible backplane communication faults.

If the connections and configuration are correct but the problem remains, replacing the cable with a tested spare unit can help confirm the fault source.

5. How should the BMXXBC120K Backplane Extension Cable be installed correctly?

Before installation, verify that the BMXXBC120K matches the current Modicon X80 PLC rack configuration.

During installation, connect both ends of the cable to the designated backplane extension interfaces and ensure that the connections are secure.

The cable routing should avoid excessive bending, mechanical stress, and strong electromagnetic interference sources.

After installation, confirm that the PLC system correctly detects the extension racks and connected modules.

Proper installation helps maintain stable communication performance and reduces the risk of automation system failures.

6. How does the BMXXBC120K improve PLC system expansion capability?

The BMXXBC120K improves PLC system expansion capability by supporting extended backplane communication over longer distances.

Engineers can install extension racks in locations that better match equipment structures and field installation conditions.

For large industrial systems, this approach reduces limitations caused by concentrated module installation and improves control cabinet organization.

The extension cable also supports future system upgrades by allowing additional PLC modules to be added when required.

Therefore, the BMXXBC120K is suitable for automation systems requiring high scalability and flexible layout designs.

7. What should be checked when troubleshooting BMXXBC120K communication problems?

When troubleshooting BMXXBC120K communication problems, technicians should first check whether the cable connections are correct and whether the interfaces are properly secured.

Next, verify that the PLC hardware configuration matches the actual installed extension rack structure.

The controller diagnostic information should be reviewed to determine whether the issue is related to backplane communication.

The installation environment should also be inspected, including possible electromagnetic interference, mechanical vibration, or improper cable routing.

If communication problems continue after inspection, replacing the cable with a known working unit can help identify whether the extension cable is defective.

8. How can the service life of the Schneider BMXXBC120K be extended?

To extend the service life of the BMXXBC120K, proper installation, regular inspection, and preventive maintenance should be performed.

During operation, the cable should be protected from mechanical damage, strong vibration, moisture, and excessive bending.

Maintenance personnel should periodically inspect the connection interfaces to ensure they remain clean and securely connected.

During PLC system modifications, unnecessary repeated connection and disconnection operations should be avoided.

With proper use and preventive maintenance, the BMXXBC120K can provide reliable long-term operation in Schneider Modicon X80 automation systems.
