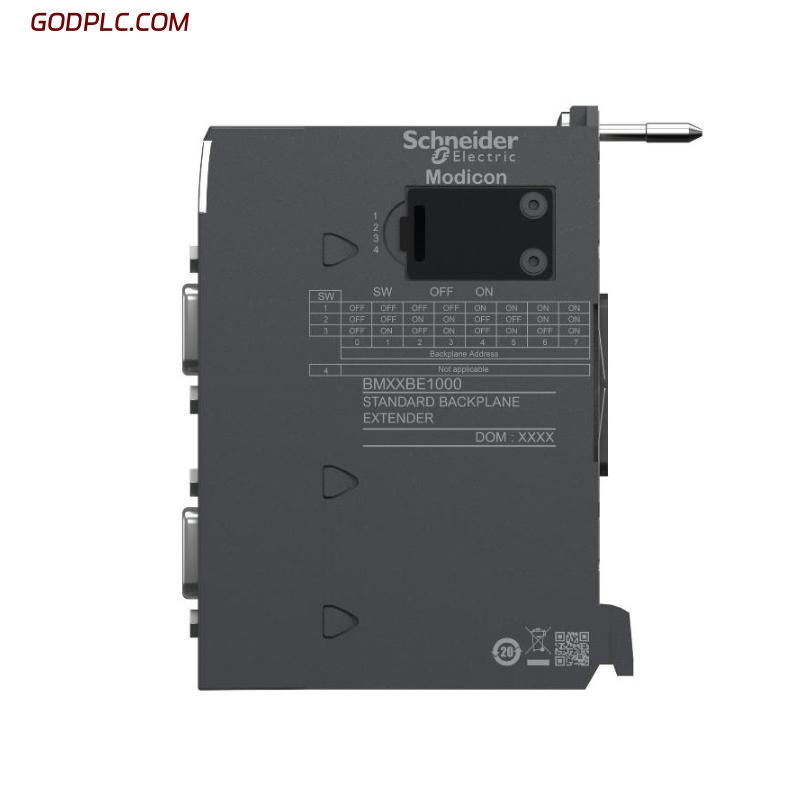

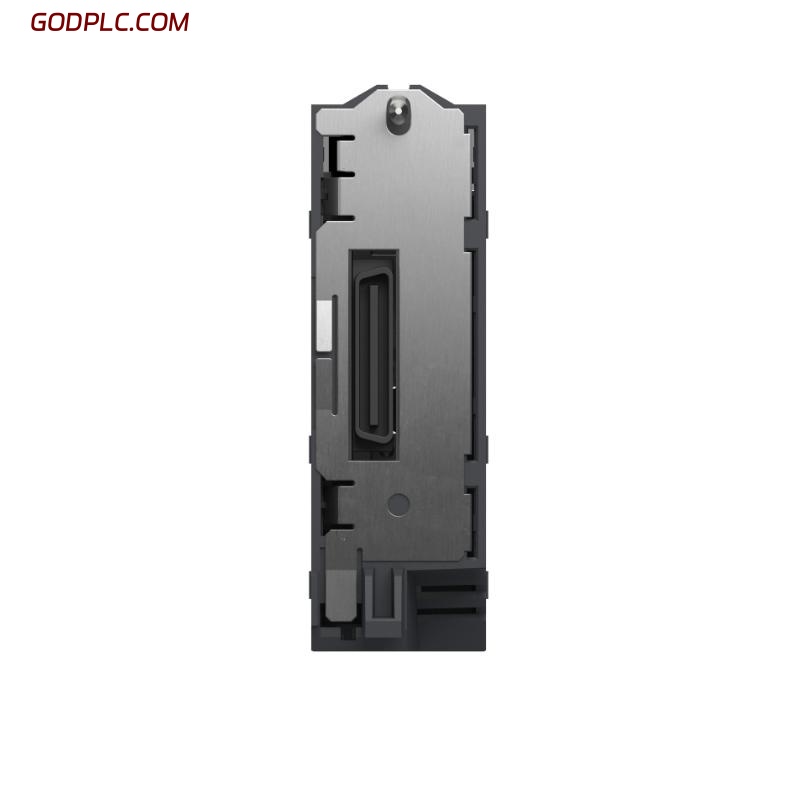

Schneider BMXXBE1000 Backplane Expansion Module
Product Overview
The Schneider BMXXBE1000 Backplane Expansion Module is designed to extend the I/O capabilities of the Modicon M340 control system. This backplane module provides the essential infrastructure for adding additional I/O racks, enabling greater scalability and flexibility within industrial automation systems. The BMXXBE1000 allows for seamless communication between the main controller and expansion modules, ensuring consistent data flow and reliable operation. Its robust design and simple integration make it an ideal solution for enhancing system capacity while maintaining high performance and reliability.
Key Features
-
Scalable Expansion – Supports the addition of up to 8 I/O racks, expanding system capacity and flexibility
-
Reliable Data Transfer – Ensures high-speed communication between the main controller and expansion modules for seamless system operation
-
Easy Integration – Designed for straightforward installation and integration with Schneider Modicon M340 systems, reducing setup time and complexity
-
Compact and Robust – Space-efficient design that maintains durability and performance in industrial environments
-
High Availability – Offers reliable operation and helps minimize system downtime, contributing to enhanced operational efficiency
-
Modular Design – Easily expandable as system needs grow, offering long-term scalability for industrial applications
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 104 x 77 x 33 mm |
| Weight | 0.178kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC ± 20% |
| Power Consumption | Approx. 2 W |
| Communication Ports | 1x I/O Bus, 1x CANopen, 1x Ethernet |
| I/O Capacity | Supports up to 8 expansion racks |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Schneider Modicon M340 series |
| Communication | CANopen, Ethernet |
| Mounting | DIN rail-mounted |
Industry Applications
-
Industrial Automation – Expands control system capabilities, providing additional I/O for complex automation systems and applications
-
Manufacturing – Increases the capacity of automated manufacturing lines, ensuring efficient operation and system scalability
-
Energy and Utilities – Expands control in energy management systems, power plants, and water treatment facilities
-
Oil & Gas – Supports modular expansion for process control systems in upstream and downstream operations
-
Building Management – Enhances the control of HVAC, lighting, and security systems within large buildings or campuses
The Schneider BMXXBE1000 Backplane Expansion Module offers a flexible, reliable, and scalable solution for expanding Schneider Modicon M340 control systems. Its easy integration and robust performance make it a valuable addition to industrial automation systems requiring growth and flexibility.
Schneider BMXXBE1000 Backplane Expansion Module is in stock. Please contact us for a quick quote and competitive pricing.
