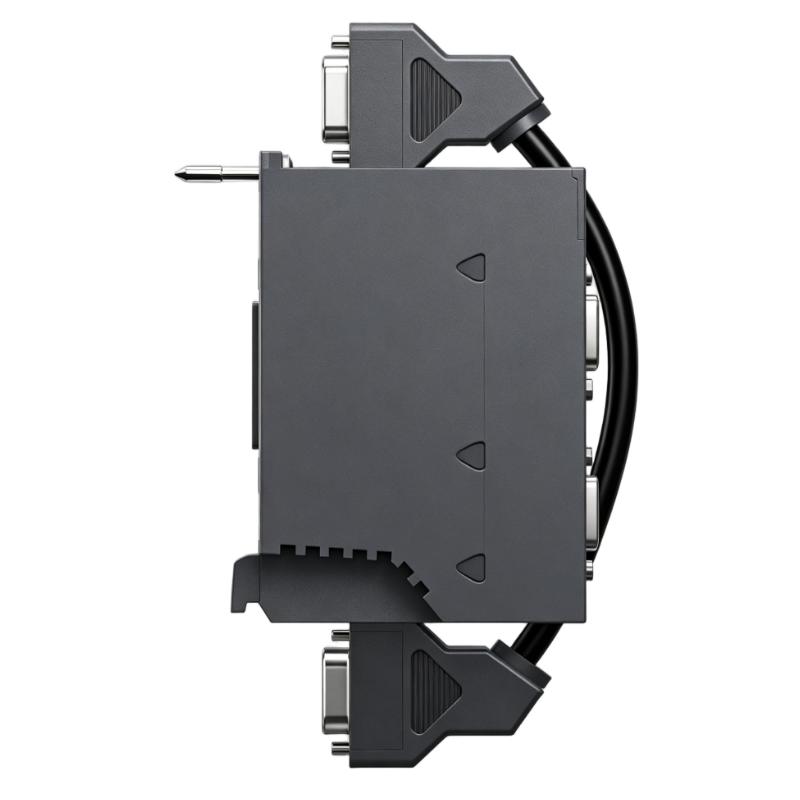

Schneider BMXXBE2005 M340 Backplane Expansion Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXXBE2005 |
| Product Type | M340 Backplane Extender Kit |
| Product Family | Modicon M340 |
| Accessory Type | Backplane Extension Kit |
| Application | Multirack System Expansion |
| Compatible Expander | BMXXBE1000 |

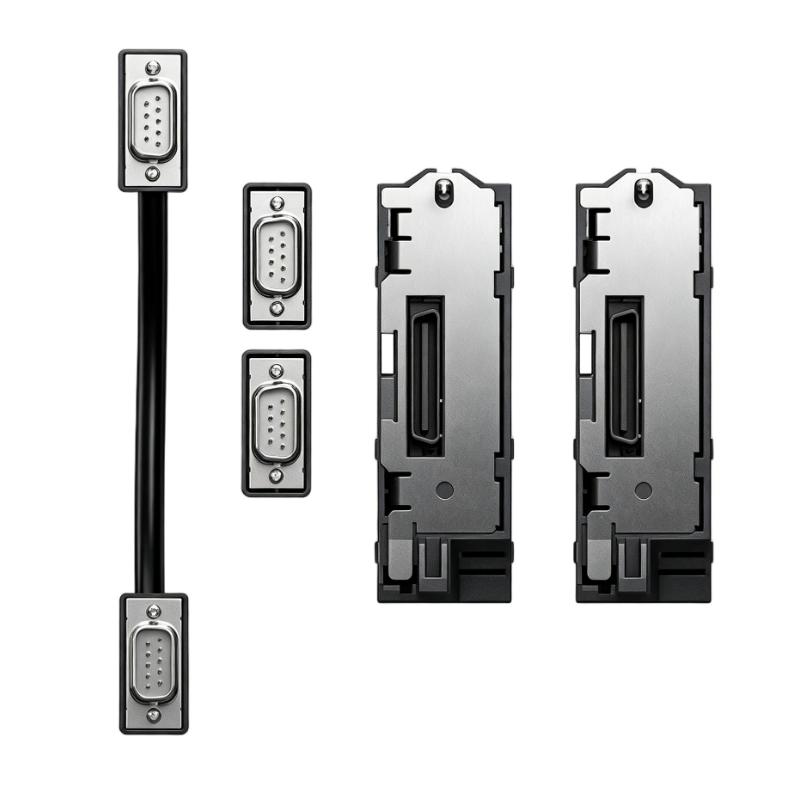

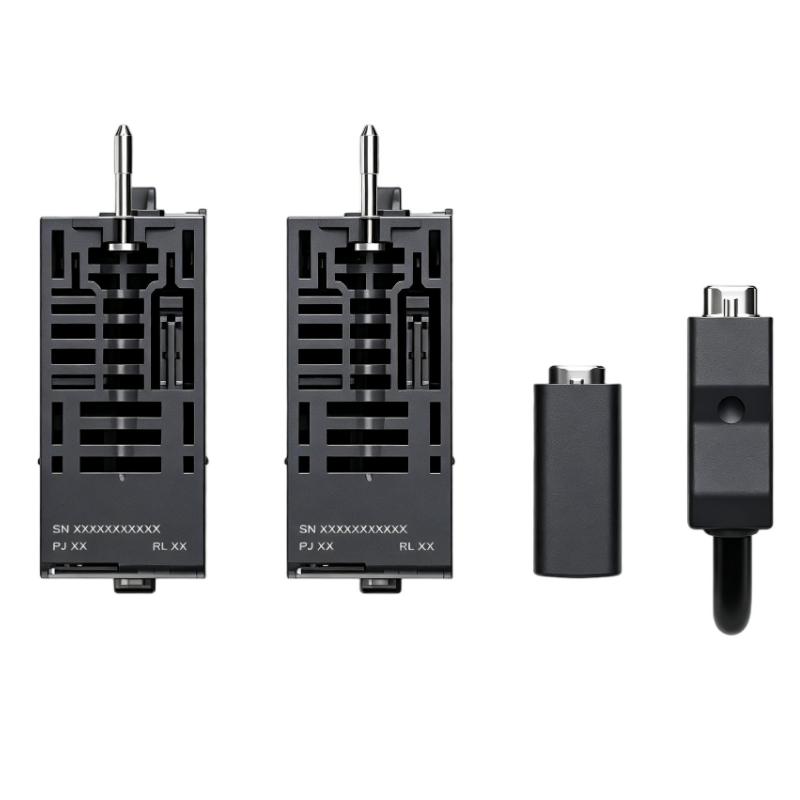

| Kit Composition | 2 × BMXXBE1000 extension modules, 1 × BMXXBC008K 0.8 m extension cable, 1 × TSXTLYEX line terminator set |
| Extension Cable | BMXXBC008K, 0.8 m |
| Line Terminator | TSXTLYEX, 2-piece set |
| Main Function | Extends the backplane/local bus connection between Modicon M340 racks |
| Rack Configuration | Multirack configuration |
| Protection Rating | IP20 |
| Environmental Application | Industrial and harsh environments |
| Certifications | CE, UL, CSA, RCM, EAC, ATEX Zone 2/22, IECEx Zone 2/22 |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No. 61010-2-201 |
| Mounting Application | Modicon M340 backplane and compatible X80 rack systems |
| Dimensions | 153.3 × 112 × 40 mm |
| Weight | 0.567 kg |
FAQ
1. What is the Schneider BMXXBE2005 used for?
The BMXXBE2005 is a complete backplane extender kit for Schneider Electric Modicon M340 systems. It provides the hardware required to expand a system into a multirack configuration, allowing additional I/O or communication modules to be installed on another compatible rack while maintaining the required local bus connection.
2. What components are included in the BMXXBE2005 kit?
The BMXXBE2005 kit includes two BMXXBE1000 backplane expansion modules, one BMXXBC008K extension cable with a length of 0.8 meters, and one TSXTLYEX line terminator set containing two terminators. These components are supplied together to simplify the installation of an M340 rack expansion system.
3. Which module is the BMXXBE2005 designed to work with?
The BMXXBE2005 is designed for use with the BMXXBE1000 backplane expander. The BMXXBE1000 modules establish the rack expansion interfaces, while the included BMXXBC008K cable provides the connection between the rack sections and the TSXTLYEX terminators are used to properly terminate the extended bus.
4. What is the purpose of the BMXXBC008K cable included in the kit?
The BMXXBC008K is the extension cable supplied with the BMXXBE2005. Its 0.8-meter length allows compatible M340 rack sections to be physically separated while maintaining the required backplane/local bus connection. The cable uses the appropriate connectors for the BMXXBE1000 expansion modules.
5. Why are line terminators included with BMXXBE2005?
The TSXTLYEX line terminators are used to properly terminate the extended backplane bus. Correct termination is important for maintaining signal integrity and stable communication across the rack expansion connection. Both terminators supplied with the kit should be installed according to the applicable M340 rack expansion architecture.
6. Can BMXXBE2005 be used to add another rack to an existing M340 system?
Yes. The kit is specifically intended for multirack expansion. It provides the expansion modules, cable, and line terminators required to establish the additional rack connection. Before installation, the existing M340 processor, backplane, rack arrangement, and module count should be checked against the system’s multirack limitations.
7. What should be checked if the expanded rack cannot communicate with the main rack?
Check the BMXXBE1000 modules first to ensure they are correctly installed. Then inspect both ends of the BMXXBC008K cable and confirm that the connectors are fully inserted and secured. The TSXTLYEX terminators should also be installed in the correct positions. If the hardware is correct, check the rack configuration, local bus connections, power supply, and status indicators to identify the source of the communication problem.
8. What precautions should be taken when installing or replacing a BMXXBE2005 kit?
Verify that all components in the kit are present and compatible with the M340 system before installation. Follow the correct rack expansion topology and install the BMXXBE1000 modules, extension cable, and line terminators in their specified positions. Inspect connectors for damage, avoid excessive cable bending or mechanical stress, and verify the complete local bus connection before commissioning the expanded system.
