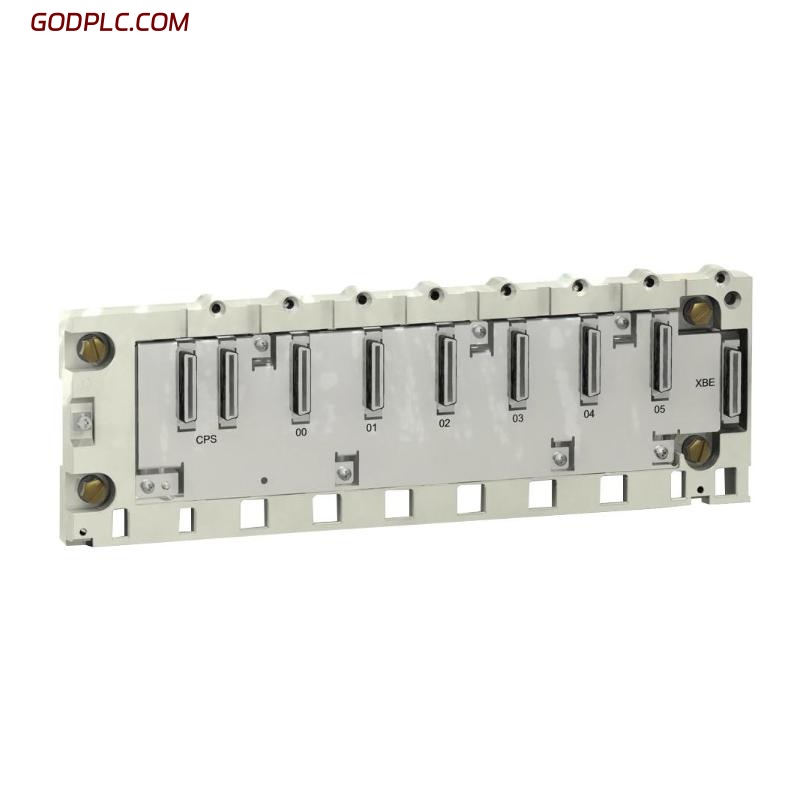

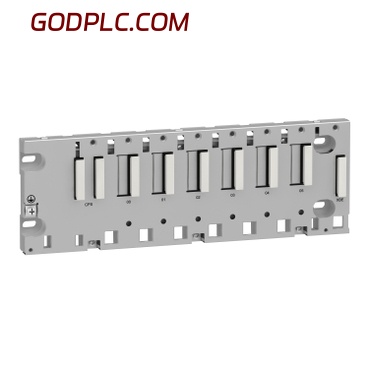

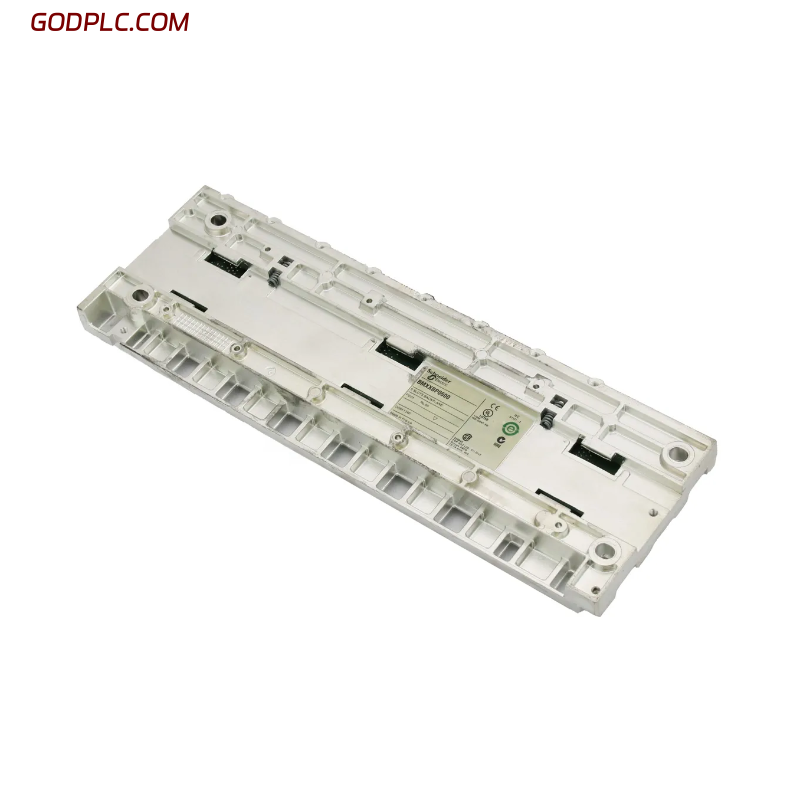

Schneider BMXXBP0600 Ethernet Backplane Rack
Product Overview
The Schneider BMXXBP0600 Ethernet Backplane Rack is an essential component in the Modicon X80 series, providing robust and reliable communication for industrial automation systems. This backplane rack facilitates seamless data transmission and power distribution to connected modules within the system, ensuring high-performance operation and efficient data handling. With Ethernet-based communication, the BMXXBP0600 supports fast and secure network connectivity, enabling smooth integration with PLCs, I/O modules, and other industrial devices in complex automation networks.
Key Features
-
Ethernet-Based Connectivity – Supports high-speed Ethernet communication for seamless integration with Modicon PLCs and other industrial devices
-
Efficient Power Distribution – Distributes power efficiently to connected modules, ensuring stable operation of the entire system
-
Modular Design – Allows for easy expansion of the system by adding or removing modules, offering flexibility for future upgrades and system growth
-
Durable Construction – Built to withstand harsh industrial environments, ensuring long-lasting performance even under extreme conditions
-
Easy Installation – Simple and quick to install, reducing downtime and speeding up system setup
-
Space-Saving Design – Compact and modular form factor allows for space-efficient integration in control cabinets or racks
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 103.7 x 307.6 x 19 mm |
| Weight | 0.79 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Rating | 24 V DC |
| Power Consumption | 5 W |
| Current Rating | 1 A per module |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Modicon X80 series |
| Communication Protocol | Ethernet, Modbus TCP/IP |
Industry Applications
-
Industrial Automation – Used to connect and power I/O modules, controllers, and other devices in automated systems
-
Energy Management – Supports high-speed data communication in power generation and distribution systems
-
Building Automation – Provides reliable communication for controlling HVAC, lighting, and security systems
-
Water and Wastewater – Facilitates communication in water treatment and distribution systems, ensuring efficient control and monitoring
-
Transportation – Ensures reliable connectivity for critical infrastructure control systems in transportation networks
The Schneider BMXXBP0600 Ethernet Backplane Rack offers a reliable and efficient solution for connecting and powering industrial automation components. Its robust design, high-speed Ethernet communication, and modular construction make it a vital component in ensuring smooth and efficient operation of complex automation systems.
Schneider BMXXBP0600 Ethernet Backplane Rack is in stock. Please contact us for a quick quote and competitive pricing.
