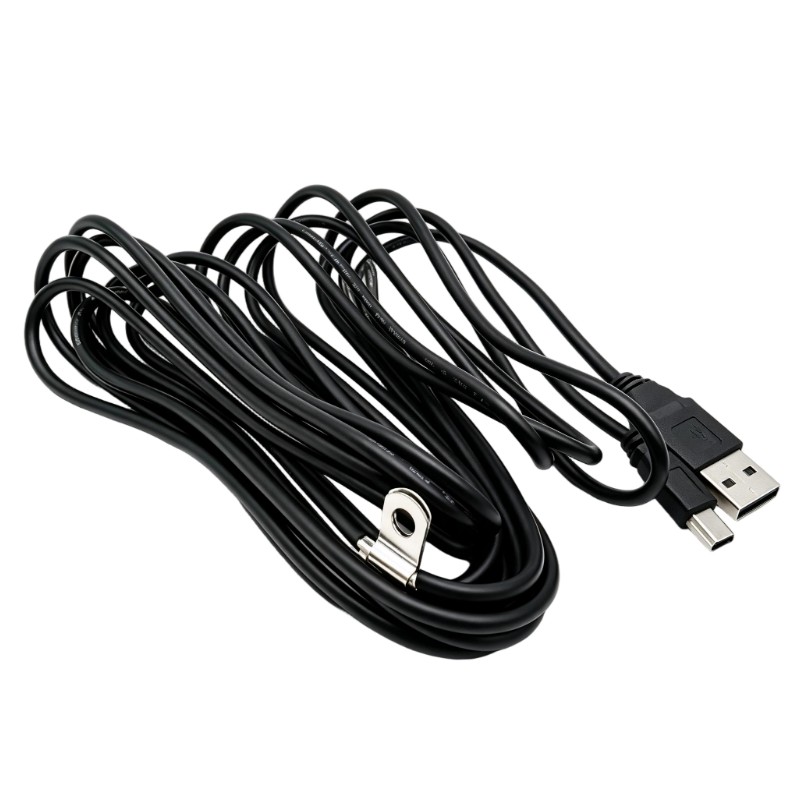

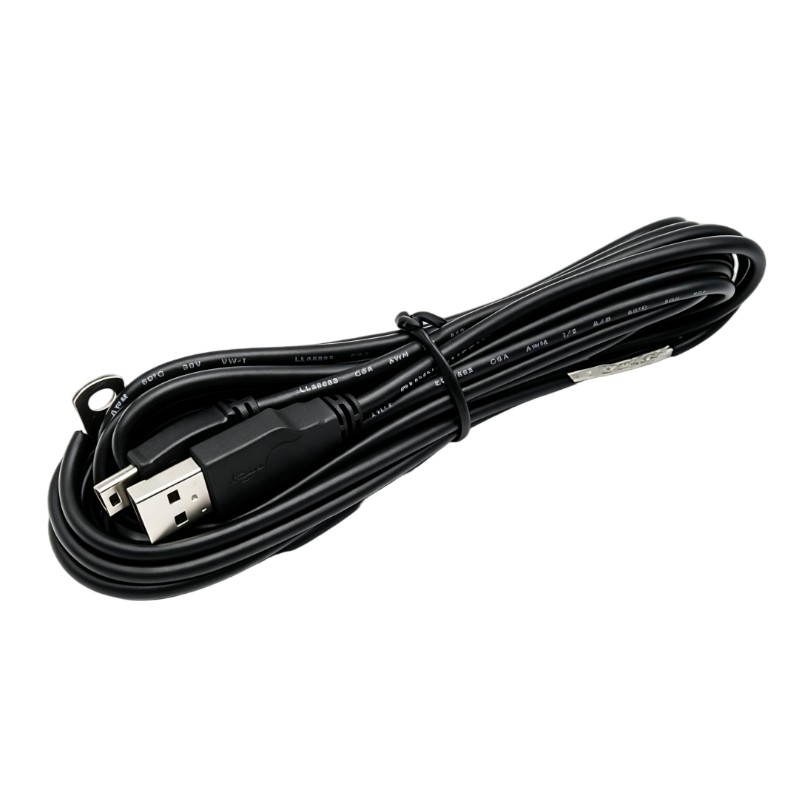

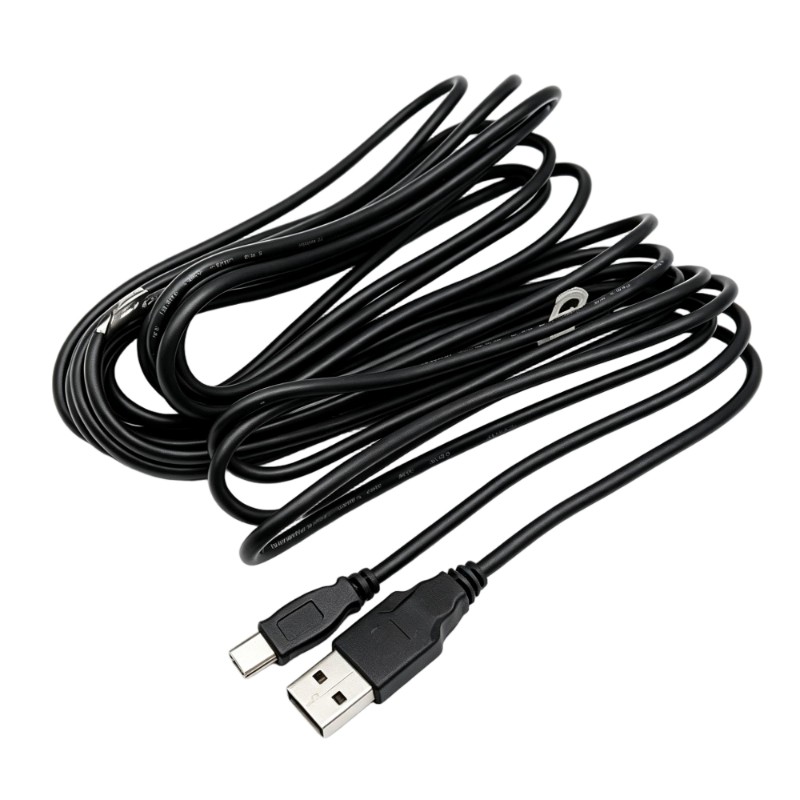

Schneider BMXXCAUSBH045 Connecting Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXXCAUSBH045 |
| Product Type | USB Connecting Cable / PC Terminal Connecting Cable |
| Product Family | Modicon M340 |
| Accessory Type | Terminal Port / USB Cordset |
| Application | PC-to-PLC programming, configuration and commissioning |
| Compatible Platform | Modicon M340 Automation Platform |
| Compatible Terminals | PC Terminal, Graphic Terminal XBTGT, XBTGK, XBTGTW |
| Range Compatibility | Harmony GTO |
| Processor-Side Connection | 1 × Mini-B USB connector |
| PC-Side Connection | 1 × USB Type-A connector |
| Communication Interface | USB |
| Main Function | Connects a PC or compatible terminal to the USB Mini-B port of an M340 processor |
| Compatible Processor Port | USB Mini-B port on compatible M340 processors |
| Cable Length | 4.5 meters |
| Typical Application | PLC programming, configuration transfer, commissioning and maintenance |
| Installation Type | Direct USB connection |
| Weight | 0.11 kg |
FAQ
1. What is the Schneider Electric BMXXCAUSBH045 used for?
BMXXCAUSBH045 is a USB connecting cable designed for communication between a PC or compatible terminal and a Schneider Electric Modicon M340 processor. It is mainly used during PLC programming, configuration, commissioning, diagnostics and maintenance.
2. What connectors does the BMXXCAUSBH045 use?
The BMXXCAUSBH045 uses one standard USB Type-A connector and one Mini-B USB connector. The USB Type-A end connects to the PC or programming terminal, while the Mini-B USB end connects to the compatible M340 processor.
3. What is the cable length of BMXXCAUSBH045?
The BMXXCAUSBH045 has a 4.5-meter cable length, providing additional flexibility when the engineering PC cannot be positioned directly beside the PLC cabinet or when the processor is installed farther away from the operator workstation.
4. Can BMXXCAUSBH045 be used for Modicon M340 PLC programming?
Yes. The cable is designed for connecting a PC to a compatible Modicon M340 processor through its Mini-B USB programming interface. It can support programming, configuration transfer, commissioning, diagnostics and maintenance when used with the appropriate Schneider Electric engineering software.
5. Which Schneider Electric devices are compatible with BMXXCAUSBH045?
The main application is the Modicon M340 platform and compatible processors equipped with the required Mini-B USB interface. The cable can also be used with certain compatible Schneider Electric terminals. The exact device model and available USB interface should be checked before installation.
6. What should be checked if the PC cannot communicate with the M340 processor?
Check that both USB connectors are fully inserted and that the cable is connected to the correct USB port on the processor. Then check whether the engineering software detects the controller. If communication remains unavailable, inspect the PC USB device status, reconnect the cable, restart the programming software and verify the selected communication interface.
7. Does the 4.5-meter cable length affect PLC communication?
The 4.5-meter length provides greater flexibility for PC-to-PLC connections. For reliable communication in an industrial environment, route the cable away from high-voltage power cables, motor wiring and strong electromagnetic interference sources. Avoid excessive bending, pulling or mechanical stress around the connectors.
8. Can BMXXCAUSBH045 replace a shorter M340 USB programming cable?
It can be used as an alternative when the target M340 processor supports the required Mini-B USB interface and the application accepts the 4.5-meter cable length. Before replacement, verify the processor model, USB interface, communication requirements and installation conditions to ensure proper compatibility.
Schneider BMXXCAUSBH045 Connecting Cable is in stock. Please contact us for a quick quote and competitive pricing.
