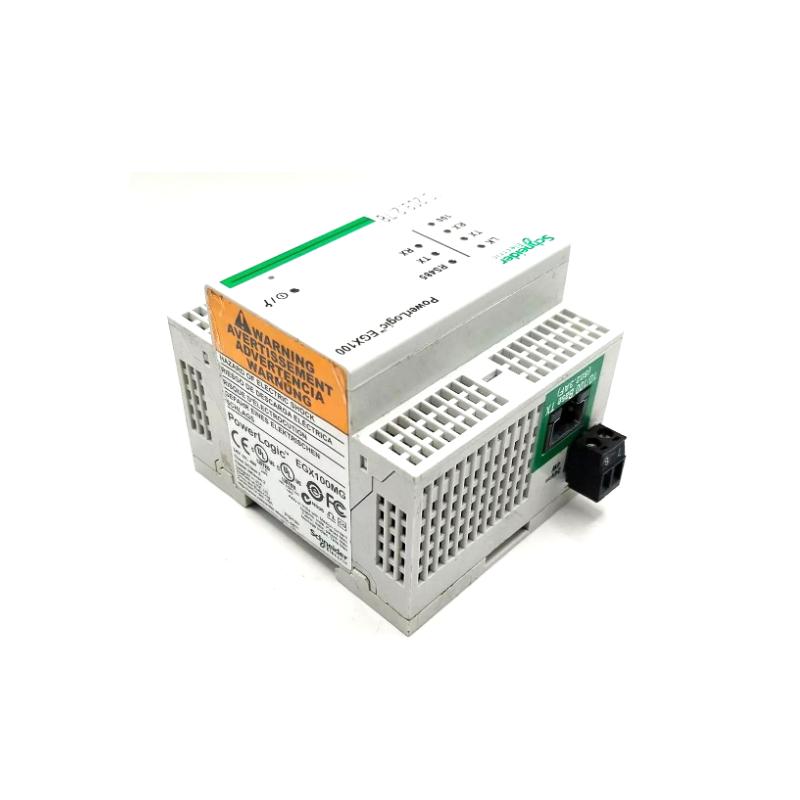

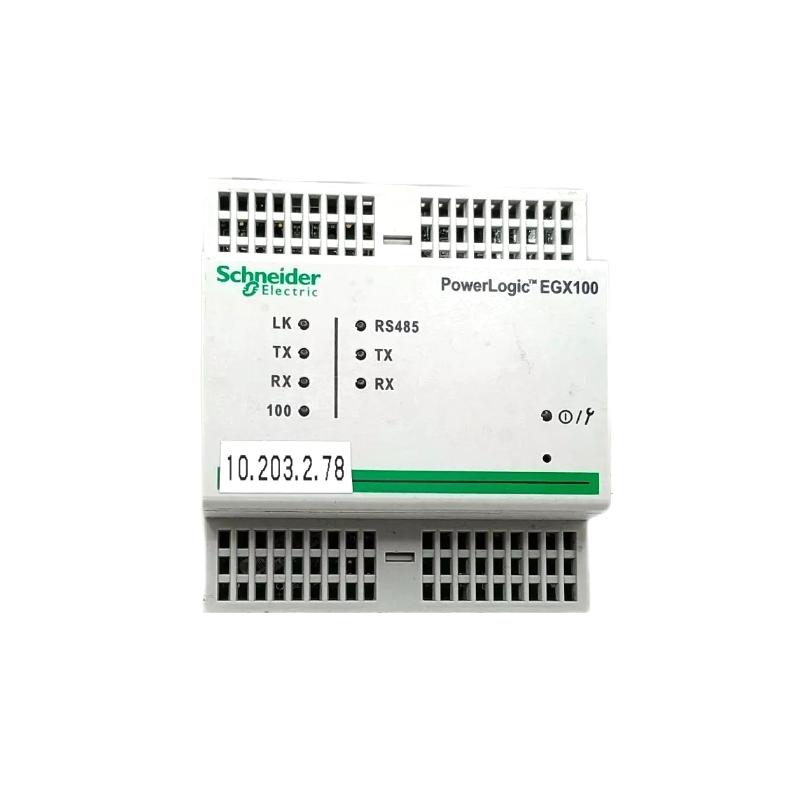

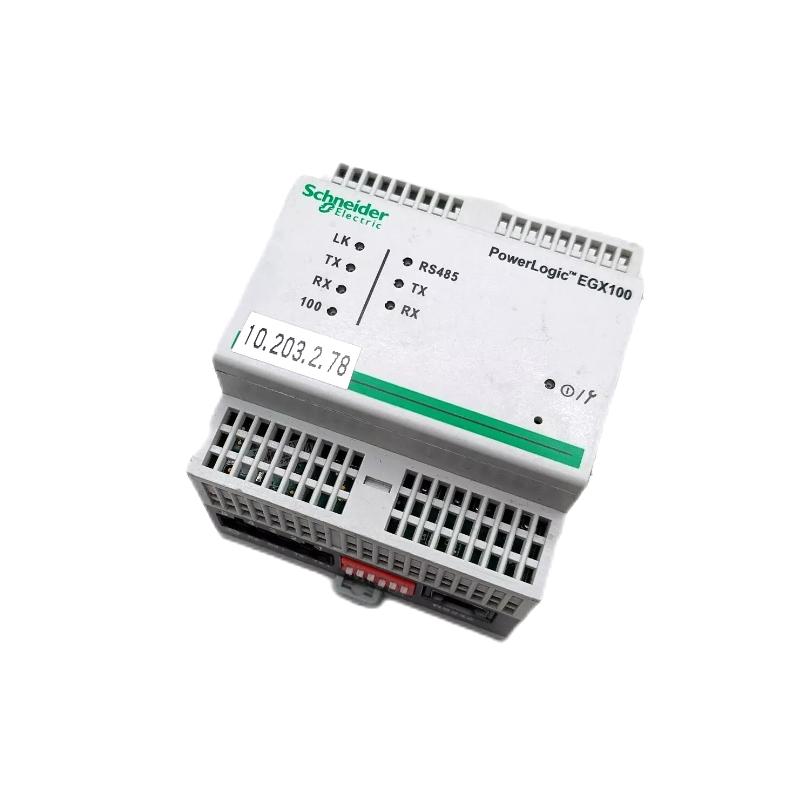

Schneider EGX100MG Ethernet Gateway / Modbus Gateway
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | EGX100MG |
| Manufacturer | Schneider Electric |
| Product Family | EGX100 Series |
| Product Type | Ethernet Gateway / Modbus Gateway |
| Function | Provides connectivity between Modbus TCP/IP networks and Modbus RTU/ASCII serial devices |
| Supported Protocols | Modbus TCP/IP, Modbus RTU, Modbus ASCII |
| Serial Ports | 1 × RS-232/RS-485 configurable |
| Ethernet Ports | 1 × 10/100 Mbps RJ45 |
| Maximum Modbus Devices | Up to 32 RTU/ASCII slave devices |
| Supported Baud Rates | 300–115200 bps (serial) |
| Power Supply | 24 VDC ± 20%, 120–230 VAC (optional) |
| Power Consumption | Approx. 4 W |
| Status Indicators | Power, Link, Activity, Fault LEDs |
| Configuration | Web browser, Modbus configuration tools |
| Mounting | DIN rail |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Dimensions (H × W × D) | Approx. 90 × 35 × 110 mm |
| Weight | Approx. 0.3 kg |
| Standards Compliance | IEC 61131, CE, UL |
| Typical Applications | Modbus device integration, Remote I/O networks, Industrial automation, Building management systems |
| Lifecycle Status | Active / Current Product |
FAQ
Q1: What is the EGX100MG used for?
A1: It is an Ethernet gateway that connects Modbus TCP/IP networks to Modbus RTU/ASCII serial devices, enabling communication between PLCs, HMIs, and field devices.
Q2: How many Modbus devices can it support?
A2: Up to 32 RTU/ASCII slave devices.
Q3: What type of serial communication is supported?
A3: RS-232 or RS-485, configurable, with baud rates from 300 to 115200 bps.
Q4: How is it configured?
A4: Configuration can be done via a web browser interface or Modbus configuration software tools.
Q5: What are the Ethernet specifications?
A5: One 10/100 Mbps RJ45 port supporting standard TCP/IP connectivity.
Q6: What is the power requirement?
A6: Typically 24 VDC ± 20%, with optional AC supply from 120–230 V.
Q7: Where is it typically installed?
A7: On a DIN rail in control panels or enclosures.
Q8: Is the EGX100MG still available?
A8: Yes, it is an active Schneider Electric product in the EGX100 series.
Schneider EGX100MG Ethernet Gateway / Modbus Gateway is in stock. Please contact us for a quick quote and competitive pricing.
