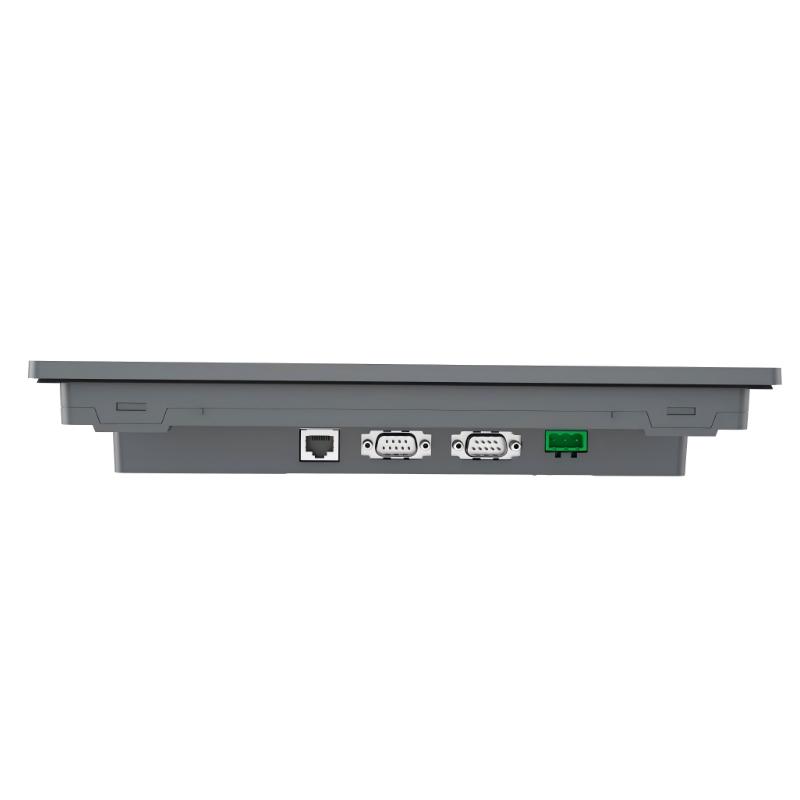

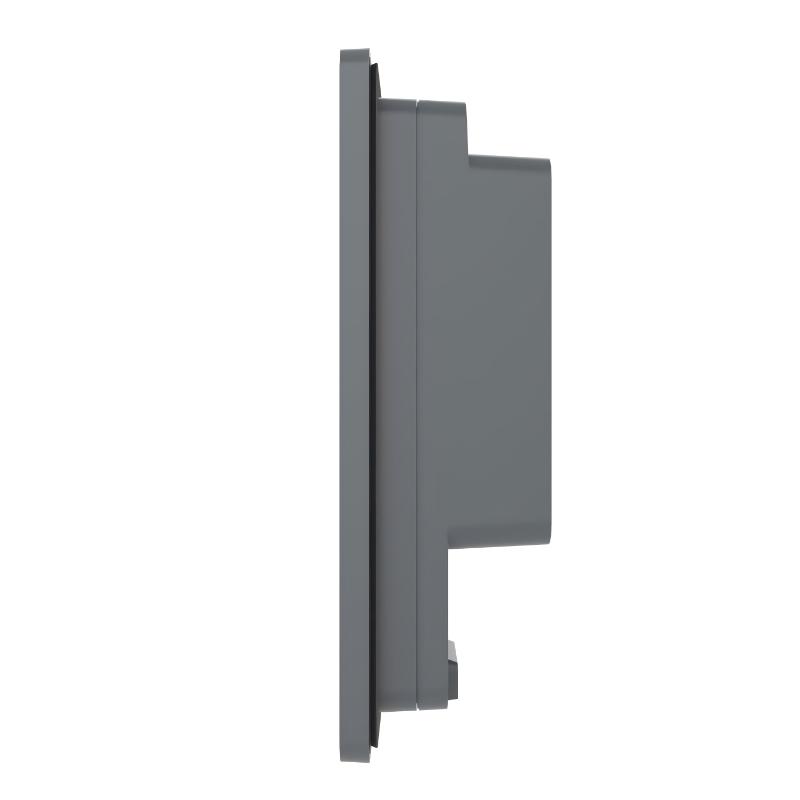

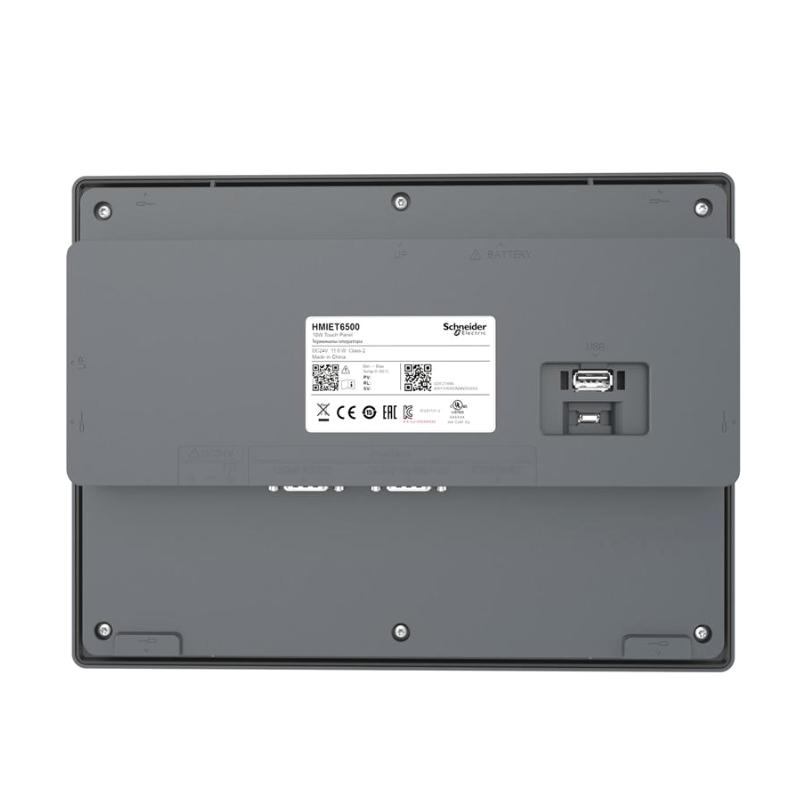

Schneider HMIET6500 Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMIET6500 |
| Product Name | Touchscreen Panel |
| Product Series | Easy Harmony ET6 |
| Product Type | Human-Machine Interface (HMI) Touch Panel |
| Display Size | 10-inch |
| Display Type | Color TFT LCD |
| Display Resolution | 1024 × 600 pixels (WSVGA) |
| Display Colors | 16 million colors |
| Touch Technology | Single-touch analog resistive |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Operating Software | Vijeo Designer Basic |
| Operating System | VxWorks |
| Rated Supply Voltage | 24 V DC ±20% |
| Power Consumption | 11 W |
| Device Memory | 256 MB |
| User Data Memory | 256 MB |
| Backup Memory | 128 KB |
| Serial Interfaces | 1 × RS-232C, 1 × RS-422/RS-485 |
| Ethernet Interface | 1 × 10/100BASE-T Ethernet |
| USB Interfaces | 1 × USB 2.0 Type-A, 1 × USB 2.0 Micro-B |
| Supported Protocols | Modbus, Uni-TE and supported third-party protocols |
| Application Pages | Up to 200 |
| Panel Cutout | 255 × 185 mm |
| Mounting Method | Panel mounting with fixing screws |
| Front Panel Protection | IP65 |
| Rear Panel Protection | IP20 |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90%, non-condensing |
| Dimensions | 271 × 47 × 201 mm |
| Weight | 0.99 kg |
| Typical Applications | Packaging machinery, HVAC systems, pump control, machine tools and industrial automation equipment |
FAQ
Q1: What is the main function of the Schneider Electric HMIET6500 Touchscreen Panel?
A: The HMIET6500 provides an operator interface for industrial machinery and automation systems. It displays process information, alarms, operating parameters and equipment status while allowing operators to interact with the control system through the touchscreen.
Q2: Which software is used to configure the HMIET6500?
A: The HMIET6500 uses Vijeo Designer Basic for application development and configuration. Before creating or downloading a project, confirm that the software version supports the panel and its firmware.
Q3: Which communication interfaces are available on the HMIET6500?
A: The panel provides an RS-232C serial interface, an RS-422/RS-485 serial interface, an Ethernet port and USB Type-A and Micro-B interfaces. The appropriate connection depends on the PLC, peripheral device and communication protocol being used.
Q4: Can the HMIET6500 communicate with a PLC from another manufacturer?
A: It can support compatible third-party devices when the required communication driver or protocol is available. Check protocol support, PLC communication settings, register addresses and connection parameters before commissioning.
Q5: What power supply does the HMIET6500 require?
A: The panel operates on a nominal 24 V DC supply with a rated tolerance of ±20%. Use a suitable regulated power supply and verify polarity, wiring and grounding before energizing the equipment.
Q6: What should be checked if the touchscreen does not respond?
A: First, check the power supply and startup status indicators. If the display is operating but touch input is unavailable or inaccurate, inspect the screen for damage, review the application configuration and check whether the issue occurs across the entire screen or only in specific areas.
Q7: What are the common causes of communication failure between the HMIET6500 and a PLC?
A: Common causes include incorrect communication settings, mismatched protocol selection, incorrect serial wiring, an improperly configured PLC address, Ethernet configuration errors or damaged cables. Check the communication parameters at both ends and review any available diagnostic messages.
Q8: What precautions should be taken when installing or replacing the HMIET6500?
A: Confirm the panel cutout, mounting arrangement, 24 V DC supply and communication wiring before installation. Isolate power during wiring, maintain suitable environmental conditions and ensure that the front-panel sealing is correctly installed to preserve its specified protection rating. After installation, verify the application, PLC communication and operator functions before returning the machine to service.
Schneider HMIET6500 Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
