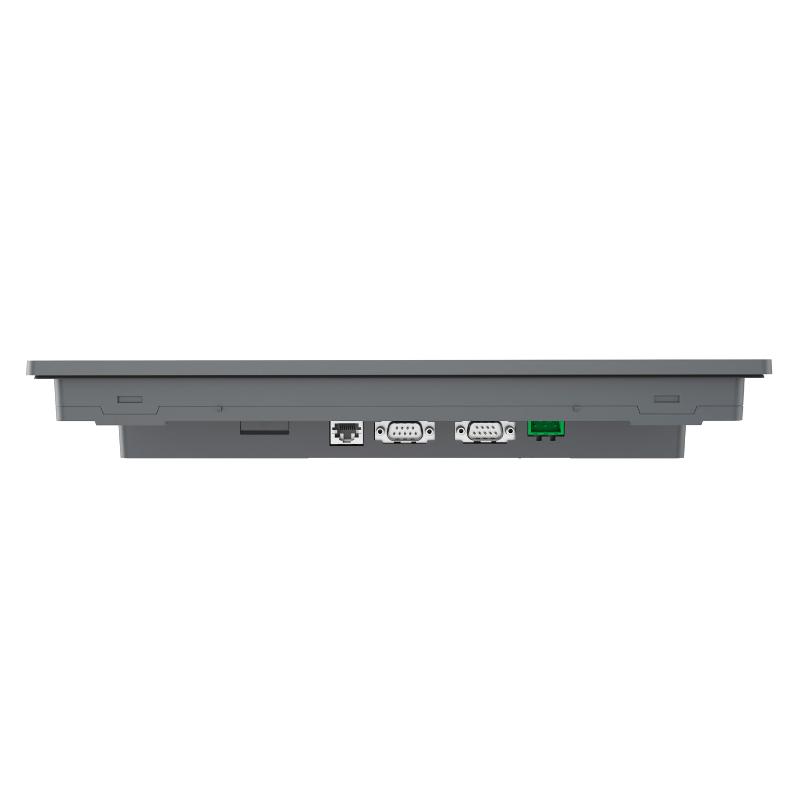

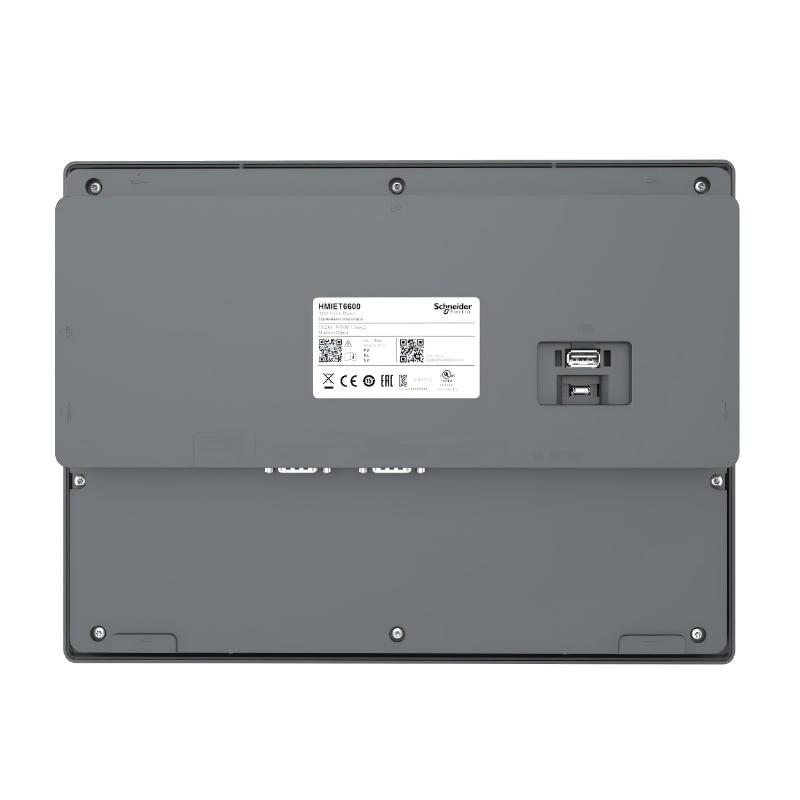

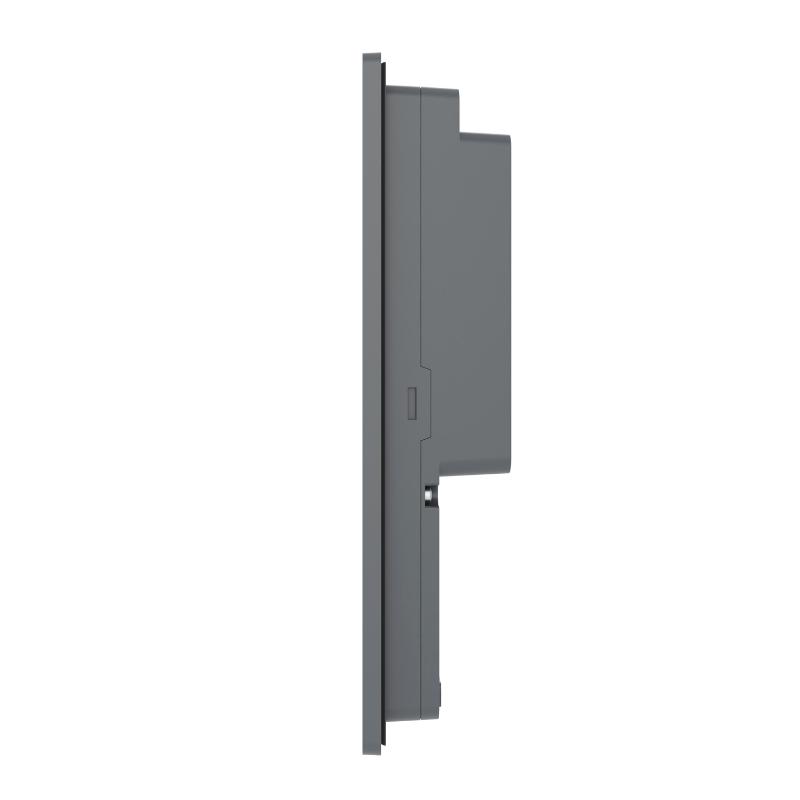

Schneider HMIET6600 Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMIET6600 |
| Product Name | Touchscreen Panel |
| Product Series | Easy Harmony ET6 |
| Product Type | Human-Machine Interface (HMI) Touch Panel |
| Display Size | 12.1-inch wide screen |
| Display Type | Color TFT LCD |
| Display Resolution | 1280 × 800 pixels (WXGA) |
| Display Colors | 16 million colors |
| Touch Technology | Single-touch analog resistive |
| Brightness Adjustment | 16 levels |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Programming Software | Vijeo Designer Basic |
| Operating System | VxWorks |
| Rated Supply Voltage | 24 V DC ±20% |
| Power Consumption | 14 W |
| Device Memory | 256 MB |
| User Data Memory | 256 MB |
| Backup Memory | 128 KB |
| Serial Interfaces | 1 × RS-232C, 1 × RS-422/RS-485 |
| Ethernet Interface | 1 × 10/100BASE-T |
| USB Interfaces | 1 × USB 2.0 Type-A, 1 × USB 2.0 Micro-B |
| Supported Protocols | Modbus, Uni-TE and supported third-party protocols |
| Application Pages | Up to 200 |
| Panel Cutout Dimensions | 295 × 217 mm |
| Mounting Method | Panel mounting with fixing screws |
| Front Panel Protection | IP65F |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90%, non-condensing |
| Dimensions | 311 × 50 × 233 mm |
| Weight | 1.62 kg |
| Typical Applications | Packaging machinery, HVAC systems, pump control, machine tools and industrial automation |
FAQ
Q1: What is the main function of the Schneider HMIET6600 Touchscreen Panel?
A: The HMIET6600 provides an operator interface for industrial automation systems. It displays process values, equipment status, alarms and operating parameters, allowing operators to monitor machinery and interact with connected control systems.
Q2: Which software is used to configure the HMIET6600?
A: The HMIET6600 uses Vijeo Designer Basic for application development. Confirm software and firmware compatibility before creating, transferring or modifying an HMI project.
Q3: Can the HMIET6600 communicate with a PLC?
A: Yes. It supports serial communication through RS-232C and RS-422/RS-485, as well as Ethernet communication. Successful communication depends on the PLC model, supported protocol, wiring and communication settings.
Q4: What power supply does the HMIET6600 require?
A: The panel requires a nominal 24 V DC supply with a rated tolerance of ±20%. Use a suitable regulated power source and verify polarity and wiring before switching on the equipment.
Q5: Does the HMIET6600 support multi-touch operation?
A: No. The HMIET6600 uses a single-touch analog resistive panel. Its application should be designed around single-point touch input rather than multi-touch gestures.
Q6: What should be checked if the HMIET6600 cannot communicate with a PLC?
A: Check the communication protocol, baud rate, data format, PLC address, cable connections and Ethernet settings where applicable. If the settings are correct, inspect the cables and review available diagnostic information to isolate the fault.
Q7: Can an existing HMI project be transferred to a replacement HMIET6600?
A: Project transfer is possible when the project format, software version and hardware configuration are compatible. Back up the original project first, then verify screen operation, PLC communication and data addressing after transfer.
Q8: What maintenance is recommended for the HMIET6600?
A: Regularly inspect the touchscreen, mounting fasteners, power connections and communication cables. Clean the display using a suitable method, avoid harsh chemicals, and check the panel sealing and operating environment to help maintain reliable performance.
Schneider HMIET6600 Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
