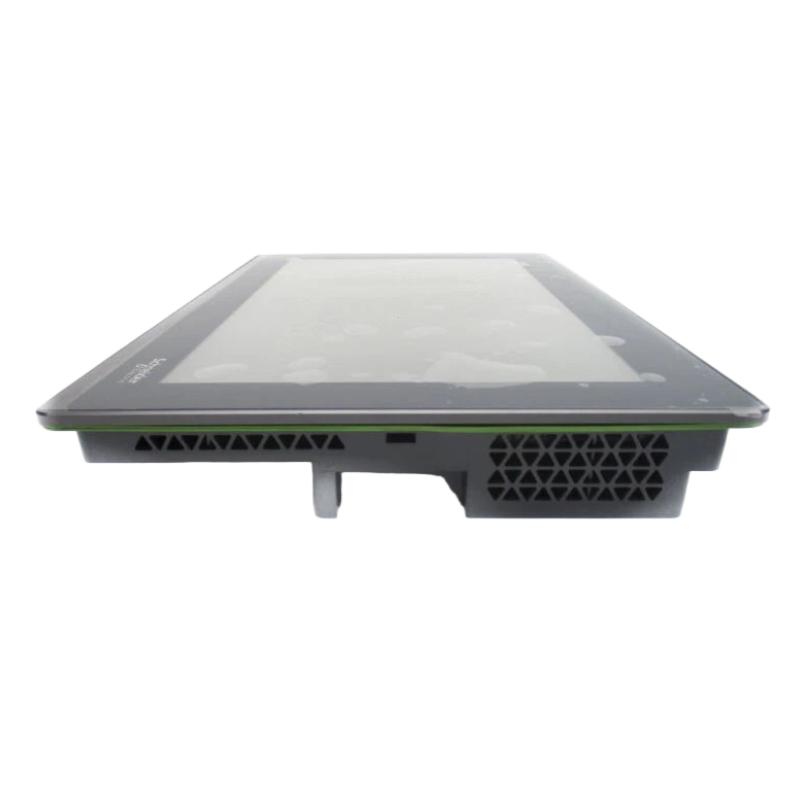

Schneider HMIST6700 Touch Panel Screen
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications

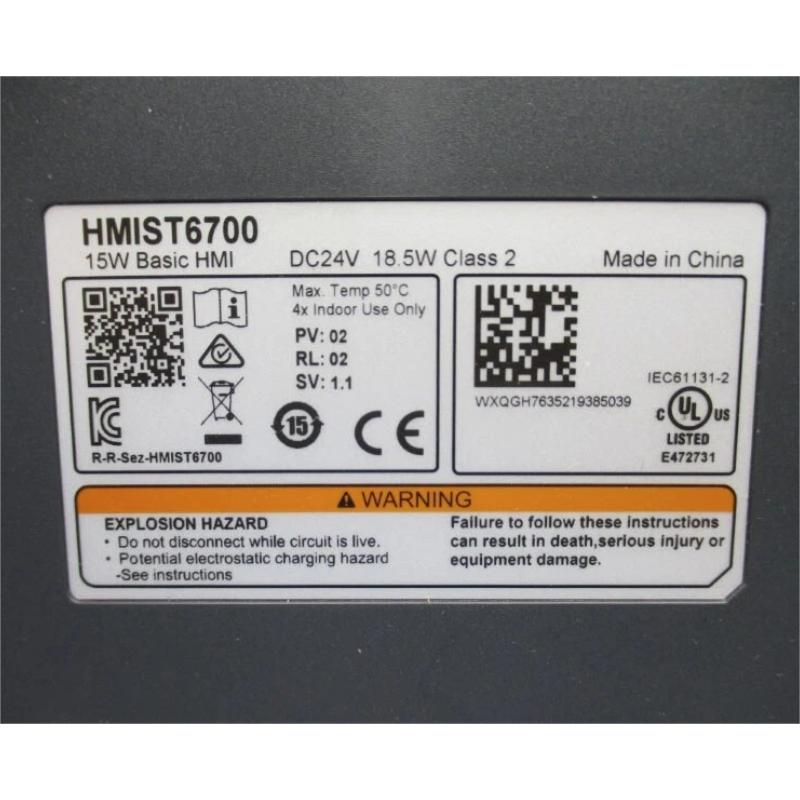

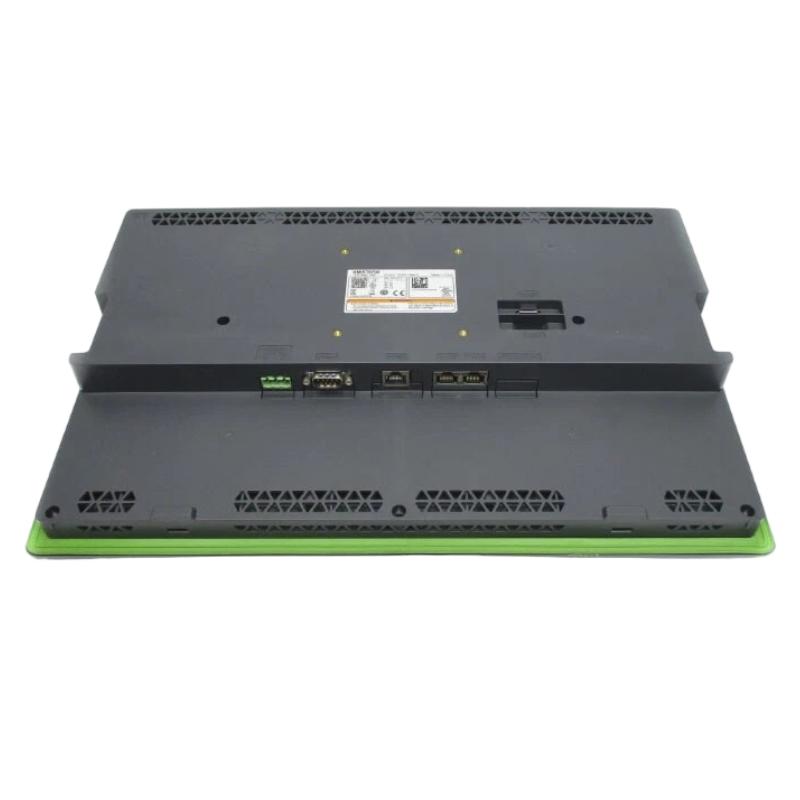

| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIST6700 |
| Product Name | Touch Panel Screen |
| Product Series | Harmony ST6 |
| Product Type | Human-Machine Interface (HMI) Touch Panel |
| Display Size | 15.6-inch wide screen |
| Display Type | Colour TFT LCD |
| Display Resolution | 1366 × 768 pixels (FWXGA) |
| Display Colours | 16 million colours |
| Touch Technology | Single-touch analogue resistive touchscreen |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Device Memory | 1 GB |
| User Data Memory | 128 MB |
| Backup Memory | 512 KB |
| Configuration Software | EcoStruxure Operator Terminal Expert |
| Rated Supply Voltage | 24 V DC (±20%) |
| Power Consumption | 18.5 W |
| Inrush Current | 30 A |
| Ethernet Interfaces | 2 × 10/100BASE-T Ethernet |
| Serial Communication | 2 COM ports: COM1 (RS-232C) and COM2 (RS-485) |
| USB Interfaces | USB host and USB device ports |
| Application Capacity | Up to 200 application pages |
| Backlight Type | White LED |
| Backlight Service Life | 50,000 hours or more under specified conditions |
| Brightness Adjustment | 16 levels |
| Front Panel Material | Aluminium alloy |
| Front Panel Protection | IP65F when correctly installed |
| Rear Panel Protection | IP20 |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Installation Method | Panel mounting |
| Panel Cutout | 394 × 250 mm |
| Dimensions | 268 × 412 × 50 mm |
| Weight | 2.7 kg |
FAQ
Q1: What is the Schneider Electric HMIST6700 touch panel used for?
The HMIST6700 is a 15.6-inch HMI from the Harmony ST6 series. It provides an operator interface for industrial machinery and process control systems, allowing users to monitor operating data, view alarms, display process diagrams, and interact with compatible PLCs.
Q2: Which software is used to configure the HMIST6700?
The HMIST6700 uses EcoStruxure Operator Terminal Expert for HMI application development and configuration. Before transferring a project, verify the software version, communication settings, supported functions, and compatibility with the panel.
Q3: What communication interfaces are available on the HMIST6700?
The HMIST6700 provides two Ethernet ports, COM1 with RS-232C, COM2 with RS-485, and USB host and device interfaces. These interfaces support communication with compatible PLCs, industrial controllers, and engineering computers, depending on the protocol and system configuration.
Q4: What is the display resolution of the HMIST6700?
The HMIST6700 has a 1366 × 768-pixel FWXGA display with 16 million colours. This resolution supports graphical process displays, alarm lists, equipment status indicators, and operating controls. HMI projects should use clear fonts and appropriately sized controls for reliable operation.
Q5: What power supply does the HMIST6700 require?
The panel operates on a nominal 24 V DC supply with a specified tolerance of ±20%. Its documented power consumption is 18.5 W, with an inrush current of 30 A. Select a suitable power supply, account for startup current, and follow the manufacturer’s wiring and grounding requirements.
Q6: How should the HMIST6700 be installed in a control cabinet?
Prepare the panel cutout according to the installation drawing, secure the HMI using the specified mounting hardware, and ensure that the sealing gasket is correctly positioned. Allow sufficient space for wiring and heat dissipation. Correct installation is necessary to maintain the specified front-panel protection.
Q7: How can communication faults between the HMIST6700 and a PLC be diagnosed?
Check the Ethernet cable or serial wiring, power supply, communication protocol, device address, and serial port parameters. Review diagnostic messages on both devices and verify the HMI project’s communication driver and variable addresses. If the fault continues, test the connection separately to identify whether the problem is in the network, PLC, or HMI configuration.
Q8: Can the HMIST6700 directly replace another HMI model?
Replacement depends on panel mounting dimensions, supply voltage, communication interfaces, PLC compatibility, and application software. The original project may need to be converted or recreated for the HMIST6700. Verify hardware and software compatibility, then test all critical functions before returning the machine to operation.
Schneider HMIST6700 Touch Panel Screen is in stock. Please contact us for a quick quote and competitive pricing.
