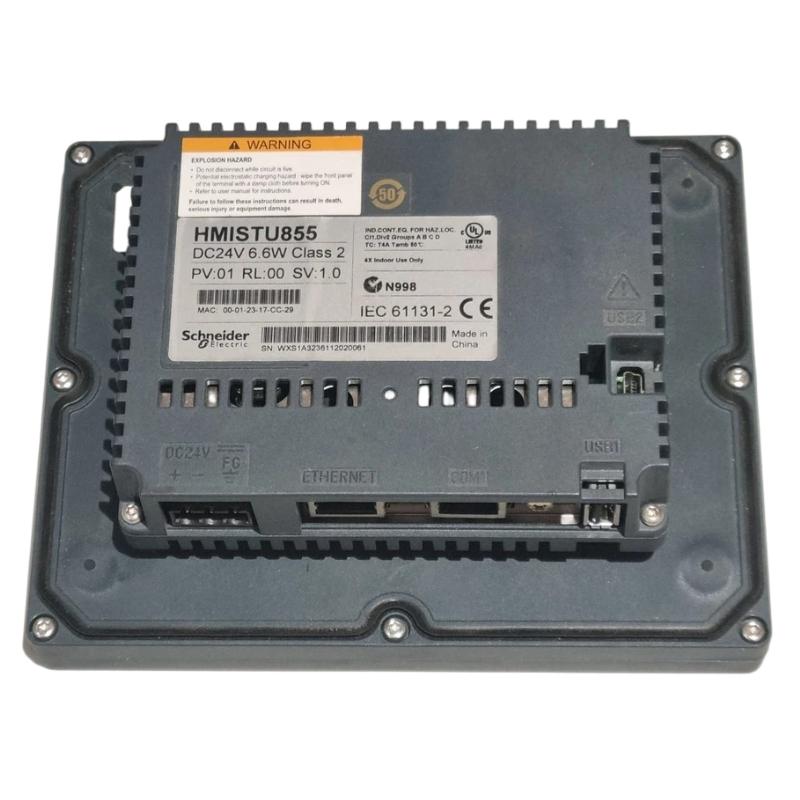

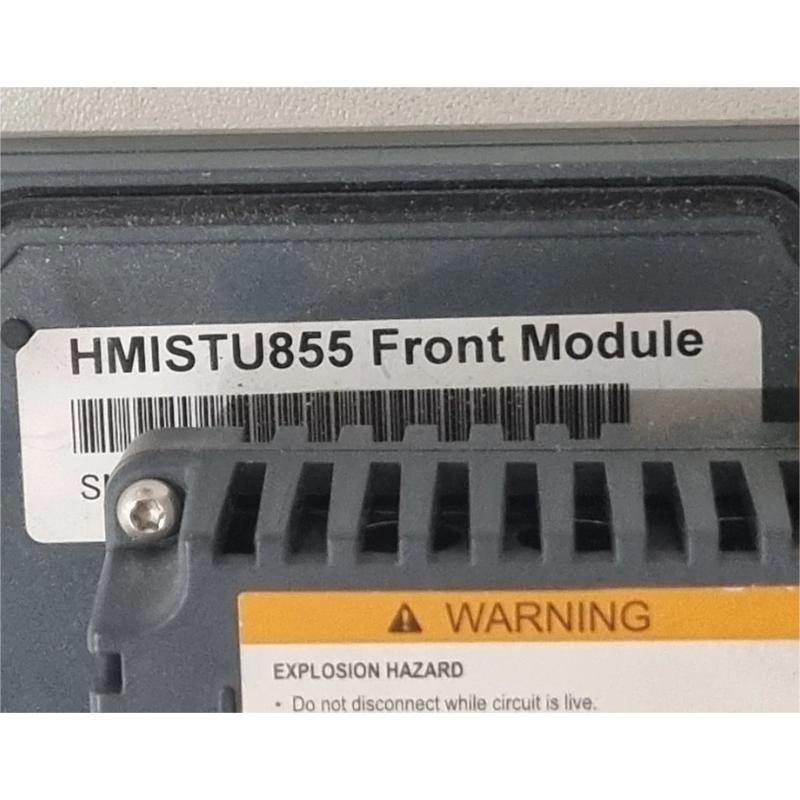

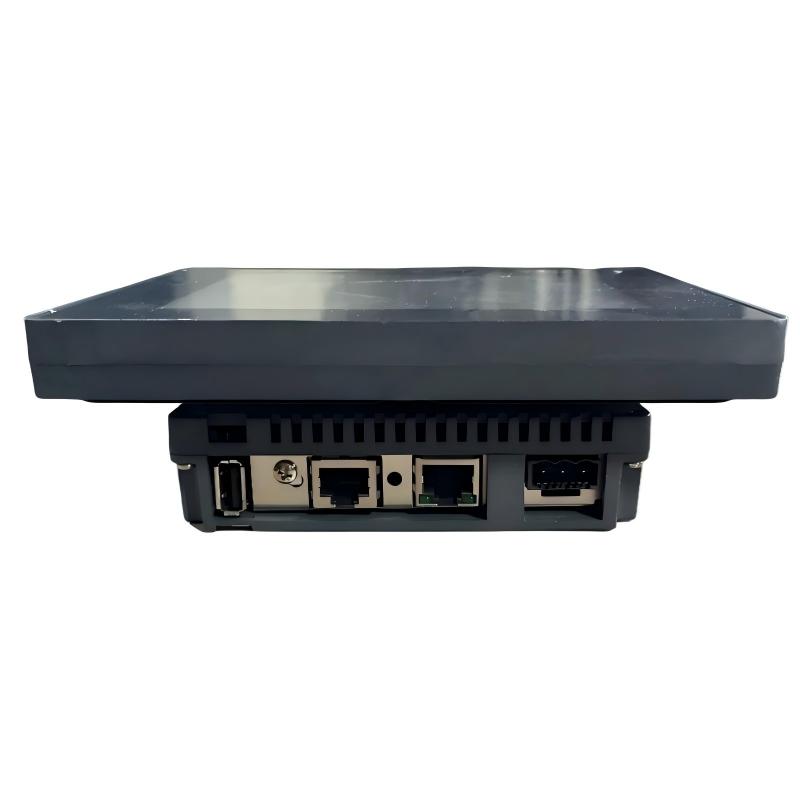

Schneider HMISTU855 Touch Panel Screen
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMISTU855 |
| Product Type | Touch Panel Screen / Human-Machine Interface (HMI) |
| Product Range | Magelis STO & STU |
| Display Size | 5.7 inches |
| Display Type | QVGA TFT Colour Touchscreen |
| Display Resolution | 320 × 240 pixels |
| Display Colours | 65,536 colours |
| Touch Technology | Analogue touch panel |
| Backlight Lifespan | 50,000 hours |
| Brightness Adjustment | 16 levels |
| Processor | ARM9 CPU |
| Processor Frequency | 333 MHz |
| Configuration Software | Vijeo Designer |
| Application Memory | 16 MB |
| Backup Memory | 64 KB |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| Maximum Inrush Current | 30 A |
| Power Consumption | 6.8 W |
| Serial Communication Interface | 1 × RJ45 COM1, RS-232C / RS-485 |
| Maximum Serial Communication Rate | 115.2 kbit/s |
| Ethernet Interface | Built-in Ethernet TCP/IP |
| USB Interfaces | 1 × USB 2.0 Type-A, 1 × USB 2.0 Mini-B |
| Supported Protocols | Modbus, Modbus TCP/IP, Uni-TE and supported third-party protocols |
| Real-Time Clock | Access to the connected PLC’s real-time clock |
| Front Panel Protection | IP65; NEMA 4X for indoor use under specified installation conditions |
| Rear Protection | IP20 |
| Operating Temperature | 0–50°C |
| Maximum Operating Altitude | 2,000 m |
| Enclosure Material | PC/PBT and PAA |
| Mounting Method | Panel mounting through a Ø 22 mm hole |
| Dimensions | 129.15 × 163 × 56.5 mm |
| Weight | 1.66 kg |
FAQ
Q1: What is the primary function of the Schneider Electric HMISTU855?
A: The HMISTU855 is an industrial human-machine interface designed to display machine status, process data, alarms and operating parameters. It enables operators to monitor equipment and interact with compatible PLC-based automation systems.
Q2: Which software is used to configure the HMISTU855?
A: The HMISTU855 uses Vijeo Designer for HMI application development. Before editing or transferring a project, verify that the software version supports the terminal and that the existing application is compatible.
Q3: What communication interfaces are available on the HMISTU855?
A: The terminal provides an Ethernet interface, an RJ45 serial interface supporting RS-232C or RS-485, and USB 2.0 Type-A and Mini-B ports. The appropriate interface depends on the connected PLC and the application requirements.
Q4: Which communication protocols does the HMISTU855 support?
A: Supported protocols include Modbus, Modbus TCP/IP, Uni-TE and compatible third-party protocols. The required protocol and driver must be selected according to the PLC model and the communication configuration.
Q5: What power supply is required for the HMISTU855?
A: The terminal operates on a nominal 24 V DC supply, with an allowable input range of 20.4–28.8 V DC. Check the polarity, wiring and grounding before startup, and ensure the power supply can handle the specified inrush current.
Q6: How can communication faults between the HMISTU855 and a PLC be diagnosed?
A: Check the communication cable, connector condition, PLC settings and selected protocol. For serial connections, verify the baud rate, parity and station address. For Ethernet connections, check IP addressing and network connectivity. Review the HMI project configuration if communication does not recover.
Q7: What installation conditions are required for reliable operation?
A: Install the HMISTU855 in a control panel that meets the specified environmental requirements. Ensure the mounting arrangement is secure, wiring is correctly routed, and the rear section is protected from excessive dust, moisture and electrical interference. The front-panel protection rating depends on proper installation.
Q8: What should be checked when replacing an HMISTU855?
A: Back up the existing HMI project before replacement. Confirm the replacement terminal’s model, software compatibility, power requirements and communication settings. After installation, test screen operation, PLC data exchange, alarms and control commands before returning the machine to service.
