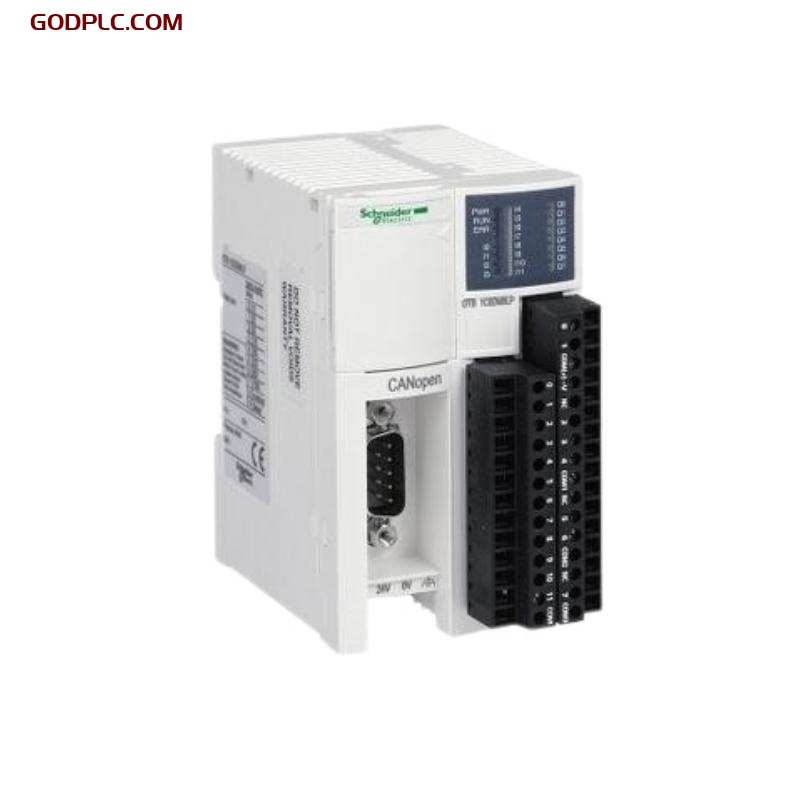

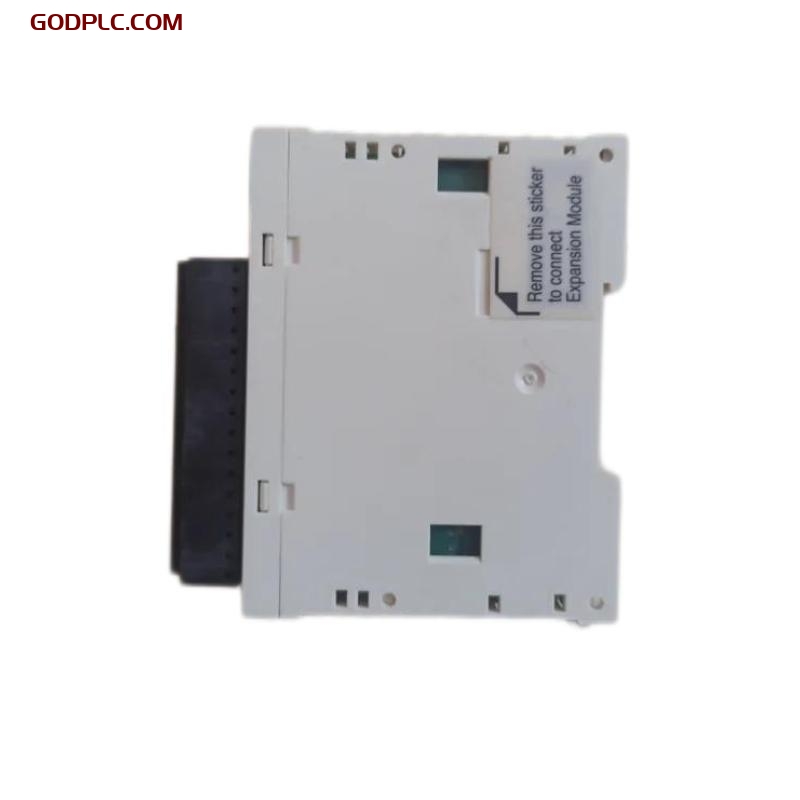

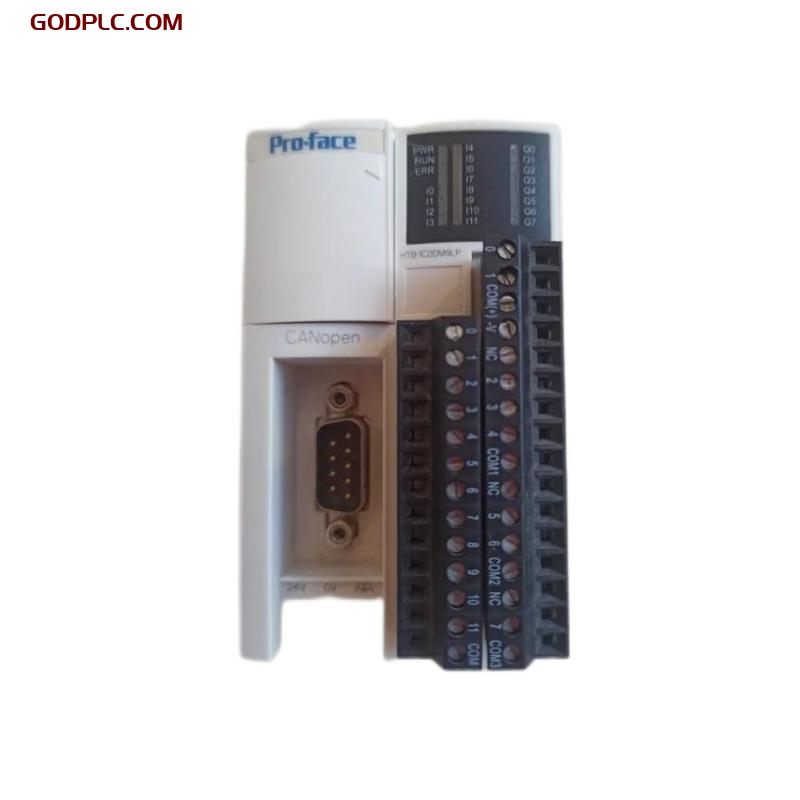

Schneider HTB1CODM9LP I/O Distributed Modules
Product Overview
The Schneider HTB1CODM9LP I/O Distributed Module is designed to provide high-performance distributed I/O functionality for industrial automation systems. It is part of Schneider Electric’s extensive range of I/O modules, offering exceptional flexibility and reliability for control and monitoring applications in industries such as manufacturing, energy, and process automation. The HTB1CODM9LP module is engineered to interface with Schneider Electric’s Modicon controllers, enabling the integration of a variety of field devices, sensors, and actuators across a wide range of automation applications.
The module supports both digital and analog input/output signals, allowing for seamless communication with external devices in real-time. With features such as high-density I/O configurations, easy installation, and robust environmental tolerance, the HTB1CODM9LP is well-suited for industrial applications where reliability and system scalability are critical.
Key Features
-
High-Density I/O: Offers a compact and efficient design for integrating a large number of I/O points into a small space.
-
Flexible Input/Output Options: Supports both digital and analog signals for broad compatibility with various field devices.
-
Modular and Scalable: Can be easily expanded with additional modules to meet system requirements.
-
High-Performance Communication: Ensures fast and reliable data exchange between field devices and controllers for real-time process control.
-
Environmentally Robust: Built to withstand harsh industrial conditions, including wide temperature ranges and high humidity environments.
-
Easy Installation and Configuration: Designed for quick setup, including plug-and-play compatibility with Schneider Electric’s Modicon PLC systems.
-
Built-in Diagnostics: Equipped with diagnostic LEDs for easy troubleshooting and status monitoring.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size:75 × 105 × 130 mm |
| Weight | Package weight:0.308 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model | HTB1CODM9LP |
| Manufacturer | Schneider Electric |
| Installation | DIN Rail / Panel Mount |
| Power Supply | Supplied via system backplane |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
3.3 I/O Performance Characteristics
| Item | Specification |
|---|---|
| Input/Output Type | Digital and Analog |
| Digital Inputs | 8 digital inputs (24 V DC) |
| Digital Outputs | 8 digital outputs (24 V DC) |
| Analog Inputs | 4 analog inputs (4-20 mA, 0-10 V) |
| Analog Outputs | 4 analog outputs (4-20 mA, 0-10 V) |
3.4 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC ±20% |
| Power Consumption | Approx. 3 W |
| Operating Current | ≤ 0.15 A |
| Status Indicators | LEDs for power, communication, and fault |
Industry Applications
-
Manufacturing: Controls and monitors production lines, ensuring smooth and efficient operation of machines and systems.
-
Energy & Power Generation: Facilitates real-time monitoring and control of power systems, ensuring optimal performance and regulatory compliance.
-
Water Treatment: Provides I/O functionality for controlling pumps, valves, and sensors, maintaining reliable operation of water treatment processes.
-
Automated Systems: Integrates with automated machinery and robotic systems, enhancing production efficiency and flexibility.
-
Building Automation: Controls HVAC, lighting, and security systems in commercial buildings, improving energy efficiency and occupant comfort.
The Schneider HTB1CODM9LP I/O Distributed Module is a versatile and reliable solution for connecting field devices to Schneider Electric’s Modicon PLC systems. With its high-density I/O capabilities, robust construction, and wide range of input/output options, this module is well-suited for various industrial applications. Whether in manufacturing, energy, or process automation, it ensures seamless and real-time control of critical processes.
Schneider HTB1CODM9LP I/O Distributed Modules is in stock. Please contact us for a quick quote and competitive pricing.
