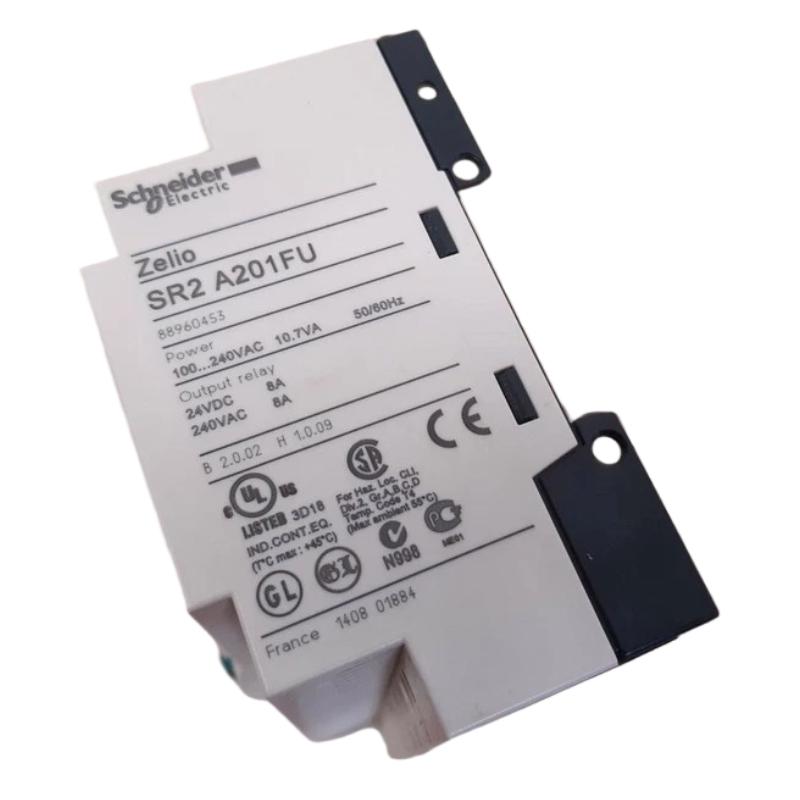

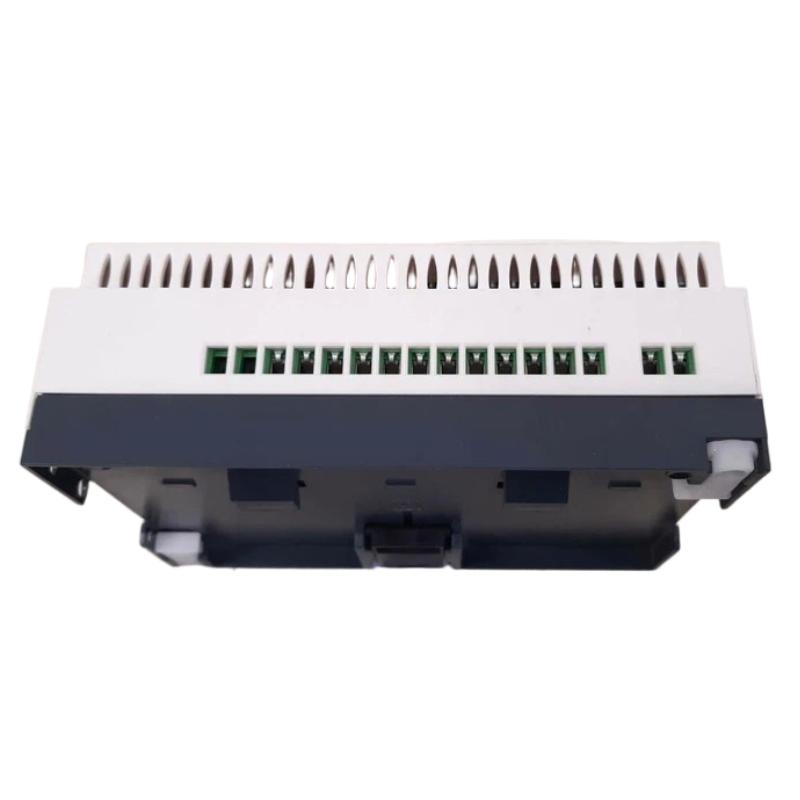

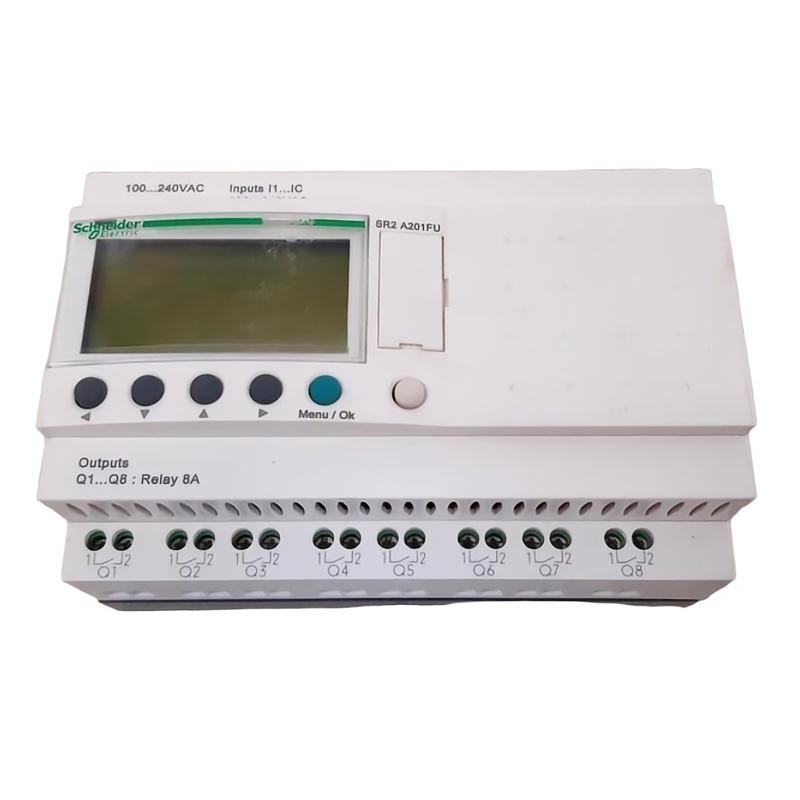

Schneider SR2A201FU Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | SR2A201FU |
| Product Type | Compact Smart Relay |
| Product Series | Zelio Logic SR2 |
| Total I/O Points | 20 |
| Digital Inputs | 12 |
| Digital Input Voltage | 100–240 V AC |
| Digital Input Current | 0.6 mA |
| Digital Input Frequency | 47–53 Hz / 57–63 Hz |
| Analog Inputs | 0 |
| Relay Outputs | 8 |
| Relay Contact Type | Normally Open (NO) |
| Relay Output Voltage | 24–250 V AC / 5–30 V DC |
| Output Thermal Current | 8 A total across all eight outputs |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Maximum Supply Current | 100 mA at 100 V AC; 50 mA at 240 V AC, without extension |
| Power Consumption | 11 VA without extension |
| Programming Languages | Ladder Diagram (LD) and Function Block Diagram (FBD) |
| Programming Capacity | Up to 240 ladder rungs, depending on configuration |
| Display | Built-in LCD display |
| Real-Time Clock | Not included |
| Program Backup | EEPROM memory; up to 10 years at 25°C |
| Cycle Time | 6–90 ms |
| Isolation Voltage | 1,780 V |
| Mounting Method | 35 mm DIN rail or panel mounting |
| Protection Rating | IP20 at terminals; IP40 on front panel |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 124.6 × 107.6 × 59.5 mm |
| Weight | 0.38 kg |
FAQ
Q1: What is the main function of the Schneider SR2A201FU Compact Smart Relay?
The SR2A201FU is a programmable smart relay designed for small and medium-sized automation tasks. With 12 digital inputs and eight relay outputs, it can manage equipment sequencing, lighting control, pump operation, ventilation systems, and basic machine interlocking without requiring a full PLC system.
Q2: What type of power supply does the SR2A201FU require?
The SR2A201FU operates on a 100–240 V AC supply at 50/60 Hz. Its permitted supply voltage range is 85–264 V AC. Before installation, verify the supply voltage and frequency, and ensure that the circuit has suitable overcurrent protection.
Q3: Can the SR2A201FU accept 24 V DC sensor signals?
Its digital inputs are designed for 100–240 V AC signals, so standard 24 V DC sensors should not be connected directly without checking interface compatibility. If the application uses DC sensors, an appropriate interface relay or signal conversion device may be required. Confirm the wiring arrangement before connecting field devices.
Q4: How is the SR2A201FU programmed?
The relay supports Ladder Diagram (LD) and Function Block Diagram (FBD) programming through compatible Zelio Soft software. After creating the control program, download it using a compatible programming interface and test the logic, input responses, and output actions before placing the machine into service.
Q5: Can all eight relay outputs carry 8 A simultaneously?
The specified output thermal current is 8 A across all eight outputs, not 8 A per output. The allowable current for each circuit also depends on the load type, switching voltage, wiring, and terminal limitations. For inductive loads such as motors and solenoids, use appropriately rated contactors or interposing relays when necessary.
Q6: What should be checked if the relay does not respond to an input signal?
First, verify that the AC supply is within the permitted range. Then check the input voltage, wiring connections, common terminals, and the status of the input indicator or display. Confirm that the program assigns the correct input address and that no logic condition is preventing the expected output. Isolate power before changing any wiring.
Q7: Does the SR2A201FU retain its program after a power interruption?
Yes. Its built-in EEPROM memory retains the program, with a specified backup period of up to 10 years at 25°C. However, this model does not include a real-time clock. Applications requiring time-of-day scheduling should account for this limitation when designing the control system.
Q8: What should be considered when replacing an existing SR2A201FU?
Before replacement, record the existing wiring, program, supply requirements, and input/output assignments. Confirm that the replacement supports the same AC input signals and relay output requirements. Also check the programming software and interface compatibility, then test every input, output, and control sequence before returning the equipment to normal operation.
Schneider SR2A201FU Compact Smart Relay is in stock. Please contact us for a quick quote and competitive pricing.
