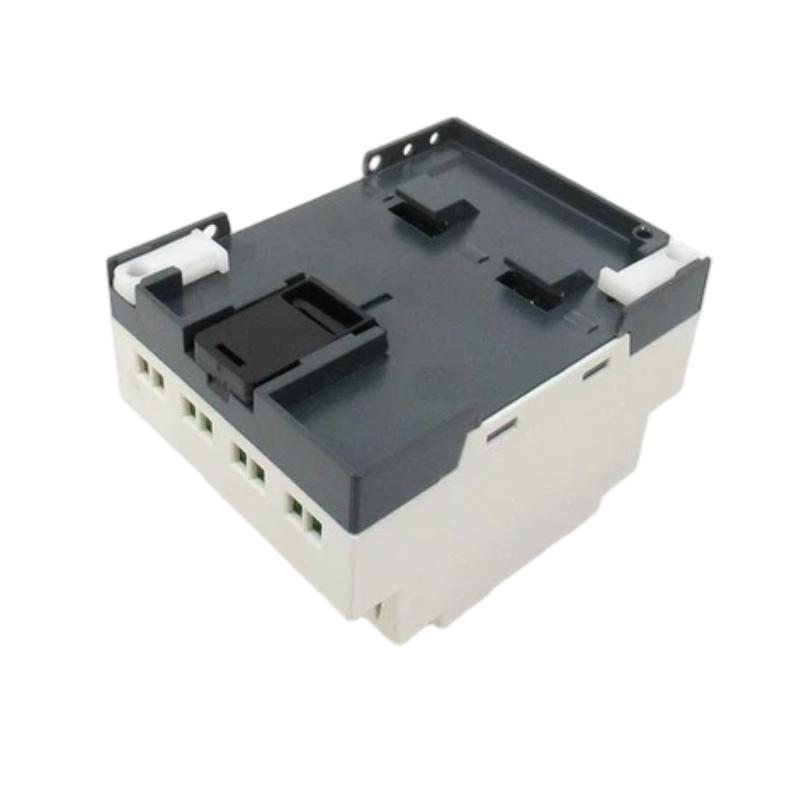

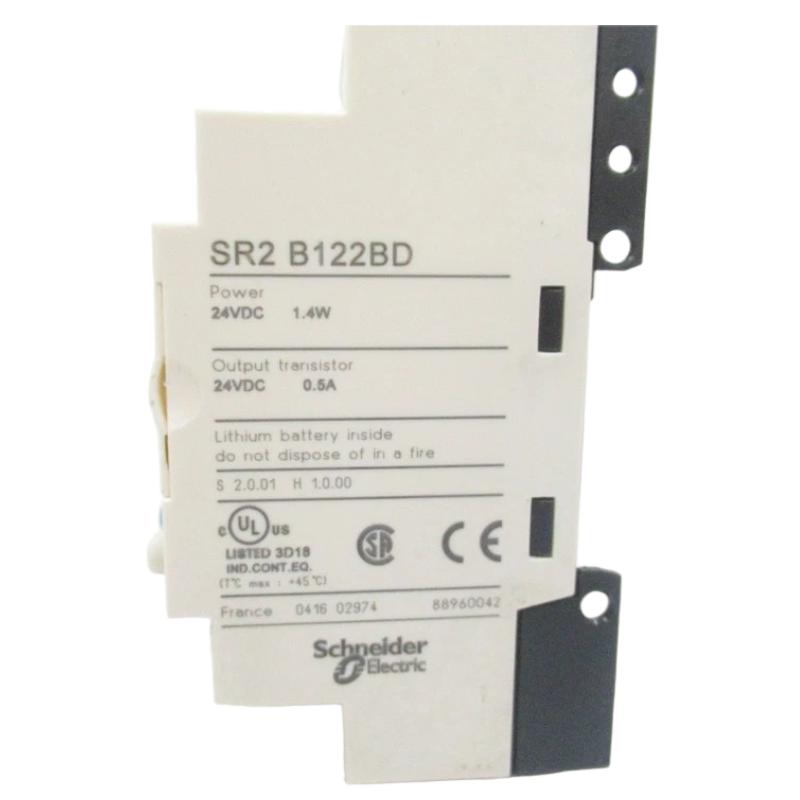

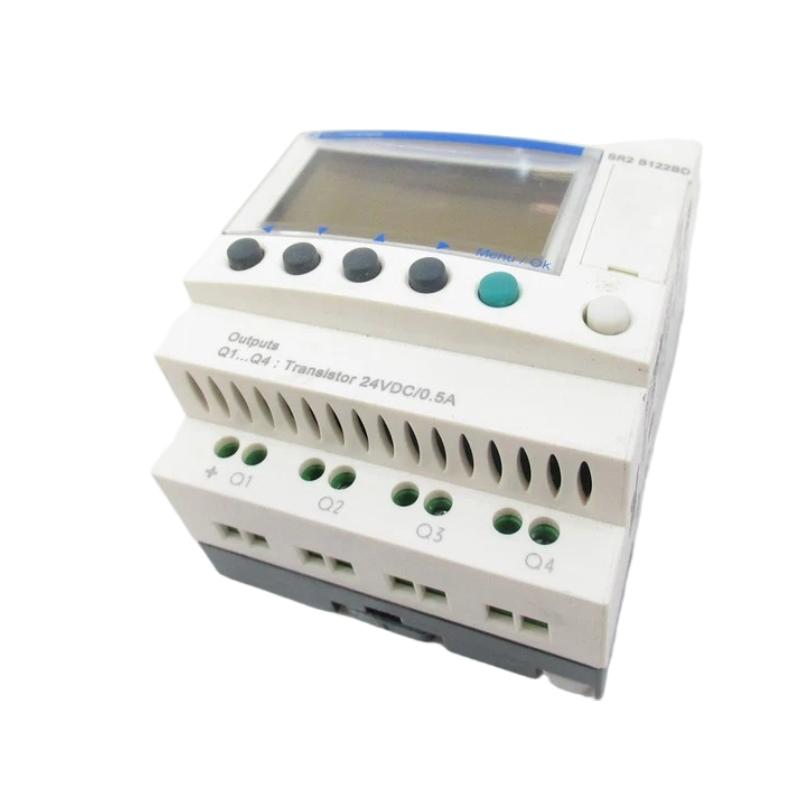

Schneider SR2B122BD Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | SR2B122BD |
| Product Series | Zelio Logic |
| Product Type | Compact Smart Relay |
| Total I/O | 12 points |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–30 V DC |
| Maximum Supply Current | 100 mA without extension |
| Power Consumption | 3 W without extension |
| Digital Inputs | 8 |
| Digital Input Voltage | 24 V DC |
| Digital Input Current | 4 mA |
| Digital Input Counting Frequency | 1 kHz |
| Analog Inputs | 4 |
| Analog Input Range | 0–10 V / 0–24 V |
| Analog Input Resolution | 8 bits |
| Compatible Sensors | 3-wire PNP proximity sensors; supported temperature probes |
| Output Type | 4 transistor outputs |
| Output Voltage | 24 V DC |
| Output Voltage Range | 19.2–30 V DC |
| Output Load Current | 0.5–0.625 A per output, depending on operating conditions |
| Output Protection | Overload, short-circuit, and overvoltage protection |
| Local Display | Built-in LCD display |
| Programming Languages | Ladder Diagram (LD), Function Block Diagram (FBD) |
| Programming Capacity | Up to 240 ladder lines or 500 FBD blocks |
| Cycle Time | 6–90 ms |
| Real-Time Clock | Built-in |
| Program Backup | Up to 10 years at 25°C under specified conditions |
| Reverse Polarity Protection | Yes |
| Mounting | 35 mm DIN rail or screw fixing |
| Protection Rating | IP40 front panel; IP20 terminal block |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 107.6 × 71.2 × 59.5 mm |
| Weight | 0.22 kg |
FAQ
Q1: What is the main function of the Schneider SR2B122BD Compact Smart Relay?
A1: The SR2B122BD is a programmable smart relay in the Zelio Logic series. It executes user-defined control programs for small automation applications, such as pump control, ventilation, lighting, and basic machine sequencing. Its transistor outputs are suitable for compatible DC control loads.
Q2: What power supply does the SR2B122BD require?
A2: The relay operates on a 24 V DC supply, with an allowable voltage range of 19.2–30 V DC. The power supply must be correctly wired and sized to support the relay and its connected control equipment.
Q3: Can the SR2B122BD accept analog signals from sensors?
A3: Yes. It has four analog input channels supporting 0–10 V and 0–24 V signals, with 8-bit resolution. Compatible temperature probes are also supported. Confirm the sensor type, signal range, and terminal assignment before wiring.
Q4: What is the difference between the SR2B122BD and a relay model with mechanical outputs?
A4: The SR2B122BD uses transistor outputs rather than mechanical relay contacts. Transistor outputs switch compatible DC loads electronically and are suitable for frequent switching. They have specific voltage, current, and load requirements and cannot directly replace relay contacts in every AC or DC circuit.
Q5: What should I check if a transistor output does not activate?
A5: Check the 24 V DC supply, program logic, input status, output wiring, and load current. Confirm that the connected load is compatible with the transistor output and that the circuit has no short circuit or overload. The output protection may intervene when an abnormal load condition occurs.
Q6: Which programming methods are supported by the SR2B122BD?
A6: The relay supports Ladder Diagram (LD) and Function Block Diagram (FBD) programming using compatible Schneider Electric Zelio Soft software. The program can support up to 240 ladder lines or 500 FBD blocks, depending on the programming method.
Q7: Can the SR2B122BD retain its program after a power interruption?
A7: Yes. Its built-in memory backup can retain the program for up to 10 years at 25°C under specified conditions. After power is restored, check the program status, clock settings, input signals, and output operation before returning the system to normal service.
Q8: What should be checked before replacing an existing smart relay with the SR2B122BD?
A8: Verify the 24 V DC supply requirement, input configuration, analog signal compatibility, transistor output ratings, terminal assignments, and program compatibility. Because this model uses transistor outputs, confirm that the existing loads are suitable for electronic DC switching before installation.
