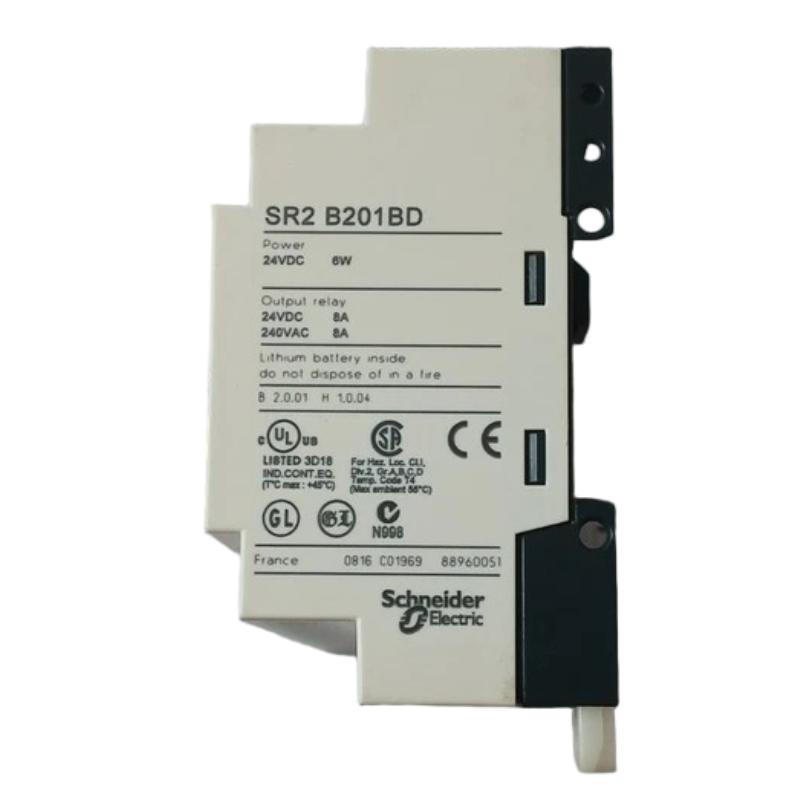

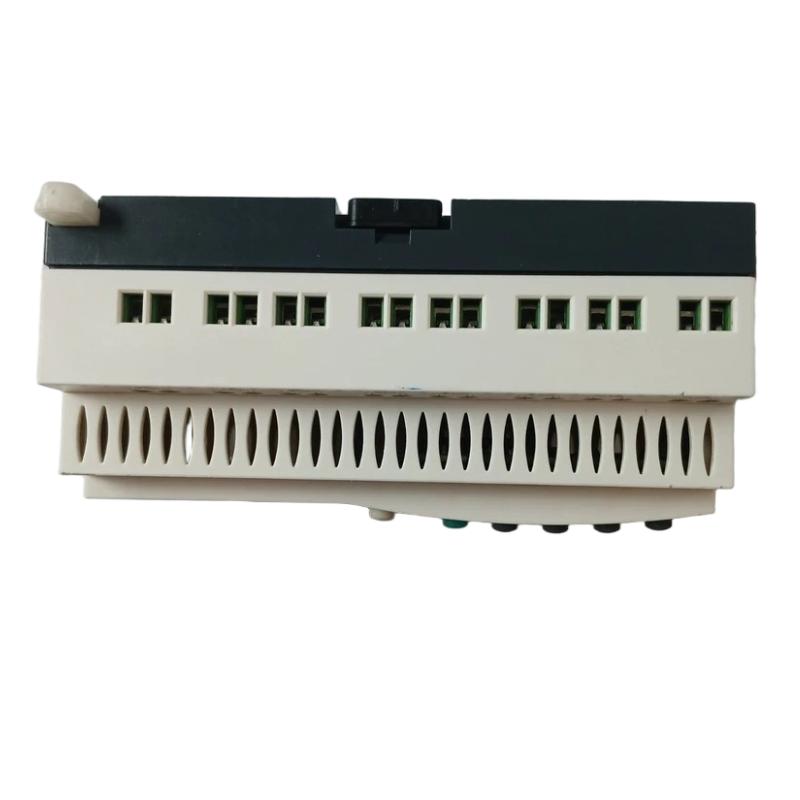

Schneider SR2B201BD Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | SR2B201BD |
| Product Series | Zelio Logic |
| Product Type | Compact Smart Relay |
| Number of I/O | 20 |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–30 V DC |
| Maximum Supply Current | 100 mA without extension |
| Power Consumption | 6 W without extension |
| Digital Inputs | 12 |
| Digital Input Voltage | 24 V DC |
| Digital Input Current | 4 mA |
| Analog Inputs | 6 |
| Analog Input Range | 0–10 V / 0–24 V |
| Analog Input Resolution | 8 bits |
| Maximum Permissible Analog Input Voltage | 30 V |
| Input Compatibility | 3-wire PNP proximity sensors |
| Relay Outputs | 8 |
| Output Contact Type | Normally Open (NO) |
| Relay Output Voltage | 24–250 V AC; 5–30 V DC |
| Combined Output Thermal Current | 8 A across all 8 outputs |
| Local Display | Built-in display |
| Programming Languages | Ladder Diagram (LD), Function Block Diagram (FBD) |
| Programming Capacity | Up to 120 ladder lines or 200 FBD blocks |
| Cycle Time | 6–90 ms |
| Real-Time Clock | Built-in |
| Program Backup | Up to 10 years at 25°C under specified conditions |
| Reverse Polarity Protection | Yes |

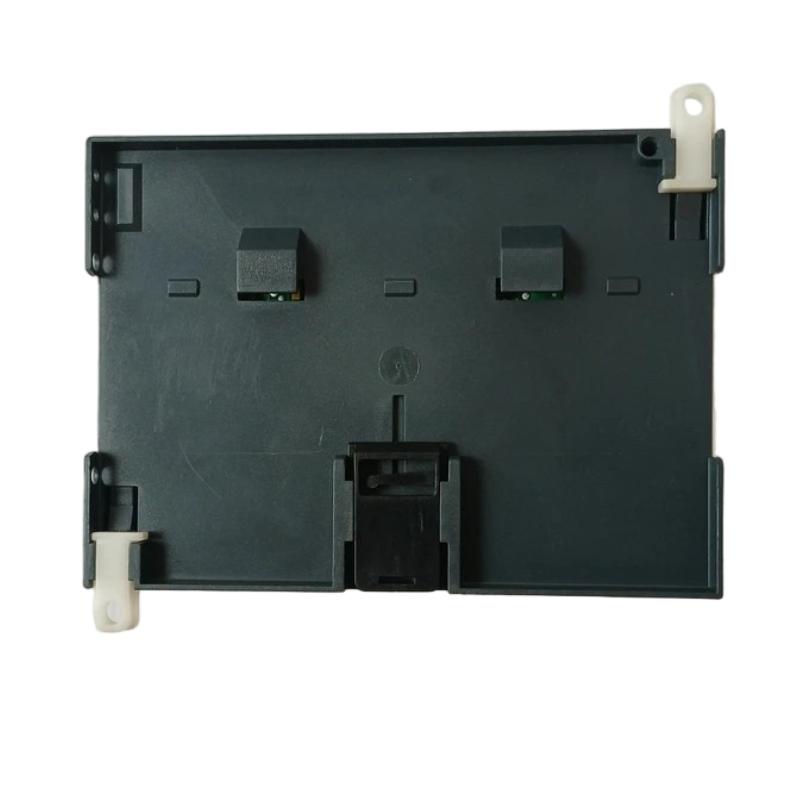

| Mounting | 35 mm DIN rail or screw fixing |
| Protection Rating | IP40 front panel; IP20 terminal block |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 124.6 × 107.6 × 59.5 mm |
| Weight | 0.38 kg |
FAQ
Q1: What is the main function of the Schneider SR2B201BD Compact Smart Relay?
A1: The SR2B201BD is a programmable smart relay in the Zelio Logic series. It is designed for small-scale automation tasks, including equipment sequencing, machine control, and basic process automation. It monitors input signals and controls connected devices according to the programmed logic.
Q2: What power supply does the SR2B201BD require?
A2: The SR2B201BD operates on a 24 V DC power supply, with an allowable voltage range of 19.2–30 V DC. Verify the supply polarity and voltage before powering up the relay. Reverse polarity protection is provided, but correct wiring is still essential.
Q3: What input signals can the SR2B201BD handle?
A3: The relay has 12 discrete inputs and 6 analog input channels. The discrete inputs are designed for 24 V DC signals, while the analog inputs support 0–10 V and 0–24 V ranges. Three-wire PNP proximity sensors can be used when their electrical characteristics are compatible with the input specifications.
Q4: Which programming methods are supported by the SR2B201BD?
A4: The SR2B201BD supports Ladder Diagram (LD) and Function Block Diagram (FBD) programming through compatible Zelio Soft software. The available program capacity depends on the selected programming method. The program should be tested before being deployed in a live control system.
Q5: What types of loads can the relay outputs control?
A5: The unit provides eight normally open relay outputs for switching compatible AC or DC loads. The specified output voltage ranges are 24–250 V AC and 5–30 V DC, with a combined thermal current of 8 A across all eight outputs. Contact ratings, load inrush current, and switching frequency should be considered when selecting connected equipment.
Q6: Why might an analog input display an incorrect value?
A6: Incorrect readings can result from using the wrong input range, unstable signal voltage, wiring errors, electrical interference, or an incompatible sensor. Confirm the signal type and common reference connections, check the input configuration in the program, and measure the actual signal with a suitable meter.
Q7: Can the SR2B201BD retain its program after a power failure?
A7: Yes. The relay has built-in memory backup designed to retain the program for up to 10 years at 25°C under specified conditions. After power is restored, check the program status, clock settings, input states, and output operation before resuming automatic operation.
Q8: What should be checked if the SR2B201BD fails to operate after installation?
A8: Check that the supply voltage is within the specified range and that the terminals are wired correctly. Then inspect the input status, program logic, output connections, and connected loads. If the display shows an error or the program does not run as expected, consult the applicable programming documentation and troubleshoot with the equipment safely isolated where necessary.
Schneider SR2B201BD Compact Smart Relay is in stock. Please contact us for a quick quote and competitive pricing.
