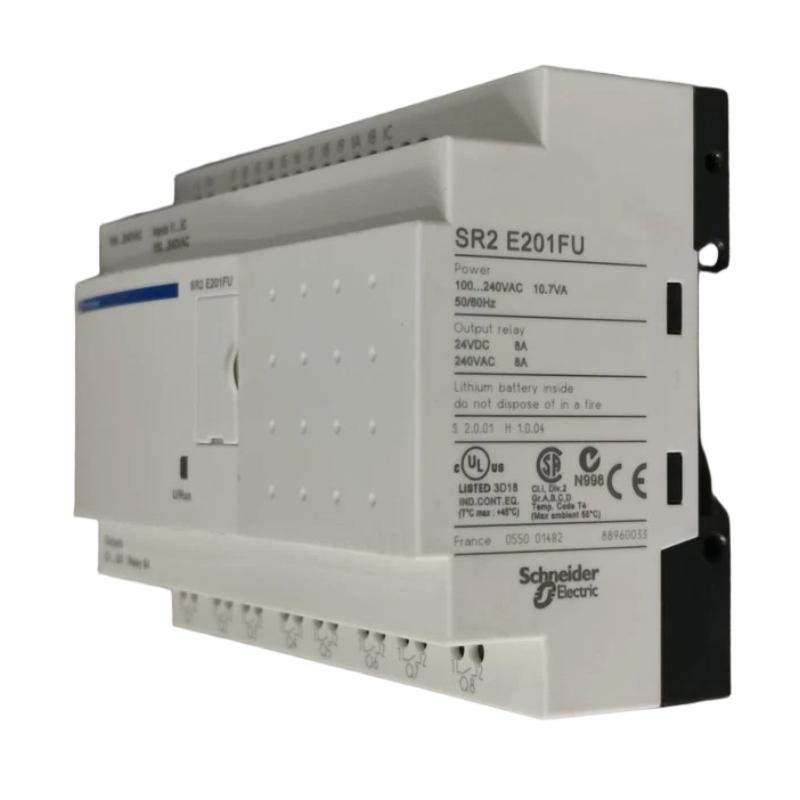

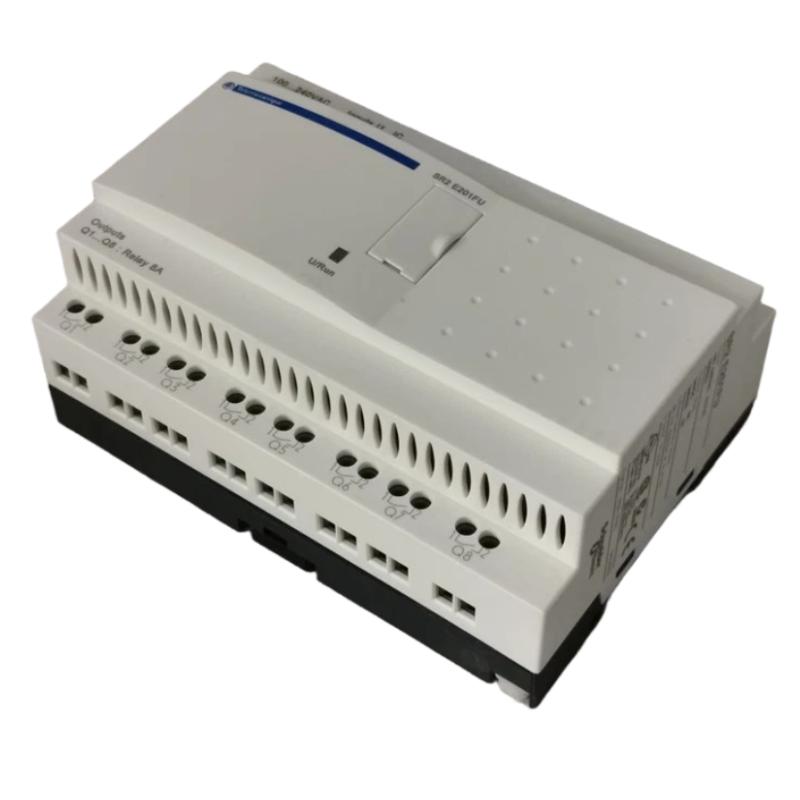

Schneider SR2E201FU Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | SR2E201FU |
| Product Type | Compact Smart Relay |
| Product Series | Zelio Logic |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Total I/O Points | 20 |
| Digital Inputs | 12 |
| Analog Inputs | Model-dependent input configuration; verify terminal functions in the technical documentation |
| Relay Outputs | 8 |
| Output Contact Type | Relay contacts |
| Programming Languages | Ladder Logic (LD), Function Block Diagram (FBD) |
| Integrated Clock | Yes |
| Display | No |
| Mounting Type | 35 mm DIN rail or screw mounting |
| Protection Rating | IP20 |
| Operating Temperature | Refer to the manufacturer’s specifications for the exact operating limits |
| Dimensions | 124.6 × 107.6 × 59.5 mm |
| Weight | 0.35 kg |
FAQ
Q1: What is the main function of the Schneider SR2E201FU Smart Relay?
A: The SR2E201FU belongs to the Zelio Logic smart relay family. It is designed for compact automation applications such as machine sequencing, pump control, lighting management, and basic equipment monitoring.
Q2: What power supply does the SR2E201FU require?
A: This model is designed for AC power. Confirm the rated voltage and permitted supply range on the product label or in the applicable Schneider Electric technical documentation before connecting power.
Q3: How many inputs and outputs does the SR2E201FU provide?
A: The model is identified as a 20-point smart relay with 12 inputs and 8 relay outputs. Confirm the exact input types and terminal assignments for the installed hardware version before wiring.
Q4: Which programming languages are supported?
A: Zelio Logic smart relays support Ladder Logic (LD) and Function Block Diagram (FBD), depending on the model and software version. Use compatible Zelio Soft software to create, test, and transfer the control program.
Q5: Can the SR2E201FU control both AC and DC loads?
A: Relay outputs can generally switch compatible AC and DC loads within their specified contact ratings. Check the permitted voltage, current, load type, and inrush current before connecting motors, solenoids, or other inductive equipment.
Q6: Does the SR2E201FU support time-based control?
A: Models equipped with a real-time clock can execute scheduled switching and time-dependent control sequences. Verify the clock function for the exact model and set the time correctly during commissioning.
Q7: Can additional I/O modules be connected to the SR2E201FU?
A: Expansion capability depends on the specific smart relay model. Check the manufacturer’s compatibility documentation before planning an expansion; do not assume that additional I/O modules are supported.
Q8: What should be checked when replacing an existing SR2E201FU?
A: Verify the complete model number, supply voltage, terminal layout, input and output configuration, relay contact ratings, and program compatibility. After installation, test all connected signals and control functions before returning the equipment to service.
Schneider SR2E201FU Compact Smart Relay is in stock. Please contact us for a quick quote and competitive pricing.
