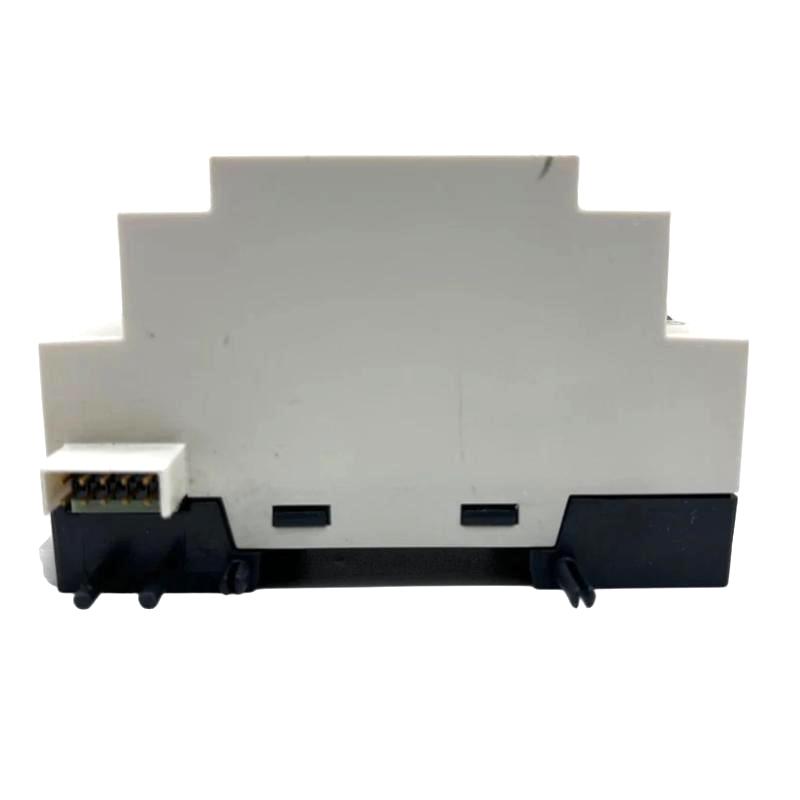

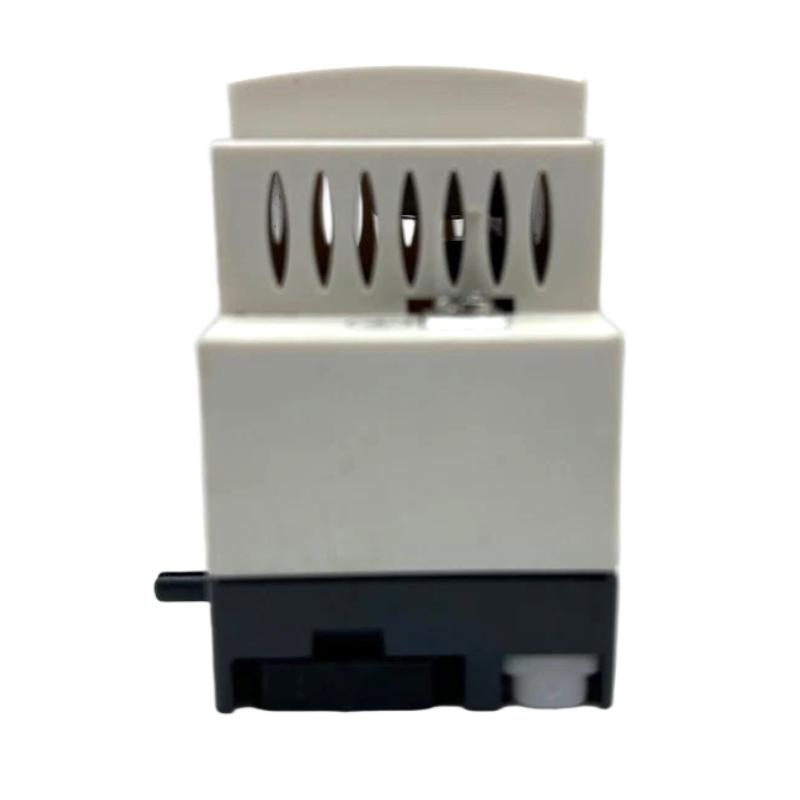

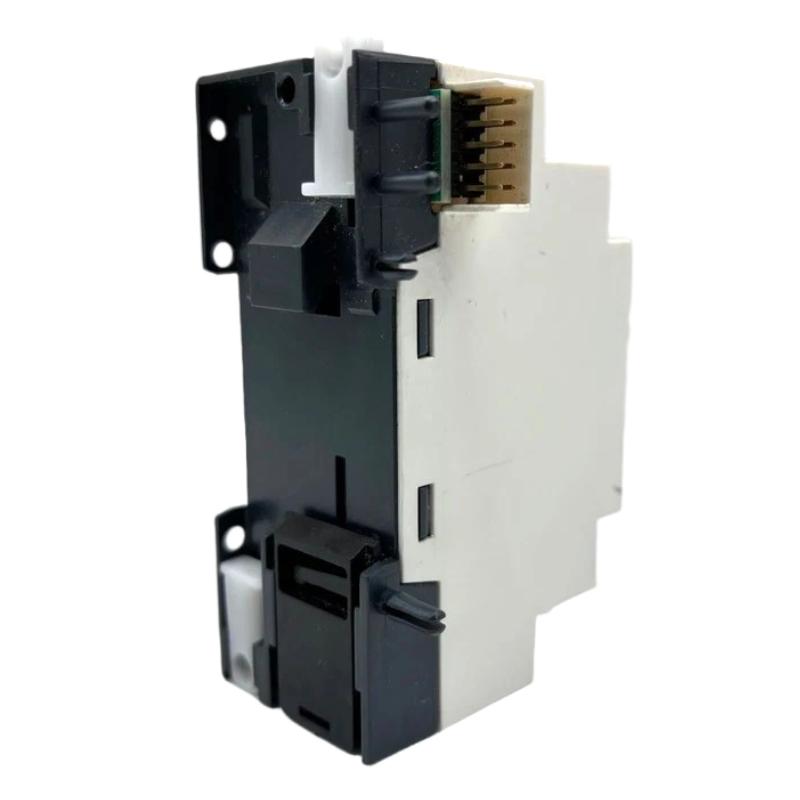

Schneider SR3NET01BD Ethernet Communication Module Interface
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | SR3NET01BD |
| Product Type | Ethernet Communication Module Interface |
| Product Series | Zelio Logic |
| Compatible Devices | Schneider Electric SR3 smart relays with 24 V DC supply, SR3 B…BD series |
| Main Function | Ethernet network communication for smart relays |
| Communication Protocol | Ethernet, Modbus TCP server mode |
| Ethernet Interface | 10/100BASE-T |
| Network Connector | 1 × RJ45 shielded female connector |
| Programming Language | Function Block Diagram (FBD) |
| Communication Indicator | 1 × LK/ACT LED, 10/100 Ethernet link/activity |
| Status Indicator | 1 × STS LED |
| Supply Voltage Compatibility | For compatible 24 V DC SR3 smart relays |
| Terminal Type | Screw terminals |
| Solid Wire Connection | 0.25–2.5 mm² for single-wire connection; certain two-wire combinations supported |
| Flexible Wire Connection | 0.25–2.5 mm² with ferrule for single-wire connection; smaller cross-sections for two-wire connection |
| Terminal Tightening Torque | 0.5 N·m |
| Mounting Type | DIN rail or screw mounting |
| Protection Rating | IP40 front panel / IP20 terminals |
| Operating Temperature | -20°C to +55°C, depending on specified operating conditions |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95%, non-condensing |
| Certifications | UL, CSA, C-Tick, GOST |
| Dimensions | 180 × 57 × 35 mm |
| Weight | 0.11 kg |
FAQ
Q1: What is the main function of the Schneider Electric SR3NET01BD Ethernet Communication Module?
The SR3NET01BD adds Ethernet communication capability to compatible Zelio Logic SR3 smart relays. It allows the relay to exchange data with other devices on an Ethernet network, supporting monitoring and control in small automation systems.
Q2: Which smart relays are compatible with the SR3NET01BD?
This module is designed for Schneider Electric SR3 smart relays in the SR3 B…BD series that use a 24 V DC power supply. Check the exact relay reference and its documentation before installation to ensure compatibility.
Q3: Does the SR3NET01BD support Modbus TCP communication?
Yes. The module supports Ethernet communication using Modbus TCP in server mode. This allows compatible clients, such as supervisory systems or other controllers, to exchange supported data with the smart relay. The required data mapping and configuration must be set up correctly.
Q4: What Ethernet connection does the SR3NET01BD use?
The module provides one RJ45 Ethernet connector and supports 10/100BASE-T. Use a suitable Ethernet cable and connect it to the appropriate switch or network device. Network speed and link status can be checked through the communication indicator.
Q5: How is the SR3NET01BD configured?
Configuration is performed using compatible Zelio Soft 2 software on a PC. The project must be configured for the supported relay and communication module. Before commissioning, confirm the network settings and Modbus TCP parameters required by the connected system.
Q6: What do the LK/ACT and STS indicators mean?
The LK/ACT LED indicates Ethernet link and activity, while the STS LED provides module status information. If the network connection is unavailable, check the Ethernet cable, switch port, and link indication first. Consult the product documentation for the exact status-light patterns.
Q7: What should I check if the SR3NET01BD cannot communicate over the network?
Verify that the module is installed on a compatible SR3 relay and that the relay is powered and operating normally. Then check the Ethernet cable, network link, IP configuration, subnet settings, and Modbus TCP client configuration. Ensure that firewalls or network rules are not blocking communication.
Q8: Can the SR3NET01BD connect directly to a PLC or SCADA system?
It can communicate with compatible PLC, HMI, or SCADA systems when they support the required Ethernet and Modbus TCP functions. Before integration, confirm the available data, addressing, polling requirements, and communication settings. Test data exchange with a small configuration before deploying the system in full operation.
Schneider SR3NET01BD Ethernet Communication Module Interface is in stock. Please contact us for a quick quote and competitive pricing.
