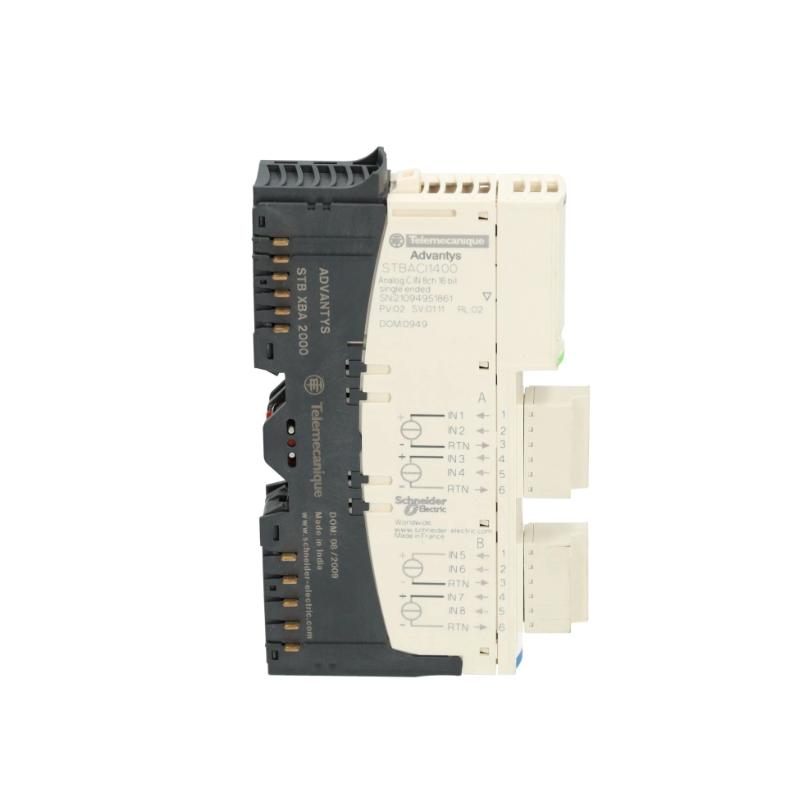

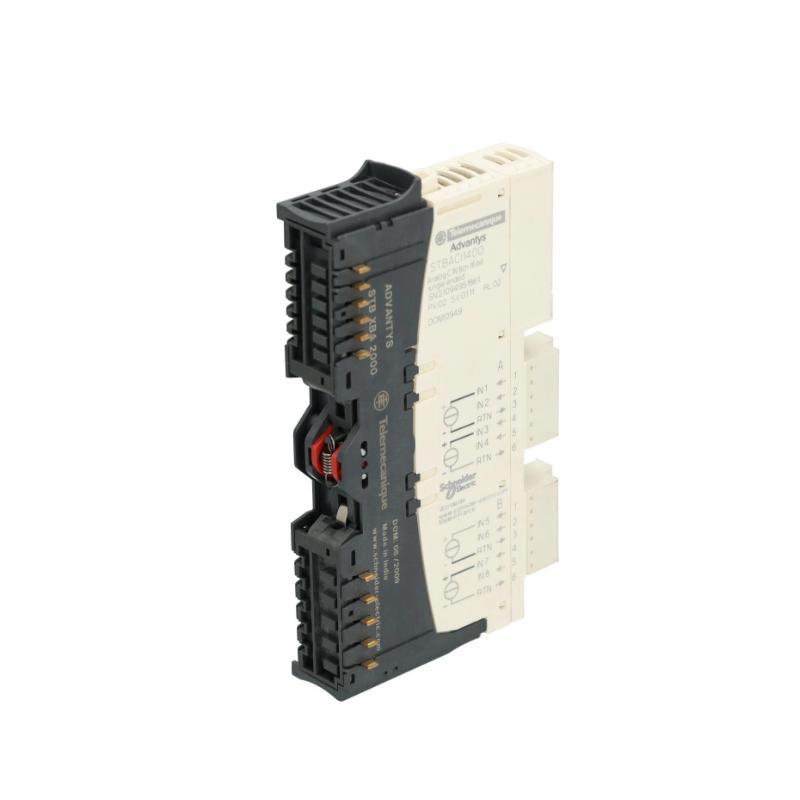

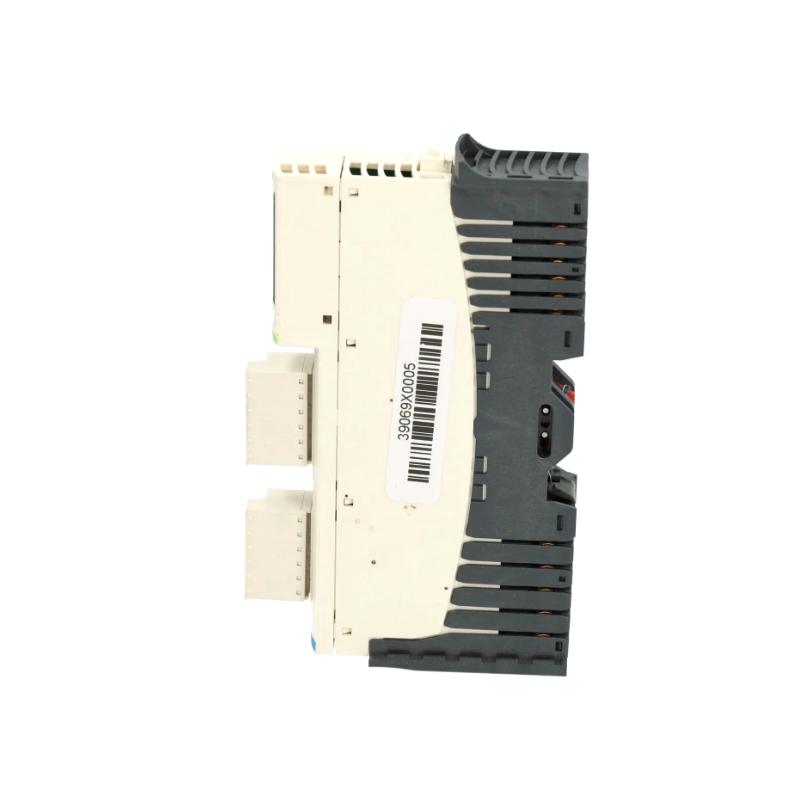

Schneider STBACI1400 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | STBACI1400 |
| Manufacturer | Schneider Electric |
| Product Family | Advantys STB |
| Product Type | Analog Input Module |
| Input Channels | 4 Single-Ended Analog Current Inputs |
| Input Signal Range | 0–20 mA |
| Resolution | 12 Bits |
| Data Format | IEC 61131-2 |
| Input Response Time | 5 ms |
| Update Time | 10 ms |
| Input Filter | Single Low-Pass Filter, 25 Hz |
| Integral Linearity | ±0.1% Full Scale |
| Differential Linearity | Monotonic |
| Absolute Accuracy | ±0.5% Full Scale at 25°C |
| Temperature Drift | ±0.01% Full Scale/°C |
| Input Impedance | ≤ 300 Ω |
| Maximum Input Current | 25 mA |
| Maximum Input Voltage | 50 VDC Without Damage |
| Operating Voltage Range | 19.2–30 VDC |
| Logic Bus Current Consumption | 30 mA |
| Sensor Bus Current Consumption | 225 mA (No Load) |
| Sensor Supply Capability | 100 mA/Channel @ 30°C, 50 mA/Channel @ 60°C |
| Isolation (Field-to-Bus) | 1500 VDC for 1 Minute |
| Isolation (Module-to-Sensor Bus) | 500 VAC RMS |
| Hot Swapping | Supported (NIM Dependent) |
| Addressing Requirement | 4 Input Words |
| Status Indicators | RDY (Green), ERR (Red) LEDs |
| Dimensions | 70 x 18.4 x 128.3 mm |
| Weight | 0.099 kg |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP20 (Installed System) |
| Typical Applications | Process Measurement, Current Transmitters, Industrial Monitoring, Remote I/O Systems |
| Lifecycle Status | Discontinued Product |
FAQ
Q1: What is the STBACI1400 used for?
A1: It is a 4-channel analog input module for the Advantys STB distributed I/O platform, designed to acquire 0–20 mA process signals from field instruments.
Q2: How many analog inputs does it provide?
A2: The module provides 4 independent analog current input channels.
Q3: What is the input range?
A3: Each channel accepts a 0–20 mA analog current signal.
Q4: What resolution does the module offer?
A4: It provides 12-bit analog-to-digital conversion resolution.
Q5: What is the response time?
A5: The input response time is 5 ms, with a typical update time of 10 ms.
Q6: Does the module provide sensor power?
A6: Yes. It can supply up to 100 mA per channel at 30°C and 50 mA per channel at 60°C.
Q7: What isolation protection is provided?
A7: The module offers 1500 VDC field-to-bus isolation and 500 VAC RMS isolation between the analog module and sensor bus.
Q8: Is the STBACI1400 still available?
A8: No. The STBACI1400 is a discontinued product from the Advantys STB distributed I/O family.
Schneider STBACI1400 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
