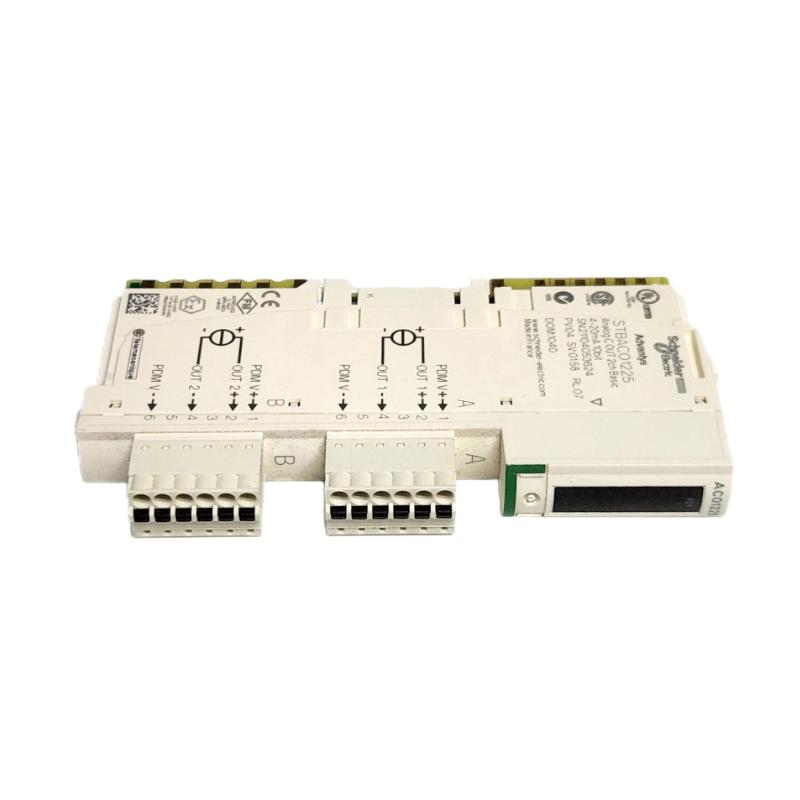

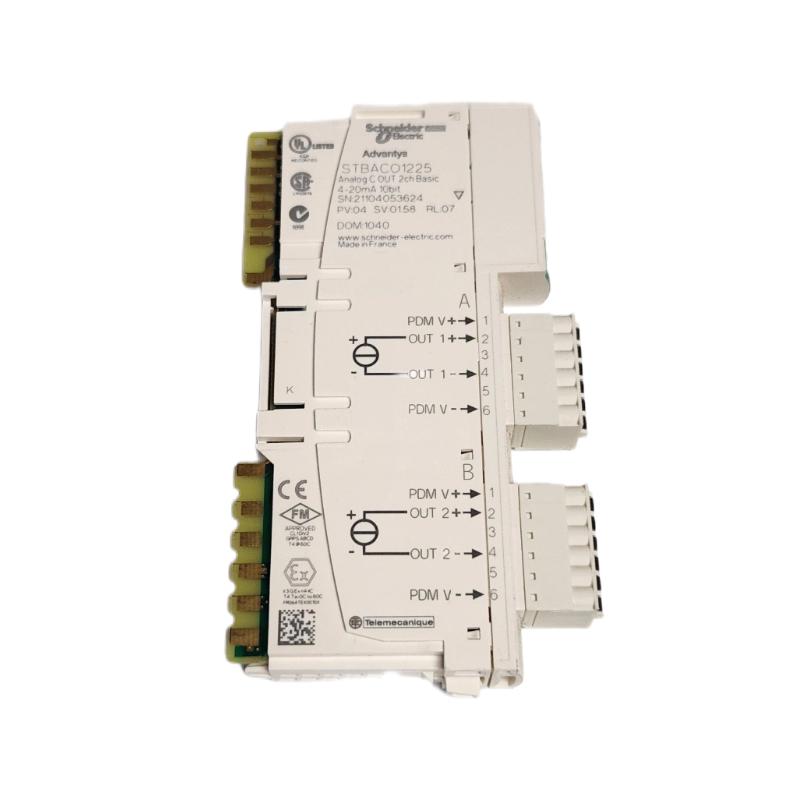

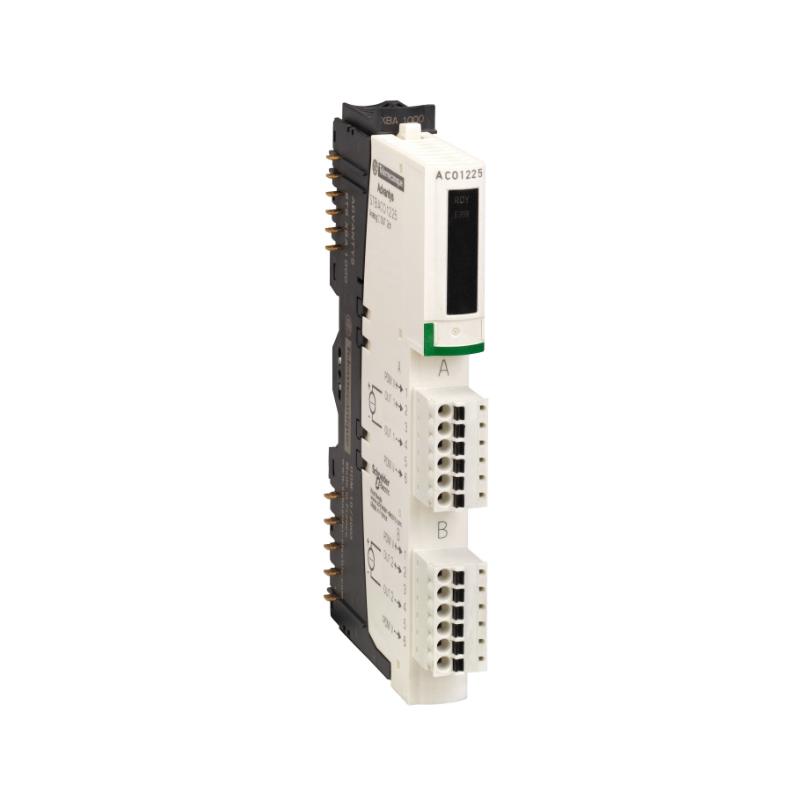

Schneider STBACO1225 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | STBACO1225 |
| Manufacturer | Schneider Electric |
| Product Family | Advantys STB |
| Product Type | Analog Output Module |
| Output Channels | 2 Single-Ended Analog Current Outputs |
| Output Signal Range | 0–20 mA |
| Resolution | 12 Bits |
| Data Format | IEC 61131-2 |
| Output Response Time | 5 ms |
| Update Time | 10 ms |
| Integral Linearity | ±0.1% Full Scale |
| Differential Linearity | Monotonic |
| Absolute Accuracy | ±0.5% Full Scale at 25°C |
| Temperature Drift | ±0.01% Full Scale/°C |
| Maximum Load | 500 Ω |
| Maximum Output Voltage | 30 VDC |
| Operating Voltage Range | 19.2–30 VDC |
| Logic Bus Current Consumption | 30 mA |
| Isolation (Field-to-Bus) | 1500 VDC for 1 Minute |
| Isolation (Module-to-Sensor Bus) | 500 VAC RMS |
| Hot Swapping | Supported (NIM Dependent) |
| Status Indicators | RDY (Green), ERR (Red) LEDs |
| Module Width | 27.8 mm |
| Dimensions (H × W × D) | Approx. 128 × 28 × 70 mm (including base) |
| Weight | Approximately 0.18 kg |
| Mounting Method | DIN Rail via STBXBA1000 Base |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Typical Applications | Process Control, Current Loop Actuators, Distributed I/O Systems |
| Lifecycle Status | Discontinued Product |
FAQ
Q1: What is the STBACO1225 used for?
A1: It is a 2-channel analog output module for the Advantys STB distributed I/O platform, designed to drive 0–20 mA signals to actuators or other field devices.
Q2: How many analog outputs does it provide?
A2: The module provides 2 independent analog current output channels.
Q3: What output signal range is supported?
A3: Each channel outputs 0–20 mA.
Q4: What resolution does the module offer?
A4: It offers 12-bit digital-to-analog conversion resolution.
Q5: What is the maximum load?
A5: The module can drive loads up to 500 Ω.
Q6: Does it support hot swapping?
A6: Yes. Hot-swapping is supported with compatible Network Interface Modules (NIMs).
Q7: What isolation protection is provided?
A7: The module offers 1500 VDC field-to-bus isolation and 500 VAC RMS isolation between module and sensor bus.
Q8: Is the STBACO1225 still available?
A8: No. This product is discontinued from the Advantys STB distributed I/O family.
Schneider STBACO1225 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
