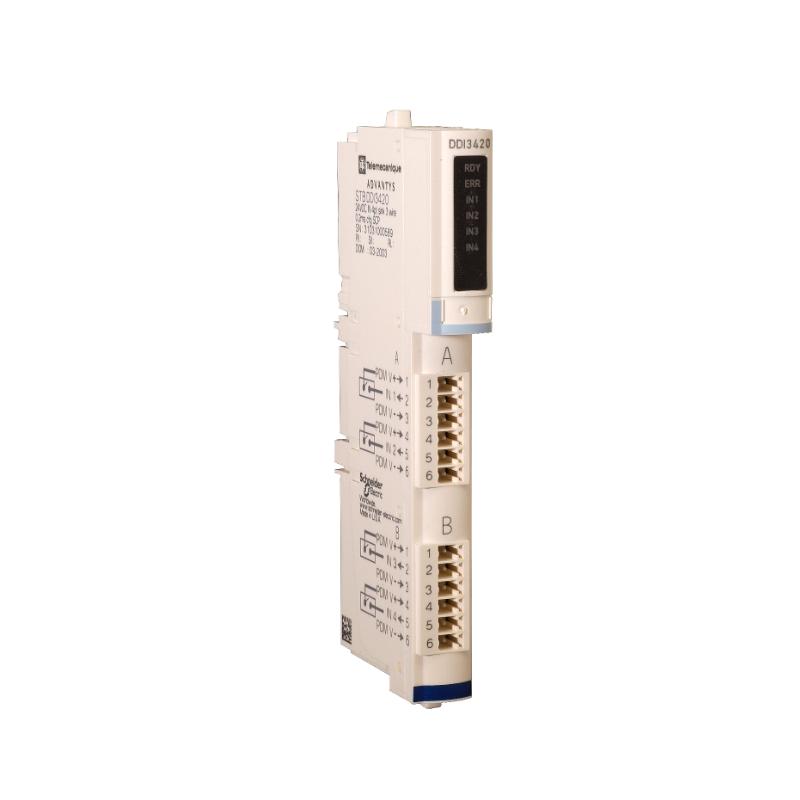

Schneider STBDDI3420 Digital Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | STBDDI3420 |
| Manufacturer | Schneider Electric |
| Product Family | Advantys STB |
| Product Type | Digital Input Module |
| Input Channels | 4 Digital Inputs |
| Input Type | Sink/Source, Configurable |
| Input Voltage Range | 24 VDC nominal (19.2–30 VDC) |
| Input Current | 7 mA per channel (typical) |
| Response Time | 5 ms |
| Update Time | 10 ms |
| Isolation (Field-to-Bus) | 1500 VDC for 1 Minute |
| Isolation (Module-to-Sensor Bus) | 500 VAC RMS |
| Hot Swapping | Supported (NIM Dependent) |
| Status Indicators | RDY (Green), ERR (Red) LEDs |
| Module Width | 27.8 mm |
| Dimensions (H × W × D) | Approx. 128 × 28 × 70 mm (including base) |
| Weight | Approximately 0.18 kg |
| Mounting Method | DIN Rail via STBXBA1000 Base |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Typical Applications | Digital signal monitoring, Process control, Distributed I/O systems |
| Lifecycle Status | Discontinued Product |
FAQ
Q1: What is the STBDDI3420 used for?
A1: It is a 4-channel digital input module for the Advantys STB distributed I/O platform, designed to monitor 24 VDC digital signals from field devices.
Q2: How many digital inputs does it provide?
A2: 4 digital input channels.
Q3: What voltage range is supported?
A3: Each channel supports 19.2–30 VDC nominal.
Q4: Is the input type configurable?
A4: Yes. Inputs can be configured as sink or source type.
Q5: What is the response time?
A5: The typical response time is 5 ms, with a module update time of 10 ms.
Q6: Does it support hot swapping?
A6: Yes, when used with compatible Network Interface Modules (NIMs).
Q7: What isolation protection is available?
A7: Field-to-bus isolation of 1500 VDC and module-to-sensor bus isolation of 500 VAC RMS.
Q8: Is the STBDDI3420 still available?
A8: No. This product is discontinued from the Advantys STB distributed I/O family.
Schneider STBDDI3420 Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
