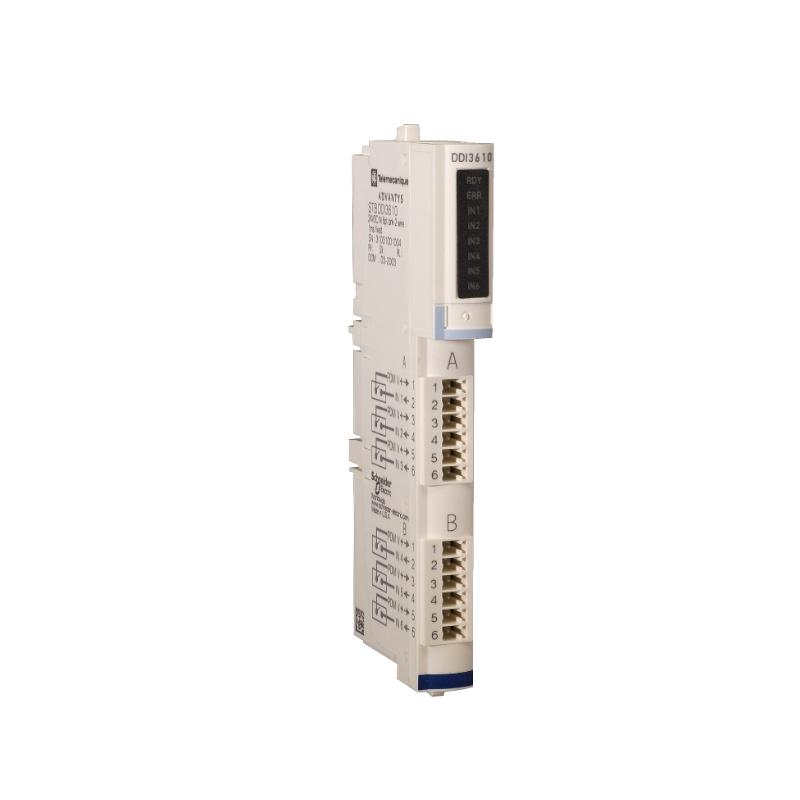

Schneider STBDDI3610K Standard DC Digital Input Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | STBDDI3610K |
| Manufacturer | Schneider Electric |
| Product Family | Advantys STB |
| Product Type | Standard DC Digital Input Kit |
| Module Included | STBDDI3610 Digital Input Module |
| Terminal Base Included | STBXBA1000 Terminal Base |
| Number of Inputs | 6 Digital Inputs |
| Input Voltage | 24 VDC Nominal |
| Input Voltage Range | 19.2–30 VDC |
| Input Logic | Positive Logic (IEC 61131-2 Type 3) |
| Input Current | Approx. 7 mA per Channel at 24 VDC |
| Input Filter Time | 0.5 ms |
| Response Time | ≤ 1 ms |
| Isolation (Field-to-Bus) | 1500 VAC |
| Isolation (Channel-to-Channel) | None |
| Logic Bus Current Consumption | 25 mA |
| Sensor Bus Current Consumption | 2 mA |
| Addressing Requirement | 1 Input Word |
| Hot Swap Capability | Yes |
| Protection Features | Reverse Polarity Protection |
| Status Indicators | 1 Green RDY LED, 1 Red ERR LED, 1 LED per Input Channel |
| Wiring Connection | Screw Terminal via STBXBA1000 Base |
| Mounting Method | DIN Rail |
| Dimensions (H × W × D) | 128.3 × 18.4 × 70 mm |
| Weight | Approximately 0.10 kg |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% Non-Condensing |
| Certifications | CE, UL, CSA |
| Typical Applications | Pushbuttons, Limit Switches, Proximity Sensors, Digital Signal Monitoring |
| Lifecycle Status | Discontinued Product |
FAQ
Q1: What is the STBDDI3610K?
A1: It is a digital input kit consisting of the STBDDI3610 6-channel digital input module and the STBXBA1000 terminal base for the Advantys STB distributed I/O system.
Q2: How many digital inputs are available?
A2: The module provides 6 independent 24 VDC digital input channels.
Q3: What input voltage does it support?
A3: The nominal input voltage is 24 VDC, with an operating range of 19.2–30 VDC.
Q4: Does the kit include the mounting base?
A4: Yes. The “K” suffix indicates that the STBXBA1000 terminal base is included with the module.
Q5: Does it support hot swapping?
A5: Yes. The module can be replaced while energized when used within a compatible Advantys STB system.
Q6: What status indicators are provided?
A6: The module includes RDY and ERR LEDs plus individual LEDs for each input channel.
Q7: What applications is it suitable for?
A7: It is commonly used for monitoring pushbuttons, selector switches, limit switches, proximity sensors, and other discrete field devices.
Q8: Is the STBDDI3610K still available?
A8: No. The STBDDI3610K belongs to the discontinued Advantys STB distributed I/O product family.
Schneider STBDDI3610K Standard DC Digital Input Kit is in stock. Please contact us for a quick quote and competitive pricing.
