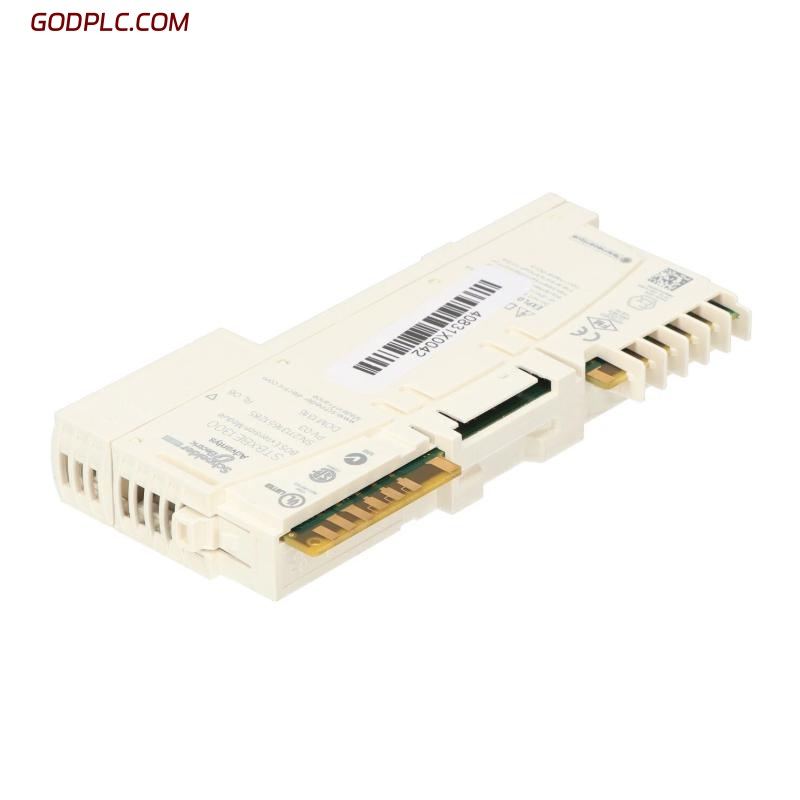

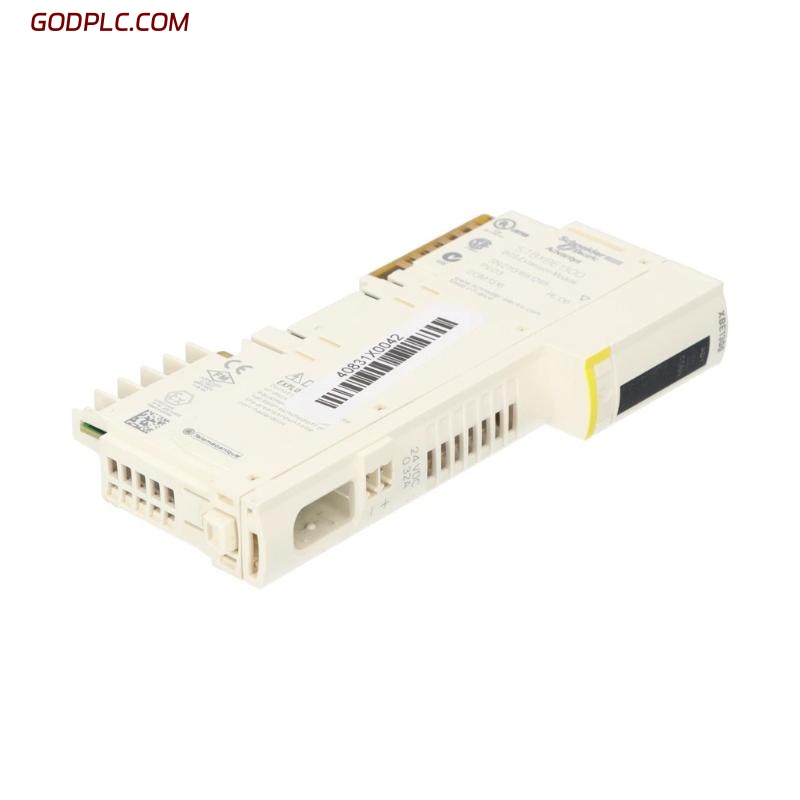

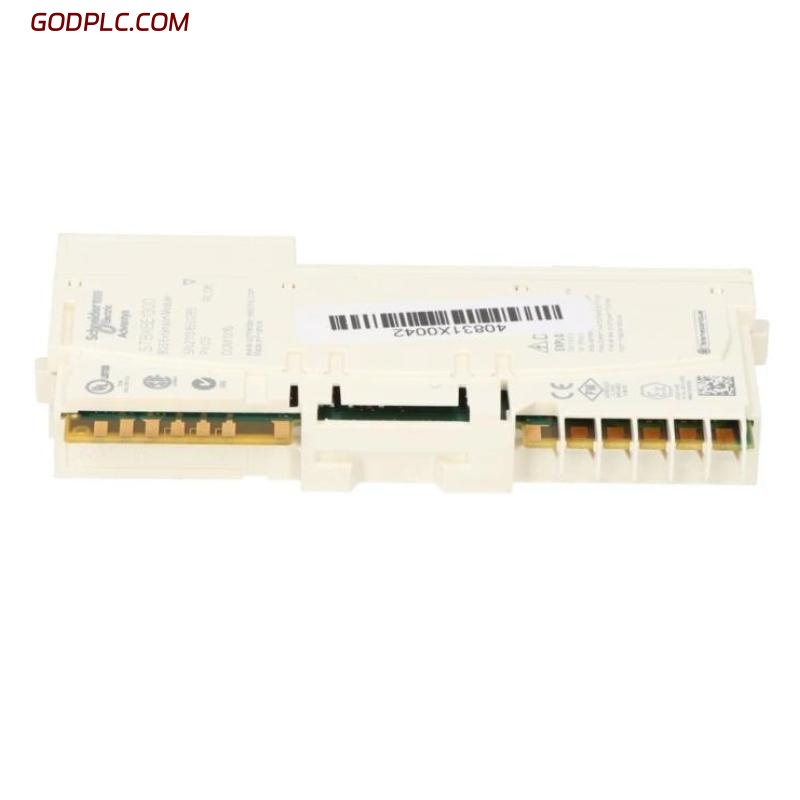

Schneider STBXBE1300 BOS Internal Bus Expansion Module
Product Overview
The Schneider STBXBE1300 is a Bus Expansion Module designed for use in Modicon Quantum and Premium PLC systems. It extends the internal bus of the Backplane Operating System (BOS), allowing additional modules to be integrated into the control rack without compromising communication speed or reliability. This expansion capability supports larger, more complex system configurations by enabling scalable I/O and communication architectures.
Key Features
-
Internal Bus Extension – Increases the number of modules supported on the BOS backplane
-
High-Speed Communication – Maintains data integrity and performance across expanded racks
-
Compact Form Factor – Fits seamlessly into existing Modicon Quantum and Premium racks
-
Plug-and-Play Installation – Simple insertion into designated rack slots with automatic recognition
-
Robust Design – Industrial-grade components ensure long-term reliability
-
Backward Compatibility – Supports legacy and current Quantum/Premium module types
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size: 25 x 80 x 130mm |
| Weight | Package size 0.125kg |
Mechanical & Physical Characteristics
| Item | Specification |
|---|---|
| Mounting Type | Rack-mounted in dedicated bus slot |
| Connector Type | Backplane edge connectors |
| Housing Material | Industrial-grade thermoplastic |
Electrical Characteristics
| Item | Specification |
|---|---|
| Bus Type | BOS internal bus for Quantum/Premium |
| Communication Speed | Maintains native backplane throughput |
| Power Supply | Powered via backplane |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Schneider Modicon Quantum and Premium PLC racks |
| Supported Modules | Quantum and Premium I/O, communication modules |
| Backplane Type | BOS internal bus |
Industry Applications
-
Process Automation – Supports expansion of control racks in chemical, petrochemical, and refining plants
-
Power Generation – Enables larger control configurations for turbine and auxiliary systems
-
Water & Wastewater – Facilitates scalable automation in treatment and distribution facilities
-
Manufacturing – Provides flexible control system growth for complex production lines
-
Mining & Metals – Expands control networks for material handling and processing equipment
The Schneider STBXBE1300 BOS Internal Bus Expansion Module provides essential bus extension capabilities for advanced Modicon Quantum and Premium PLC systems, allowing seamless scalability and maintaining communication performance in expanded control racks.
Schneider STBXBE1300 BOS Internal Bus Expansion Module is in stock. Please contact us for a quick quote and competitive pricing.
