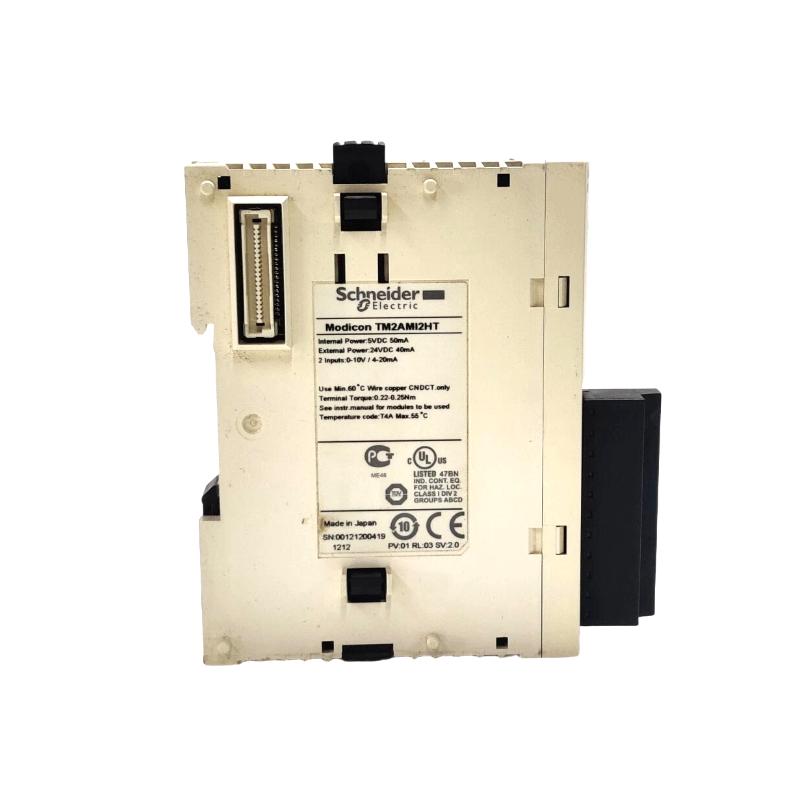

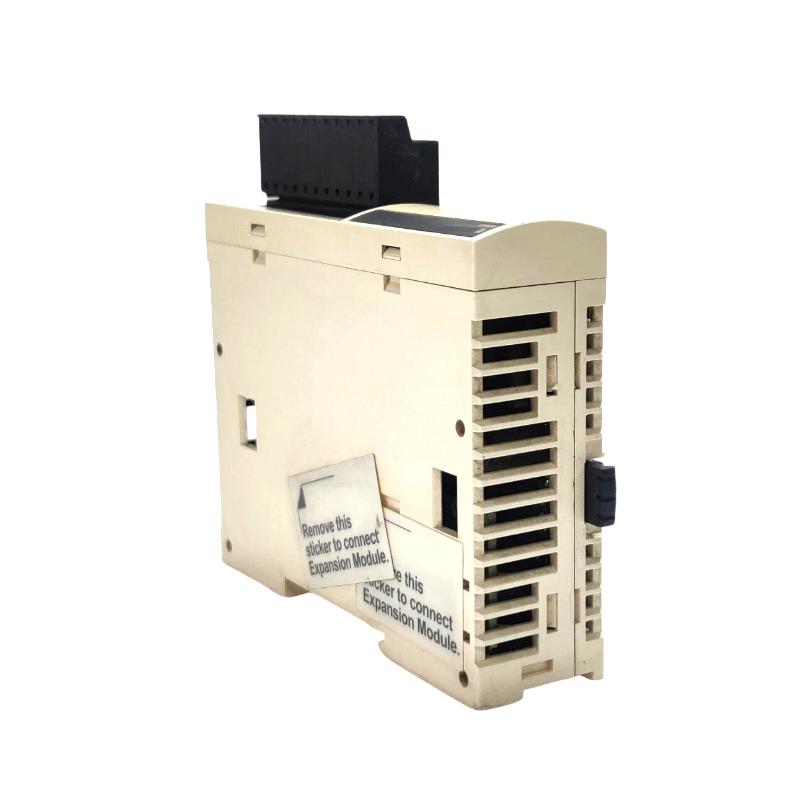

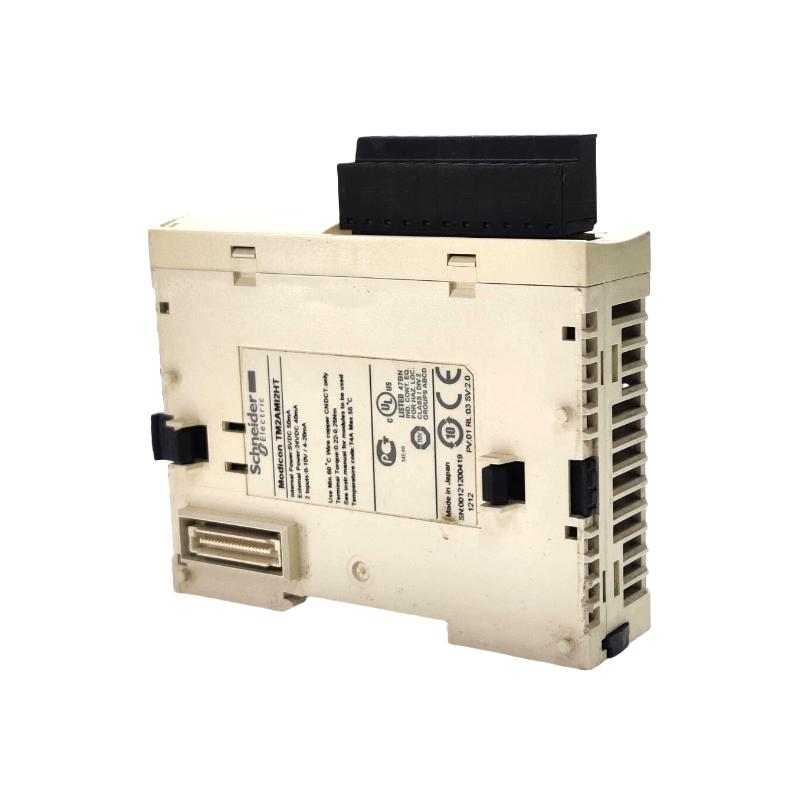

Schneider TM2AMI2HT Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TM2AMI2HT |
| Brand | Schneider Electric |
| Product Type | Analog Input Module |
| Series | Modicon TM2 |
| Function | High-performance analog signal acquisition |
| Input Type | Analog Input (AI) |
| Channels | Multi-channel analog input |
| Signal Types | Industrial standard analog signals |
| Measurement Function | Voltage / current signal acquisition |
| Resolution | High-resolution analog conversion |
| Signal Processing | Real-time data acquisition and filtering |
| Communication Method | PLC backplane bus |
| System Compatibility | Modicon TM2 PLC systems |
| Installation Method | DIN rail mounting |
| Electrical Isolation | Channel-to-system isolation design |
| EMC Protection | Industrial electromagnetic compatibility design |
| Operating Environment | Industrial automation systems |
| Cooling Method | Natural convection cooling |
| Dimensions | 23.5 × 70 × 90 mm |
| Weight | 0.085 kg |
| Typical Applications | Process monitoring, temperature measurement, pressure monitoring, flow control systems, industrial data acquisition |
FAQ
Q1: What is the main function of the Schneider TM2AMI2HT Analog Input Module?
A: The TM2AMI2HT is designed to acquire analog signals from industrial field devices and convert them into digital data that can be processed by a PLC. It plays a key role in monitoring continuous physical variables such as temperature, pressure, and flow.
By enabling accurate signal acquisition, it supports precise control and real-time decision-making in automation systems.
Q2: What types of signals can this module handle?
A: The module is designed to handle standard industrial analog signals, including voltage and current inputs commonly used in sensors and transmitters.
This allows compatibility with a wide range of industrial measurement devices, making it suitable for diverse automation applications.
Q3: Why are analog input modules important in automation systems?
A: Analog input modules are essential because they allow PLCs to interpret real-world physical conditions that change continuously over time. Unlike digital signals, analog signals provide detailed information about process conditions.
This enables more accurate monitoring and supports advanced control strategies such as closed-loop regulation.
Q4: How does the module improve measurement accuracy?
A: The TM2AMI2HT uses high-resolution conversion and signal filtering techniques to ensure stable and precise data acquisition.
These features help reduce noise interference and improve the reliability of measured values in industrial environments.
Q5: How does the module communicate with the PLC system?
A: The module communicates through the PLC backplane bus, which allows fast and reliable data exchange between the module and the controller.
This ensures that measurement data is transmitted in real time for immediate processing.
Q6: What is electrical isolation used for in this module?
A: Electrical isolation helps separate input channels from the internal control system, protecting the PLC from electrical noise, voltage spikes, and interference.
This improves system stability and reduces the risk of damage in harsh industrial environments.
Q7: What industrial applications commonly use this module?
A: The TM2AMI2HT is widely used in process industries such as water treatment, chemical processing, HVAC systems, energy management, and manufacturing automation.
It is especially suitable for systems requiring continuous monitoring of physical parameters.
Q8: How does this module enhance system performance in automation systems?
A: By providing accurate and stable analog signal acquisition, the module enables the PLC to make better control decisions based on real-time process conditions.
This improves overall system responsiveness, process stability, and operational efficiency in industrial automation applications.
Schneider TM2AMI2HT Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
