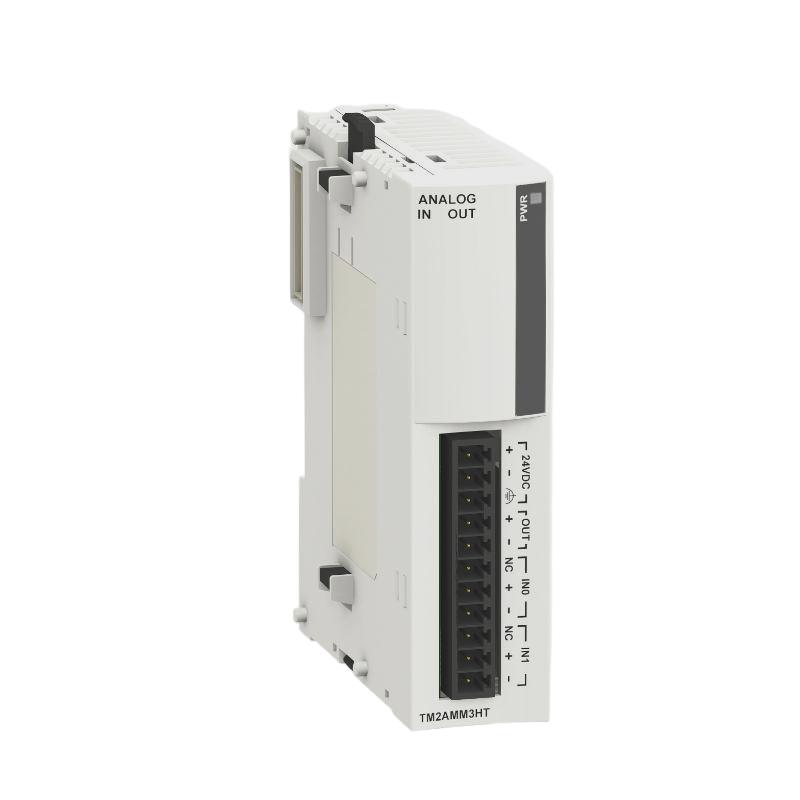

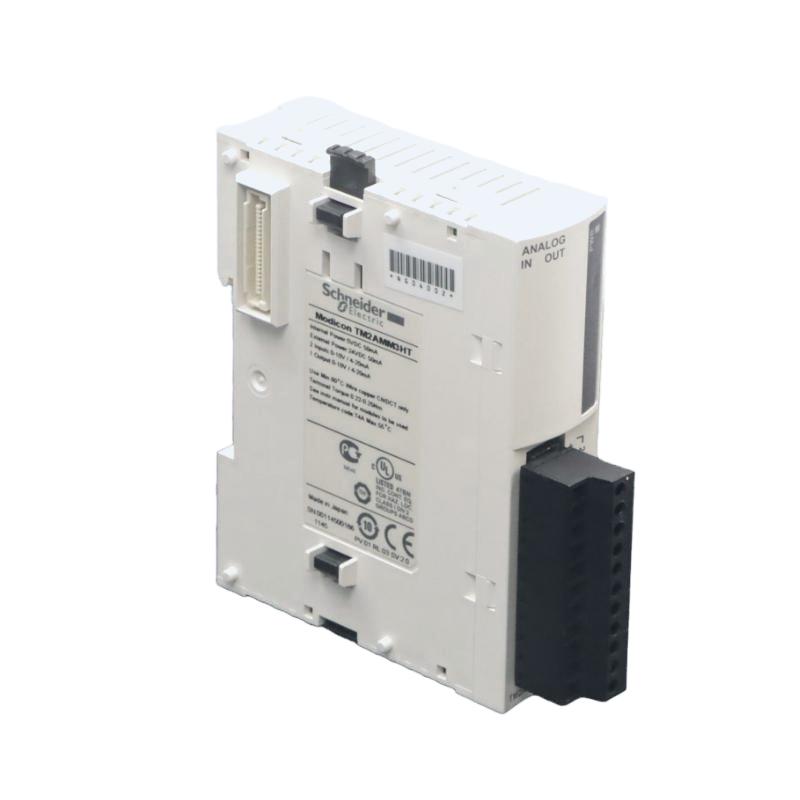

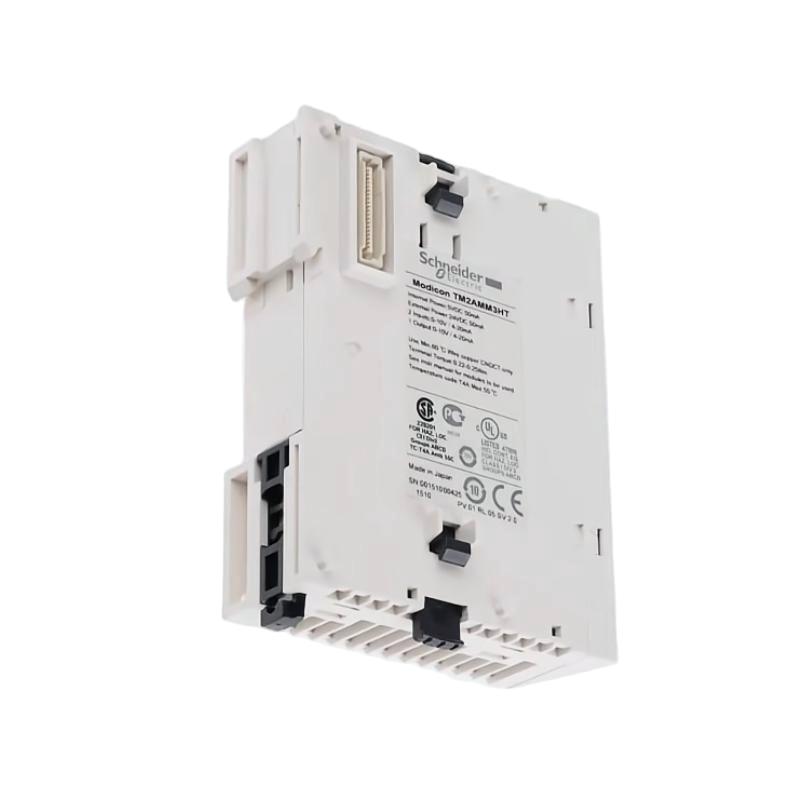

Q1: What is the main function of the TM2AMM3HT Analog Input/Output Module?
A1: The TM2AMM3HT module is designed to handle both analog input and output functions within a PLC system. It collects analog signals from field devices such as sensors and transmitters, converts them into digital data for processing, and also outputs analog control signals to actuators or control equipment. This dual functionality makes it suitable for compact automation systems that require both monitoring and control capabilities.

Q2: What types of signals can this module process?
A2: The module supports standard industrial analog signals, including voltage and current types. These signals are commonly used in industrial instrumentation systems for measuring and controlling variables such as temperature, pressure, flow, and level.

Q3: How does this module support both input and output functions?
A3: The module integrates both A/D (analog-to-digital) and D/A (digital-to-analog) conversion capabilities. This allows it to receive analog signals from field devices and convert them into digital values for PLC processing, as well as generate analog output signals based on control logic to drive external equipment.

Q4: What role does this module play in an automation system?
A4: In an automation system, the module acts as an interface between field instruments and the PLC controller. It enables real-time data acquisition from sensors and provides analog control signals to actuators, supporting closed-loop control and process regulation.

Q5: Does the module provide channel diagnostics?
A5: Yes, the module includes channel-level diagnostics that help detect signal faults, wiring issues, or abnormal signal conditions. This improves system reliability by allowing early detection of potential problems in the signal chain.

Q6: How does the module ensure signal stability in industrial environments?
A6: The module uses electrical isolation and industrial-grade EMC protection to minimize interference from external electrical noise. This helps maintain stable signal transmission even in environments with high electromagnetic disturbances such as motors or frequency converters.

Q7: What factors can affect analog signal accuracy?
A7: Signal accuracy can be influenced by cable quality, grounding conditions, electromagnetic interference, sensor precision, and environmental temperature changes. Proper installation and shielding are essential to ensure stable and accurate signal transmission.

Q8: How can long-term reliability be improved?
A8: Long-term reliability can be improved by ensuring correct installation, using shielded cables, maintaining proper grounding, and minimizing exposure to electrical noise. Regular inspection of wiring connections and monitoring system diagnostics also help maintain consistent performance over time.
