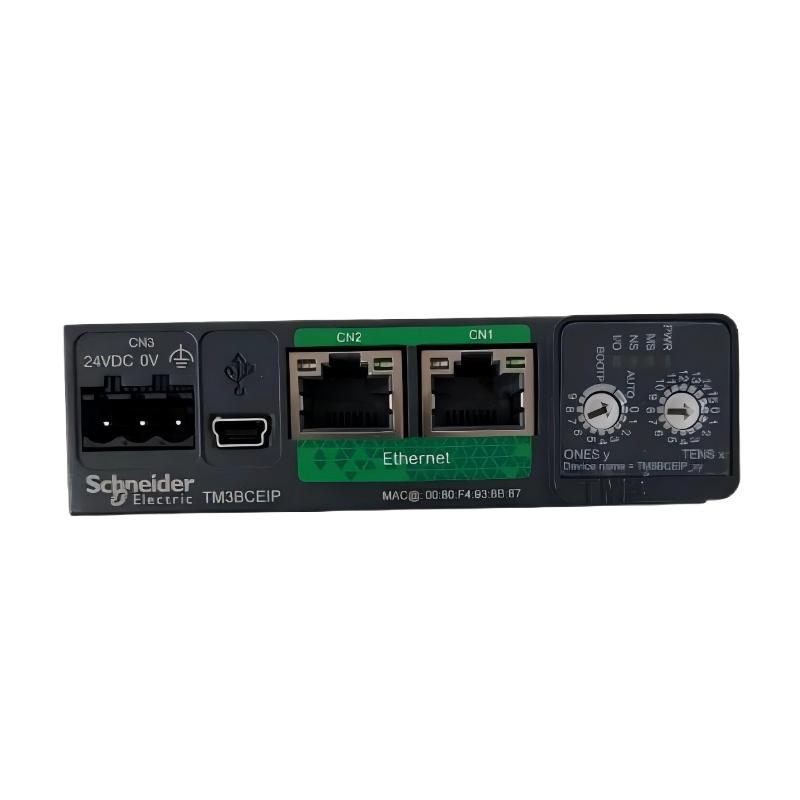

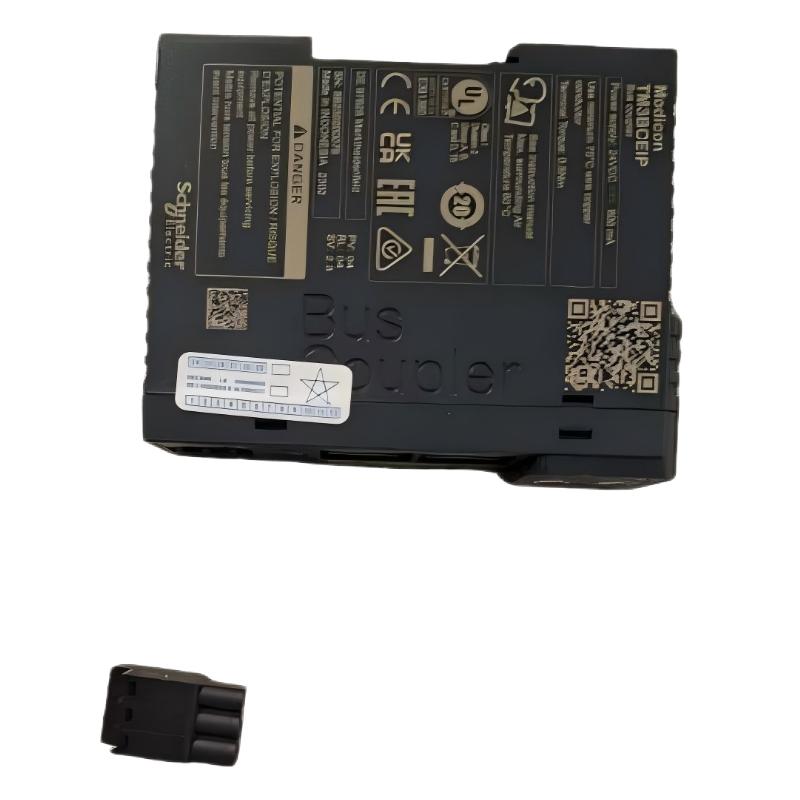

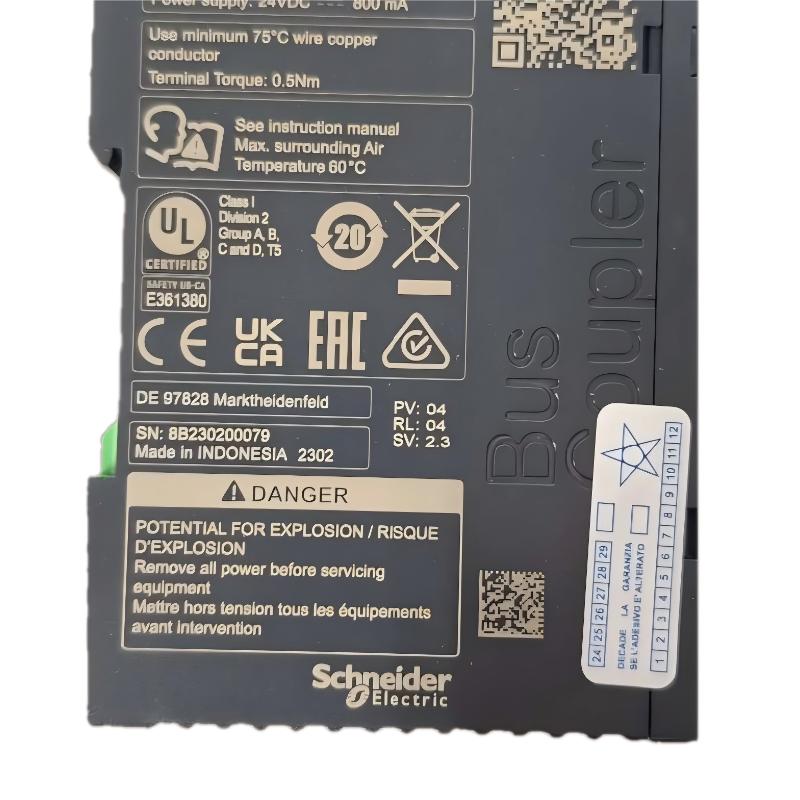

1. What is the Schneider TM3BCEIP I/O Distributed Module mainly used for?

The Schneider TM3BCEIP I/O Distributed Module is an EtherNet/IP communication module designed for Schneider Electric Modicon PLC systems. Its main purpose is to connect remote TM3 expansion modules to an industrial Ethernet network and enable data communication between field devices and the PLC control system.

In traditional automation architectures, all I/O modules are usually installed near the PLC. With the TM3BCEIP, engineers can place I/O modules closer to field equipment and communicate through EtherNet/IP networks.

This distributed structure reduces complex wiring requirements, improves system layout flexibility, and simplifies installation for large machines and production lines.

The module is widely used in industrial automation, smart manufacturing, packaging systems, machine control applications, and production equipment requiring distributed I/O management.

2. What are the main functions of the TM3BCEIP module?

The main function of the TM3BCEIP is to provide remote I/O communication capability for Modicon PLC systems.

Its key functions include EtherNet/IP communication, remote I/O data transmission, network status monitoring, and TM3 expansion module management.

The module transfers field input data to the PLC system and sends control commands from the PLC to remote output modules.

By supporting distributed control architectures, the TM3BCEIP allows engineers to design more flexible automation systems with better equipment organization.

The integrated diagnostic functions also help maintenance personnel monitor communication conditions and quickly identify network-related problems.

3. What devices can be connected to the TM3BCEIP?

The TM3BCEIP is mainly used to connect Schneider Electric Modicon PLC systems with TM3 series expansion modules.

Supported devices include digital input modules, digital output modules, analog input modules, analog output modules, and other compatible TM3 expansion units.

For example, in a large automation machine, sensors and actuators can be connected to remote TM3 I/O modules installed near the equipment. The TM3BCEIP then transfers the collected data to the PLC controller through EtherNet/IP communication.

This approach reduces field wiring complexity and improves the flexibility of industrial system design.

It is suitable for applications requiring multiple distributed control points.

4. What are the common causes of TM3BCEIP communication failures?

Communication problems with the TM3BCEIP may be caused by network issues, configuration errors, communication settings, or hardware conditions.

Common causes include incorrect IP address configuration, Ethernet cable problems, network parameter mismatches, PLC configuration errors, and communication device failures.

If the PLC cannot access remote I/O data, technicians should first check the module status indicators and Ethernet network connection.

The next step is to verify IP settings, EtherNet/IP configuration parameters, and communication device settings.

The connected TM3 expansion modules should also be checked to confirm that no internal module fault exists.

A step-by-step inspection of the network, configuration, and hardware can help quickly locate communication problems.

5. How can the communication stability of the TM3BCEIP be improved?

To maintain stable operation of the TM3BCEIP, the industrial Ethernet network should be designed and configured properly.

During installation, industrial-grade network cables should be used, and communication wiring should be separated from high-power electrical equipment to reduce electromagnetic interference.

Network parameters should be planned carefully to avoid IP address conflicts and communication errors.

Regular monitoring of network diagnostics, module status, and connected devices can help identify potential issues before they affect production.

Proper network design, correct configuration, and preventive maintenance improve the reliability of distributed I/O systems.

6. How can technicians troubleshoot a TM3BCEIP communication problem?

When the TM3BCEIP cannot communicate properly, technicians should first check the module status indicators to confirm that the device is operating normally.

The next step is to inspect the EtherNet/IP connection, including Ethernet cables, network switches, and communication parameters.

If the network connection is normal, the PLC configuration should be checked to confirm that the device is correctly configured and recognized by the control system.

Technicians should also verify the operating status of connected TM3 expansion modules.

By checking the network connection, device configuration, and module status step by step, engineers can efficiently identify the source of communication failures.

7. What are the advantages of using the TM3BCEIP in industrial automation systems?

The TM3BCEIP enables distributed I/O architectures, providing greater flexibility for industrial automation system design.

Compared with centralized I/O structures, distributed systems allow I/O modules to be installed closer to field devices, reducing the amount of wiring between control cabinets and equipment.

The module supports EtherNet/IP industrial communication, allowing efficient data exchange with modern automation systems.

Its modular design also makes system expansion easier. Additional remote I/O nodes can be added when equipment requirements increase.

Therefore, the TM3BCEIP is an effective solution for large machines, production lines, and smart manufacturing applications.

8. What should be checked before replacing a Schneider TM3BCEIP module?

Before replacing the TM3BCEIP, technicians should confirm that the replacement module is compatible with the existing PLC system and EtherNet/IP network configuration.

The current network parameters, IP address settings, PLC configuration, and connected TM3 expansion modules should be recorded before removing the existing unit.

After installation, engineers should verify network communication status and confirm that the PLC can correctly recognize the remote I/O node.

Input and output communication should then be tested to ensure field devices operate according to the control program.

A complete communication and system verification should be performed before returning the automation equipment to normal operation.
