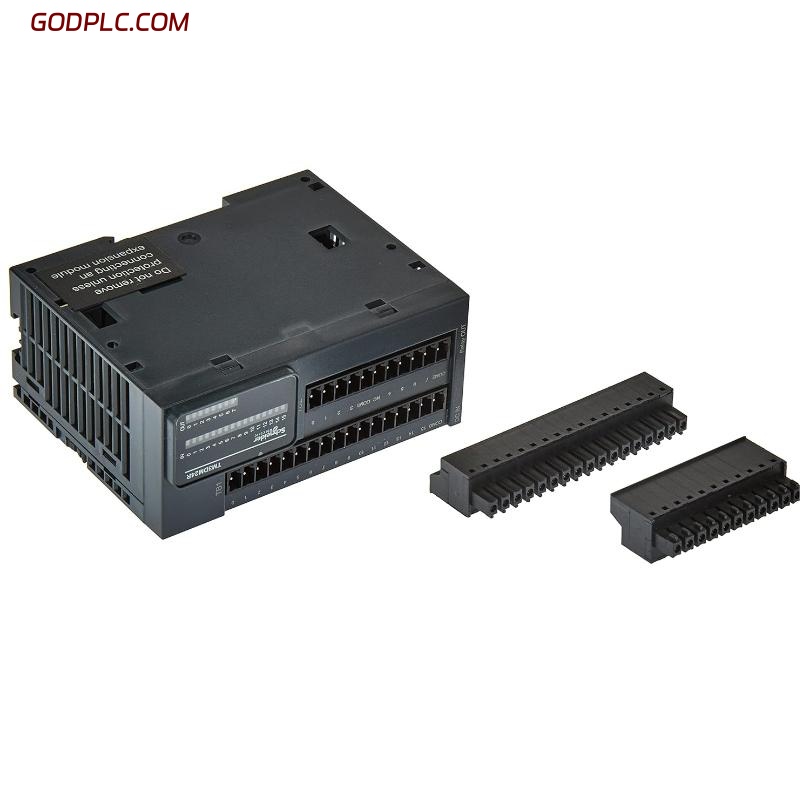

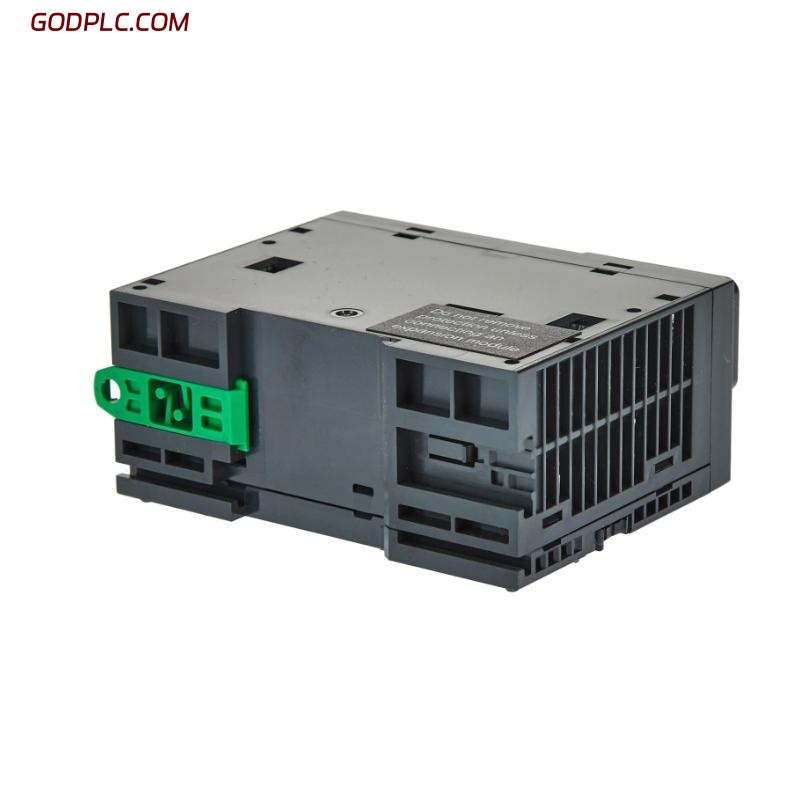

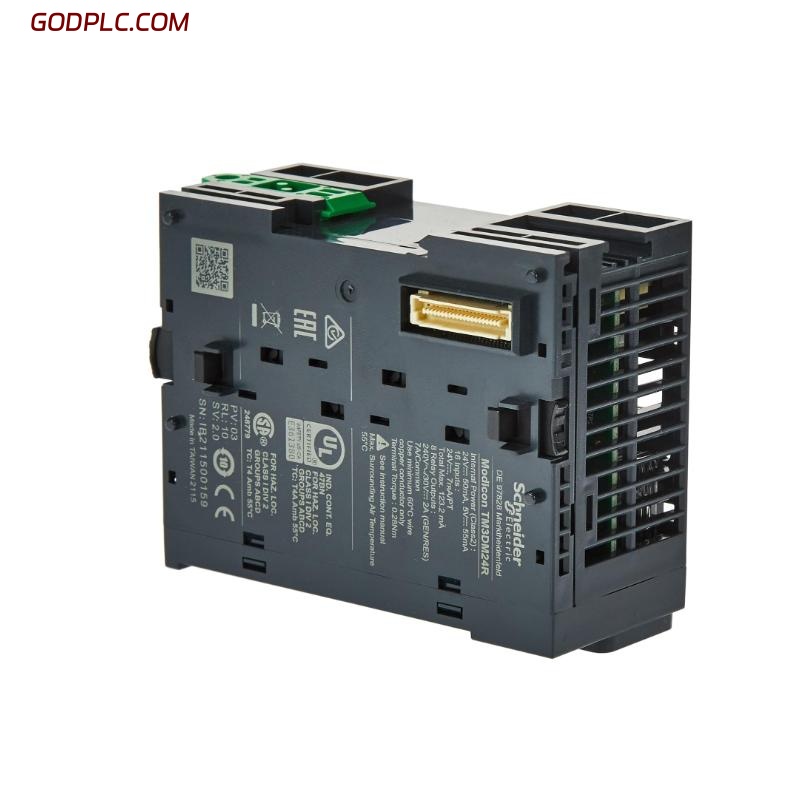

Schneider TM3DM24R Discrete IO Module
Product Overview
The Schneider TM3DM24R is a discrete digital input module designed for the Modicon TM3 modular automation system. It provides reliable and fast acquisition of digital input signals, supporting various industrial applications requiring efficient monitoring of switches, sensors, and other binary devices. Its compact design and robust performance make it suitable for diverse automation tasks where space-saving and dependable digital input processing are essential.
Key Features
-
8 Discrete Inputs – Efficient digital input acquisition in a compact module.
-
24 V DC Nominal Voltage – Compatible with standard industrial control voltage levels.
-
Fast Response Time – Ensures prompt detection and processing of input signals.
-
LED Status Indicators – Easy visualization of input status for quick diagnostics.
-
Compact Form Factor – Saves space within modular control systems.
-
Wide Operating Temperature Range – Suitable for harsh industrial environments.
-
High Noise Immunity – Designed to reduce false triggers from electrical interference.
-
Simple Installation – Easy integration with Modicon TM3 automation platform.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 90 x 84.6 x 42.9mm |
| Weight | Package weight 0.281kg |
Electrical Specifications
| Item | Specification |
|---|---|
| Number of Inputs | 8 discrete inputs |
| Input Voltage | 24 V DC nominal |
| Input Current | Approx. 7 mA per input |
| Response Time | < 5 ms |
| Input Type | Sinking or sourcing (refer to wiring guidelines) |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (standard enclosure) |
Industry Applications
-
Manufacturing Automation – Digital input monitoring of switches and sensors on production lines.
-
Building Automation – Monitoring of security devices and control inputs.
-
Water & Wastewater – Acquisition of digital signals from pumps, valves, and alarms.
-
Material Handling – Input monitoring for conveyors, gates, and safety devices.
-
Process Control – Discrete input acquisition for automated process systems.
The Schneider TM3DM24R Discrete IO Module is a dependable and space-efficient solution for digital input acquisition in modular automation systems. Its compatibility with the Modicon TM3 series, high noise immunity, and ease of installation make it well-suited for a wide range of industrial automation applications.
Schneider TM3DM24R Discrete IO Modules 12-Month Warranty is in stock. Please contact us for a quick quote and competitive pricing.
