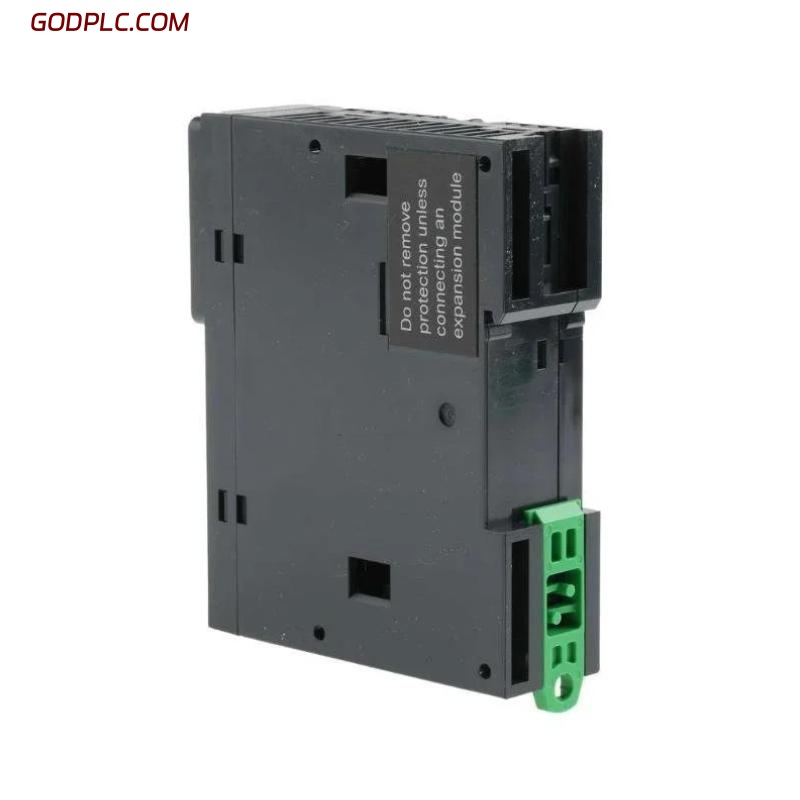

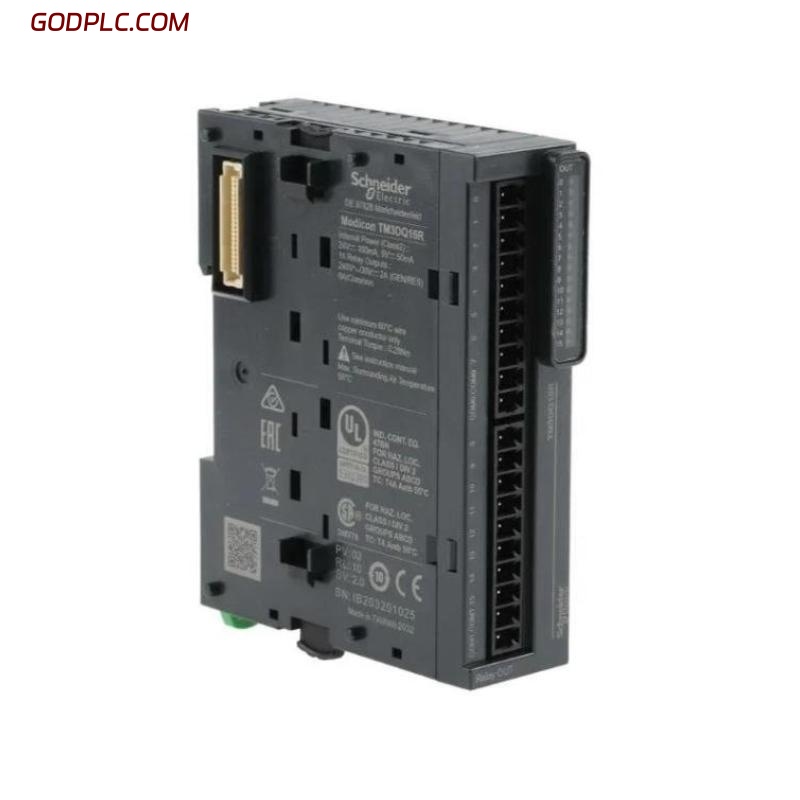

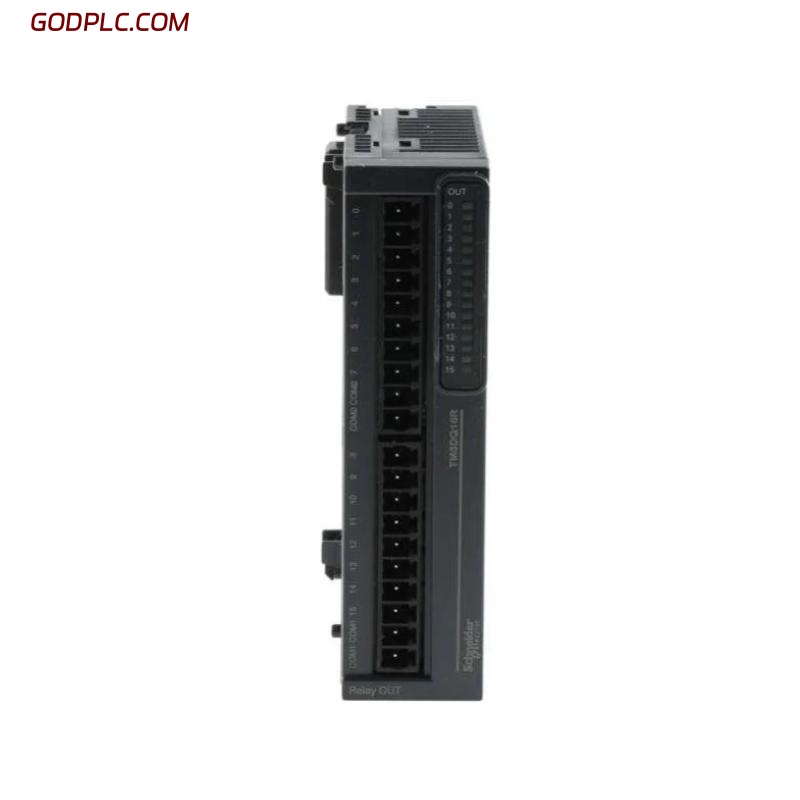

Schneider TM3DQ16R Discrete Output Module
Product Overview
The Schneider TM3DQ16R is a discrete digital output module designed for the Modicon TM3 modular automation system. It provides 16 reliable relay outputs for controlling actuators, indicators, and other binary devices in industrial automation applications. Its compact form factor, robust design, and efficient operation make it ideal for diverse industrial control tasks requiring dependable digital output signals.
Key Features
-
16 Relay Outputs – Provides isolated relay contacts for switching loads up to 2 A per output.
-
24 V DC Control Voltage – Compatible with standard industrial automation voltage levels.
-
LED Status Indicators – Enables easy monitoring of output states.
-
Compact and Modular Design – Fits seamlessly into Modicon TM3 automation systems.
-
High Switching Capacity – Suitable for resistive and inductive loads.
-
Fast Switching Response – Ensures precise control timing.
-
Wide Operating Temperature Range – Suitable for various industrial environments.
-
High Electrical Isolation – Protects control system from load circuit disturbances.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 90 x 84.6 x 27.4mm |
| Weight | 0.145 kg |
Electrical Specifications
| Item | Specification |
|---|---|
| Number of Outputs | 16 relay outputs |
| Output Type | Electromechanical relay |
| Contact Rating | 2 A @ 250 V AC / 30 V DC |
| Switching Capacity | Resistive and inductive loads |
| Control Voltage | 24 V DC nominal |
| Response Time | Typically < 10 ms |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (standard enclosure) |
Industry Applications
-
Manufacturing Automation – Control of actuators, motors, and indicators.
-
Building Automation – Switching lighting, alarms, and security devices.
-
Water & Wastewater – Operating valves, pumps, and alarms.
-
Material Handling – Control of conveyors, gates, and safety systems.
-
Process Control – Reliable discrete output control in various processes.
The Schneider TM3DQ16R Discrete Output Module offers dependable relay outputs in a compact, easy-to-install format. Its compatibility with Modicon TM3 systems, high switching capacity, and robust design make it a versatile solution for a wide range of industrial automation needs.
Schneider TM3DQ16R Discrete Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
