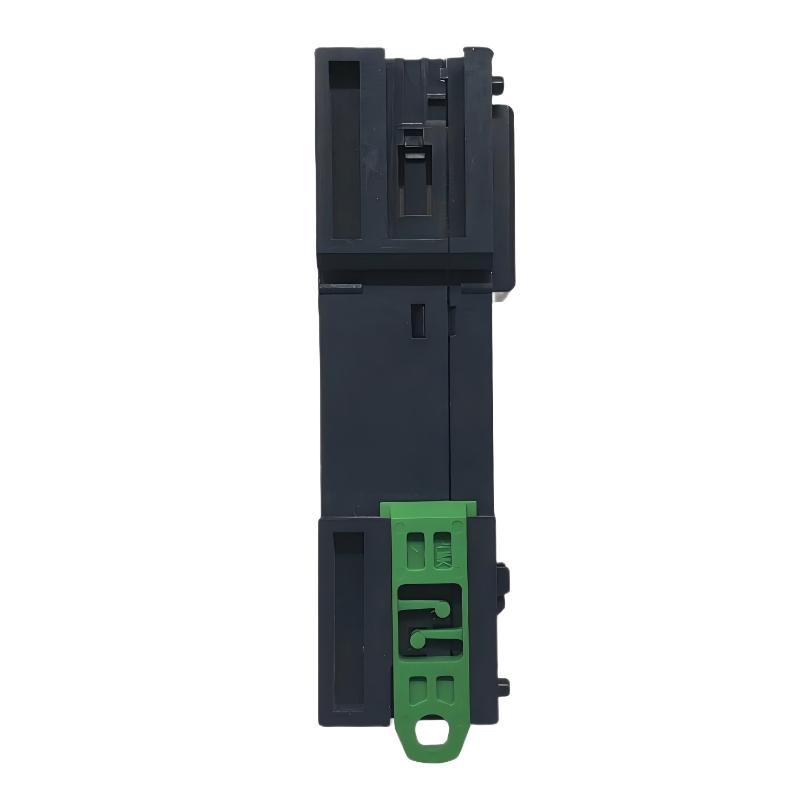

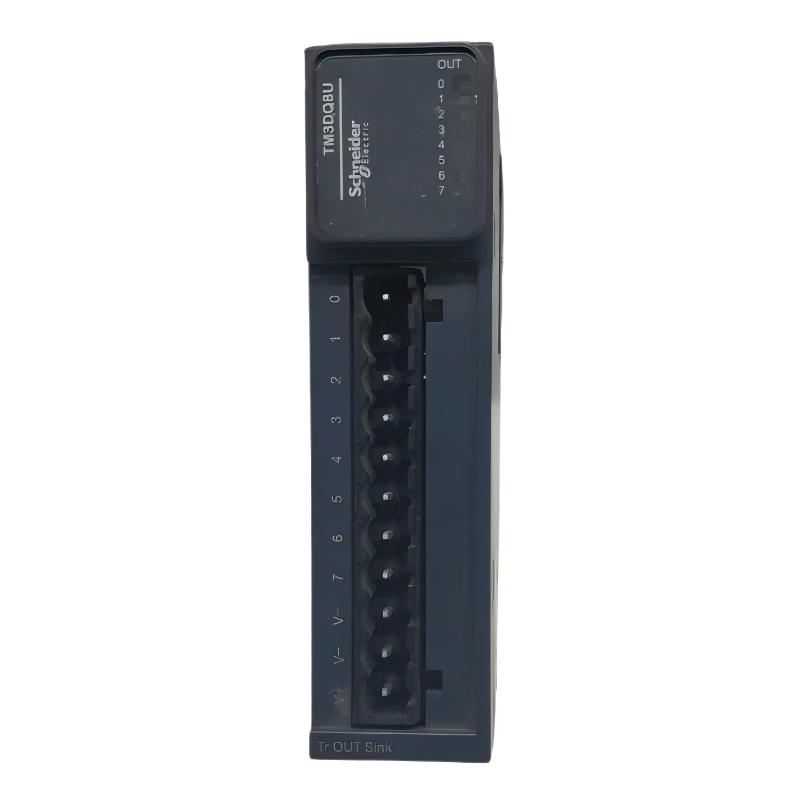

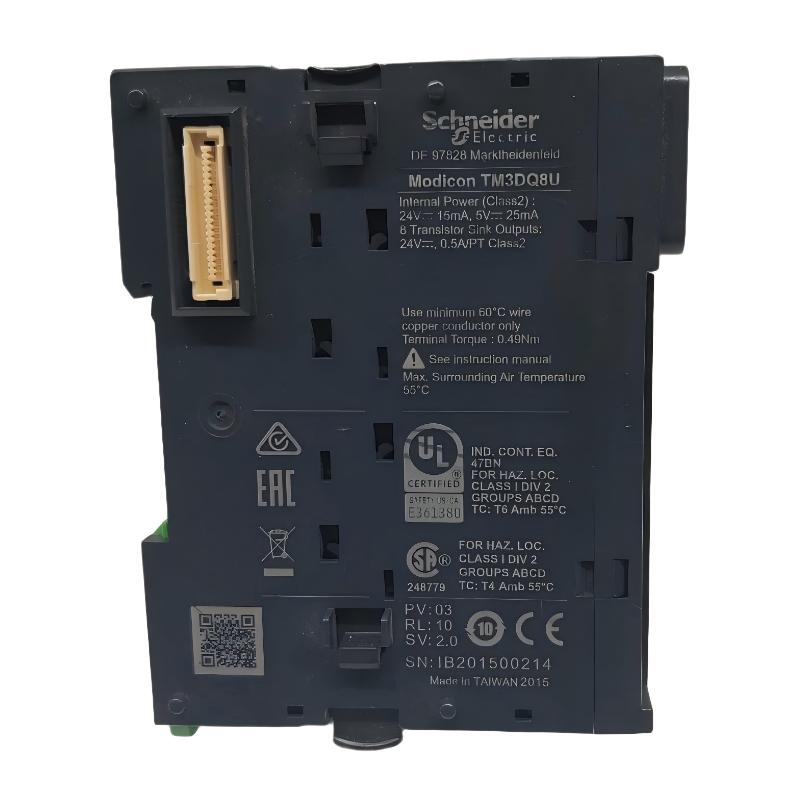

Schneider TM3DQ8U Discrete Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TM3DQ8U |
| Product Type | Discrete Output Module |
| Series | Schneider Modicon TM3 Series |
| Module Type | Digital Output Module |
| Number of Outputs | 8 Digital Output Channels |
| Output Type | Transistor Output |
| Output Logic | Positive Logic Output |
| Output Voltage | 24V DC Output |
| Output Current | Up to 0.5 A per Output Channel |
| Output Function | Provides Digital Control Signals for Field Actuators |
| Compatible Systems | Schneider Modicon M221, M241, M251, M262 Controllers |
| Communication Method | TM3 Expansion Bus Communication |
| Installation Method | DIN Rail Mounting |
| Connection Method | Removable Screw Terminal Block |
| Power Supply | External 24V DC Supply |
| Signal Type | Industrial Digital Switching Output Signal |
| Protection Function | Short-Circuit Protection and Overload Protection |
| Status Indicators | LED Indicators for Module and Output Channel Status |
| Programming Compatibility | EcoStruxure Machine Expert Software |
| Application Areas | Machine Automation, Packaging Systems, Conveyor Control, Industrial Equipment, Factory Automation |
| Operating Environment | Industrial Automation Control Environment |
| Module Function | Expands PLC Digital Output Capacity and Controls External Devices |
| Maintenance Features | Supports Easy Installation, Replacement, and Troubleshooting |
| Dimensions | 90 × 84.6 × 27.4 mm |
| Weight | 0.76 kg |
FAQ
1. What is the primary function of the Schneider TM3DQ8U Discrete Output Module?
The Schneider TM3DQ8U Discrete Output Module is designed to expand the digital output capability of Schneider Modicon PLC systems and provide reliable control signals for industrial field devices.
The module provides 8 transistor output channels that can be used to control actuators, valves, relays, indicators, and other automation equipment requiring fast switching operations.
By receiving commands from the PLC controller and transferring them to field devices, the TM3DQ8U helps improve machine control flexibility and automation efficiency.
2. How does the TM3DQ8U communicate with Schneider Modicon PLC controllers?
The TM3DQ8U communicates with compatible Modicon PLC controllers through the TM3 expansion bus.
The PLC sends output commands based on the programmed control logic, and the module processes these commands to activate or deactivate connected field devices.
This expansion architecture allows additional output points to be added easily while maintaining reliable communication between the controller and I/O modules.
3. What types of devices can be controlled by the Schneider TM3DQ8U module?
The TM3DQ8U can control various industrial devices that require digital switching signals.
Typical applications include solenoid valves, indicator lamps, relays, contactors, small actuators, motor control interfaces, and machine operation components.
It is widely used in automated production equipment where precise and fast digital output control is required.
4. What are the main advantages of the TM3DQ8U Discrete Output Module?
The TM3DQ8U provides advantages such as fast transistor switching performance, flexible PLC expansion, reliable signal output, and easy system integration.
Its compact modular design allows engineers to increase PLC output capacity without replacing the main controller.
The LED indicators provide convenient monitoring of module status and output conditions, helping technicians quickly identify abnormal situations during commissioning and maintenance.
5. What are the common causes of output failures on the TM3DQ8U?
Common causes of output failures include incorrect wiring, excessive load current, short circuits, unstable power supply, PLC configuration errors, communication problems, or damaged field devices.
When troubleshooting, technicians should first check the PLC diagnostic information and module status indicators.
Further inspection should include verifying output wiring, checking connected devices, confirming program logic, and ensuring that the load requirements match the module specifications.
6. What should be considered when installing the Schneider TM3DQ8U module?
Before installation, engineers should confirm compatibility between the TM3DQ8U and the selected Modicon PLC system.
The module should be mounted correctly on the DIN rail, connected properly to the TM3 expansion bus, and wired according to application requirements.
After installation, the module should be configured using EcoStruxure Machine Expert software, followed by communication verification and output testing to ensure correct operation.
7. What maintenance procedures are recommended for the TM3DQ8U?
Regular maintenance includes checking module status indicators, reviewing PLC diagnostics, inspecting wiring connections, and verifying output performance.
Technicians should check for loose terminals, abnormal output conditions, overheating caused by excessive loads, and incorrect field device operation.
Scheduled inspections and preventive maintenance help maintain stable performance and reduce unexpected equipment downtime.
8. How can the long-term reliability of the Schneider TM3DQ8U be improved?
The long-term reliability of the TM3DQ8U can be improved through correct installation, proper configuration, and regular system maintenance.
Maintaining stable power conditions, protecting output circuits from overload conditions, and ensuring proper field wiring can help prevent module failures.
Continuous monitoring of PLC diagnostics, output status, and connected equipment performance allows potential issues to be identified early and improves the overall reliability of the Modicon automation system.
Schneider TM3DQ8U Discrete Output Module is in stock. Please contact us for a quick quote and competitive pricing.
