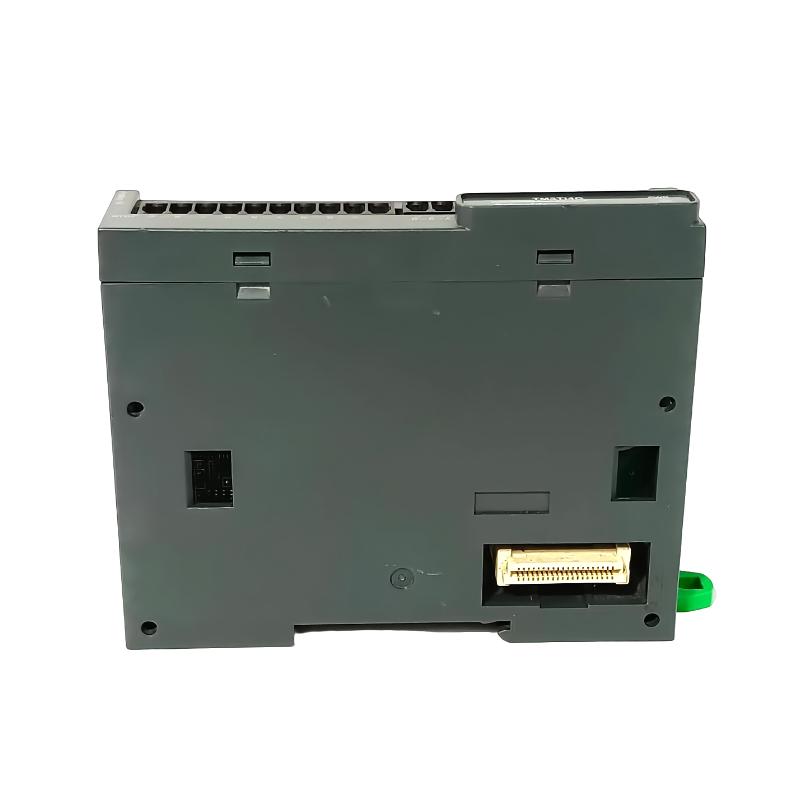

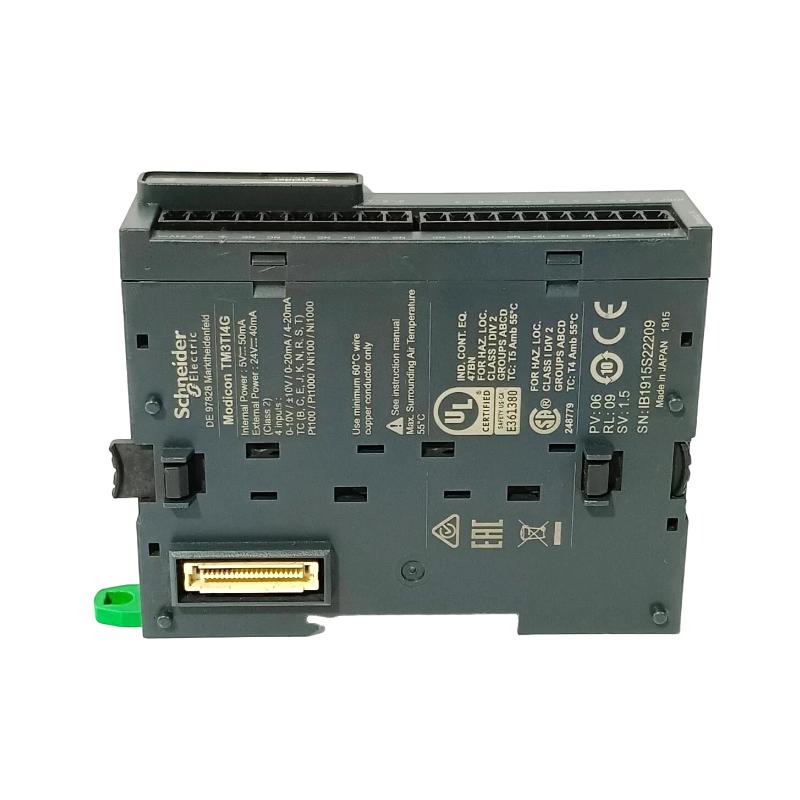

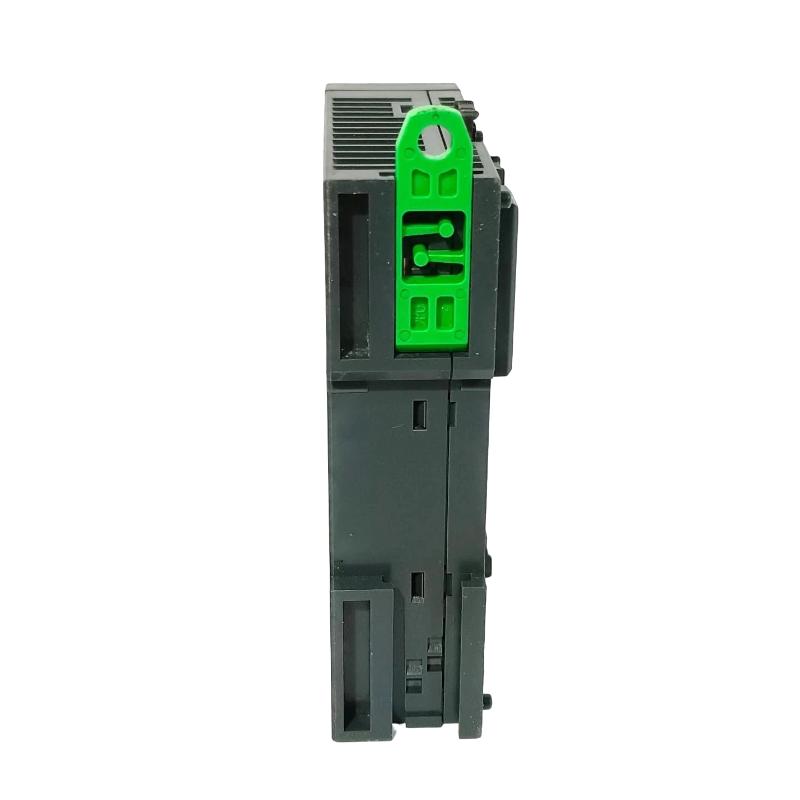

1. What is the main function of the TM3TI4G analog input module?

The TM3TI4G is designed to acquire continuous analog signals from field instruments and convert them into digital values that a PLC can process. In industrial automation systems, many critical process variables—such as temperature, pressure, level, and flow—change continuously rather than switching between ON and OFF states. This module enables the PLC to capture those variations in real time, making it possible to perform accurate monitoring, regulation, and closed-loop control. Without it, the controller would be limited to discrete logic and lose visibility into real process conditions.

2. What types of applications typically use this module?

This module is widely used in process industries and machine automation environments where continuous measurement is required. Common applications include temperature control systems, pressure regulation loops, tank level monitoring, flow measurement in pipelines, and general equipment condition monitoring. It is especially important in systems that rely on PID control or other feedback-based control strategies, where precise and stable analog input data is essential.

3. What types of signals can be connected to the TM3TI4G?

The TM3TI4G supports standard industrial analog signals such as voltage inputs (for example 0–10 V) and current inputs (such as 4–20 mA). These are the most commonly used signal formats in industrial sensors because they offer strong noise immunity and reliable transmission over long distances. This makes the module compatible with a wide range of transmitters and field devices used in modern automation systems.

4. How does the module integrate into a Schneider PLC system?

The TM3TI4G connects to Modicon PLC systems through the TM3 expansion bus used in Schneider Electric architectures. Once installed, it is automatically detected by the PLC. Engineers configure it using EcoStruxure Machine Expert software, where each analog channel is mapped to a PLC variable. After configuration, the analog values can be directly used in control logic, visualization systems, or advanced control algorithms.

5. How are analog signals processed inside the PLC?

After acquisition, the module converts analog signals into digital values and transmits them to the PLC. The PLC can then apply scaling, filtering, alarm thresholds, and control algorithms such as PID regulation. For example, a pressure sensor signal can be scaled into engineering units and used to adjust a pump speed or valve position automatically. This enables real-time process optimization and stable system performance.

6. Why are analog input modules essential in modern automation?

Modern industrial systems rely heavily on precise process control rather than simple switching logic. Analog input modules allow controllers to interpret real-world physical conditions continuously, which is essential for maintaining product quality, energy efficiency, and process stability. Without analog input capability, automation systems would be unable to respond dynamically to changing conditions in the production environment.

7. What happens if an analog input signal becomes abnormal?

If a signal goes out of range, becomes unstable, or is disconnected, the PLC can detect the abnormal condition and generate diagnostic alarms. Depending on the control logic, the system may enter a safe state, shut down affected equipment, or switch to fallback control strategies. This helps prevent equipment damage and ensures operator awareness of process issues in real time.

8. Why is analog data important for smart manufacturing systems?

Analog data is the foundation of data-driven industrial automation. It provides continuous insight into physical processes, enabling advanced strategies such as predictive maintenance, energy optimization, and adaptive control. In smart manufacturing environments, this data allows systems to move beyond simple automation and toward intelligent, self-optimizing production processes.
