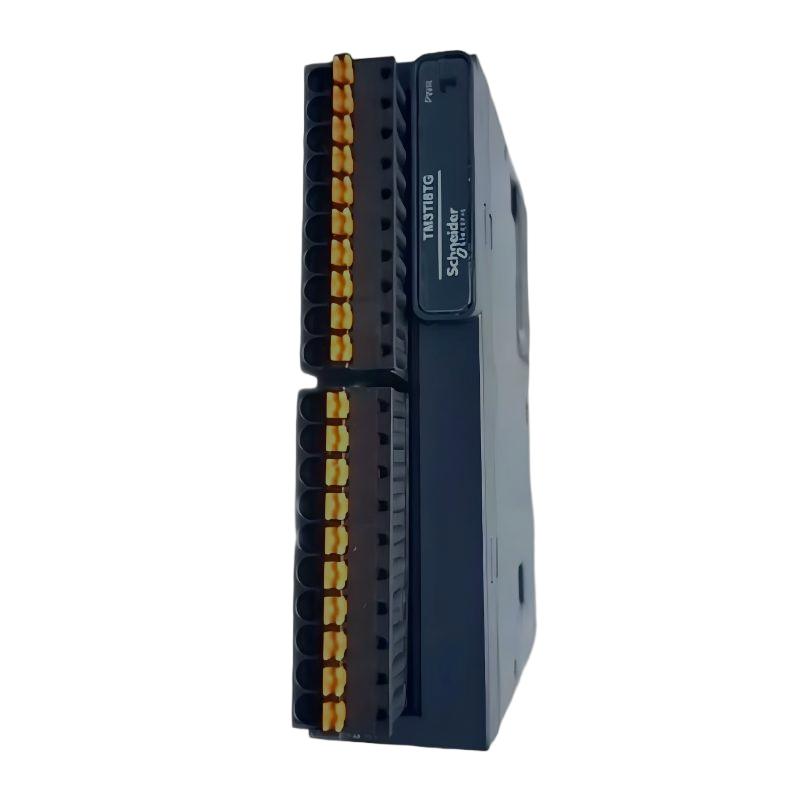

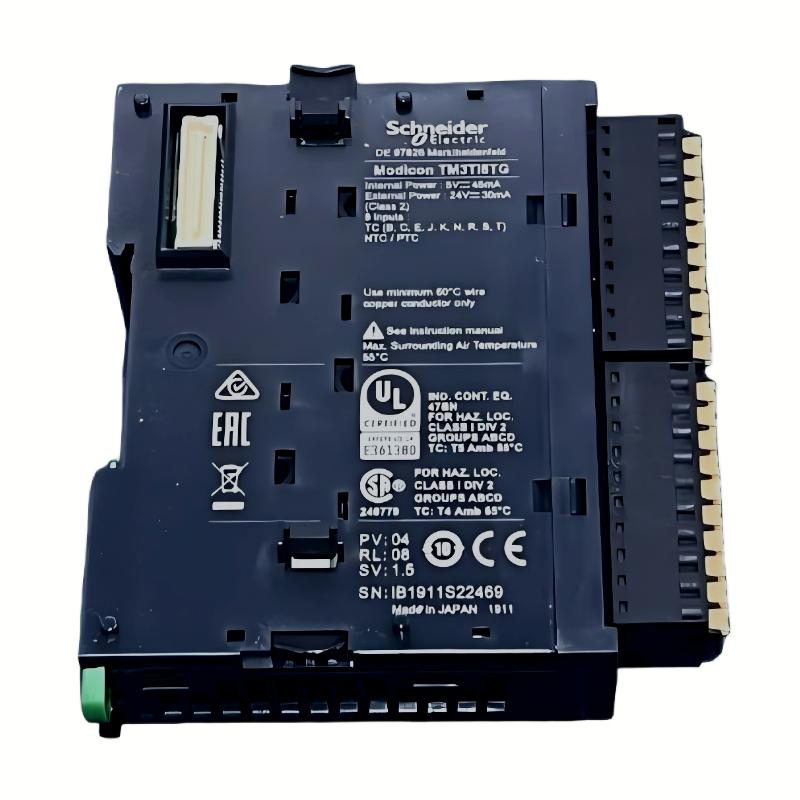

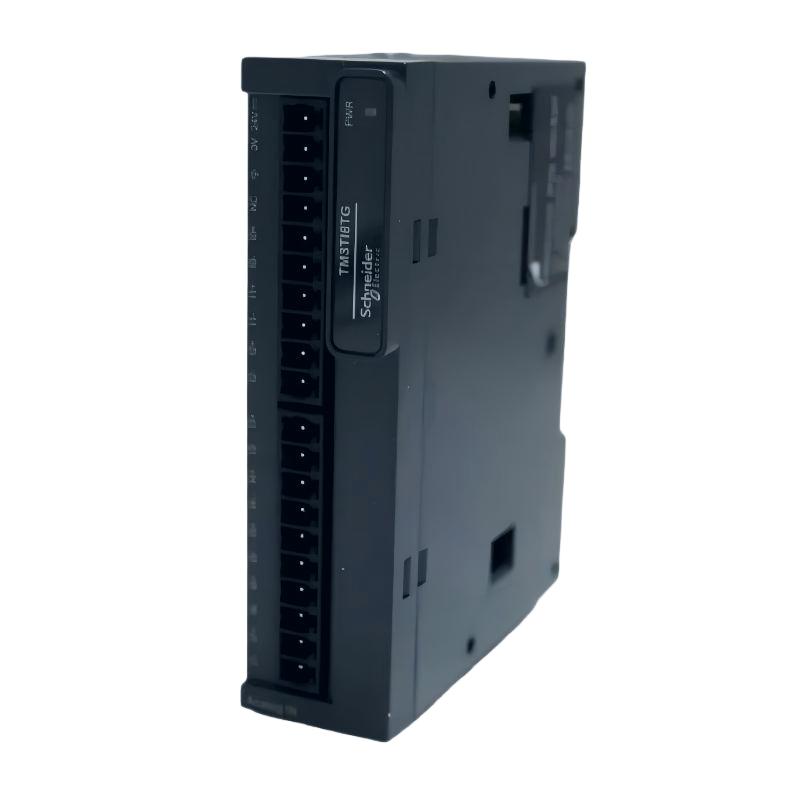

Q1: What is the main function of the Schneider TM3TI8TG Analog Input Module?
A1: The TM3TI8TG is designed specifically for temperature measurement applications in industrial automation systems. Its main function is to receive low-level electrical signals generated by thermocouples and convert them into accurate digital temperature values that can be processed by a PLC. Since temperature is a critical process variable in many industries such as manufacturing, chemical processing, and energy systems, this module plays a key role in ensuring real-time monitoring and precise control of thermal processes. Without such a dedicated module, direct temperature measurement would be unstable and highly inaccurate due to signal noise and environmental interference.

Q2: What types of thermocouples can this module support?
A2: The TM3TI8TG is designed to support standard industrial thermocouple types, such as Type K, J, and T depending on system configuration. These thermocouples are widely used because they offer good temperature range coverage and durability in harsh environments. The module automatically adapts to the selected sensor type through configuration in the PLC system, allowing flexible deployment across different temperature measurement applications without hardware changes.

Q3: How does the module handle thermocouple signal conditioning?
A3: Thermocouple signals are extremely small voltage signals that are highly sensitive to noise and environmental interference. The TM3TI8TG integrates several signal conditioning functions, including amplification, filtering, and cold junction compensation. Cold junction compensation is particularly important because it corrects temperature variations at the connection terminals, ensuring that the measured value reflects the actual process temperature rather than ambient electrical effects. These internal processing stages ensure stable and accurate readings even in harsh industrial environments.

Q4: Why is cold junction compensation necessary in thermocouple measurement?
A4: Thermocouples measure temperature based on the voltage difference between two dissimilar metals, but this measurement is affected by the temperature at the connection point (cold junction). Without compensation, any change in ambient temperature at the terminal block would introduce measurement errors. The TM3TI8TG automatically compensates for this effect by measuring and correcting the reference junction temperature, ensuring that the final output accurately represents the actual process temperature.

Q5: How does this module improve system reliability in industrial environments?
A5: Industrial environments often include electrical noise, vibration, and temperature fluctuations, all of which can affect measurement accuracy. The TM3TI8TG is designed with industrial-grade EMC protection and robust signal processing to minimize these effects. It also includes diagnostic functions that can detect issues such as sensor disconnection or abnormal signal levels. This allows the control system to quickly identify faults and take corrective action, improving overall system reliability and reducing downtime.

Q6: What role does this module play in a PLC system architecture?
A6: In a PLC-based automation system, the TM3TI8TG operates at the process data acquisition level. It acts as the interface between physical temperature sensors and the digital control system. By continuously converting temperature signals into digital values, it provides real-time process data that the PLC uses for control decisions such as heating regulation, cooling control, alarms, and safety interlocks. Without this module, accurate temperature-based control strategies would not be possible.

Q7: What installation considerations are important for this module?
A7: Proper installation requires mounting the module securely on a DIN rail and ensuring correct wiring of thermocouple inputs. It is important to use appropriate thermocouple extension or compensation cables to maintain signal integrity. Signal wiring should be separated from power cables to reduce electromagnetic interference. Additionally, correct polarity and proper grounding practices must be followed to ensure accurate and stable temperature readings.

Q8: Why is this module essential in temperature control applications?
A8: The TM3TI8TG is essential because it provides accurate, stable, and real-time temperature data, which is the foundation of most industrial process control systems. Temperature directly affects product quality, energy efficiency, and process safety. By delivering reliable measurements with built-in compensation and diagnostics, the module enables precise control strategies in applications such as furnace control, HVAC systems, chemical processing, and food production, where temperature stability is critical.
