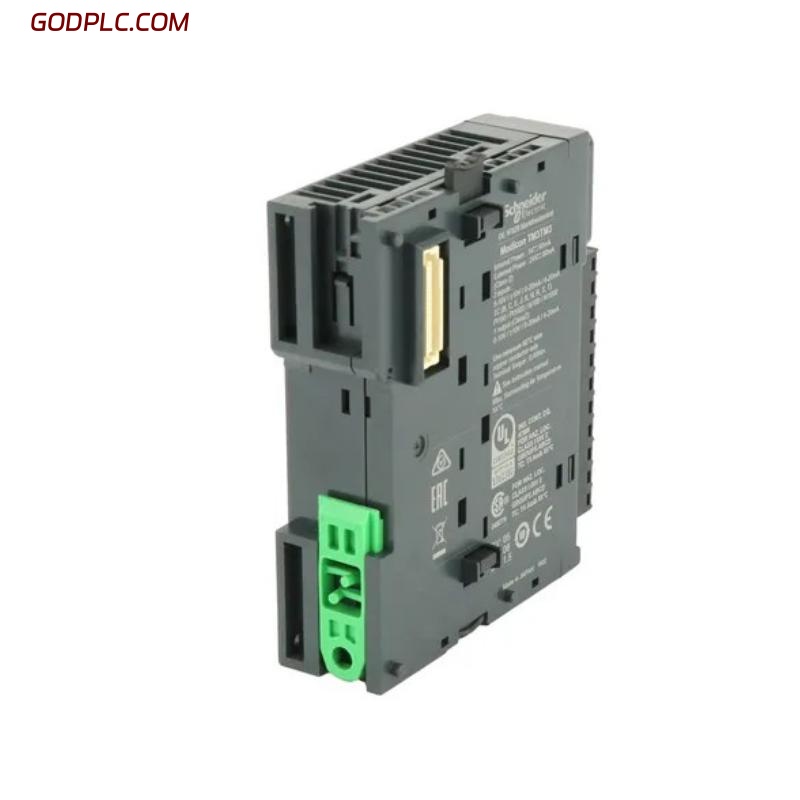

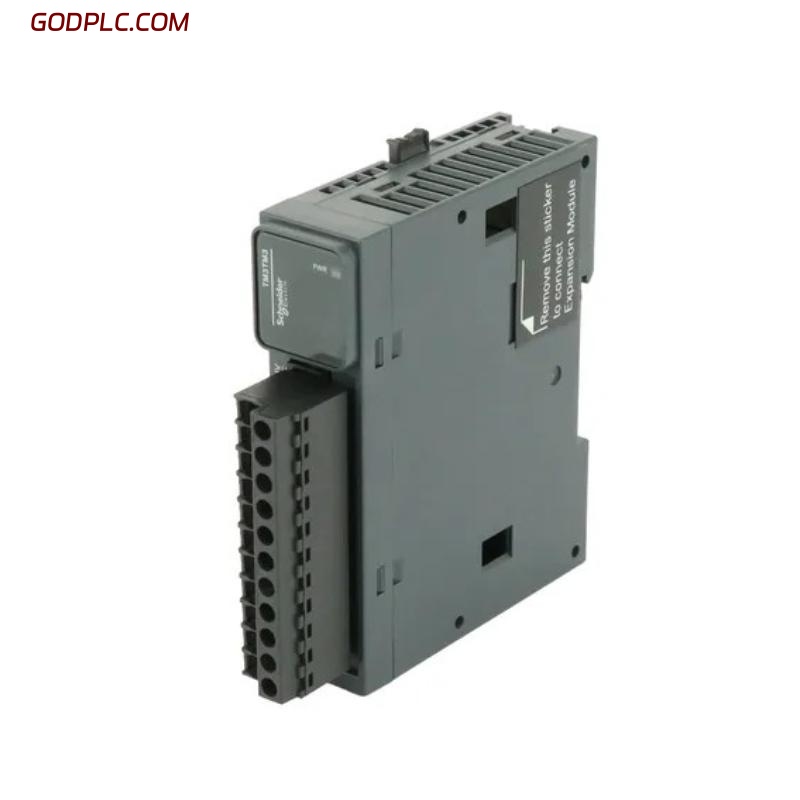

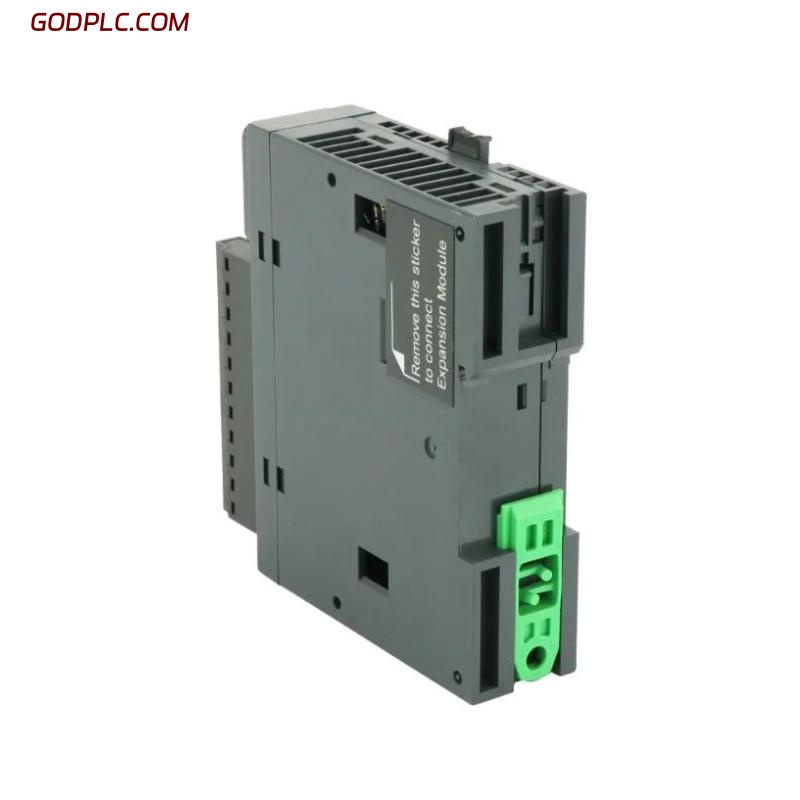

Schneider TM3TM3 Analog IO Module
Product Overview
The Schneider TM3TM3 is a multifunctional analog input/output (I/O) module designed for the Modicon TM3 modular automation system. It enables precise measurement and control of analog signals, supporting various sensor types and actuators. With its versatile I/O capabilities, the TM3TM3 module is ideal for industrial applications requiring accurate analog data acquisition and analog control in a compact form factor.
Key Features
-
Mixed Analog Inputs and Outputs – Supports multiple analog input channels and output channels in a single module.
-
Universal Input Types – Compatible with voltage, current, thermocouples, RTDs, and other sensor signals.
-
High Accuracy and Resolution – Ensures precise measurement and control for process variables.
-
Configurable Output Channels – Supports voltage or current output for actuator control.
-
LED Status Indicators – Provides operational feedback and diagnostic status.
-
Compact Modular Design – Easily integrates into Modicon TM3 automation systems.
-
Wide Operating Temperature Range – Suitable for industrial environments.
-
Built-in Signal Conditioning – Enhances signal quality and measurement stability.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 90 x 70 x 23.6 mm |
| Weight | 0.115 kg |
Electrical Specifications
| Item | Specification |
|---|---|
| Analog Inputs | Typically 2–4 channels (configurable) |
| Input Types | Voltage, Current, Thermocouple, RTD |
| Input Range | Voltage: ±10 V; Current: 0–20 mA or 4–20 mA |
| Analog Outputs | Typically 2 channels (configurable) |
| Output Types | Voltage or Current |
| Output Range | Voltage: 0–10 V; Current: 0–20 mA or 4–20 mA |
| Resolution | 12 to 16 bits (depending on channel) |
| Accuracy | ±0.1% FS or better |
| Response Time | Typically < 10 ms |
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Protection | IP20 (standard enclosure) |
Industry Applications
-
Process Control – Precise measurement and control of temperature, pressure, flow, and level.
-
Manufacturing Automation – Monitoring analog sensors and controlling actuators.
-
Water & Wastewater – Analog signal acquisition from level sensors, pumps, and valves.
-
Building Automation – Control of HVAC systems, lighting, and energy management.
-
Energy Management – Analog monitoring of electrical parameters and renewable energy sources.
The Schneider TM3TM3 Analog IO Module offers flexible, accurate, and reliable analog signal processing in a compact design. Its wide input compatibility and configurable outputs make it an excellent choice for industrial applications requiring precise analog data handling within the Modicon TM3 modular system.
