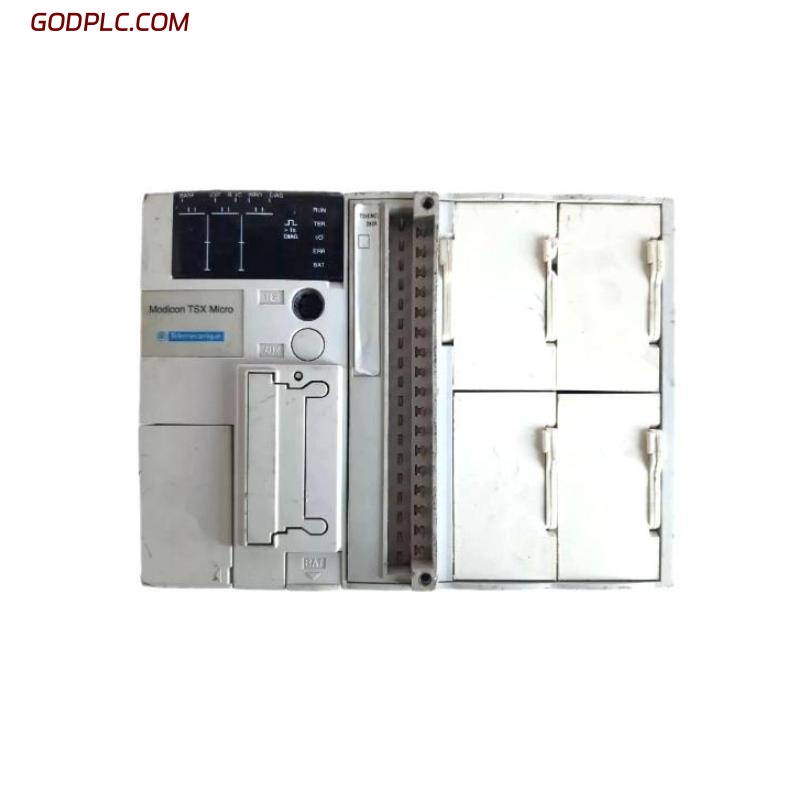

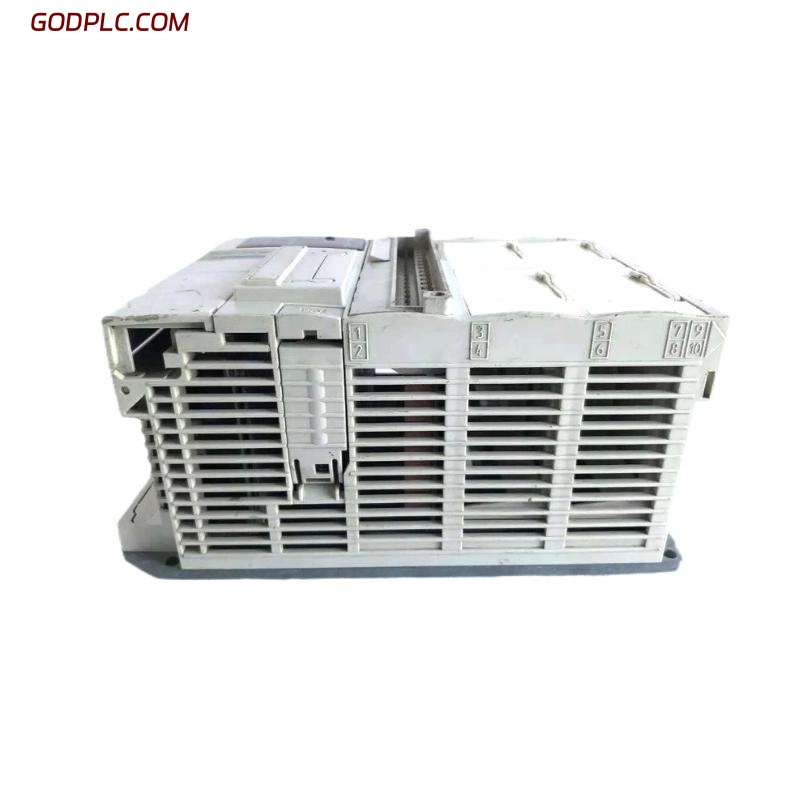

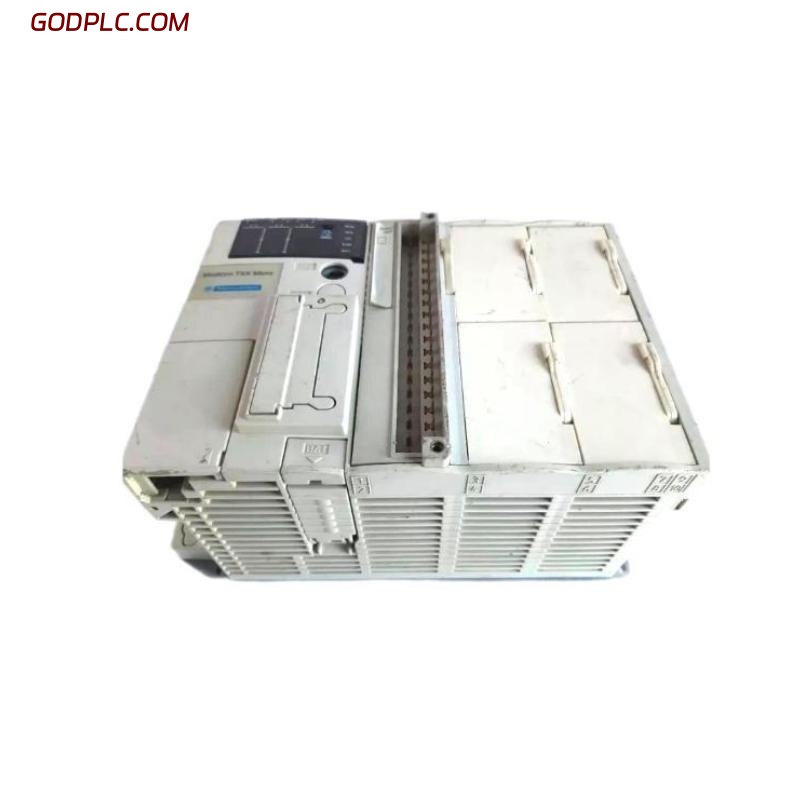

Schneider TSX3708056DR1 Modular Base Controller
Product Overview
The Schneider TSX3708056DR1 Modular Base Controller is an advanced and scalable controller designed to meet the needs of complex industrial automation applications. This modular base controller provides a flexible foundation for creating tailored control systems, allowing for easy expansion and customization as the needs of the application evolve. With its robust design, high processing power, and compatibility with Schneider Electric’s comprehensive range of automation modules, the TSX3708056DR1 is perfect for manufacturing, process control, and other demanding industries.
Key Features
-
Modular Design – Provides flexibility to expand and configure the system according to specific application requirements, enabling growth and adaptation
-
High Processing Power – Equipped with a powerful processor that ensures fast, reliable operation for real-time control and data processing
-
Easy Integration – Fully compatible with Schneider Electric’s Modicon PLC systems, offering seamless integration with existing infrastructure
-
Scalable I/O Capacity – Supports a wide range of I/O modules that can be added or removed based on system needs, allowing for tailored automation solutions
-
Robust Industrial Design – Built to withstand harsh environmental conditions, with protection against electrical interference, temperature extremes, and mechanical stress
-
Multiple Communication Protocols – Supports various communication standards (Modbus, Ethernet, Profibus, etc.) for easy connectivity with supervisory systems and field devices
-
User-Friendly Programming – Compatible with Schneider Electric’s EcoStruxure™ control software, simplifying setup, programming, and maintenance tasks
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 227.9 x 151 x 152 mm |
| Weight | 1.6 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24V DC |
| Current Consumption | Typically 250 mA |
| I/O Capacity | Expandable with additional modules |
| Input Voltage | 24V DC or as per module configuration |
| Output Voltage | 24V DC (depending on configuration) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection | IP20 (when installed) |
| Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Schneider Electric Modicon PLCs |
| Communication Protocols | Modbus, Ethernet, Profibus, etc. |
| Module Type | Modular base controller for industrial automation |
Industry Applications
-
Manufacturing Automation – Ideal for controlling production lines, robotics, and packaging systems, offering scalable solutions for various stages of the manufacturing process
-
Energy and Utilities – Used for controlling and monitoring energy generation and distribution systems in power plants and substations
-
Water/Wastewater Treatment – Facilitates automated control of water treatment processes, including pumps, filtration systems, and chemical dosing
-
Building Automation – Connects with HVAC, lighting, and security systems for energy-efficient building management
-
Process Control – Enables real-time control and monitoring of processes in industries such as chemicals, pharmaceuticals, and food processing
The Schneider TSX3708056DR1 Modular Base Controller is a flexible and powerful solution for industrial automation, offering high scalability, processing power, and integration capabilities. Its modular design and robust features make it an ideal choice for complex, evolving control systems across a variety of industries.
Schneider TSX3708056DR1 Modular Base Controller is in stock. Please contact us for a quick quote and competitive pricing.
