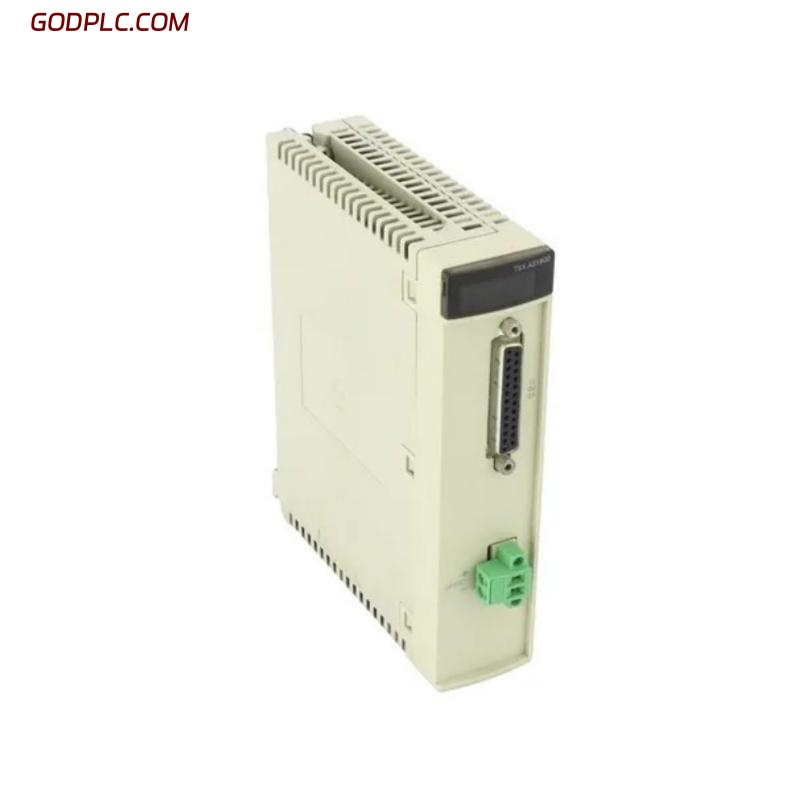

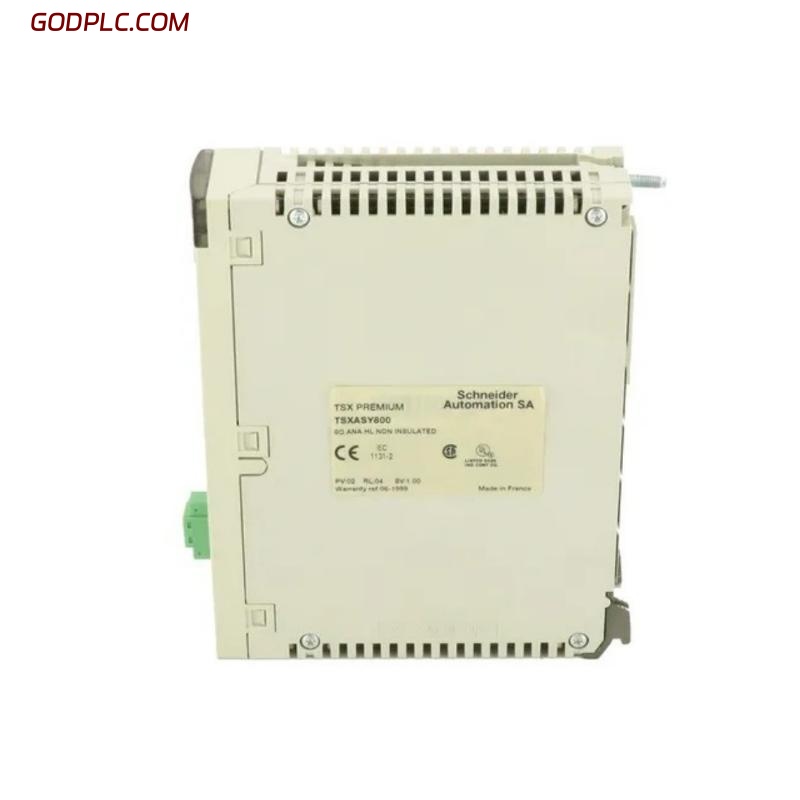

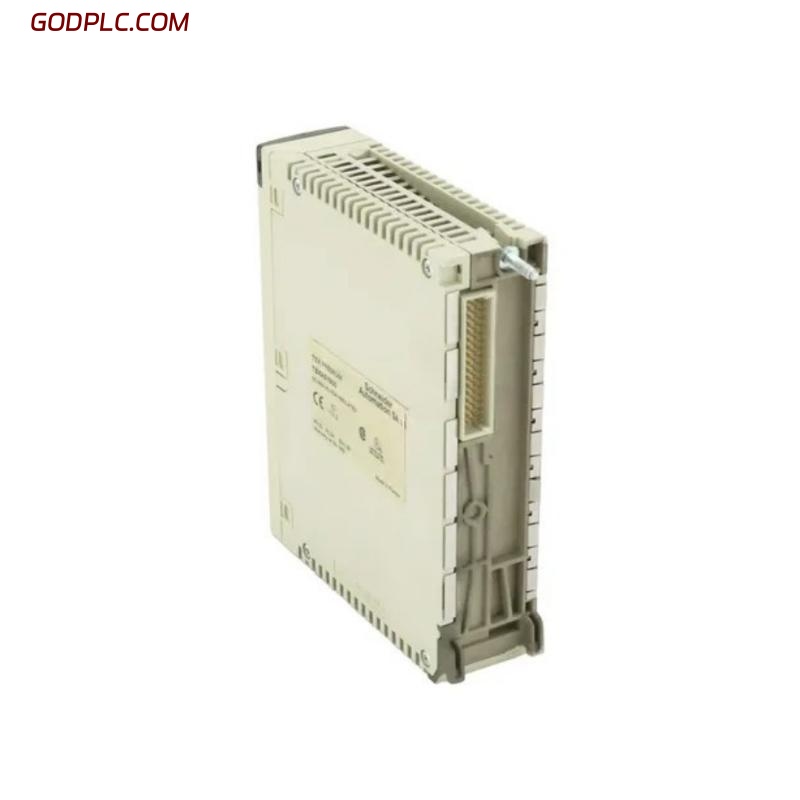

Schneider TSXASY800 Analog Output Module

Product Overview

The Schneider TSXASY800 Analog Output Module is a high-performance module designed for use with Schneider Electric’s Modicon Premium and Modicon Quantum programmable logic controller (PLC) systems. This module provides precise analog signal output to control various industrial processes that require continuous or variable control, such as in motor drives, valves, or pressure systems.

The TSXASY800 offers an excellent combination of speed, accuracy, and flexibility, making it ideal for industries that rely on high-precision automation and control. It is designed to seamlessly integrate into Schneider Electric’s industrial control systems, providing consistent, reliable performance in demanding environments.

Key Features

• High-Precision Output – Provides 16-bit resolution for precise control of output signals in industrial applications

• Wide Output Range – Supports a broad range of output signals, including 0-10 VDC and 4-20 mA, allowing for flexibility in system design

• Multiple Channels – Features 8 output channels, enabling control of multiple devices simultaneously

• High-Speed Performance – Designed to operate in high-speed applications, ensuring real-time control of process variables

• Easy Integration – Compatible with Modicon Premium and Modicon Quantum PLC systems, allowing for seamless integration within existing control architectures

• Built-in Diagnostics – Offers real-time diagnostics and status information to monitor module performance and troubleshoot potential issues

• Rugged Design – Built to withstand industrial environments, with resistance to vibrations, shock, and extreme operating temperatures

• Compact Design – Space-efficient module that can be easily integrated into control panels or PLC racks

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Manufacturing – Controls motors, actuators, and other equipment in automated production lines requiring variable analog output signals

• Process Control – Ideal for industries like chemicals, food & beverage, and pharmaceuticals, where continuous control of parameters like temperature, pressure, and flow is critical

• Energy and Utilities – Used in power generation and distribution systems for controlling systems like variable frequency drives (VFDs), generators, and pumps

• Water and Wastewater Treatment – Provides precise control over valves, pumps, and other equipment in water treatment plants

• Oil & Gas – Supports control of instruments and devices in exploration and production applications, including compressors, pressure regulators, and flowmeters

The Schneider TSXASY800 Analog Output Module offers superior precision and flexibility, making it an ideal solution for controlling a wide range of devices in industrial automation applications. Its high-speed performance, compact design, and easy integration into Schneider Electric’s PLC systems make it a reliable choice for demanding industrial environments.
