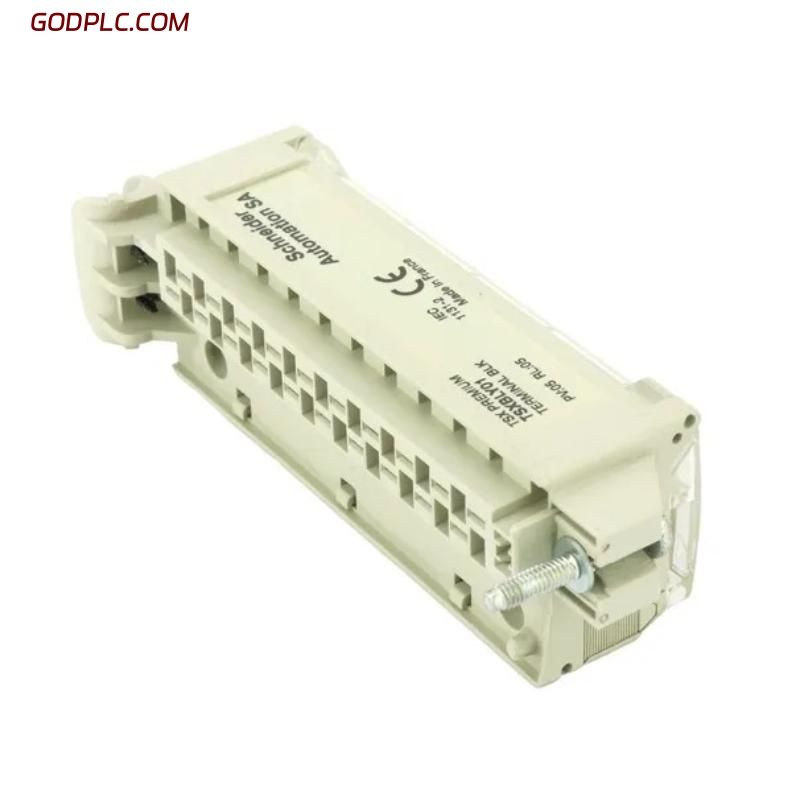

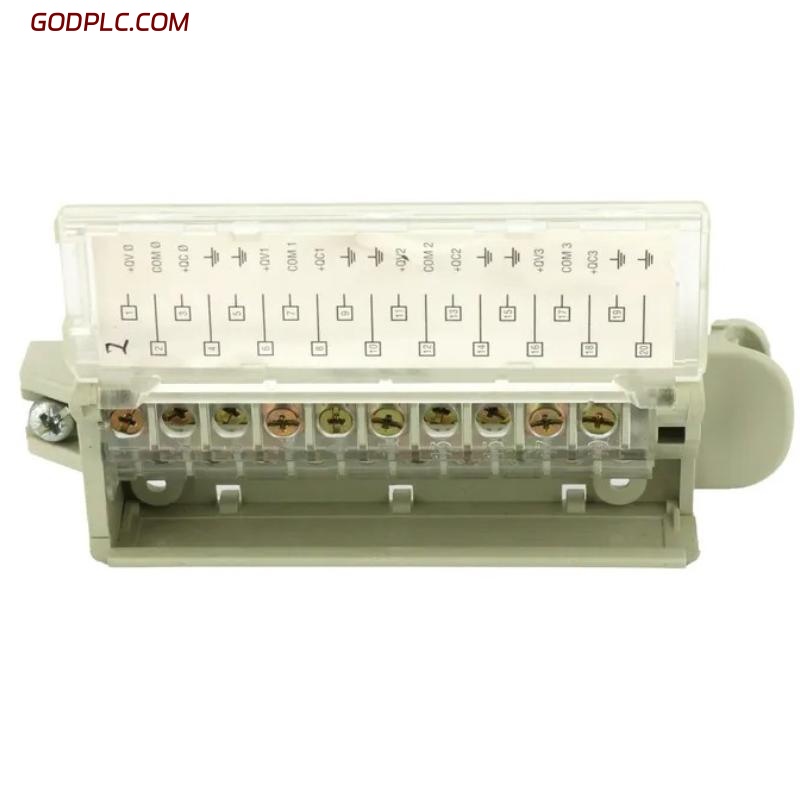

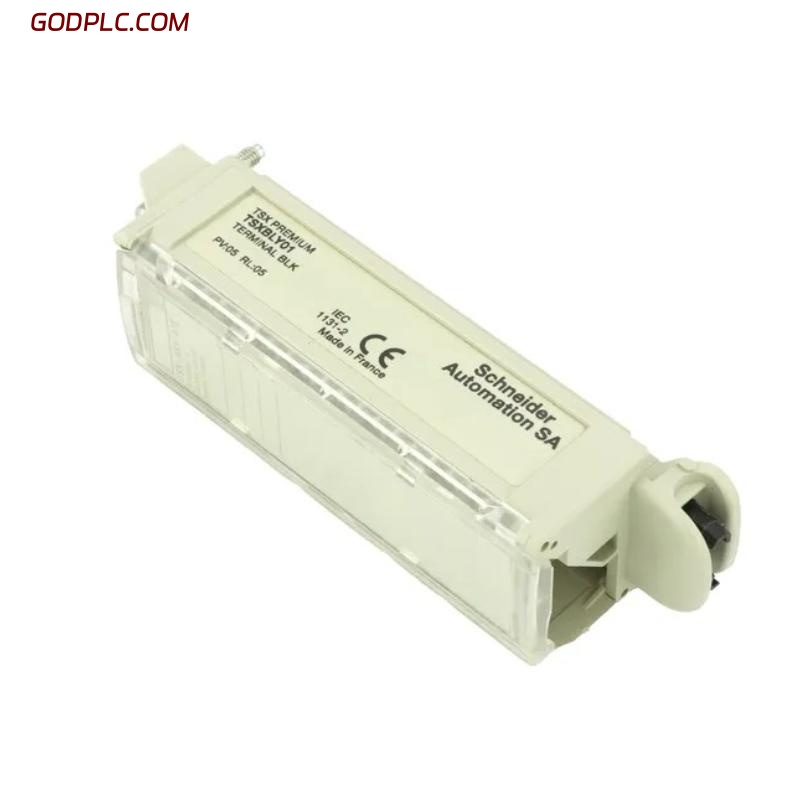

Schneider TSXBLY01 Terminal Blocks
Product Overview
The Schneider TSXBLY01 Terminal Blocks are designed to provide a secure and reliable connection for electrical wiring in Schneider Electric automation systems. These terminal blocks are used to simplify the wiring process by offering convenient connection points for input/output signals, power distribution, and other industrial applications. With high durability and ease of use, the TSXBLY01 terminal blocks ensure stable electrical connections in demanding industrial environments.
Key Features
-
Modular Design – Designed for easy integration into Schneider Electric’s automation systems, offering flexible configuration options
-
High Durability – Built to withstand the harsh conditions of industrial environments, including vibration, temperature fluctuations, and electrical surges
-
Reliable Electrical Connections – Provides secure and stable connections for both low and high voltage signals, ensuring consistent performance
-
Easy Installation – Quick and simple installation process, reducing downtime and improving overall system efficiency
-
Compact and Space-Saving – Space-efficient design that allows for installation in compact control panels or enclosures
-
Labeling Capability – Equipped with labeling areas for clear identification of wiring, improving organization and maintenance efficiency
-
Wide Compatibility – Compatible with a variety of wiring types, allowing for flexibility in different applications
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 44 x 40 x 130 mm |
| Weight | 0.1 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Rating | 250 V AC/DC |
| Current Rating | 10 A |
| Connection Type | Screw terminal connection |
| Material | High-quality thermoplastic |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with Schneider Electric automation systems |
| Compatible Modules | Used in conjunction with various Schneider PLC and control modules |
| Module Type | Terminal block for signal and power connections |
Industry Applications
-
Industrial Automation – Provides secure connections for control signals and power distribution in automation systems
-
Power Distribution – Ideal for use in power distribution panels for industrial facilities and machinery
-
Control Panels – Essential for wiring and organizing connections in control panels and junction boxes
-
Building Automation – Suitable for HVAC systems, lighting controls, and other building systems requiring secure wiring connections
-
Energy Systems – Used in electrical control and metering systems, ensuring stable power connections for accurate data monitoring
The Schneider TSXBLY01 Terminal Blocks are a crucial component for establishing secure, reliable connections in Schneider Electric systems. Their modular design, high durability, and compatibility with various wiring types make them ideal for a wide range of industrial, automation, and power distribution applications.
Schneider TSXBLY01 Terminal Blocks is in stock. Please contact us for a quick quote and competitive pricing.
