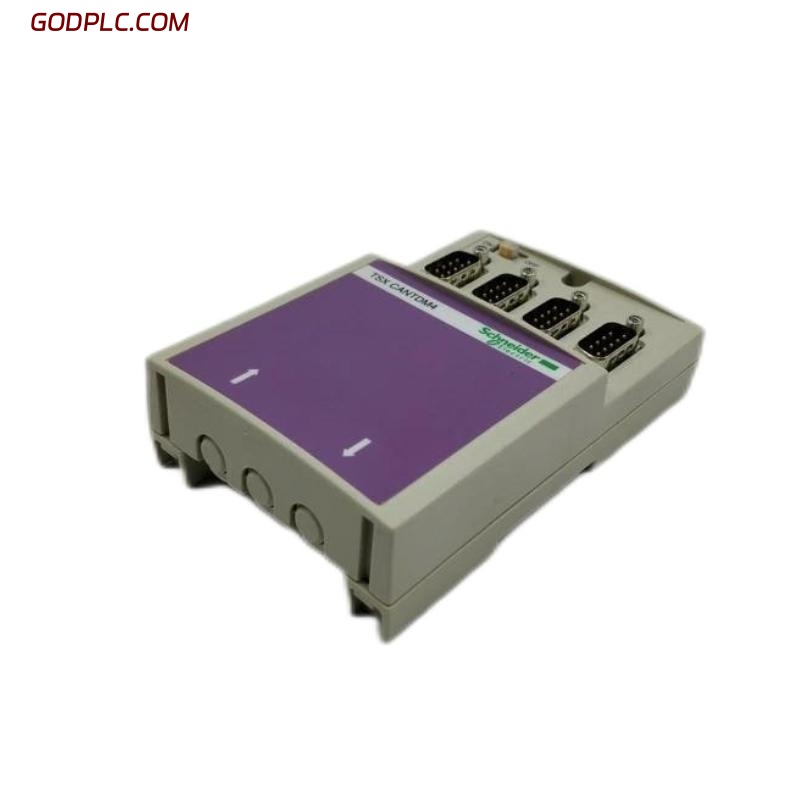

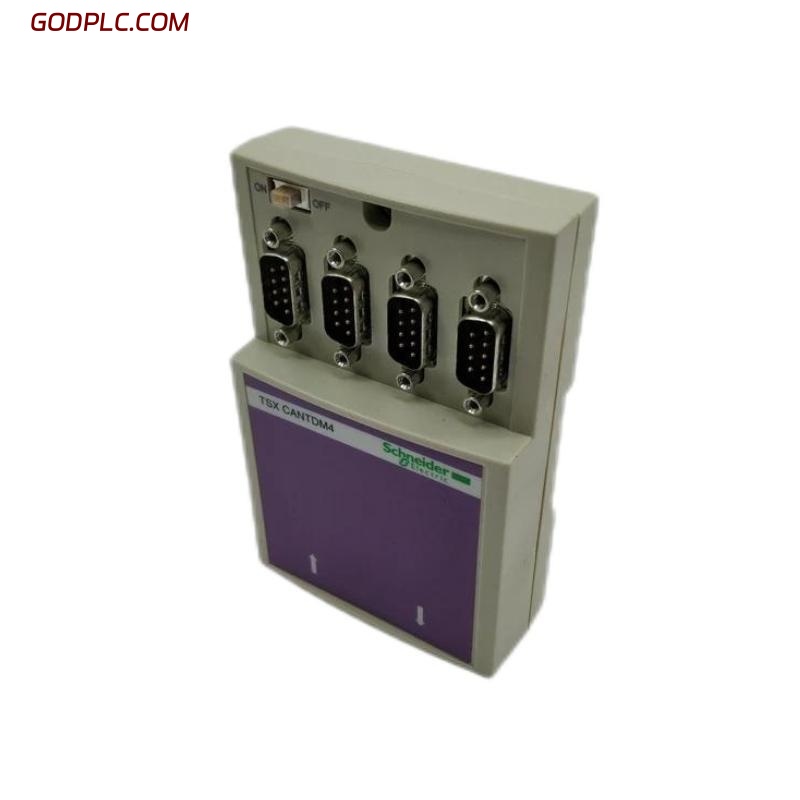

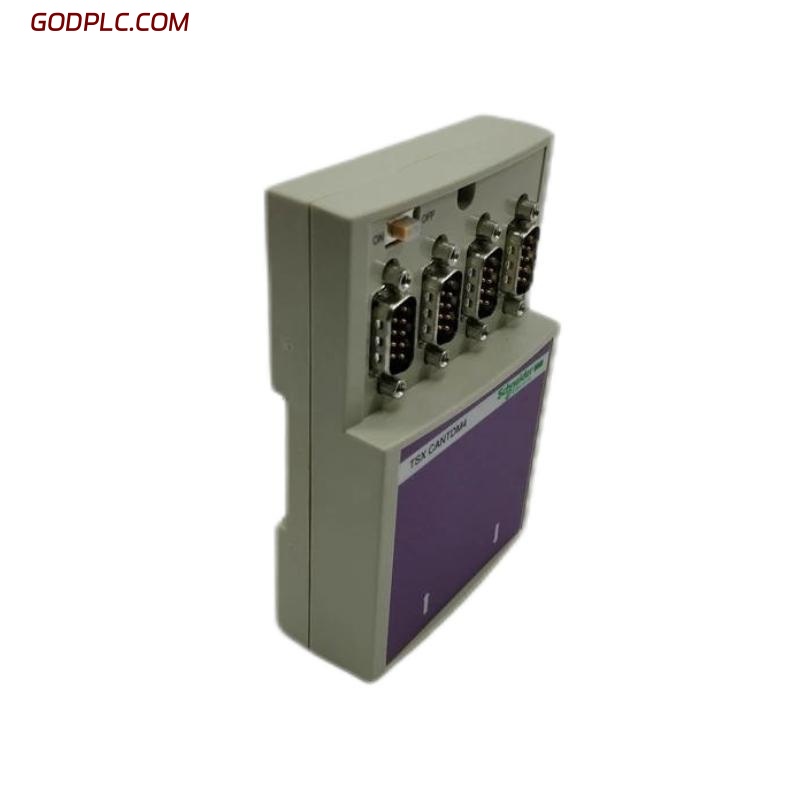

Schneider TSXCANTDM4 Line Terminator Tap Junction Box
Product Overview
The Schneider TSXCANTDM4 Line Terminator Tap Junction Box is a high-performance component designed to support CAN (Controller Area Network) communication systems. It serves as both a line terminator and a tap junction box, ensuring reliable data transmission and signal integrity across the network. Ideal for industrial automation applications, this junction box provides the necessary termination for CAN networks, preventing signal reflection and ensuring smooth communication between devices. Its robust design and ease of installation make it a key element in the setup and maintenance of CAN bus systems.
Key Features
-
Line Terminator – Provides proper termination for CAN networks, reducing signal reflections and ensuring reliable data transmission
-
Tap Junction Box – Allows for easy connection of devices to the network while maintaining signal integrity
-
Compatible with CAN Protocol – Supports all standard CAN communication protocols, ensuring compatibility with a wide range of CAN devices
-
Robust Design – Built for durability in harsh industrial environments, offering reliable performance over time
-
Simple Installation – Easy to install and configure, minimizing setup time and ensuring quick network deployment
-
Industrial-Grade Construction – Designed to withstand vibrations, temperature fluctuations, and other demanding conditions found in industrial environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 65 x 85 x 135 mm |
| Weight | 0.196 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC nominal |
| Current Consumption | Approx. 30 mA |
| Communication Protocol | CAN (Controller Area Network) |
| Isolation | Optically isolated |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
| Vibration/Shock | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Network Type | CAN Bus System |
| Communication | CAN Protocol (ISO 11898-2) |
Industry Applications
-
Industrial Automation – Used for communication between controllers, sensors, and actuators in automation systems
-
Machine Control – Ensures stable CAN bus communication in complex machine control systems
-
Energy & Utilities – Provides reliable network communication in power distribution and monitoring systems
-
Automotive – Used in automotive applications requiring CAN bus communication for control and diagnostics
-
Building Automation – Facilitates efficient communication in building management systems, including HVAC and lighting control
The Schneider TSXCANTDM4 Line Terminator Tap Junction Box ensures high-performance CAN communication, offering an efficient solution for industrial control networks by preventing signal interference and maintaining the integrity of data transmission.
Schneider TSXCANTDM4 Line terminator Tap junction box is in stock. Please contact us for a quick quote and competitive pricing.
