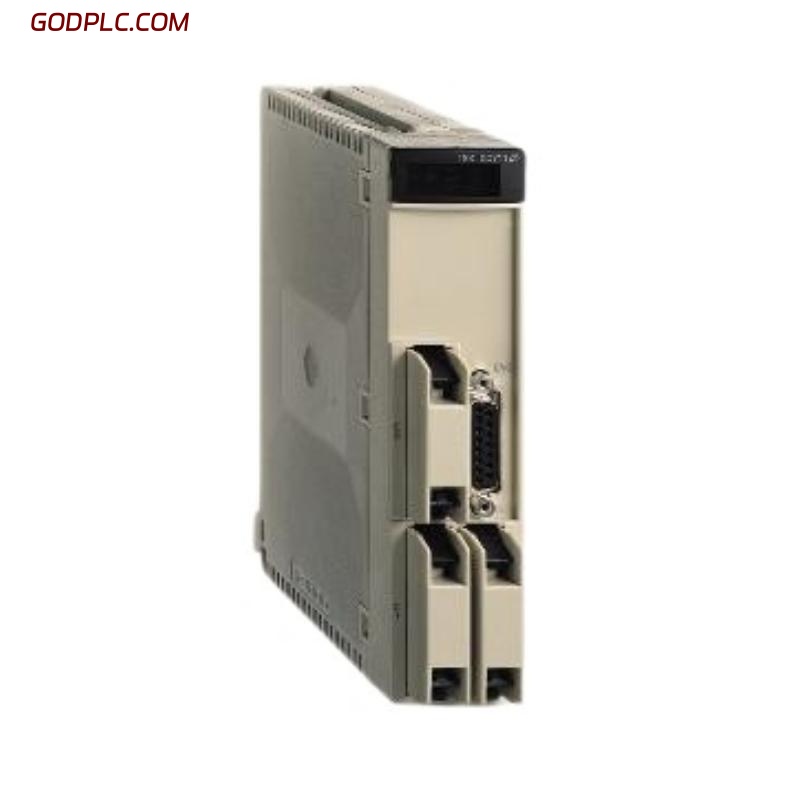

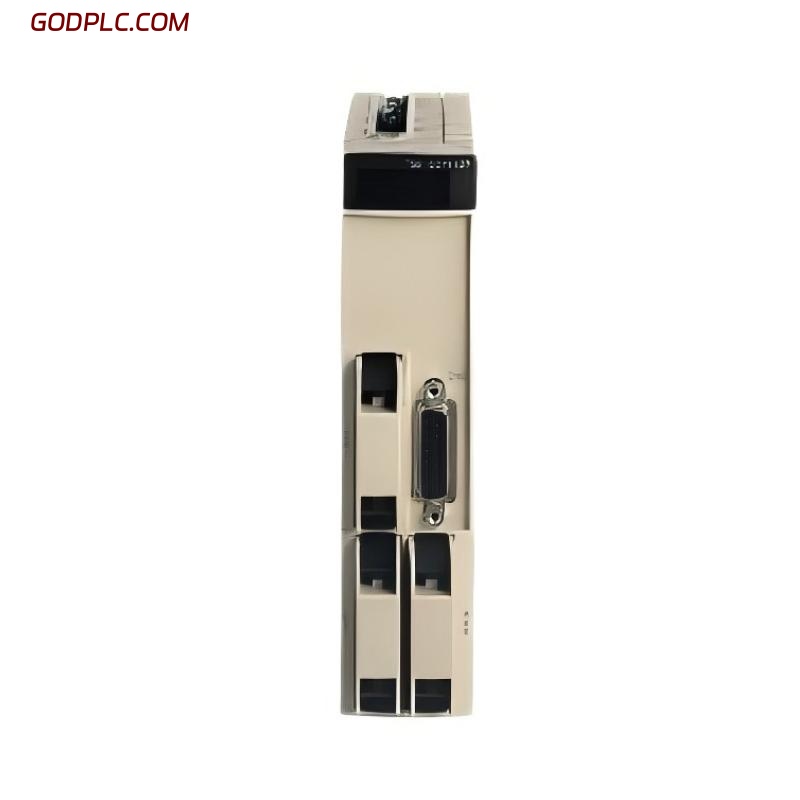

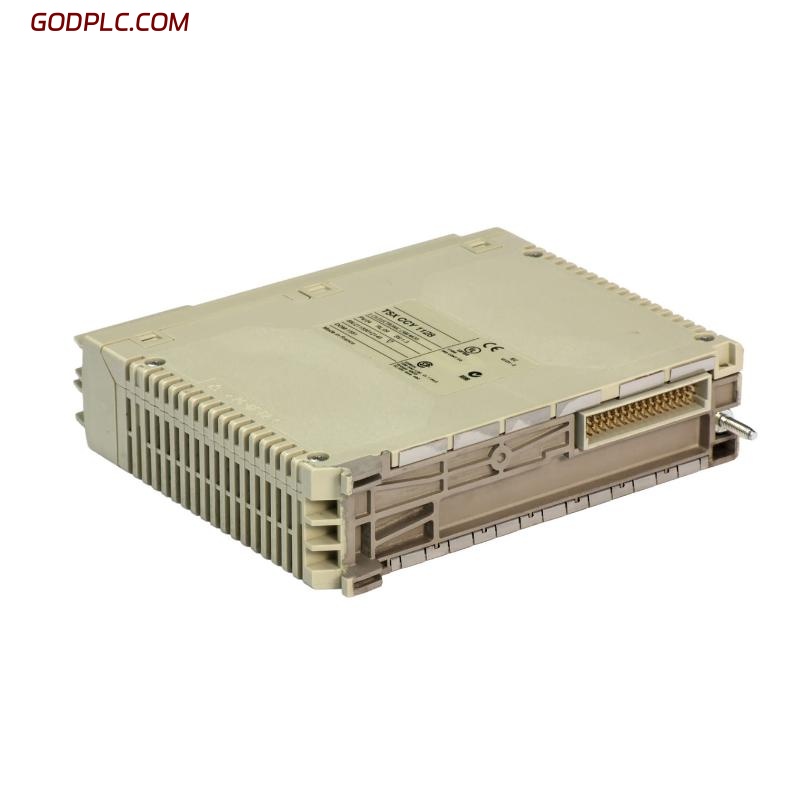

Schneider TSXCCY1128 Electronic Cam Module
Product Overview
The Schneider TSXCCY1128 Electronic Cam Module is an advanced motion control component designed to provide precise synchronization and control of multiple axes in industrial automation systems. This module is specifically designed for use in conjunction with Schneider’s Modicon PLC platforms, offering superior flexibility in controlling complex motion profiles. The TSXCCY1128 allows for the configuration of electronic cams that can be used in a variety of applications, such as packaging, automotive, and material handling systems. It supports both direct and ramped profiles, enabling smooth and accurate motion control for demanding processes.
Key Features
-
Electronic Cam Control – Enables precise cam profile control for complex motion sequences
-
Multi-Axis Synchronization – Allows synchronized control of multiple axes, ensuring coordinated motion in automated systems
-
Flexible Motion Profiles – Supports both direct and ramped cam profiles for a variety of motion control applications
-
High-Speed Operation – Provides fast and accurate response times, ensuring real-time synchronization of motion tasks
-
Easy Integration – Seamlessly integrates with Schneider’s Modicon PLCs, providing a reliable solution for motion control applications
-
Programmable Logic Support – Fully programmable with Schneider’s Unity Pro or Concept software for easy configuration and modification
-
Diagnostics and Fault Detection – Real-time monitoring of system performance with built-in diagnostic tools for quick troubleshooting
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 95 x 180 x 260 mm |
| Weight | 0.48 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 VDC nominal |
| Current Consumption | Approx. 200 mA |
| Communication | Modbus, CANopen (via Modicon PLC) |
| Output Signals | Digital outputs for cam profile control |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
| Vibration/Shock | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| PLC Platform | Schneider Modicon PLC |
| Module Type | Electronic Cam Module |
| Software | Unity Pro, Concept |
Industry Applications
-
Packaging – Controls motion sequences for conveyors, fillers, and labeling systems, ensuring smooth and synchronized operations
-
Automotive – Used in robotic arms and assembly line motion control for precision manufacturing and assembly processes
-
Material Handling – Provides precise synchronization of lifting, stacking, and sorting operations in warehouse automation
-
Textile and Paper Industries – Controls weaving, cutting, and rolling operations for accurate positioning and motion synchronization
-
Food & Beverage – Ensures accurate control in packaging and processing lines, maintaining high throughput and consistency
The Schneider TSXCCY1128 Electronic Cam Module offers advanced motion control capabilities for industrial automation systems, providing precise synchronization and flexibility for complex, multi-axis motion tasks.
Schneider TSXCCY1128 Electronic Cam Module is in stock. Please contact us for a quick quote and competitive pricing.
