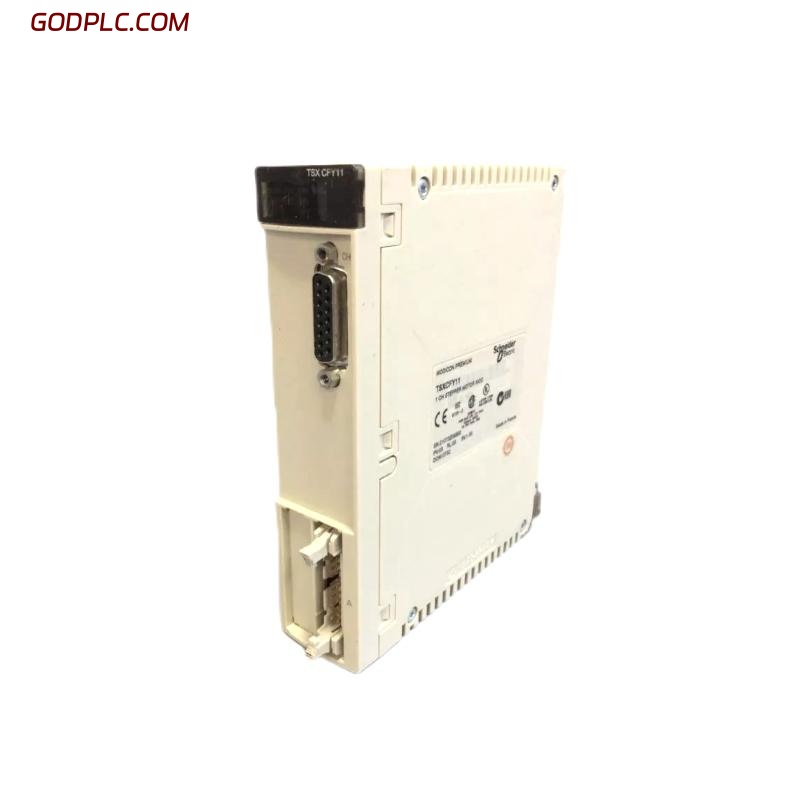

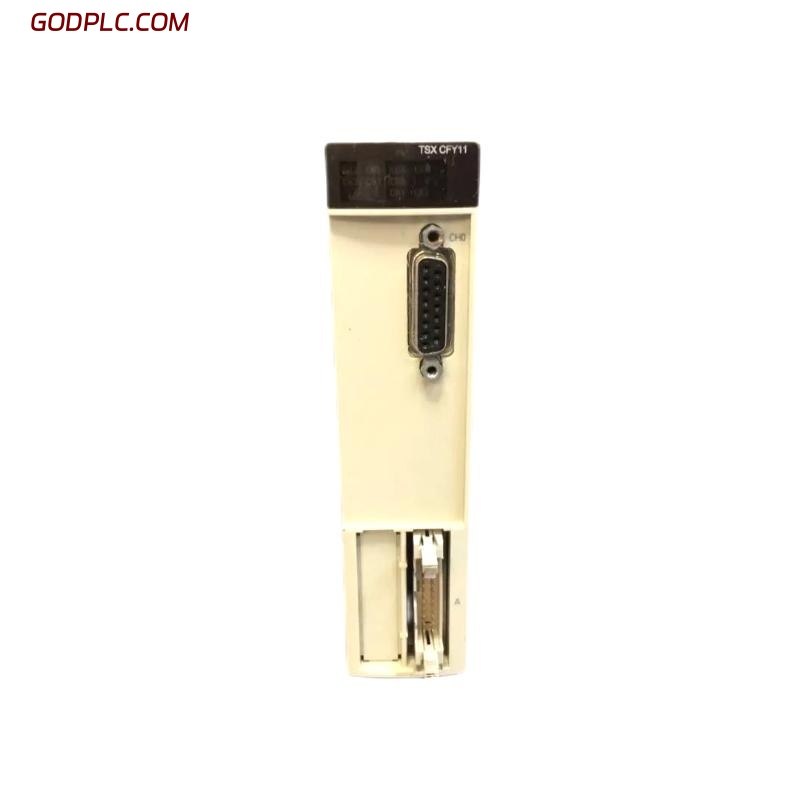

Schneider TSXCFY11 Motion Control Module
Product Overview
The Schneider TSXCFY11 Motion Control Module is designed to provide sophisticated motion control capabilities for Schneider Electric’s Modicon Premium and Modicon Quantum programmable logic controller (PLC) systems. This module allows for the precise control of servos, stepper motors, and other motion-controlled devices, enabling high-performance applications such as robotics, automated material handling, and CNC machines.
With the TSXCFY11, users can achieve high-precision motion control with real-time feedback, multiple axes synchronization, and advanced functionality like interpolation and trajectory generation. The module is ideal for applications requiring tight synchronization and accurate motion control in complex industrial automation systems.
Key Features
-
Multi-Axis Motion Control – Capable of controlling up to 16 axes simultaneously, offering flexibility for complex motion applications
-
Real-Time Performance – Ensures precise and reliable motion control with real-time feedback for dynamic systems
-
Advanced Control Algorithms – Includes built-in algorithms for position, speed, and torque control, enabling complex motion profiles and precision movement
-
High-Speed Processing – Designed for high-speed applications, providing fast response times for motion control operations
-
Flexible Integration – Easily integrates with Modicon Premium and Quantum PLC systems, supporting a wide range of industrial motion control applications
-
Motion Profiling – Supports linear, circular, and helical motion profiles, enabling control over various types of movement
-
Synchronization – Synchronizes multiple axes with high accuracy, ensuring smooth and coordinated movements in multi-axis systems
-
Integrated Diagnostics – Provides real-time diagnostics to monitor the health of the motion system, alerting users to any issues for quick resolution
-
Modular Design – Can be easily added to existing systems, providing scalable solutions for growing automation needs
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 200 x 151.5 mm |
| Weight | 0.44 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC ±20% |
| Power Consumption | Approx. 6 W |
| Motion Control Outputs | 16 independent axes (maximum) |
| Communication | Modbus, Ethernet/IP, CANopen |
| Signal Processing Speed | 100 µs per axis |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Compatibility | Compatible with Modicon Premium and Quantum PLC systems |
| Integration | Supports Schneider Electric’s EcoStruxure™ Machine and other automation software tools for motion control setup and diagnostics |
Industry Applications
-
Robotics – Used in robotic arms and automated machinery, offering high-precision control of movement in assembly lines and packaging systems
-
CNC Machines – Controls the movement of CNC machines for machining parts with tight tolerances, ensuring precise cuts and operations
-
Material Handling – Ideal for controlling conveyors, automated guided vehicles (AGVs), and other material handling equipment in warehouses and factories
-
Printing – Provides precise control over printing mechanisms in printing presses, ensuring uniformity and quality of printed materials
-
Semiconductor Manufacturing – Supports precision control of wafer handling systems, improving speed and accuracy in semiconductor fabrication
-
Aerospace – Used in automated manufacturing processes for aerospace components, ensuring high-precision operations for critical applications
The Schneider TSXCFY11 Motion Control Module delivers high-precision, multi-axis motion control capabilities to Schneider Electric’s PLC systems. With its real-time performance, flexible integration, and advanced control algorithms, this module ensures that industrial automation systems achieve maximum efficiency and accuracy, even in the most complex and demanding motion applications.
Schneider TSXCFY11 Motion Control Module is in stock. Please contact us for a quick quote and competitive pricing.
