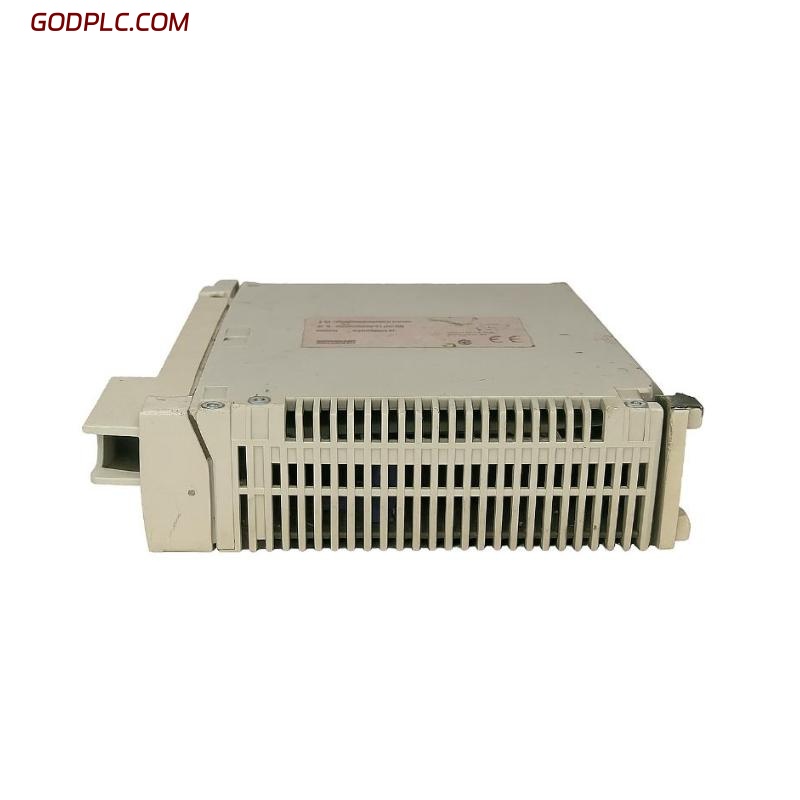

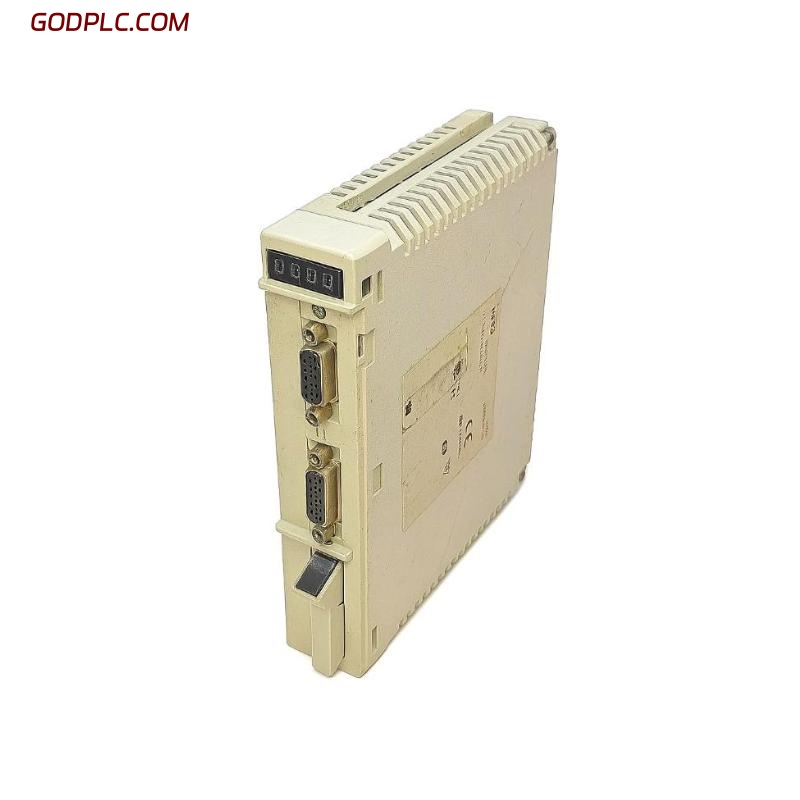

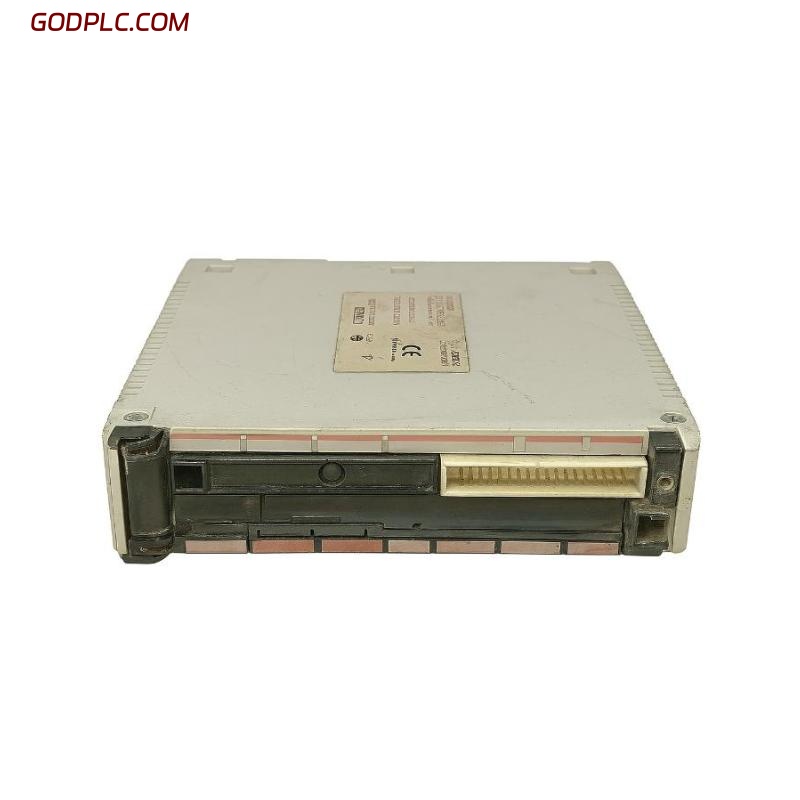

Schneider TSXCFY21 Motion Control Module
Product Overview
The Schneider TSXCFY21 Motion Control Module is a high-performance motion control solution designed for Schneider Electric’s Modicon Premium and Modicon Quantum PLC systems. This module is engineered to handle demanding motion control tasks in a wide variety of industrial applications, providing precise control over servos, stepper motors, and other motion-controlled devices.
Optimized for real-time motion control, the TSXCFY21 supports advanced algorithms for position, speed, and torque control, enabling complex motion profiles such as linear, circular, and helical motion. Its high-speed processing capabilities and multiple axis synchronization make it ideal for applications like robotics, CNC machining, material handling, and automated manufacturing.
Key Features
-
Multi-Axis Control – Supports up to 32 independent axes, enabling control of large and complex motion systems with multiple devices
-
Real-Time Control – Provides precise and dynamic motion control, with real-time feedback and fast processing for high-speed applications
-
Advanced Motion Profiling – Includes support for various motion profiles like linear, circular, and helical movements for sophisticated applications
-
Flexible Communication – Compatible with various industrial communication protocols including Modbus, Ethernet/IP, and CANopen for seamless integration into automation systems
-
Synchronization – High-precision synchronization of multiple axes for coordinated movement in complex automation tasks
-
Built-In Diagnostics – Integrated diagnostic tools to monitor system health, detect potential issues, and ensure continuous optimal performance
-
Modular Design – Easily integrates into Schneider Electric’s PLC architecture, providing scalability and flexibility for future system expansion
-
Compact and Rugged – Designed for use in harsh industrial environments, with a compact form factor for space-constrained applications
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 55 x 180 x 260 mm |
| Weight | 0.38 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC ±20% |
| Power Consumption | Approx. 8 W |
| Motion Control Outputs | Up to 32 independent axes |
| Communication | Modbus, Ethernet/IP, CANopen |
| Signal Processing Speed | 100 µs per axis |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Compatibility | Compatible with Modicon Premium and Quantum PLC systems |
| Integration | Works with Schneider Electric’s EcoStruxure™ Machine for configuration, diagnostics, and motion profile setup |
Industry Applications
-
Robotics – Provides precise control for multi-axis robotic arms used in assembly, welding, and material handling tasks
-
CNC Machinery – Ensures high-accuracy movement for CNC machines, offering tight tolerances for machining parts
-
Automated Material Handling – Controls conveyors, automated guided vehicles (AGVs), and other automated material handling systems in manufacturing and warehousing
-
Semiconductor Manufacturing – Ideal for controlling wafer-handling robots and other delicate equipment in semiconductor production
-
Aerospace and Defense – Supports high-precision motion control for manufacturing aerospace components, testing, and assembly lines
-
Packaging – Used for controlling high-speed packaging lines that require precise movement synchronization for speed and efficiency
The Schneider TSXCFY21 Motion Control Module is an advanced solution for industrial motion control, offering high precision, flexibility, and real-time performance. Its ability to handle multiple axes and complex motion profiles makes it an excellent choice for demanding applications in robotics, CNC, material handling, and many other industries. With seamless integration into Schneider Electric’s PLC systems, it ensures optimized and efficient motion control in a wide range of industrial environments.
Schneider TSXCFY21 Motion Control Module is in stock. Please contact us for a quick quote and competitive pricing.
