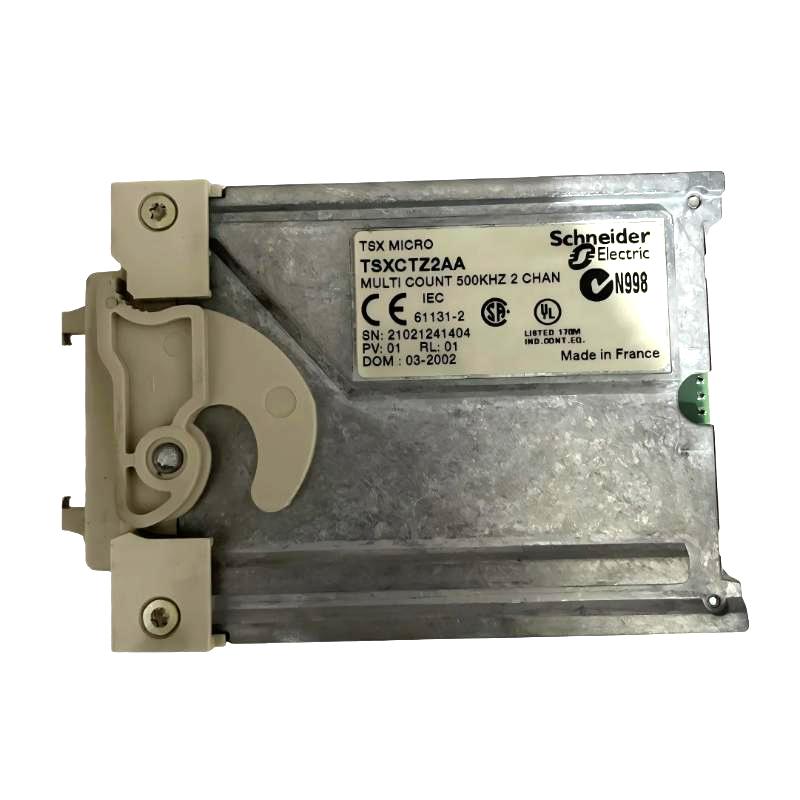

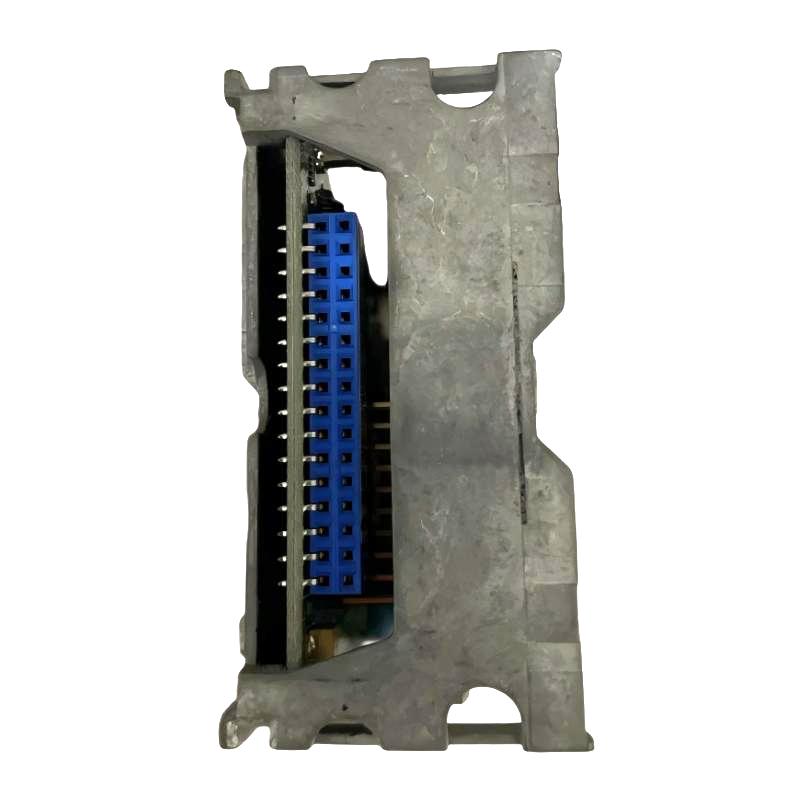

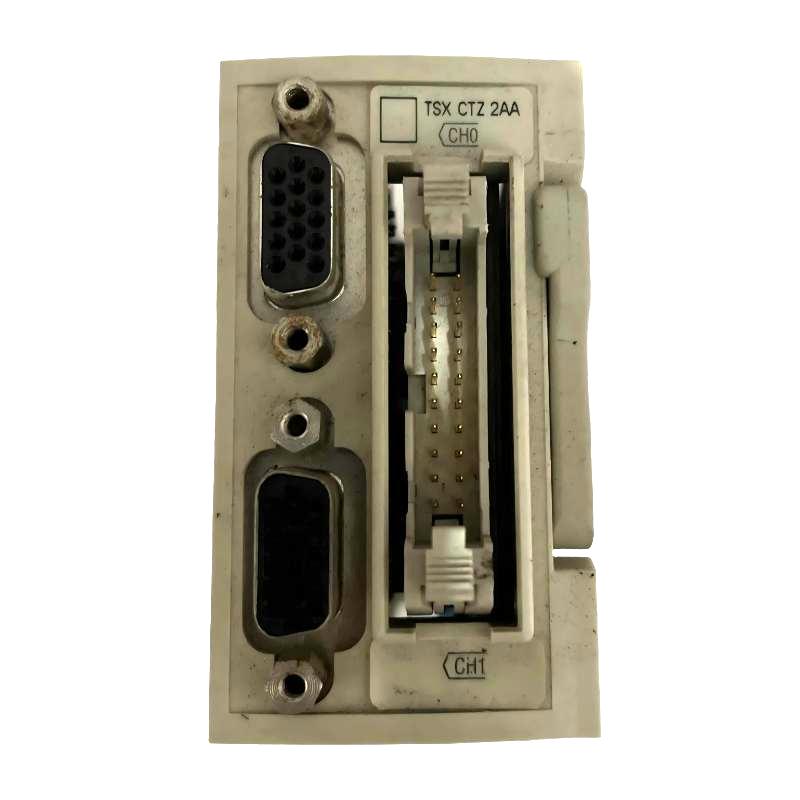

Schneider TSXCTZ2AA Counter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSXCTZ2AA |
| Product Type | Counter Module |
| Series | Schneider Modicon Premium Series |
| Module Type | High-Speed Counter Module |
| Counter Channels | Multi-Channel High-Speed Counting Inputs |
| Input Signal Type | Digital Pulse Signal |
| Counting Function | High-Speed Pulse Counting, Frequency Measurement, Position Detection |
| Counting Mode | Incremental Counting, Event Counting |
| Input Interface | Industrial Digital Signal Input Interface |
| Function | Receives Pulse Signals from Field Devices and Processes Counting Data in PLC Systems |
| Compatible Systems | Schneider Modicon Premium PLC Platform |
| Communication Method | PLC Rack Backplane Communication |
| Installation Method | PLC Rack Mounting |
| Connection Method | Terminal Block Connection |
| Power Supply | Supplied Through PLC Rack System |
| Signal Processing | High-Speed Digital Signal Processing |
| Diagnostic Function | Module Status Monitoring and Fault Diagnosis |
| Status Indicators | LED Indicators for Operation Status and Error Status |
| Programming Compatibility | Schneider Unity Pro / Control Expert Software |
| Application Areas | Packaging Machinery, Motion Control Systems, Encoder Applications, Production Counting, Industrial Automation |
| Operating Environment | Industrial Automation Control Environment |
| Module Function | Provides Accurate High-Speed Counting and Pulse Signal Processing Capability for PLC Applications |
| Maintenance Features | Supports System Diagnostics and Quick Module Replacement |
| Dimensions | 260 × 180 × 55 mm |
| Weight | 0.22 kg |
FAQ
1. What is the primary function of the Schneider TSXCTZ2AA Counter Module?
The Schneider TSXCTZ2AA Counter Module is designed to provide high-speed counting capability for Schneider Modicon Premium PLC systems.
It receives pulse signals generated by industrial devices such as encoders and sensors, processes these signals with high-speed counting functions, and transfers accurate counting information to the PLC controller.
The module is commonly used for applications requiring precise position detection, speed monitoring, production counting, and motion control.
2. How does the TSXCTZ2AA communicate with the Schneider PLC system?
The TSXCTZ2AA communicates with the Modicon Premium PLC system through the PLC rack backplane.
The module receives digital pulse signals from field devices, performs internal high-speed counting calculations, and transfers processed counting values and diagnostic information to the PLC CPU.
The PLC program then uses this information to execute automatic control operations according to real-time production or motion conditions.
3. What types of devices can be connected to the Schneider TSXCTZ2AA?
The TSXCTZ2AA is designed for industrial devices that generate digital pulse output signals.
Typical connected devices include incremental encoders, rotary encoders, proximity sensors, pulse generators, and other pulse-based detection equipment.
It is suitable for automation systems that require fast response, accurate counting, and reliable position feedback.
4. What are the advantages of using the TSXCTZ2AA Counter Module?
The TSXCTZ2AA provides high-speed pulse processing, accurate counting performance, reliable PLC integration, and improved automation control capability.
Compared with standard digital input modules, the high-speed counter function allows the system to process rapid pulse changes more effectively and reduce counting errors caused by normal PLC scan limitations.
This makes it suitable for demanding industrial applications such as motion control and production monitoring.
5. What are the common causes of counting faults on the TSXCTZ2AA?
Common causes of counting faults include incorrect wiring, unstable pulse signals, encoder problems, incorrect configuration parameters, electrical interference, or communication errors.
During troubleshooting, engineers should first check PLC diagnostic information and module status indicators.
Further inspection should include verifying input signal quality, checking field wiring, reviewing module settings, and confirming that connected devices operate correctly.
6. What should be considered when installing the Schneider TSXCTZ2AA?
Before installation, engineers should confirm that the TSXCTZ2AA is compatible with the existing Modicon Premium PLC system.
The module should be installed correctly in the PLC rack, and pulse input wiring should be completed according to the application requirements.
After installation, Unity Pro or Control Expert software should be used for configuration, communication testing, and functional verification to ensure proper operation.
7. What maintenance procedures are recommended for the TSXCTZ2AA?
Routine maintenance includes checking module status indicators, reviewing PLC diagnostic information, inspecting pulse input wiring, and verifying connected field devices.
Maintenance personnel should regularly check encoder operation, signal stability, and communication performance to prevent counting errors.
Preventive maintenance helps maintain system accuracy and reduces unexpected automation equipment downtime.
8. How can the long-term reliability of the Schneider TSXCTZ2AA be improved?
The long-term reliability of the TSXCTZ2AA can be improved through correct installation, proper configuration, and regular monitoring.
Maintaining stable pulse signals, reducing electrical interference, and ensuring reliable connections between field devices and the PLC system help improve operational stability.
Continuous monitoring of diagnostic information, counting performance, and system conditions allows potential problems to be identified early and improves the overall reliability of Schneider automation systems.
Schneider TSXCTZ2AA Counter Module is in stock. Please contact us for a quick quote and competitive pricing.
