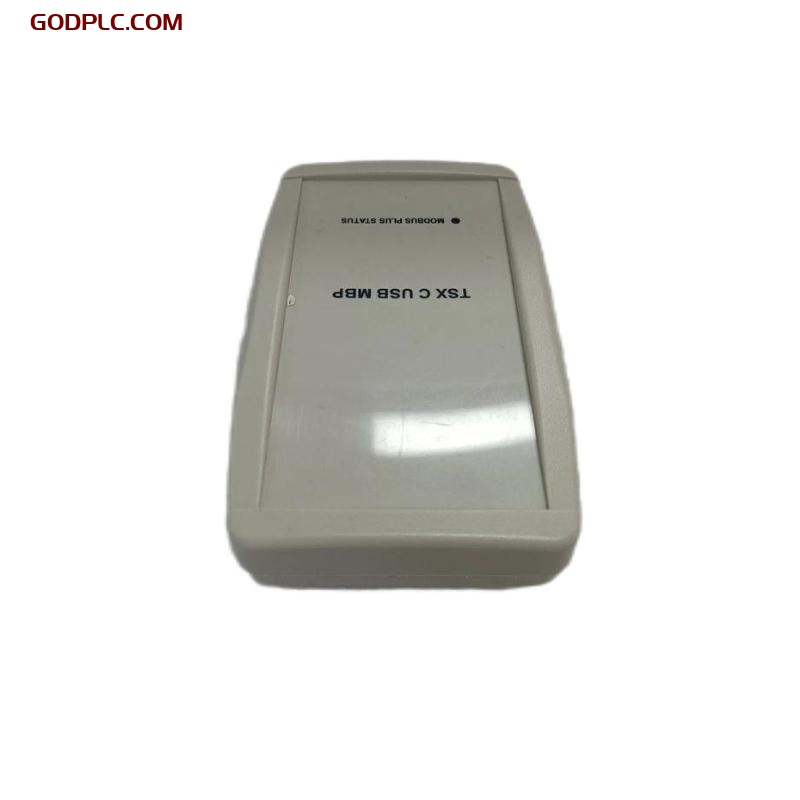

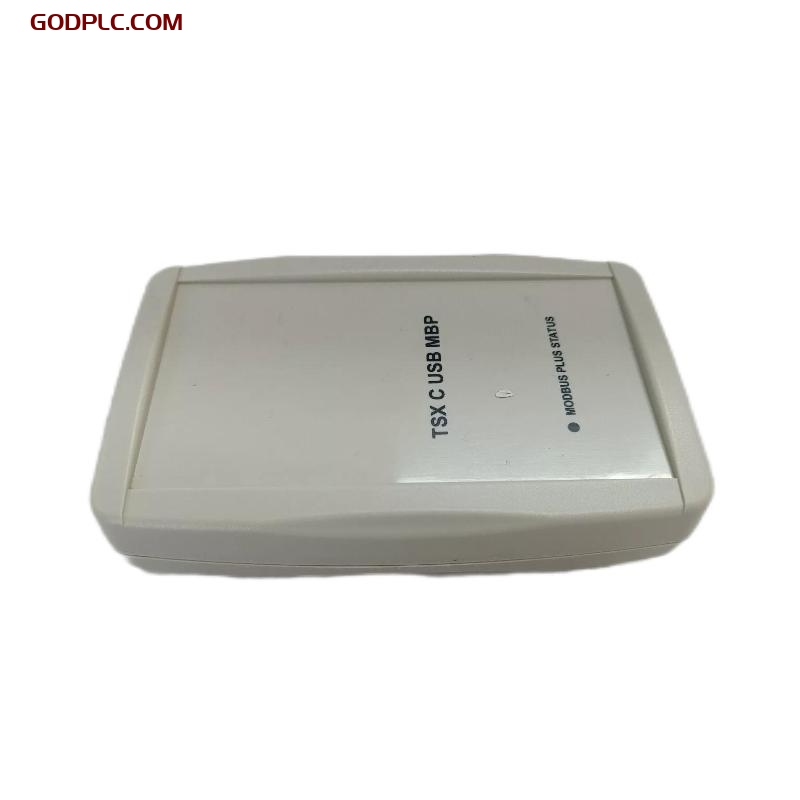

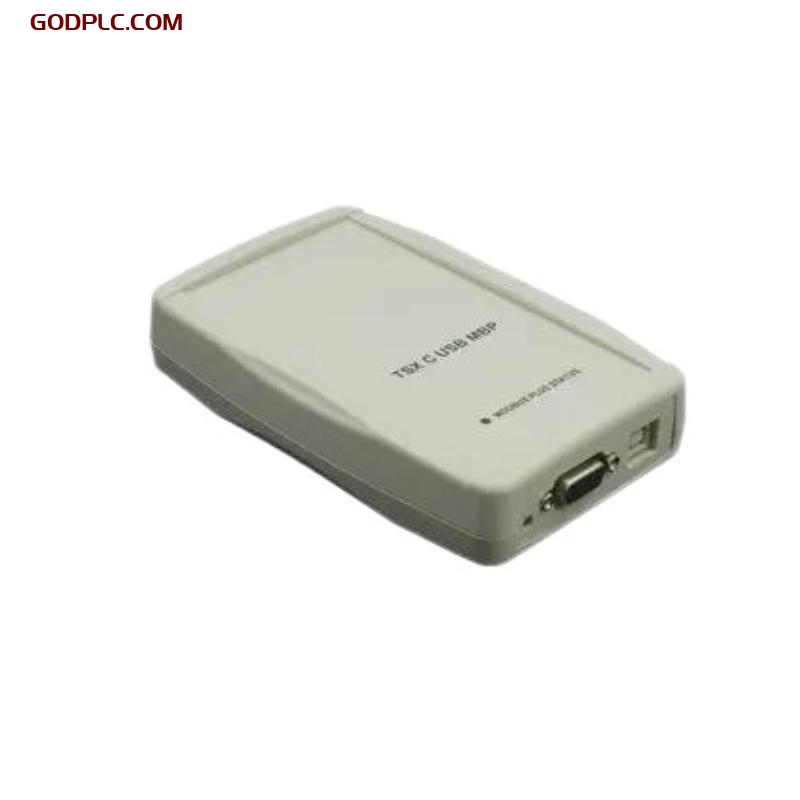

Schneider Electric TSXCUSBMBP Modbus Plus/USB Converter
Product Overview
The Schneider Electric TSXCUSBMBP is a USB-to-Modbus Plus converter that enables PCs and laptops to communicate directly with Modbus Plus (MB+) networks via a standard USB port. Designed for industrial automation applications, it provides a cost-effective and convenient solution for programming, configuring, and monitoring Modbus Plus-compatible devices without the need for a traditional PCI card. This compact converter is ideal for engineers and technicians working with Schneider Modicon Quantum, Premium, and Momentum PLCs and other MB+ systems.
Key Features
-
USB to Modbus Plus Interface – Converts standard USB 1.1/2.0 port to a Modbus Plus connection, enabling quick access to MB+ networks
-
Plug-and-Play Setup – Easy to install with automatic driver recognition and configuration via Schneider software
-
Bus Access Master (BAM) Capability – Allows a PC to act as a Modbus Plus master for programming and diagnostics
-
LED Status Indicators – Built-in LEDs for power, communication status, and diagnostics help with setup and troubleshooting
-
Compact and Portable – Lightweight design ideal for mobile service technicians and field engineers
-
Driver Compatibility – Supports Schneider software tools such as Unity Pro, EcoStruxure Control Expert, and Concept
-
Backward Compatible – Works with legacy systems while interfacing with modern USB-enabled computers
-
High Data Throughput – Supports communication speeds up to 1 Mbps for fast and efficient data exchange
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size 55 × 142 × 225 mm |
| Cable Length | 0.4 m |
| Weight | 0.315 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| USB Interface | USB 1.1 and 2.0 compatible |
| Communication Speed | Up to 1 Mbps (Modbus Plus) |

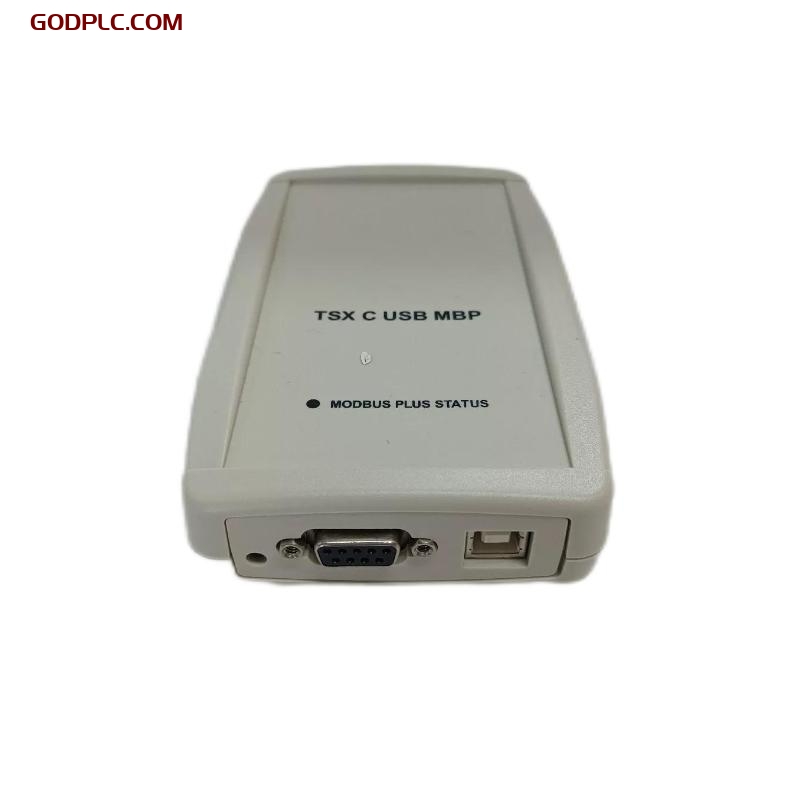

| Bus Connector | 9-pin D-shell (female) |
| Isolation Voltage | 1500 V RMS (USB to MB+) |
| Power Supply | USB-powered (no external supply needed) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +50°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 10%–90% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when in use) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Supported OS | Windows XP, 7, 8, 10, 11 (32/64-bit) |
| Compatible Software | Unity Pro, EcoStruxure Control Expert, Concept, ProWORX |
| Supported Devices | Modicon Quantum, Premium, Momentum PLCs |
| Protocols Supported | Modbus Plus |
Industry Applications
-
Industrial Automation – Enables seamless programming and diagnostics of Modbus Plus devices in manufacturing and process plants
-
Maintenance and Troubleshooting – Ideal for field technicians to perform on-site system checks and device configuration
-
System Commissioning – Facilitates fast and reliable connection to Modbus Plus networks during control system setup
-
Modernization Projects – Provides USB-based interface for integrating legacy MB+ equipment with modern computers
-
OEM and Machine Builders – Supports development and deployment of MB+ networks in machine control systems
The Schneider TSXCUSBMBP Modbus Plus/USB Converter is a reliable, portable, and user-friendly tool for interfacing PCs with Modbus Plus networks. Its robust design, full software compatibility, and plug-and-play operation make it an essential accessory for automation professionals managing Modicon control systems.
