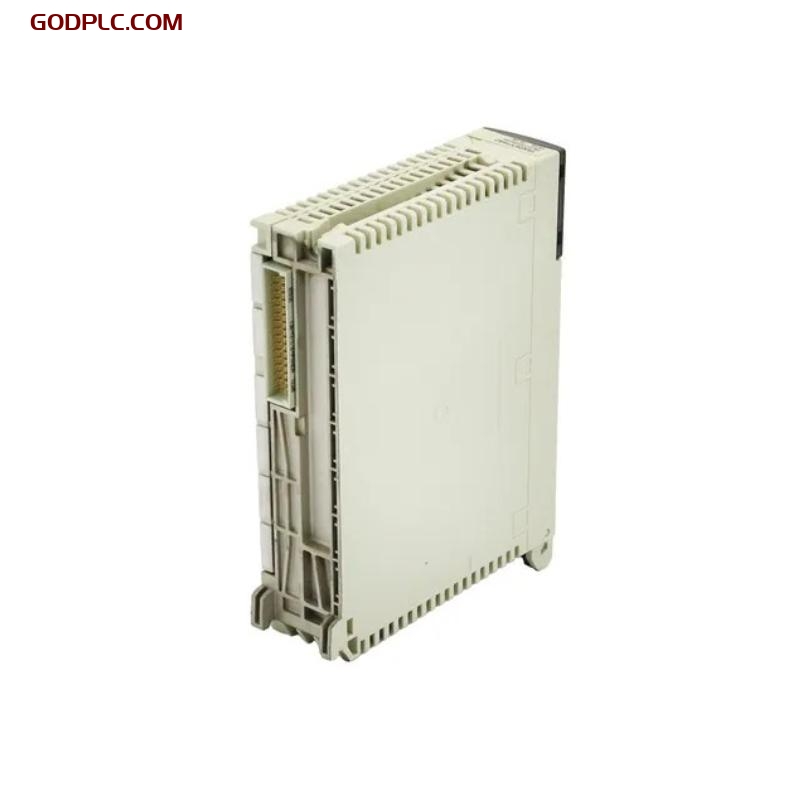

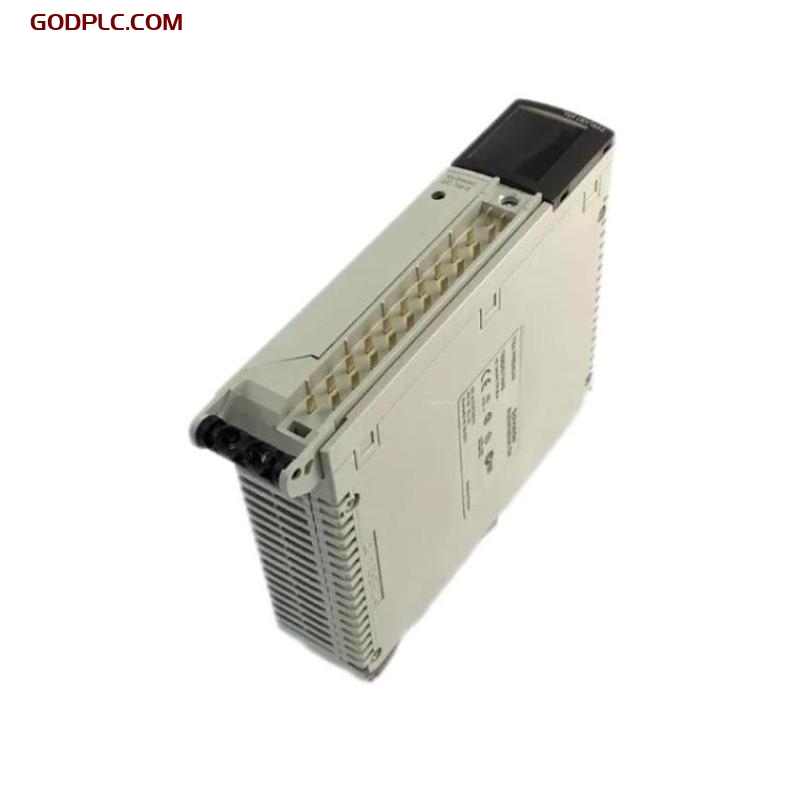

Schneider TSXDEY16A2 Discrete Input Modules

Product Overview

The Schneider TSXDEY16A2 Discrete Input Module is designed to provide reliable and efficient digital input processing for Schneider Electric’s Modicon automation systems. With its 16 discrete inputs, this module ensures that digital signals from field devices such as sensors, limit switches, and push buttons are accurately processed and transmitted to the control system.

Built to withstand demanding industrial environments, the TSXDEY16A2 offers high performance and flexible integration with Modicon PLCs, making it an ideal choice for applications requiring fast and secure digital signal processing. The module is equipped with features such as isolated inputs and diagnostic indicators, which help ensure operational reliability and simplify system maintenance.

Key Features

• 16 Discrete Inputs – Provides 16 independent digital inputs for connecting a wide range of field devices such as sensors, switches, and alarms

• Isolated Inputs – Each input is electrically isolated, protecting the module and PLC from voltage spikes and electrical noise

• Flexible Signal Handling – Accepts a variety of signal types, including dry contacts and 24 VDC signals, ensuring compatibility with different field devices

• Built-In Diagnostics – Features status indicators for each input, enabling real-time monitoring of input conditions and simplifying troubleshooting

• Compact Design – Compact and space-efficient, this module fits into Modicon TSX racks, optimizing panel space in industrial control environments

• High-Speed Processing – Ensures fast, reliable processing of digital signals to support high-speed applications in automation systems

• Wide Operating Temperature Range – Designed to operate in extreme environments, with a temperature range from -20°C to +55°C

• Seamless Integration – Fully compatible with Schneider Modicon PLC systems, allowing easy integration into existing industrial automation setups

• Reduced Wiring Complexity – Simplifies wiring with a single cable connection for all inputs, reducing installation time and complexity

Technical Specifications

3.1 Mechanical Specifications

3.2 Electrical Specifications

3.3 Environmental Specifications

3.4 System Compatibility

Industry Applications

• Industrial Automation – Ideal for monitoring the status of field devices such as limit switches, push buttons, and sensors in automated manufacturing systems

• Manufacturing – Provides digital inputs for assembly lines, conveyor systems, and robotic control for seamless operation in production environments

• Energy and Utilities – Used to process digital signals from various control panels, safety switches, and field sensors in energy plants and utilities

• Building Automation – Supports digital signal monitoring in building systems, including HVAC and lighting control systems

• Transportation – Ensures accurate signal processing for railway control systems, airport baggage handling systems, and traffic management applications

The Schneider TSXDEY16A2 Discrete Input Module is a reliable and efficient solution for integrating digital input devices into Schneider Electric Modicon PLC systems. Its robust design, diagnostic capabilities, and flexibility make it an ideal choice for industrial applications where accurate and high-speed digital signal processing is required.
