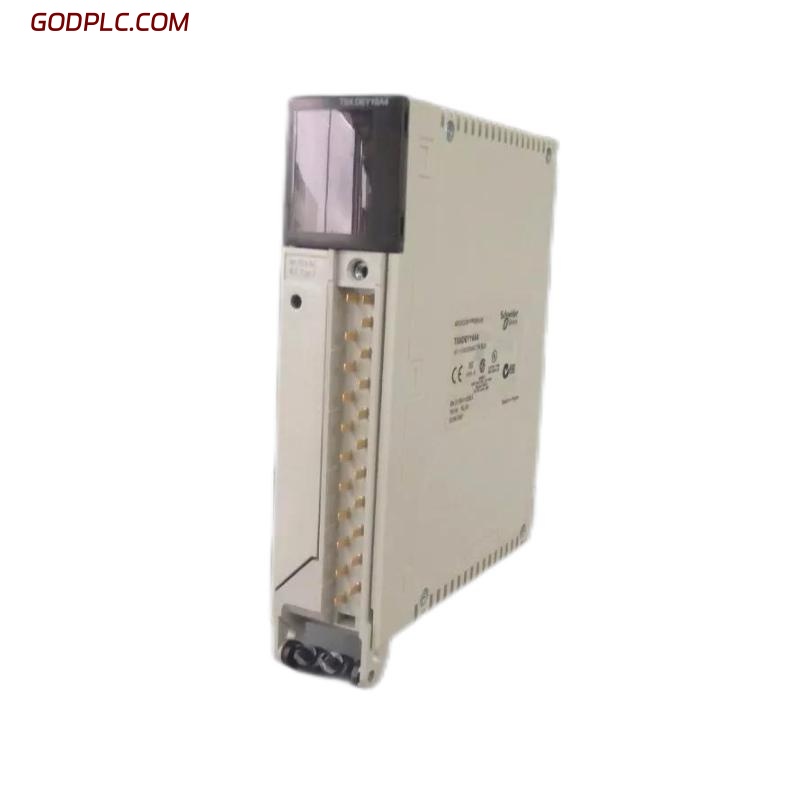

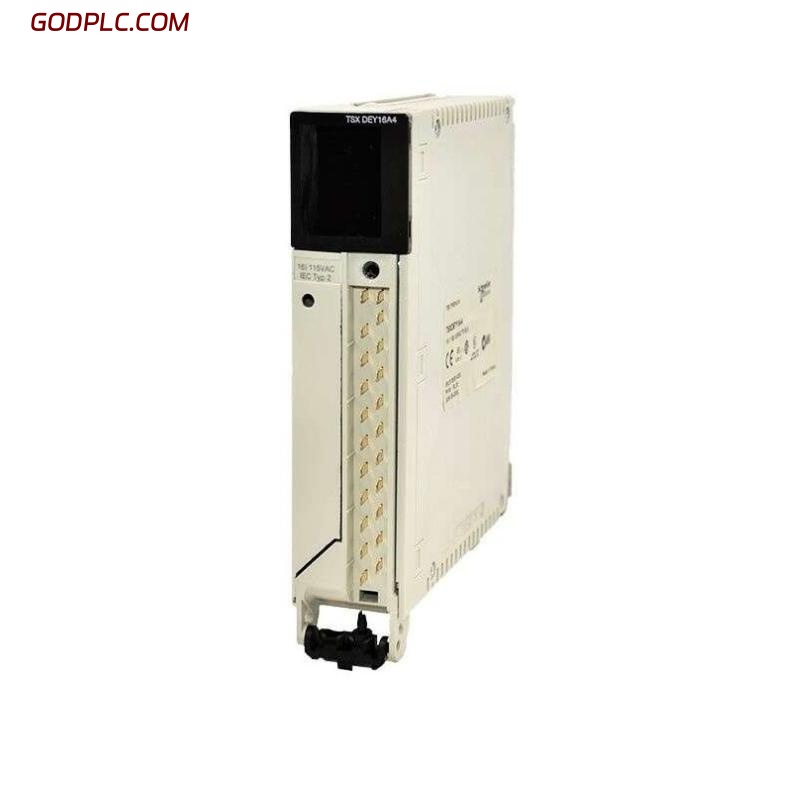

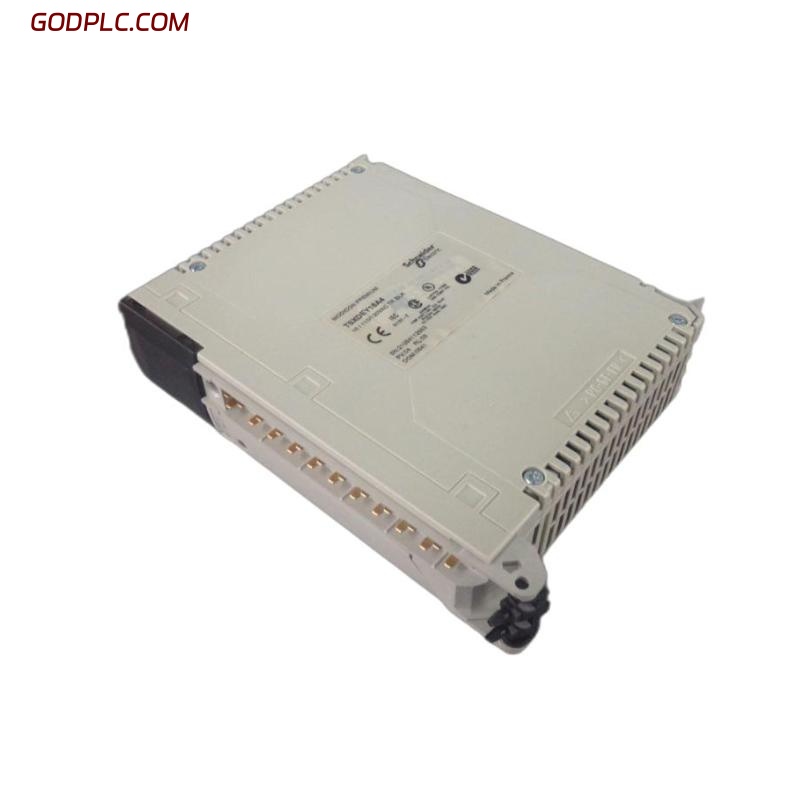

Schneider TSXDEY16A4 Discrete Input Modules

Product Overview
The Schneider TSXDEY16A4 Discrete Input Module is a high-performance input module designed for use with Schneider Electric’s Modicon programmable logic controllers (PLCs). This module features 16 discrete input channels, providing a reliable interface for the detection of on/off states or discrete signals in industrial control applications. It is ideal for use in systems requiring the collection of binary inputs, such as monitoring sensors, switches, or other digital devices.

Built to meet the demands of industrial environments, the TSXDEY16A4 is engineered for high-speed response, ensuring real-time input processing for applications in factory automation, process control, and machine monitoring. Its compact design and integration with Modicon PLCs make it a versatile solution for various industrial systems.

Key Features

• 16 Digital Inputs – Provides 16 channels for discrete on/off signal inputs, ideal for monitoring sensors, switches, or relays

• High-Speed Processing – Quick response times for fast signal detection and processing in time-critical applications

• Flexible Voltage Range – Supports a wide voltage range for input signals, ensuring compatibility with various sensors and devices

• Seamless Integration – Easily integrates with Schneider Electric’s Modicon PLC systems for efficient data exchange and control

• Robust Design – Built to withstand harsh industrial environments, with features such as shock and vibration resistance

• Compact and Space-Efficient – Ideal for installation in control cabinets with limited space

• Optical Isolation – Provides optical isolation for protection against electrical surges or spikes

Technical Specifications

Dimensions and Weight

Electrical Characteristics

Environmental Characteristics

System Compatibility

Industry Applications

• Factory Automation – Used to monitor and control machines, production lines, and assembly systems through discrete signals

• Process Control – Ideal for industries such as chemicals, pharmaceuticals, and food & beverage, where digital sensors and switches are used to track process conditions

• Energy Management – Monitoring digital signals from meters, breakers, and other equipment in energy production and distribution systems

• Machine Monitoring – Collecting on/off signals from various sensors and devices to ensure proper operation of equipment and systems

• Building Automation – Used to control and monitor lighting, HVAC systems, and security equipment through digital inputs

The Schneider TSXDEY16A4 Discrete Input Module is a powerful and versatile component for industrial automation systems, offering 16 digital input channels with quick response times and flexible voltage handling. Its compatibility with Modicon PLC systems ensures seamless integration into various control applications, while its robust design ensures reliable performance even in harsh industrial conditions. Whether you’re managing machine states, process monitoring, or energy systems, the TSXDEY16A4 provides the precision and durability required for high-performance industrial automation.
