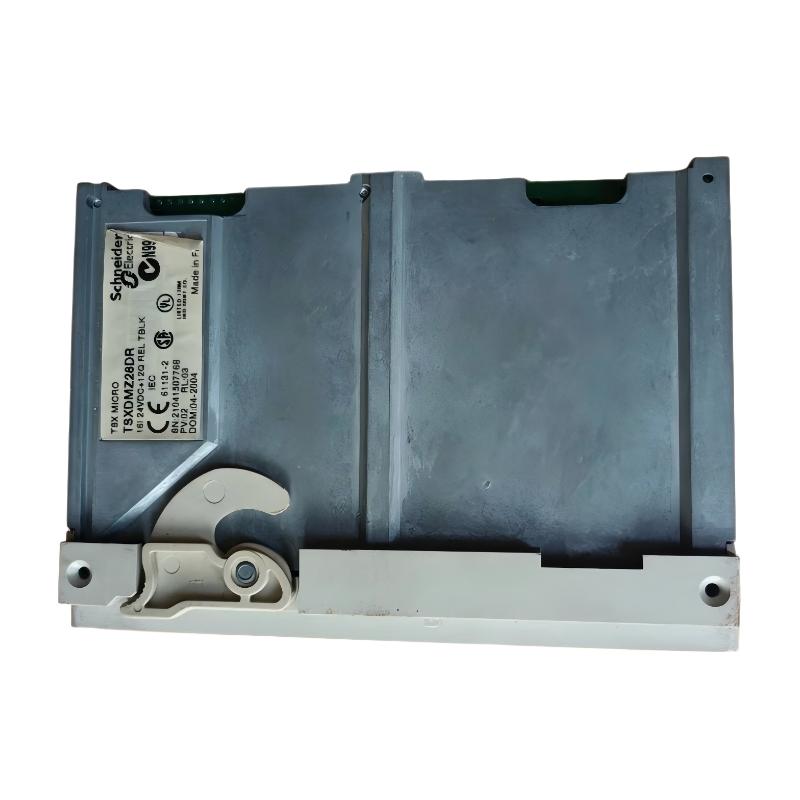

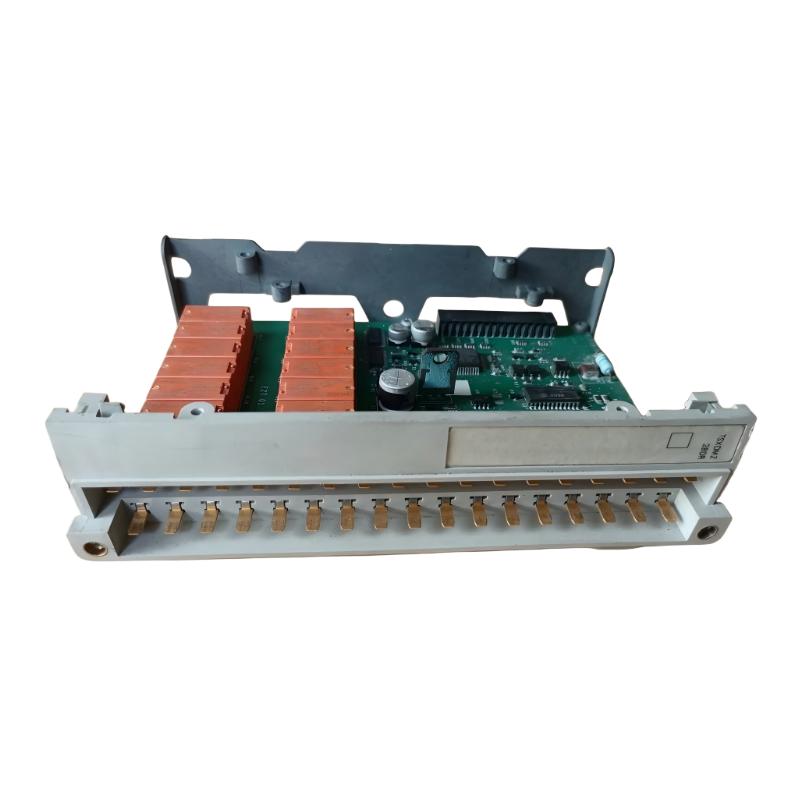

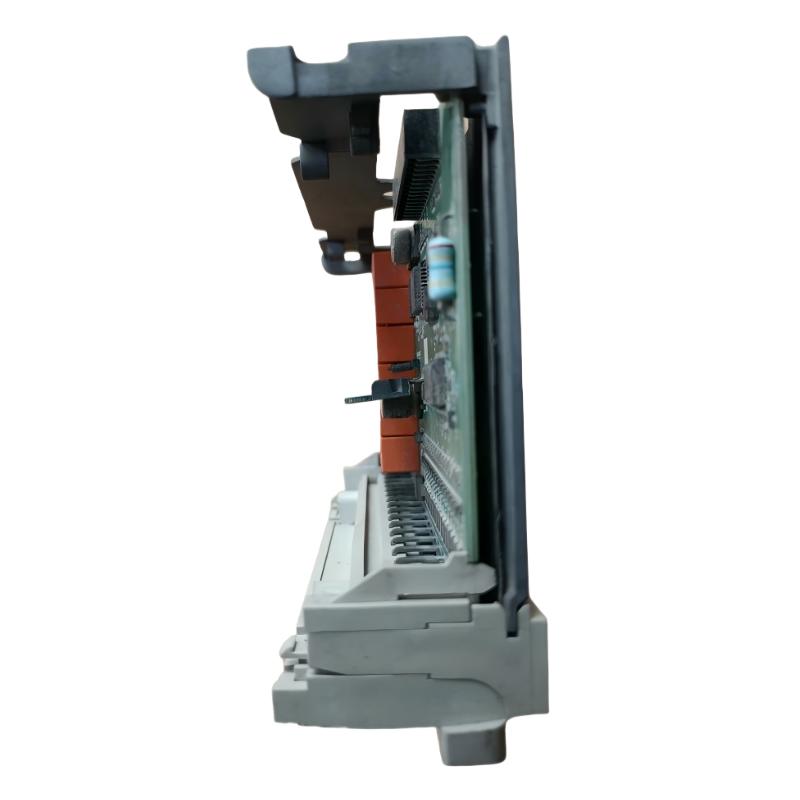

Schneider TSXDMZ28DR Logic Relay I/O Base
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TSXDMZ28DR |
| Product Type | Logic Relay I/O Base |
| Series | Schneider Modicon Premium Series |
| Module Type | Logic Relay Input/Output Base Module |
| I/O Function | Digital Input Acquisition and Relay Output Control |
| Signal Type | Discrete Digital Signal |
| Input Function | Collects Status Signals from Field Devices |
| Output Function | Controls Relay-Based Industrial Devices |
| Function | Provides Digital Signal Connection and Relay Output Control Interface for PLC Systems |
| Compatible Systems | Schneider Modicon Premium PLC Platform |
| Communication Method | PLC Rack Backplane Communication |
| Installation Method | PLC Rack Mounting |
| Connection Method | Terminal Connection |
| Power Supply | Supplied Through PLC System |
| Signal Processing | Digital Input Acquisition and Relay Output Control Processing |
| Output Type | Relay Contact Output |
| Diagnostic Function | Module Status Monitoring and System Fault Diagnosis |
| Status Indicators | LED Indicators for Operation Status and I/O Status |
| Programming Compatibility | Schneider Unity Pro / Control Expert Software |
| Application Areas | Industrial Automation Control, Machine Control, Production Lines, Process Control Systems |
| Operating Environment | Industrial Automation Control Environment |
| Module Function | Provides Reliable Digital I/O Expansion and Relay Control Capability for PLC Applications |
| Maintenance Features | Supports System Diagnostics and Quick Module Replacement |
| Dimensions | 260 × 180 × 55 mm |
| Weight | 0.65 kg |
FAQ
1. What is the primary function of the Schneider TSXDMZ28DR Logic Relay I/O Base?
The Schneider TSXDMZ28DR Logic Relay I/O Base is designed to provide digital input monitoring and relay output control functions for Schneider Modicon Premium PLC systems.
The module collects ON/OFF status signals from industrial field devices and transfers the information to the PLC controller for processing. Based on the control program, the PLC sends output commands through the module to operate external relay-controlled devices.
The TSXDMZ28DR is commonly used in industrial automation applications such as machine control, production equipment, and process monitoring systems where reliable digital signal handling is required.
2. How does the TSXDMZ28DR communicate with the Schneider PLC system?
The TSXDMZ28DR communicates with the Modicon Premium PLC system through the PLC rack backplane.
During operation, the module exchanges input and output data with the PLC CPU. Digital signals collected from field devices are transferred to the controller, while PLC-generated control commands are sent back to the module to manage external relay output circuits.
This backplane communication method provides stable data transmission, efficient control response, and reliable integration with Schneider automation architectures.
3. What types of devices can be connected to the Schneider TSXDMZ28DR?
The TSXDMZ28DR supports connection with various industrial digital devices used for monitoring and control applications.
Input devices commonly include proximity sensors, limit switches, push buttons, selector switches, photoelectric sensors, and machine status feedback signals.
The relay output side can control industrial components such as contactors, solenoid valves, alarm indicators, motor control circuits, and other devices requiring switching operation.
This makes the module suitable for flexible field device integration in industrial automation systems.
4. What are the advantages of using the Schneider TSXDMZ28DR Logic Relay I/O Base?
The TSXDMZ28DR provides an integrated digital input and relay output solution, reducing the need for additional control components and simplifying PLC system configuration.
Its relay output capability allows compatibility with various industrial loads while maintaining dependable switching performance.
The module also offers strong compatibility with Schneider Modicon Premium PLC platforms, allowing engineers to easily configure, diagnose, and maintain automation systems.
By combining signal acquisition and relay control functions, the TSXDMZ28DR improves system flexibility and operational efficiency.
5. What are the common causes of I/O faults on the TSXDMZ28DR?
Common causes of TSXDMZ28DR I/O faults include incorrect wiring, damaged sensors, relay contact problems, unstable field power supply, loose terminal connections, electrical noise interference, or incorrect PLC program settings.
When a fault occurs, engineers should first review PLC diagnostic information and check the module status indicators.
Further troubleshooting should include testing connected field devices, checking input and output circuits, verifying PLC logic programs, and confirming that system parameters are correctly configured.
A systematic troubleshooting process can help identify problems quickly and restore normal operation.
6. What should be considered when installing the Schneider TSXDMZ28DR?
Before installation, engineers should confirm that the TSXDMZ28DR is compatible with the existing Schneider Modicon Premium PLC configuration.
The module should be installed correctly in the PLC rack, and all field wiring should follow the application design and electrical safety requirements.
After physical installation, the module should be configured through Unity Pro or Control Expert software. Communication status, input signals, and output operations should be tested before the system enters normal operation.
Proper installation ensures stable communication and reliable control performance.
7. What maintenance procedures are recommended for the TSXDMZ28DR?
Regular maintenance for the TSXDMZ28DR includes checking LED status indicators, reviewing PLC diagnostic records, inspecting terminal connections, and verifying connected field equipment.
Maintenance personnel should regularly inspect relay output circuits, signal wiring, and external devices to identify abnormal conditions before they develop into system failures.
Monitoring switching performance and input signal stability during scheduled inspections helps maintain reliable module operation and reduces unexpected production interruptions.
8. How can the long-term reliability of the Schneider TSXDMZ28DR be improved?
The long-term reliability of the TSXDMZ28DR can be improved through correct installation, accurate configuration, and preventive maintenance practices.
Maintaining stable field signals, ensuring reliable electrical connections, reducing electromagnetic interference, and monitoring PLC system diagnostics can help maintain consistent module performance.
Regular evaluation of I/O operation status allows engineers to detect potential issues early and take corrective actions before failures occur.
With proper maintenance and system management, the TSXDMZ28DR can provide reliable digital control performance for Schneider Modicon Premium automation systems.
Schneider TSXDMZ28DR Logic Relay I/O Base is in stock. Please contact us for a quick quote and competitive pricing.
