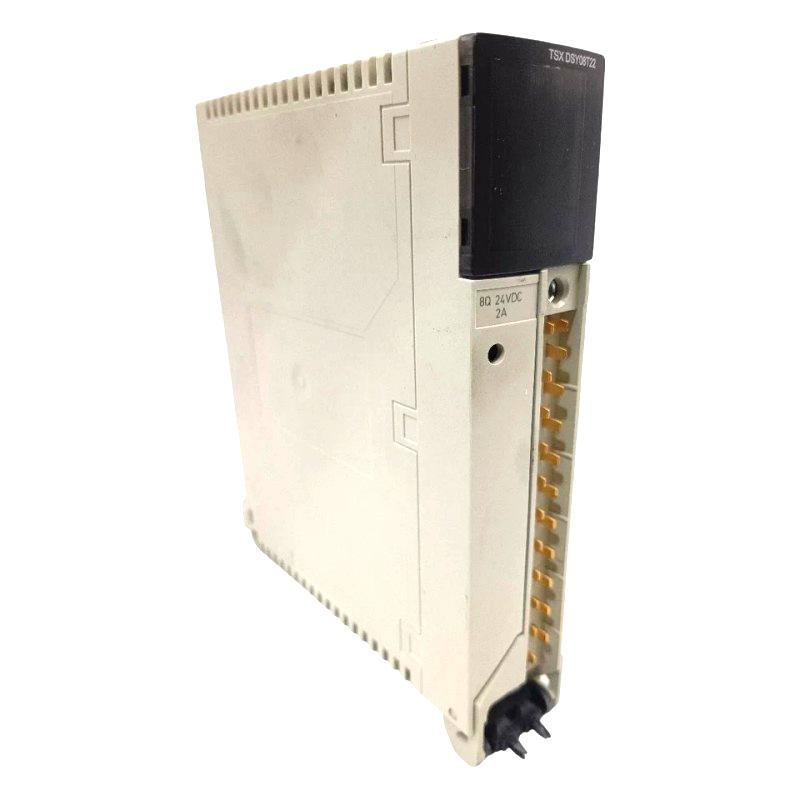

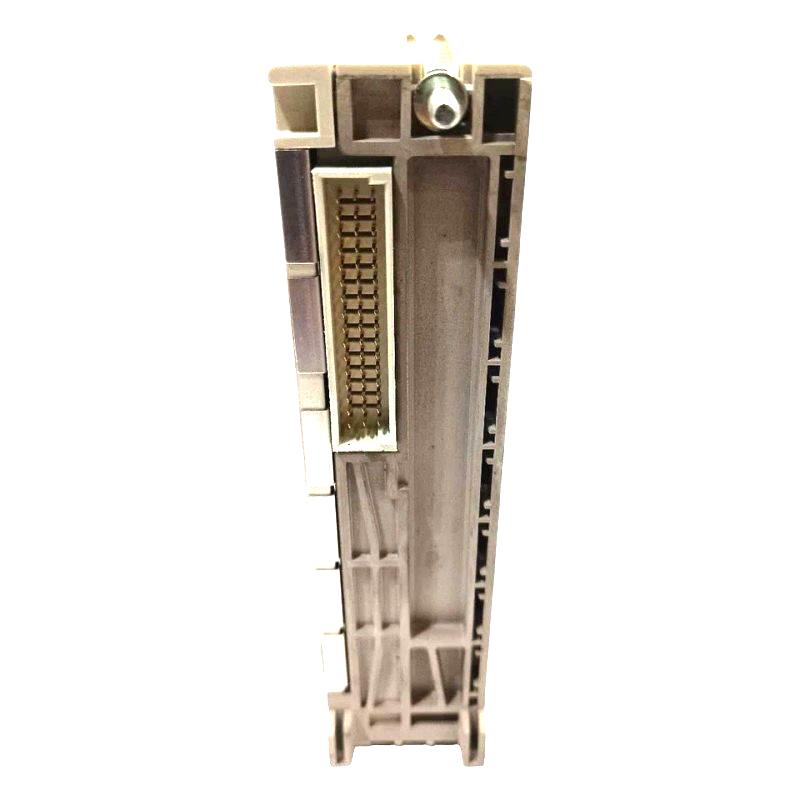

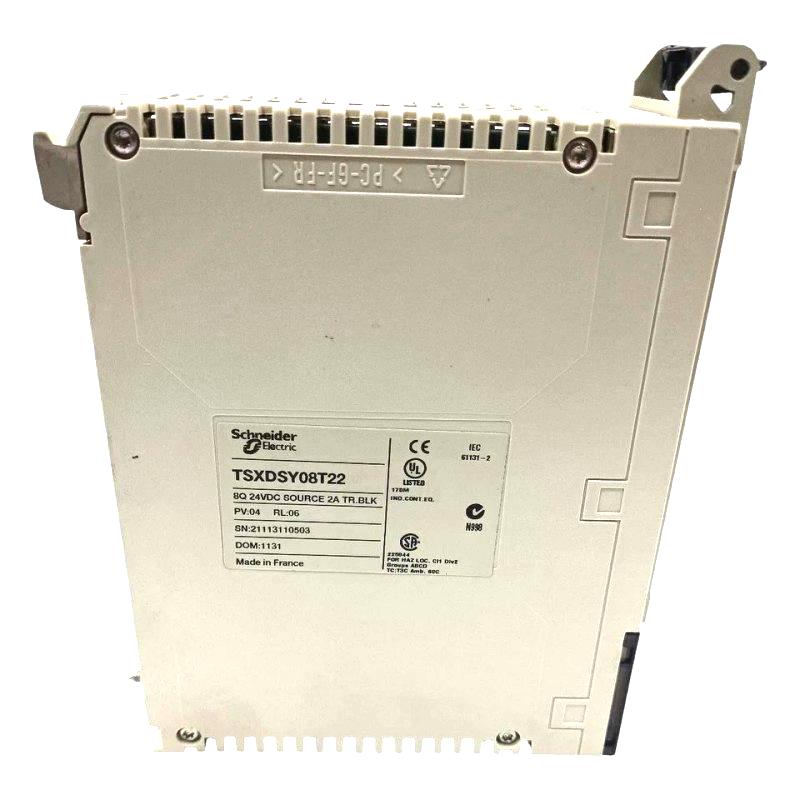

Schneider TSXDSY08T22 Discrete Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Discrete Output Module |
| Brand | Schneider Electric |
| Model | TSXDSY08T22 |
| Product Type | Discrete Output Module |
| Product Series | Modicon TSX Series |
| Function | Provides digital output signals from the PLC system to control industrial field devices |
| Output Type | Digital Transistor Output |
| Number of Output Channels | 8 Channels |
| Output Method | Solid-State Transistor Output |
| Rated Output Voltage | 24V DC |
| Load Type | Solenoid valves, relays, contactors, indicator lamps, and industrial actuators |
| Output Technology | Transistor Switching Output |
| Communication Method | PLC backplane communication |
| Installation Method | PLC rack mounting |
| Module Design | Modular plug-in I/O design |
| System Compatibility | Schneider Electric Modicon TSX PLC systems |
| Diagnostic Function | Supports output status monitoring, module status indication, and fault diagnostics |
| Isolation Type | Electrical isolation between output circuits and internal control circuits |
| Response Time | High-speed digital signal switching for industrial automation applications |
| Power Supply | Supplied through PLC system backplane |
| Applications | Industrial automation, machine control, production lines, packaging systems, and process control |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Main Function | Receives PLC control commands and provides digital output signals for field equipment control |
| Dimensions | 260 × 180 × 55 mm |
| Weight | 0.41 kg |
FAQ
1. What is the primary function of the Schneider TSXDSY08T22 Discrete Output Module?
The Schneider TSXDSY08T22 Discrete Output Module is designed for Modicon TSX PLC systems to provide reliable digital output control between the PLC program and industrial field devices.
The module provides 8 transistor output channels that allow the PLC controller to operate external devices such as solenoid valves, relays, indicator lamps, and other automation components.
By converting PLC logic commands into electrical switching signals, the module enables automated equipment operation, sequence control, and process management.
It is widely used in industrial automation systems that require fast and stable output control.
2. How does the TSXDSY08T22 Discrete Output Module work?
The TSXDSY08T22 receives output commands from the PLC controller through the system backplane.
The PLC processes user-defined logic programs and sends corresponding control signals to the module according to equipment operating conditions.
The module uses transistor output circuits to switch connected loads and control external devices.
This solid-state switching method provides fast response, high reliability, and suitability for applications requiring frequent switching operations.
3. What devices can be connected to the TSXDSY08T22 output channels?
The TSXDSY08T22 can be used to control various industrial devices, including:
- Solenoid valves
- Relay coils
- Contactors
- Indicator lamps
- Alarm devices
- Small actuators
- Automation equipment interfaces
The module is commonly installed in industrial control cabinets and production equipment to provide communication between PLC logic and field devices.
4. How can output faults on the TSXDSY08T22 be diagnosed?
When an output fault occurs, first check whether the PLC program is correctly sending the output command.
Use PLC programming software to monitor the output status and verify whether the module receives the correct control signal.
Then inspect field wiring, load connections, power supply conditions, and terminal connections to ensure there are no wiring errors or damaged components.
If the external equipment is operating normally, check module diagnostics, PLC configuration settings, and system status information to locate the cause of the problem.
5. What installation precautions should be followed for the TSXDSY08T22?
Before installing the module, disconnect system power and follow proper industrial safety procedures.
Install the module in the correct Modicon TSX PLC rack position and ensure the backplane connection is secure.
Output wiring should be selected according to the connected load requirements, and signal cables should be separated from high-power cables to reduce electrical interference.
After installation, configure the module in the PLC programming environment and test each output channel before commissioning the system.
6. What are the advantages of the TSXDSY08T22 transistor output design?
The transistor output design provides faster switching speed and higher switching frequency compared with mechanical relay-based outputs.
Because it does not rely on mechanical contacts, the module reduces wear-related failures and provides improved reliability during continuous operation.
This makes the TSXDSY08T22 suitable for high-speed automation equipment, repetitive machine operations, and production line control systems.
The solid-state design also improves overall system response and stability.
7. What should be checked if the TSXDSY08T22 does not operate correctly?
If the module does not provide the expected output signals, first confirm that it is correctly installed and recognized by the PLC system.
Check PLC diagnostic information for possible configuration errors, module faults, or communication issues.
Verify that the hardware configuration in the engineering software matches the actual installed module.
If the software configuration is correct, inspect the PLC rack connection, system power supply, and field output wiring.
A step-by-step troubleshooting process can help quickly identify and resolve the problem.
8. How should the Schneider TSXDSY08T22 be maintained?
Routine maintenance should include checking module status indicators, reviewing PLC diagnostic information, and verifying connected field equipment operation.
Maintenance personnel should regularly inspect output wiring, terminal connections, cable conditions, and external devices to prevent failures caused by loose connections or component aging.
For critical automation systems, periodic testing of output channels is recommended to ensure accurate execution of PLC commands.
A preventive maintenance program with regular inspections and functional testing can improve the reliability of the TSXDSY08T22 and ensure long-term stable operation of Modicon TSX control systems.
Schneider TSXDSY08T22 Discrete Output Module is in stock. Please contact us for a quick quote and competitive pricing.
