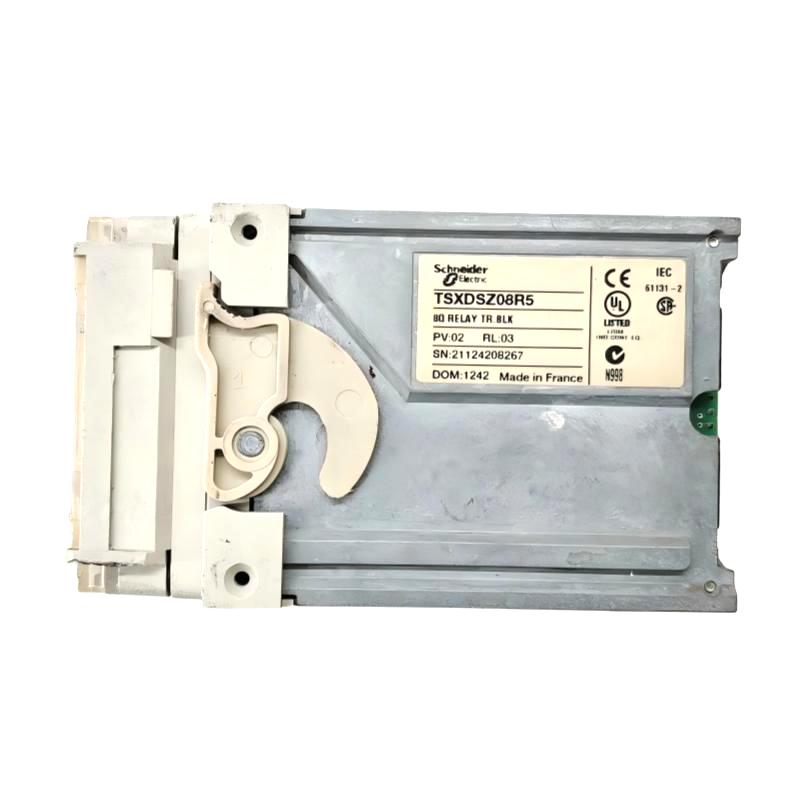

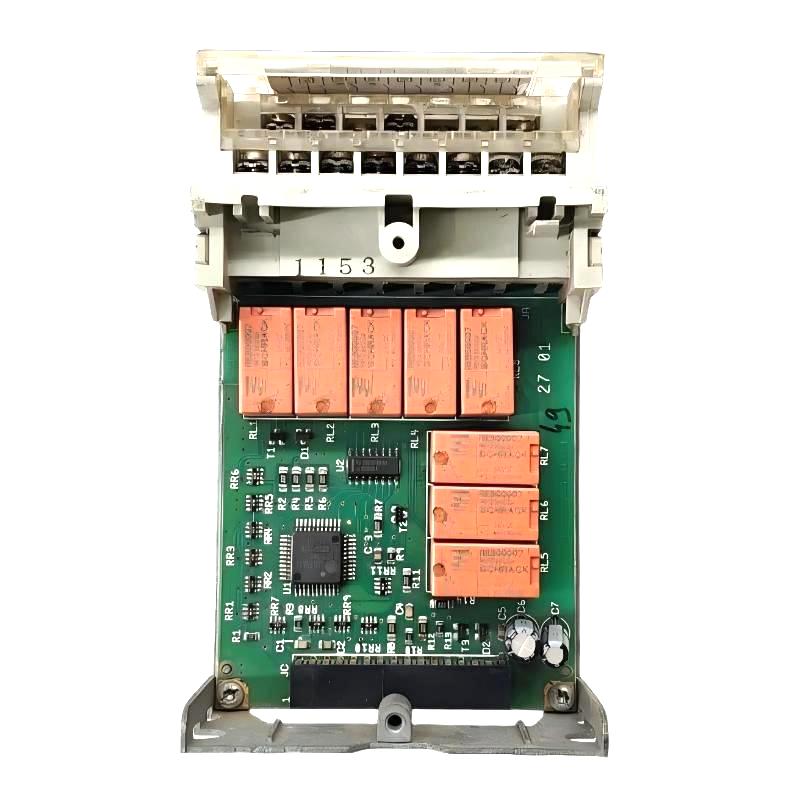

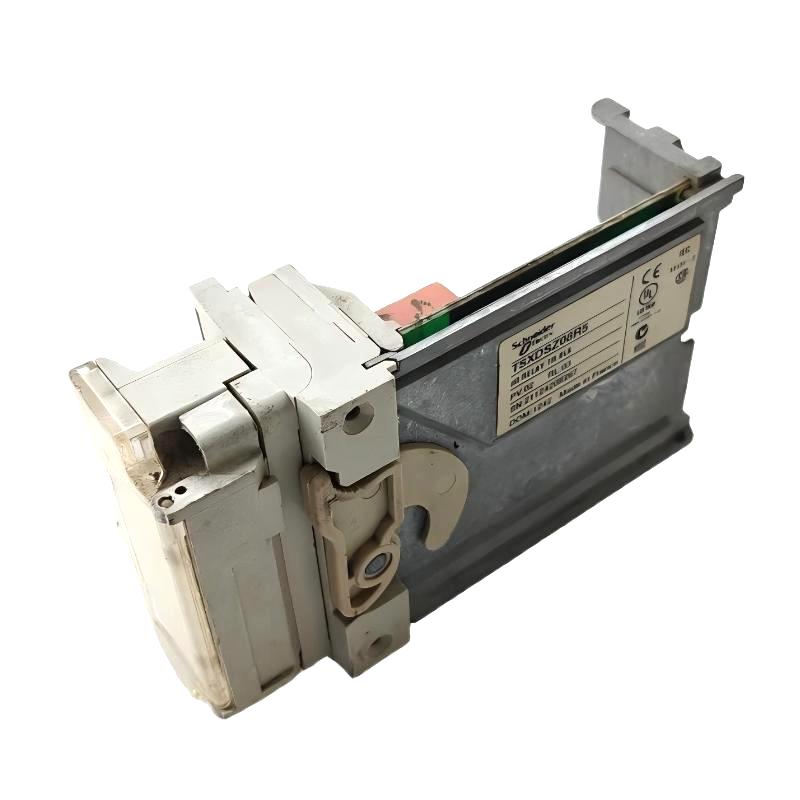

Schneider TSXDSZ08R5 Discrete Relay Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Discrete Relay Output Module |
| Brand | Schneider Electric |
| Model | TSXDSZ08R5 |
| Product Type | Discrete Relay Output Module |
| Product Series | Modicon TSX Series |
| Function | Provides switching output signals according to PLC control logic to operate industrial field devices |
| Output Type | Digital Relay Output |
| Number of Output Channels | 8 Channels |
| Output Method | Relay Contact Output |
| Rated Output Voltage | 24V DC / AC Load Control |
| Load Type | Solenoid valves, contactors, relays, indicator lamps, and industrial actuators |
| Output Technology | Mechanical Relay Switching Output |
| Communication Method | PLC system backplane communication |
| Installation Method | PLC rack mounting |
| Module Design | Modular plug-in I/O design |
| System Compatibility | Schneider Electric Modicon TSX PLC systems |
| Diagnostic Function | Supports output status monitoring, module status indication, and fault diagnostics |
| Isolation Type | Electrical isolation between output contacts and control circuits |
| Response Time | Suitable for industrial switching control and sequential control applications |
| Power Supply | Supplied through PLC system backplane |
| Applications | Industrial automation, machine control, production lines, process control, and equipment management systems |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Main Function | Receives PLC control commands and uses relay outputs to control field equipment start/stop operations |
| Dimensions | 260 × 180 × 55 mm |
| Weight | 0.361 kg |
FAQ
1. What is the primary function of the Schneider TSXDSZ08R5 Discrete Relay Output Module?
The Schneider TSXDSZ08R5 Discrete Relay Output Module is designed for Modicon TSX PLC systems to provide relay-based output control between PLC logic and industrial field devices.
The module provides 8 relay output channels that can control devices such as solenoid valves, contactors, relays, and indicator lamps according to PLC program instructions.
Through relay contact switching, the module provides flexible load control capability and improves compatibility with various industrial automation applications.
It is widely used in machine control, production automation, and industrial equipment control systems.
2. How does the TSXDSZ08R5 relay output module operate?
The TSXDSZ08R5 receives control signals from the PLC CPU module through the system backplane.
The PLC processes the user-defined program logic and sends output commands according to equipment operating conditions.
The internal relay circuits respond to these commands by opening or closing output contacts, controlling connected external devices.
This operation method provides electrical isolation between the PLC control system and field loads, improving system safety and reliability.
3. What types of industrial devices can be controlled by the TSXDSZ08R5?
The TSXDSZ08R5 can control various industrial devices, including:
- Solenoid valves
- AC contactors
- Intermediate relays
- Motor control interfaces
- Indicator lamps
- Alarm devices
- Industrial actuators
Because relay outputs provide strong load compatibility, the module can be applied in a wide range of industrial control environments.
4. How can output problems on the TSXDSZ08R5 be diagnosed?
When an output problem occurs, first verify that the PLC program is correctly sending the required output command.
Use PLC programming software to check the corresponding output status and confirm that the module is receiving the correct control signal.
Then inspect output wiring, connected loads, power connections, and relay contact conditions to identify possible wiring or equipment problems.
If field devices and wiring are normal, check PLC hardware configuration, module diagnostics, and system status information to determine whether the module has a fault.
5. What installation precautions should be considered for the Schneider TSXDSZ08R5?
Before installation, disconnect the equipment power supply and follow industrial safety procedures.
The module should be installed in the correct Modicon TSX PLC rack position and securely connected to the system backplane.
Output wiring should be selected according to the connected load type, and the load specifications should comply with module requirements.
After installation, configure the module in the PLC engineering software and test each output channel to ensure proper system operation.
6. What advantages does the TSXDSZ08R5 relay output provide compared with transistor output?
The TSXDSZ08R5 uses relay output technology, providing strong compatibility with different AC and DC load types.
Relay outputs offer electrical isolation and can control a wider range of industrial devices compared with some transistor output designs.
They are especially suitable for applications requiring independent switching control and flexible load connections.
This makes the module suitable for many industrial automation and control environments.
7. What should be done if the TSXDSZ08R5 does not operate correctly?
If the module does not provide normal output signals, first confirm that the module is correctly installed and recognized by the PLC system.
Use PLC diagnostic tools to check for module alarms, configuration errors, or communication problems.
Verify that the hardware configuration in the engineering software matches the actual installed module.
If configuration settings are correct, inspect the PLC backplane connection, power supply condition, and field output wiring.
Combining software diagnostics and hardware inspection can quickly identify the cause of the failure.
8. How should the Schneider TSXDSZ08R5 be maintained for reliable operation?
Routine maintenance should include checking module operating status, reviewing PLC diagnostic information, and verifying field equipment operation.
Maintenance personnel should regularly inspect output wiring, terminal connections, connected loads, and relay operation conditions to prevent failures caused by loose connections or equipment aging.
For automation systems operating continuously, periodic testing of output channels is recommended to ensure PLC commands are executed correctly.
Preventive maintenance, condition monitoring, and functional testing can improve the reliability of the TSXDSZ08R5 and ensure long-term stable operation of Modicon TSX control systems.
Schneider TSXDSZ08R5 Discrete Relay Output Module is in stock. Please contact us for a quick quote and competitive pricing.
