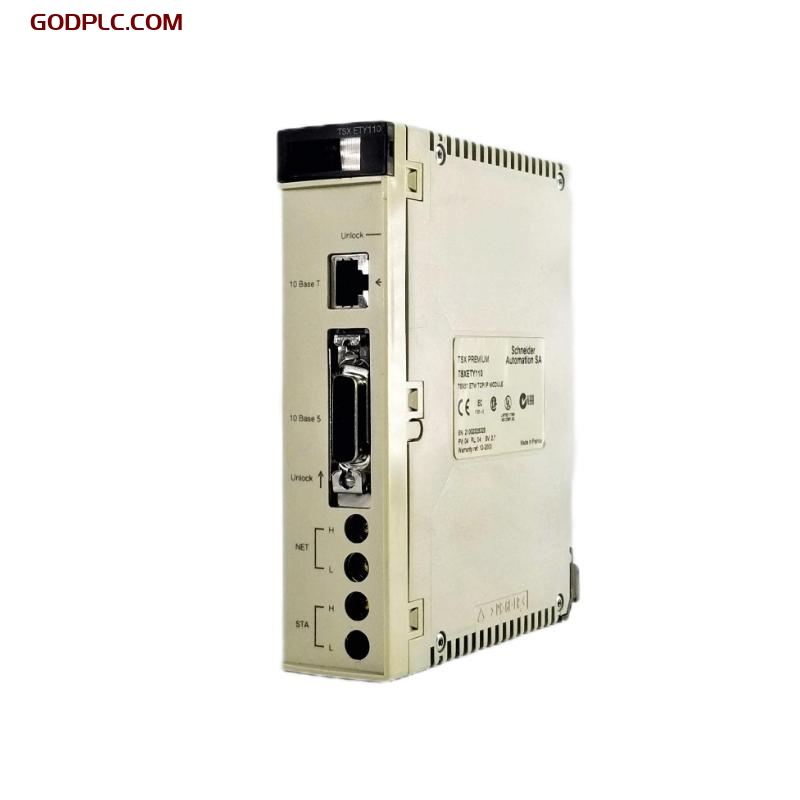

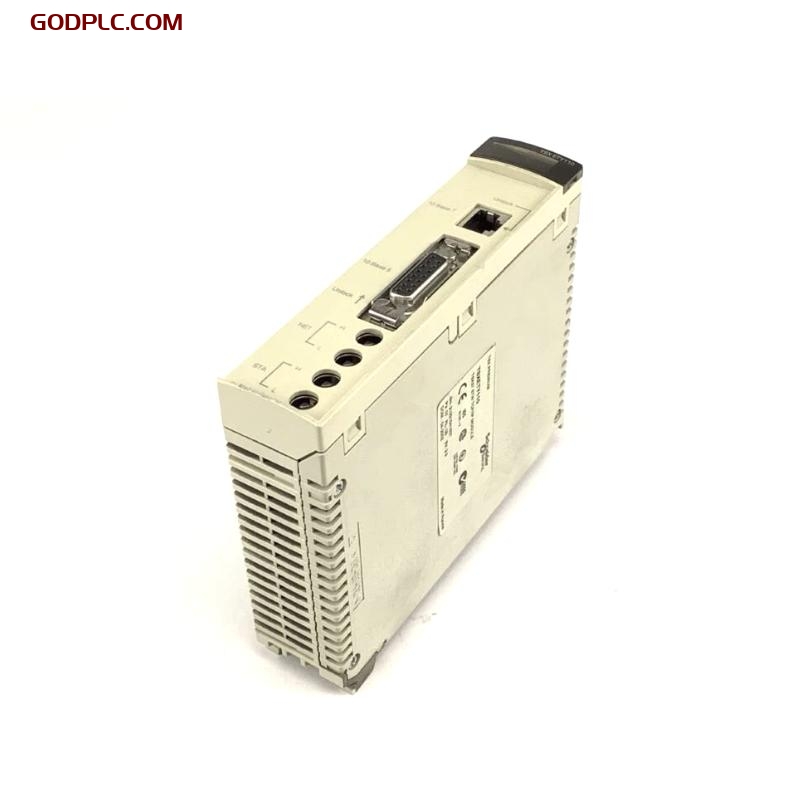

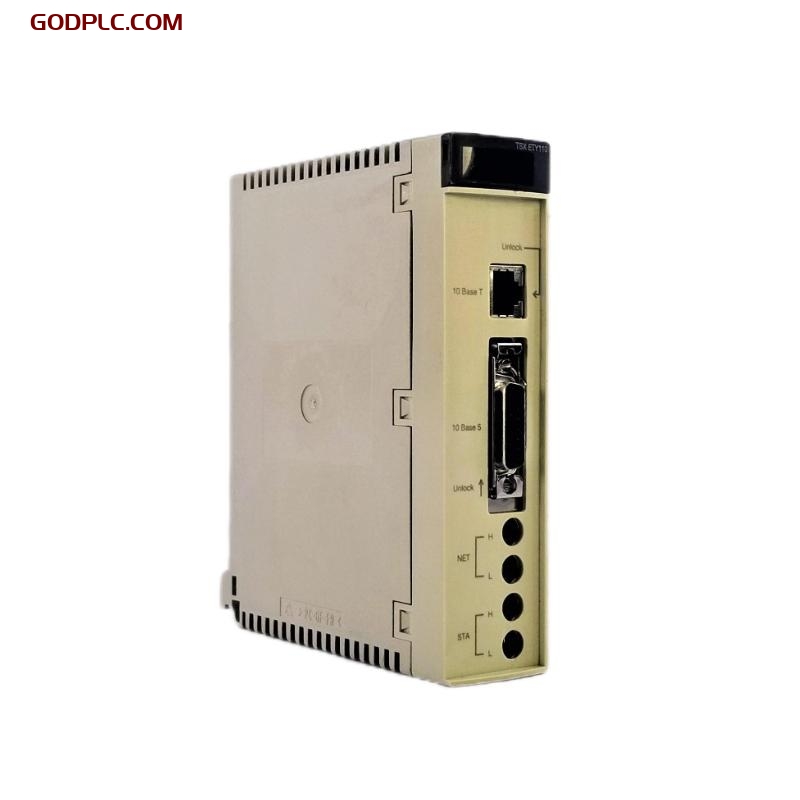

Schneider TSXETY110 ETW TCP/IP Module
Product Overview
The Schneider TSXETY110 ETW TCP/IP Module is designed to provide seamless communication between Schneider Electric’s Modicon PLCs and external devices over a TCP/IP network. It is an essential component for integrating and expanding industrial automation systems, enabling fast and reliable data exchange between devices in real-time. With its easy configuration and high compatibility, this module enhances the flexibility and performance of the overall automation system.
Key Features
-
TCP/IP Communication: Supports Ethernet-based communication, allowing for high-speed and reliable network connections.
-
Plug-and-Play Integration: Easily integrates with Modicon PLCs, simplifying setup and reducing installation time.
-
High Compatibility: Supports a wide range of network protocols, providing compatibility with various automation systems and external devices.
-
Diagnostic Capabilities: Equipped with diagnostic LEDs that provide real-time status monitoring, helping to quickly identify communication issues.
-
Industrial-Grade Durability: Built to withstand harsh industrial environments, ensuring reliable operation in demanding conditions.
-
Compact and Efficient: Designed with a small footprint for easy integration into control panels and automation racks.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
| Weight | 0.5 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | TSXETY110 |
| Part Number | 140A0200 |
| Module Type | TCP/IP Communication Module |
| Network Interface | Ethernet (RJ45) |
| Protocol Supported | TCP/IP |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC |
| Power Consumption | < 5 W |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | Modicon PLC Systems |
| Communication Protocol | TCP/IP |
| Software Configuration | Schneider Electric Configuration Software |
Industry Applications
-
Industrial Automation: Ideal for connecting PLCs and other control devices over Ethernet in industrial control networks.
-
Factory Automation: Supports fast data exchange for manufacturing processes, enhancing system performance and reducing downtime.
-
Building Automation: Used in building control systems for efficient management of HVAC, lighting, and security systems.
-
Energy Management: Facilitates communication between control systems and energy management software, allowing for more efficient use of energy resources.
The Schneider TSXETY110 ETW TCP/IP Module provides robust and reliable Ethernet communication for Modicon PLC systems, ensuring seamless integration with other devices and networks in industrial automation environments. With its high-speed communication capabilities and ease of installation, it is an excellent solution for industries requiring efficient and dependable network connections.
