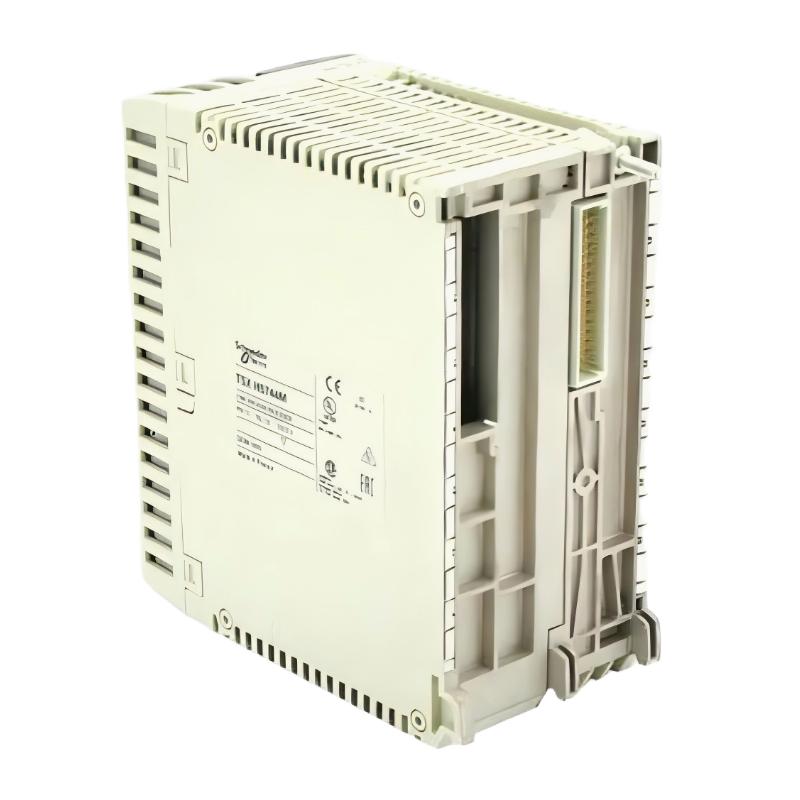

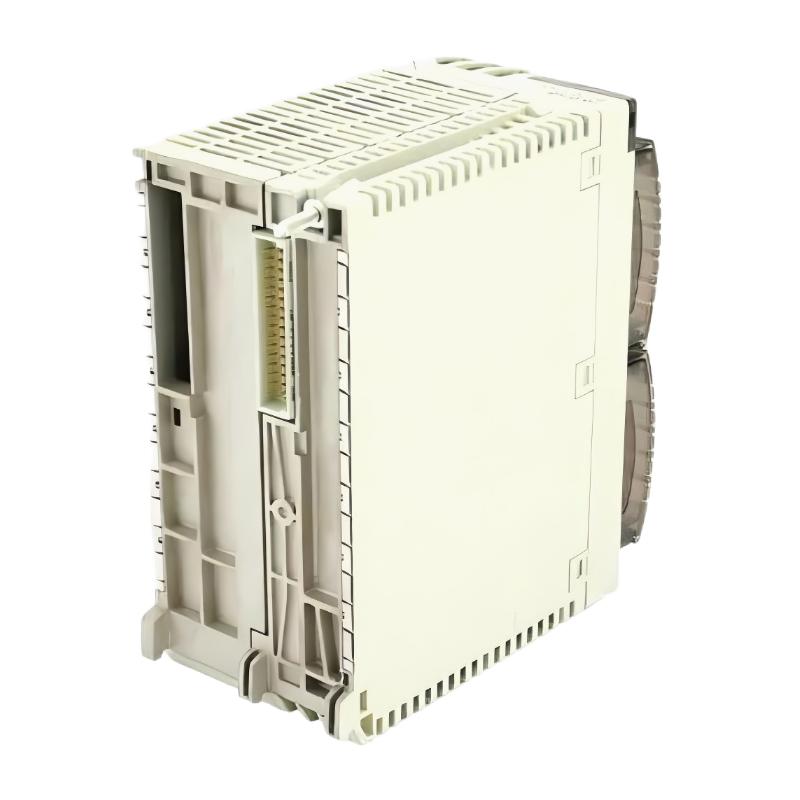

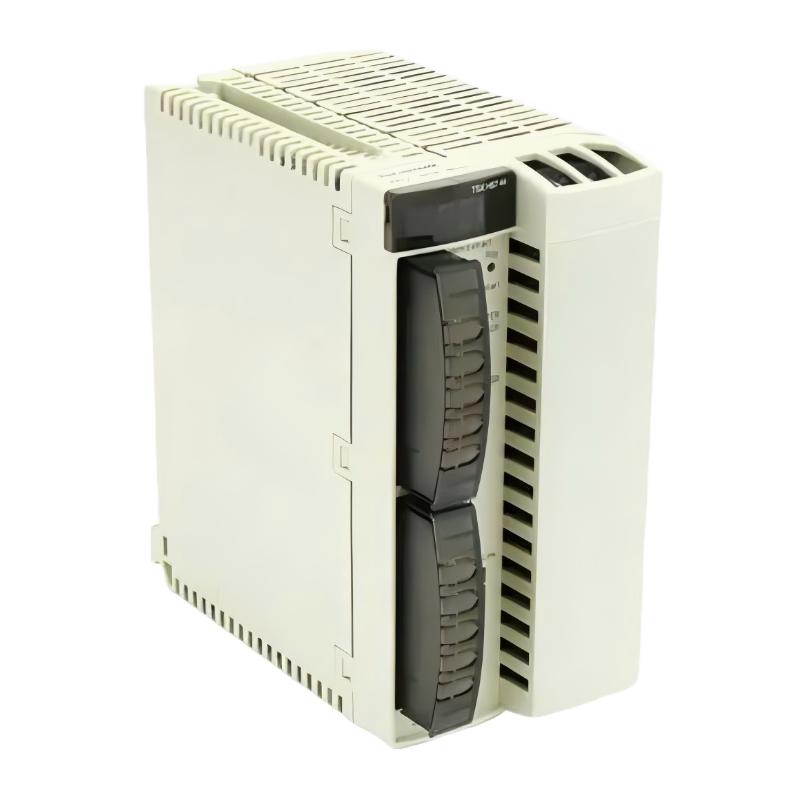

Q1: What is the main function of the Schneider TSXH5744M Unity Hot-Standby Processor?

The TSXH5744M is a high-availability CPU module designed by Schneider Electric for Modicon Unity and Quantum control systems. Its main function is to provide hot-standby redundancy, meaning two processors run in parallel—one active and one standby. The standby processor continuously mirrors the state of the active one so that it can take over immediately in case of a failure, ensuring uninterrupted industrial process control.

Q2: What does hot-standby redundancy mean in this context?

Hot-standby redundancy refers to a system architecture where both CPUs are powered and operational at the same time. The primary CPU handles all control tasks, while the secondary CPU continuously synchronizes data and execution state. If the primary CPU fails, the standby CPU takes over automatically without stopping the process, ensuring smooth and continuous operation.

Q3: Where is this processor used in an automation system?

The TSXH5744M sits at the core of the control layer in a Modicon Unity or Quantum PLC system. It is responsible for executing all automation logic while coordinating with I/O modules, communication modules, and supervisory systems such as SCADA. In redundant architectures, it forms the central processing unit pair that ensures system availability.

Q4: How does the automatic failover mechanism work?

The failover mechanism continuously monitors the health and synchronization status of both CPUs. If the active processor experiences a fault—such as hardware failure, software crash, or communication loss—the standby processor immediately assumes control. The transition is designed to be bumpless, meaning the process continues without noticeable interruption or control disturbance.

Q5: Why is synchronization between CPUs important?

Synchronization ensures that both CPUs always have identical process data, memory content, and execution state. This is critical because when a failover occurs, the standby CPU must already be fully up to date to take over seamlessly. Without proper synchronization, process discontinuity or control inconsistencies could occur.

Q6: What types of control tasks can this processor handle?

The TSXH5744M supports a wide range of industrial control functions, including sequential control, continuous process control, PID loop regulation, interlocking logic, and alarm management. It is designed to handle both discrete manufacturing processes and complex continuous process industries.

Q7: What are key considerations during installation and configuration?

Proper installation requires ensuring both CPUs in the redundant pair are configured identically and inserted correctly into the system rack. The communication backplane must be stable to support continuous synchronization. Initial system configuration must define redundancy roles clearly and verify that failover logic is correctly enabled before commissioning.

Q8: Why is CPU redundancy important in industrial automation systems?

CPU redundancy is critical in industries where downtime is costly or unsafe, such as oil and gas, power generation, and chemical processing. By eliminating single points of failure, the TSXH5744M significantly increases system availability and operational safety. It ensures that even in the event of hardware failure, the process continues without interruption, protecting both equipment and production continuity.
