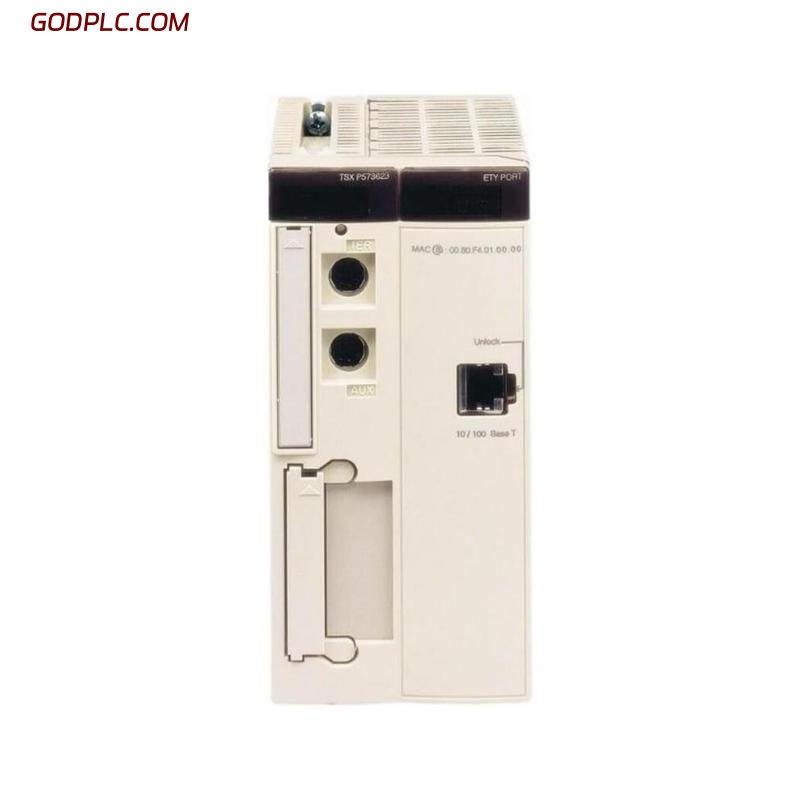

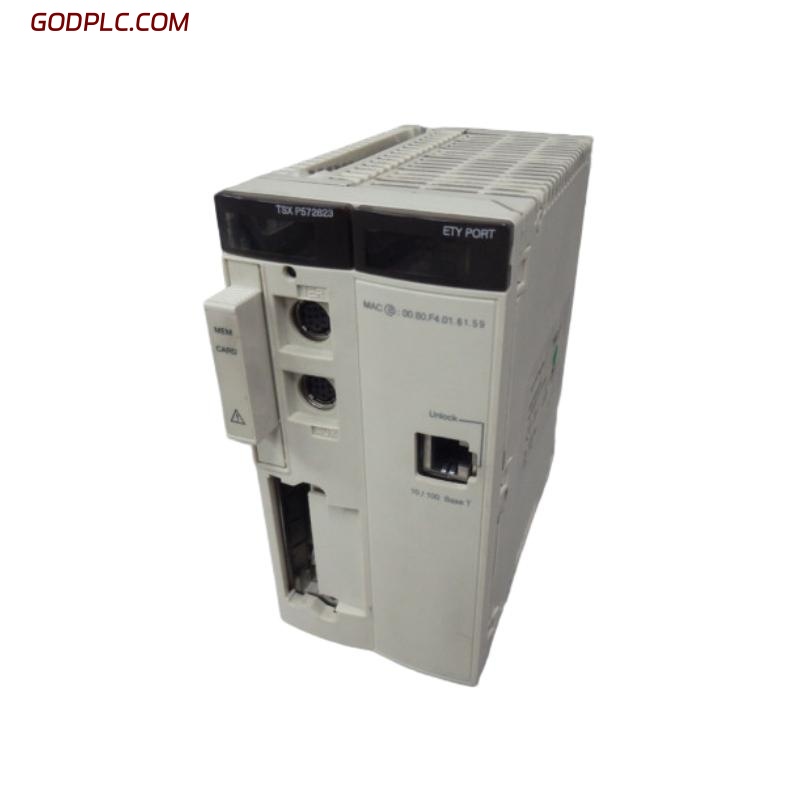

Schneider Electric TSXP572623 Dual Format PL7 Processor
Product Overview
The Schneider Electric TSXP572623 is a compact and cost-effective Dual Format Processor Module from the Modicon Premium PLC family. Designed for control tasks requiring flexibility and reliability, it supports PL7 programming and offers built-in communication ports for easy integration into industrial networks. With solid processing power and modular expansion options, the TSXP572623 is ideal for small to medium-scale automation systems requiring high availability and efficient operation.
Key Features
-
Dual-format processor supporting PL7 programming language
-
Integrated RS485 and RS232 communication ports
-
48K instructions/ms processing performance
-
64 KB user application memory with battery backup
-
Supports Modbus and Uni-Telway communication protocols
-
Modular and expandable design with remote I/O capability
-
Compatible with Modicon Premium backplane architecture
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | Package size 95 x 180 x 260mm |
| Weight | 0.76 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Processor Speed | 48 K instructions/ms |
| User Application Memory | 64 KB (battery-backed SRAM) |
| Backup Battery | Lithium cell for memory retention |
| Power Consumption | Approx. 3.5 W |
| Power Supply | 5 V DC via backplane |
Communication & Ports
| Item | Specification |
|---|---|
| Serial Ports | 1 × RS232 (programming), 1 × RS485 |
| Supported Protocols | Modbus RTU, Uni-Telway |
| Programming Software | PL7 (Micro/Mini/Pro) |
Environmental Ratings
| Item | Specification |
|---|---|
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -25°C to +70°C |
| Humidity | 5%–95% RH, non-condensing |
| Vibration/Shock | IEC 61131-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Supported Platform | Schneider Modicon Premium PLC |
| Mounting Type | DIN rail or panel-mounted |
| Compatible Backplanes | TSXRKY series rack-mounted base units |
Industry Applications
-
Factory Automation – Control of machines, conveyors, and packaging systems
-
Water/Wastewater Management – Monitoring and control of pumps and valves
-
Energy Systems – Substation automation and switchgear interface
-
Material Handling – Warehouse automation and transport systems
-
OEM Equipment – Embedded PLC control in custom machinery
The Schneider Electric TSXP572623 Dual Format PL7 Processor offers a reliable and scalable automation solution for applications that require compact control, legacy protocol support, and high execution speed. It is well-suited for both standalone and distributed systems using the Modicon Premium architecture.
Schneider TSXP572623 Dual Format PL7 Processor is in stock. Please contact us for a quick quote and competitive pricing.
